Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Brake Pedal Travel Gradually Increases
Brake Pedal Travel Gradually Increases

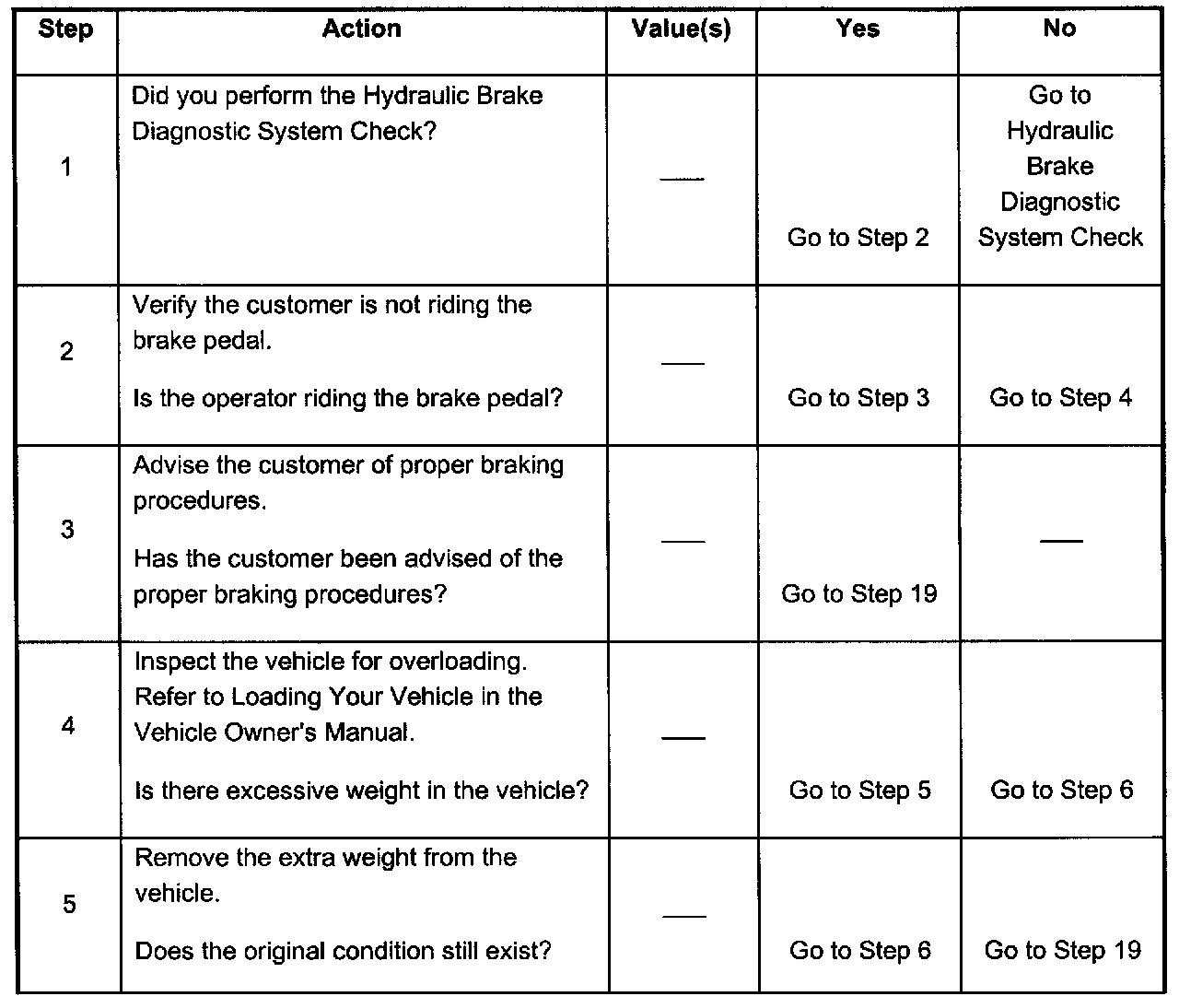

Steps 1 - 5:

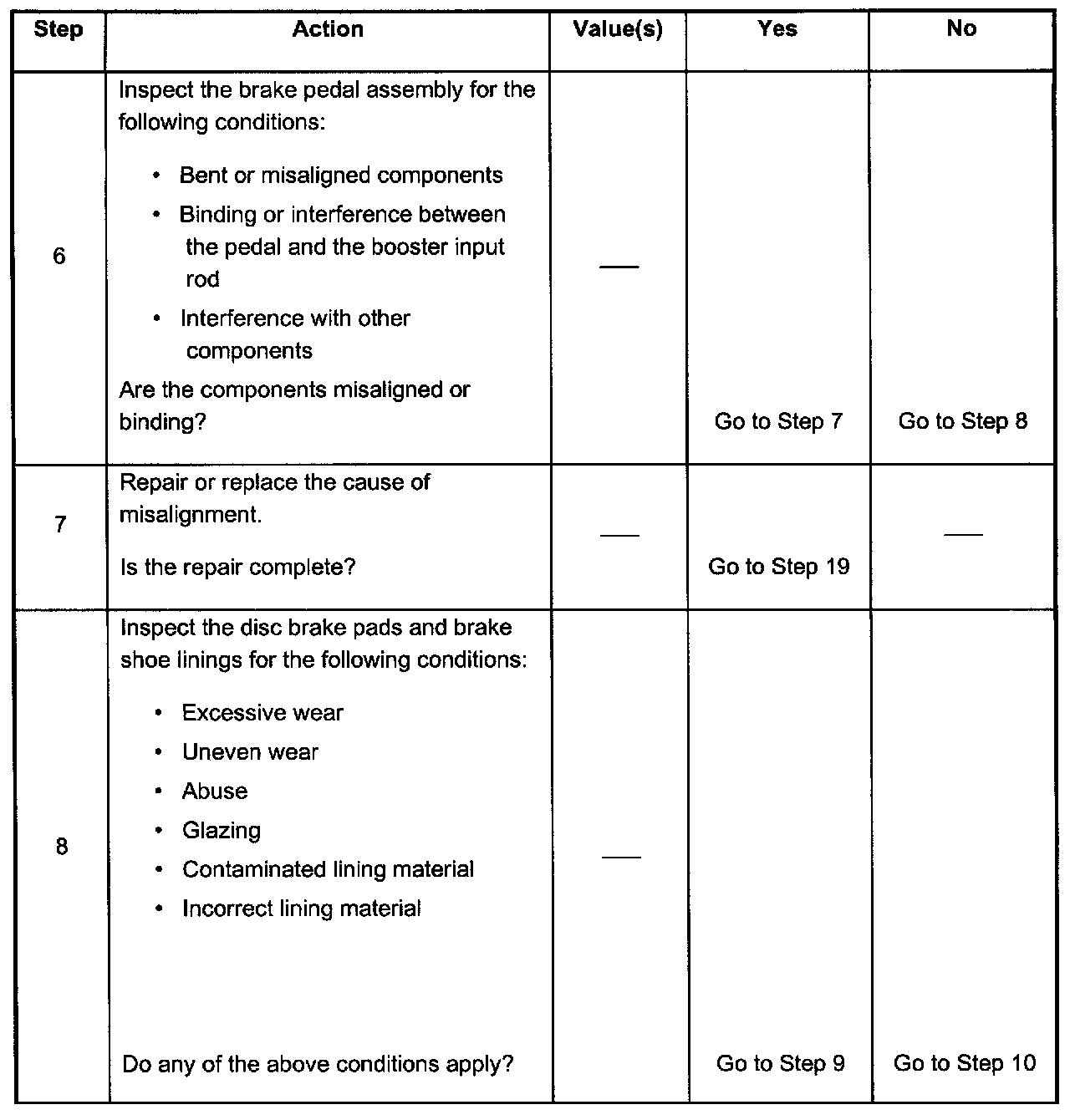

Steps 6 - 8:

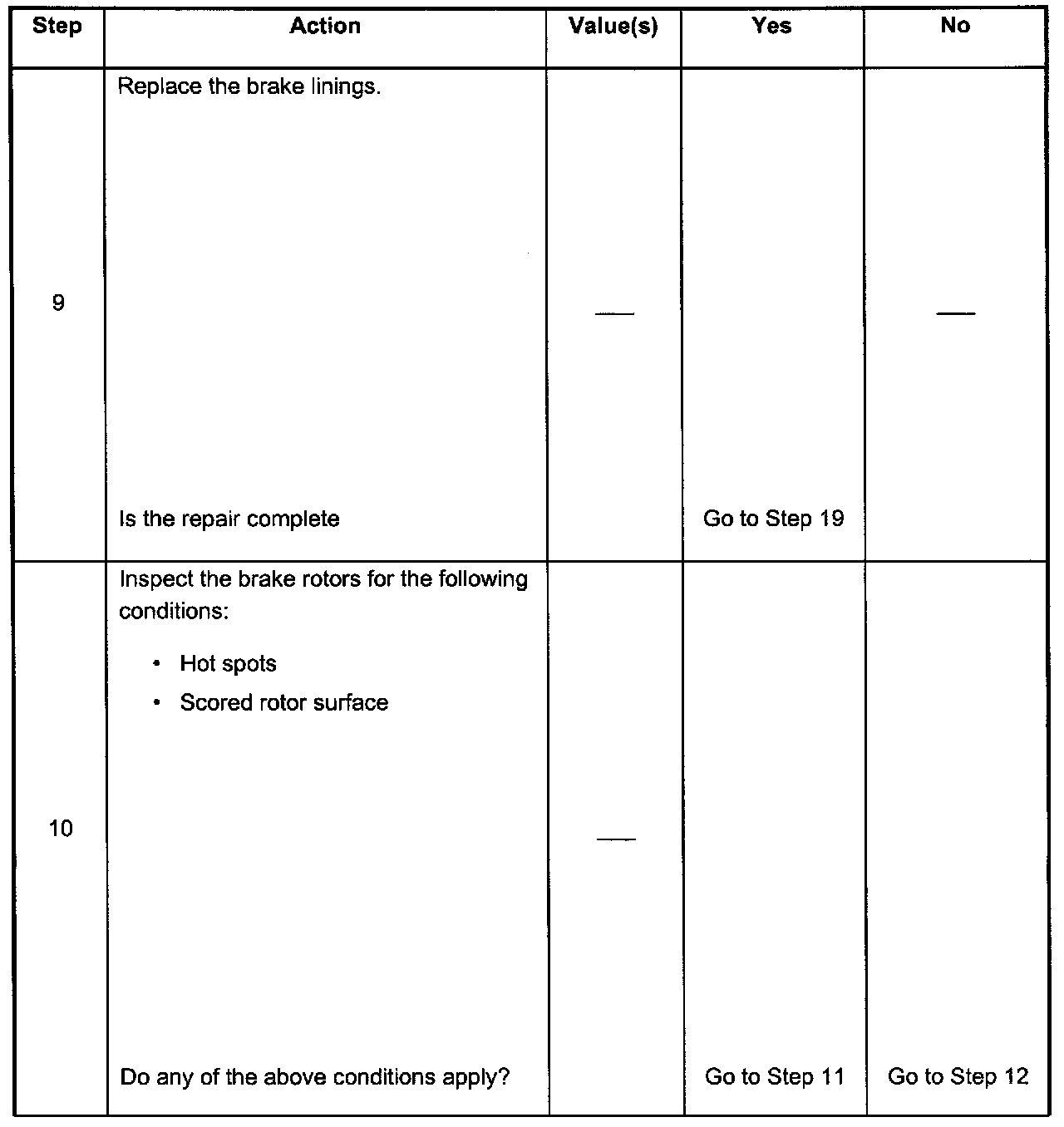

Steps 9 - 10:

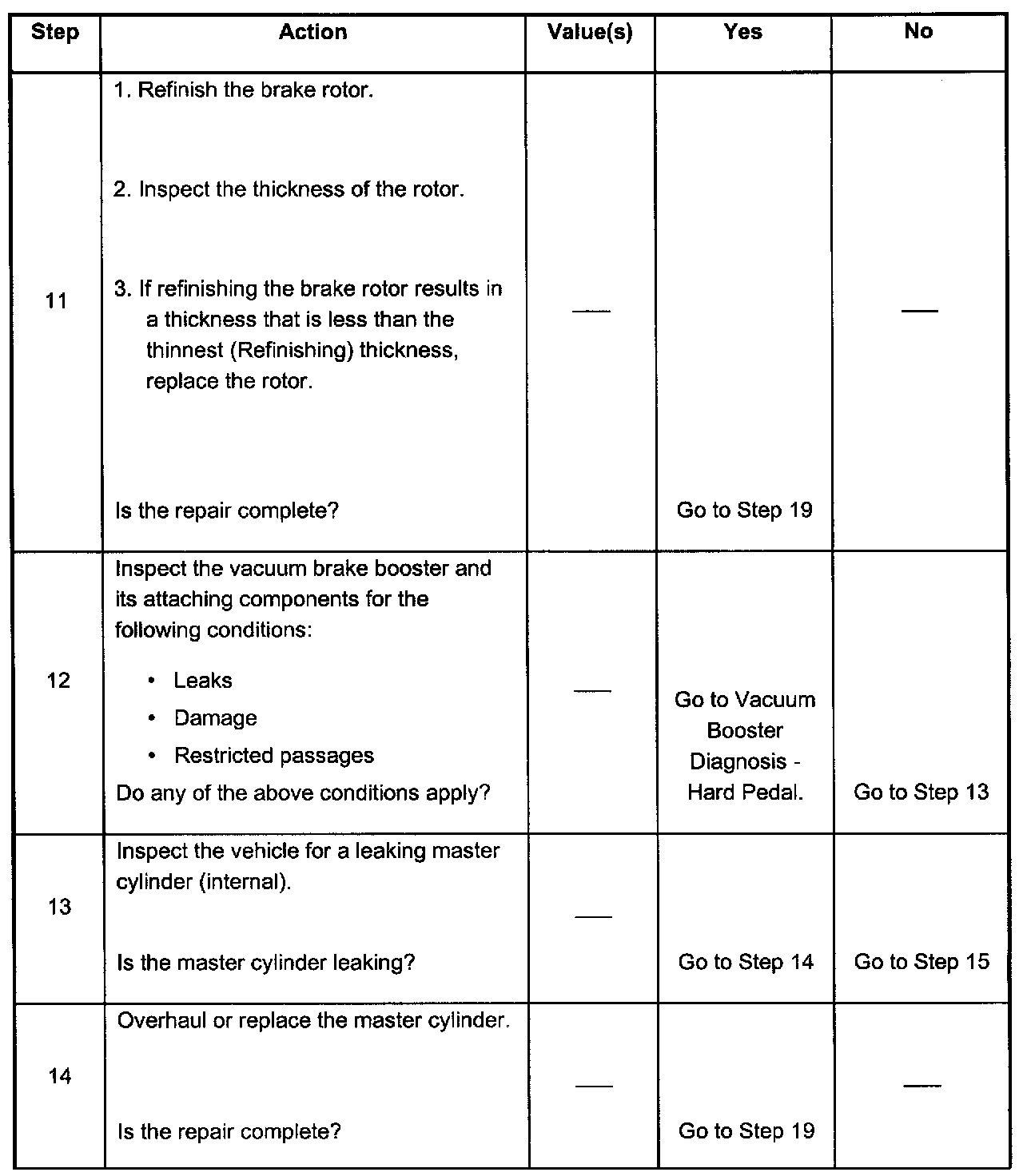

Steps 11 - 14:

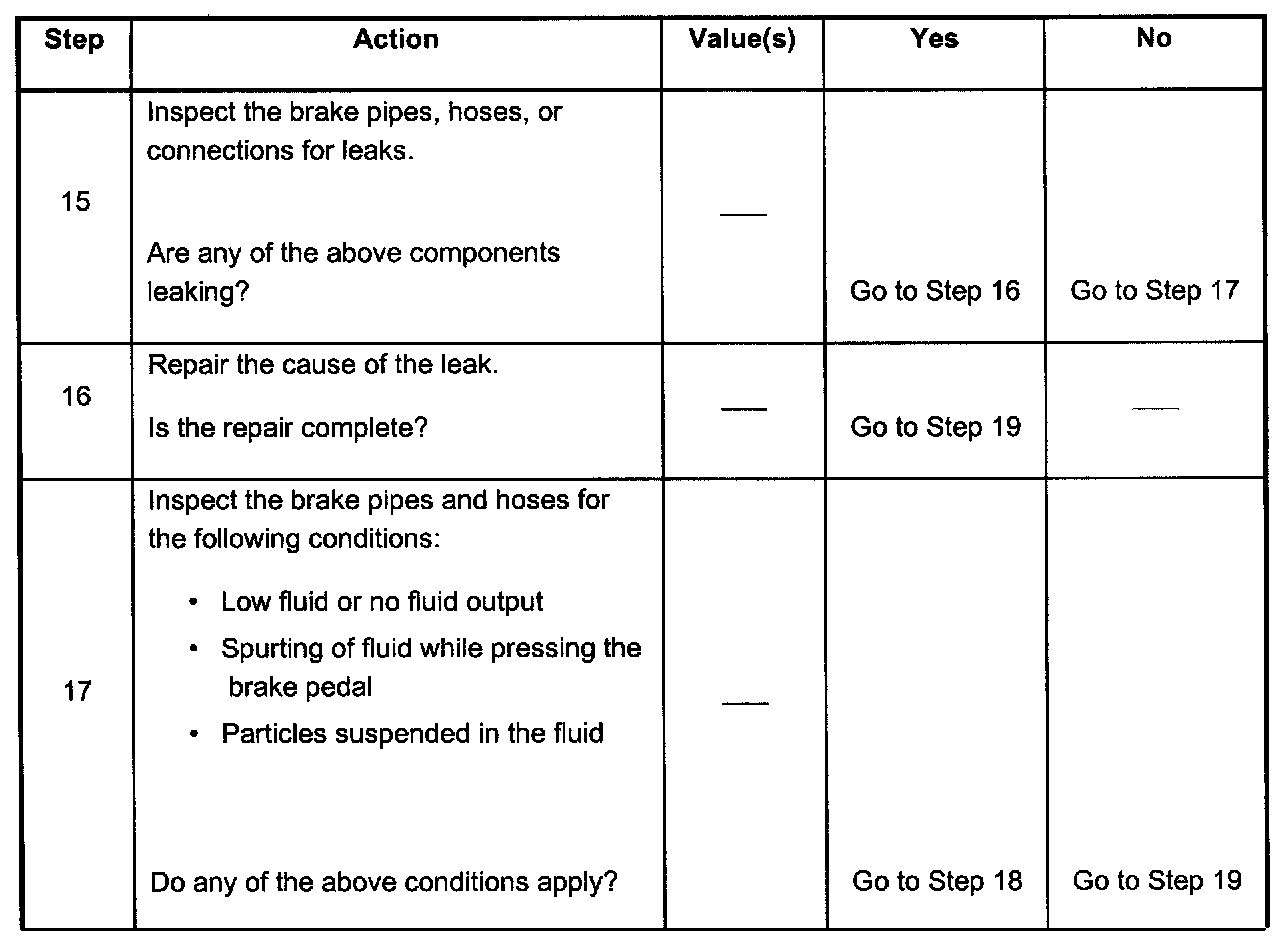

Steps 15 - 17:

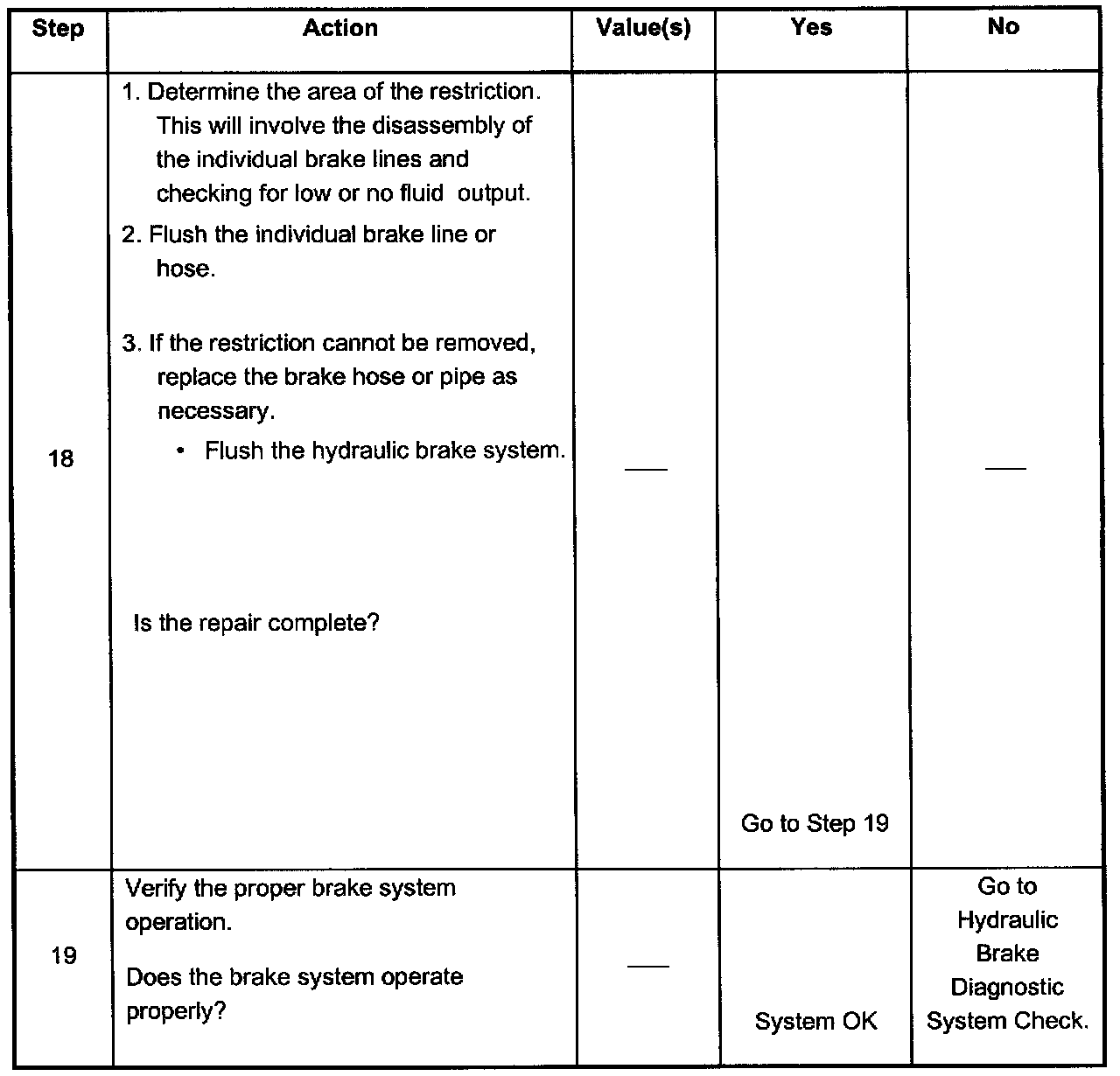

Steps 18 - 19:
Brake Pedal Travel Gradually Increases
