Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Brake Pedal Slow Return
Brake Pedal Slow Return

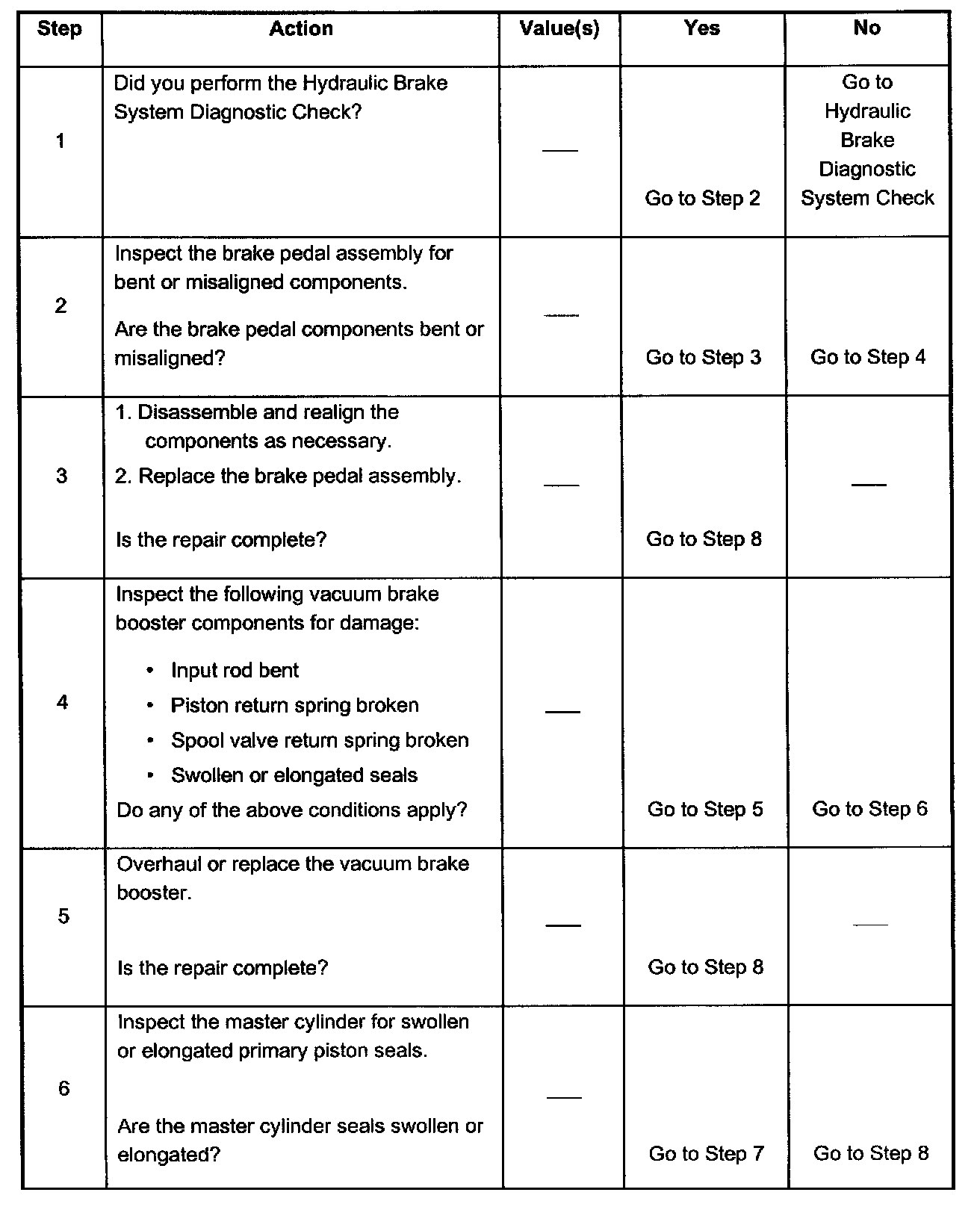

Steps 1 - 6:

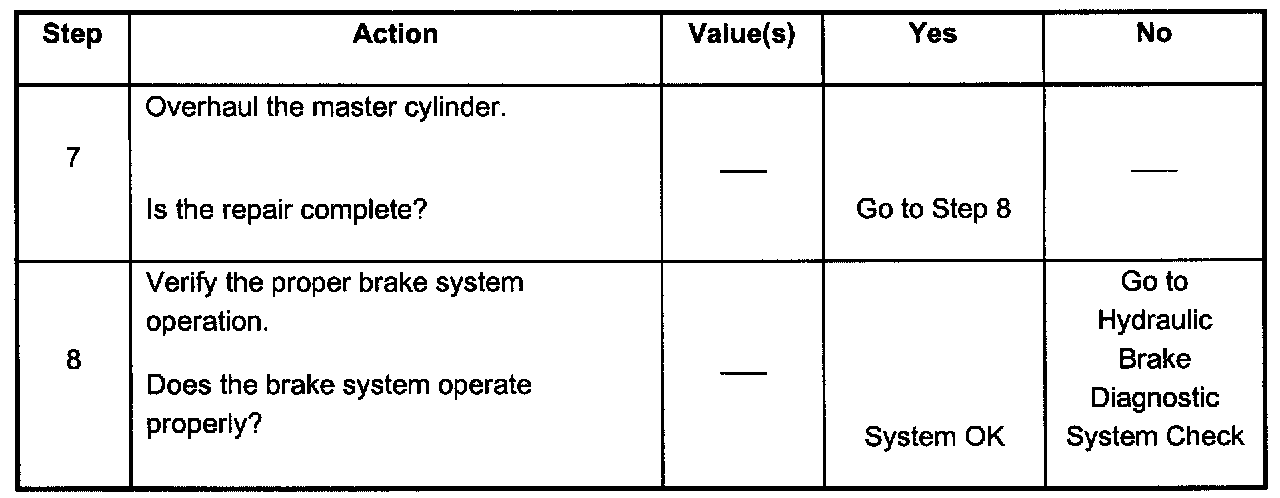

Steps 7 - 8:
Brake Pedal Slow Return
