Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Brake Pedal Excessive Travel
Brake Pedal Excessive Travel

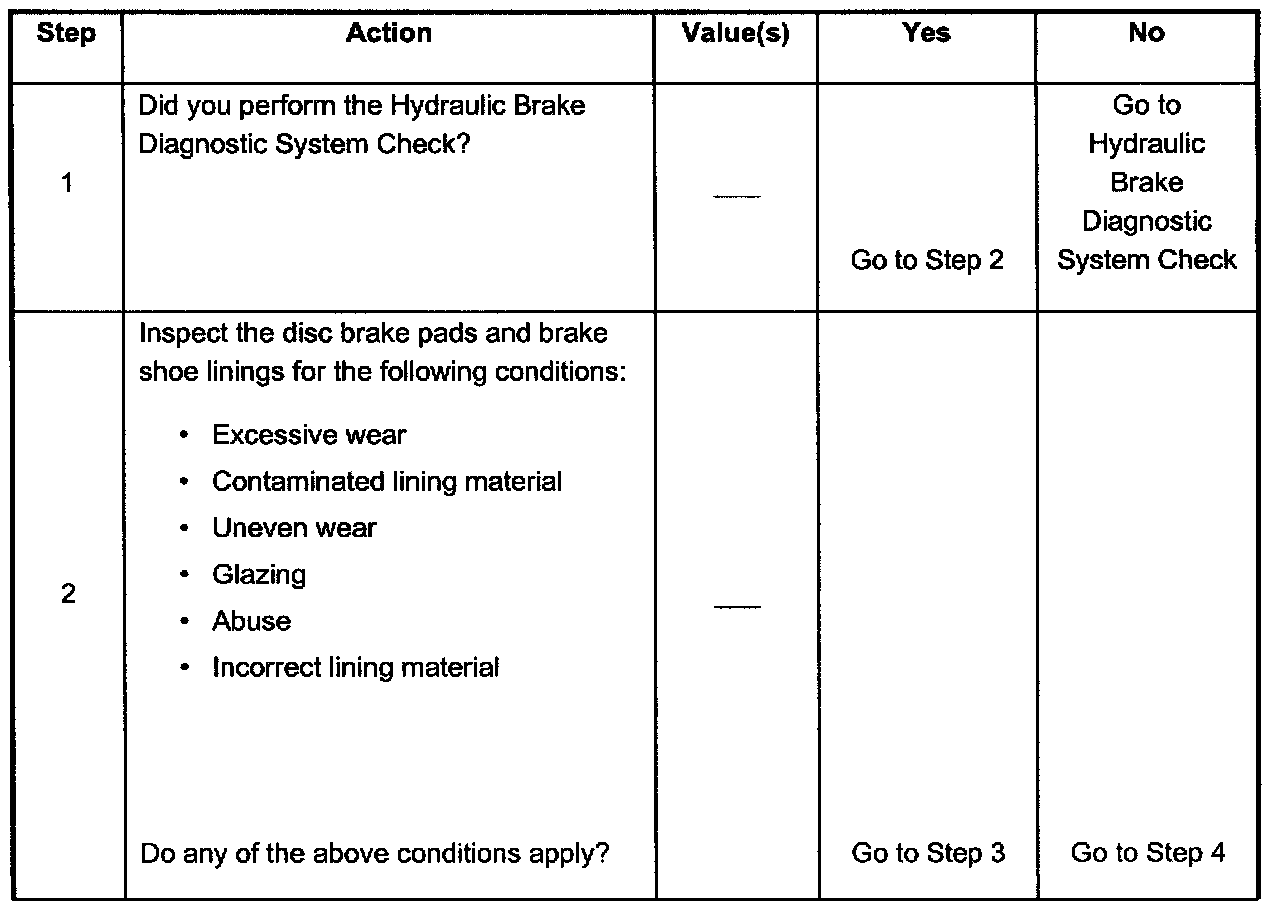

Steps 1 - 2:

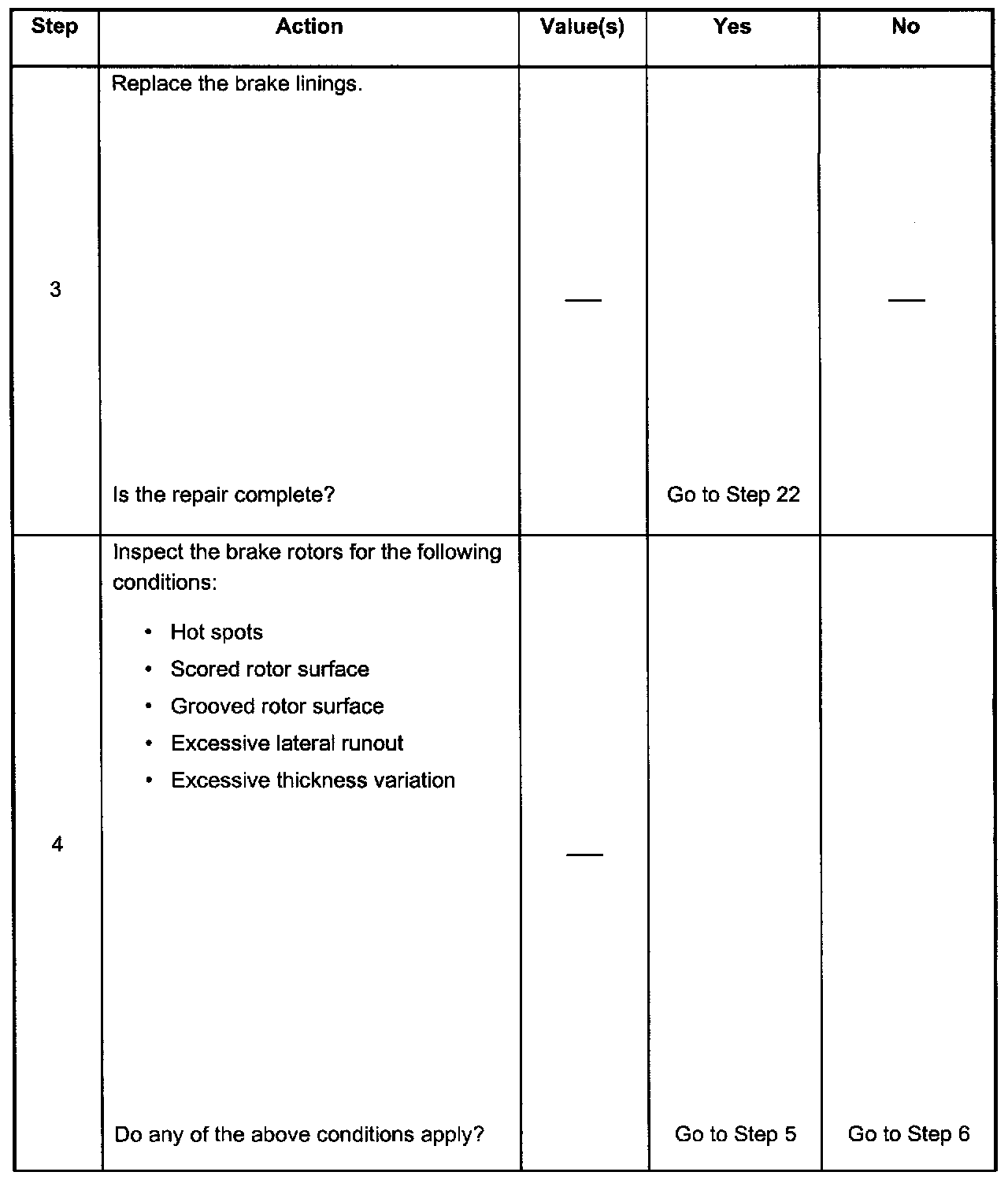

Steps 3 - 4:

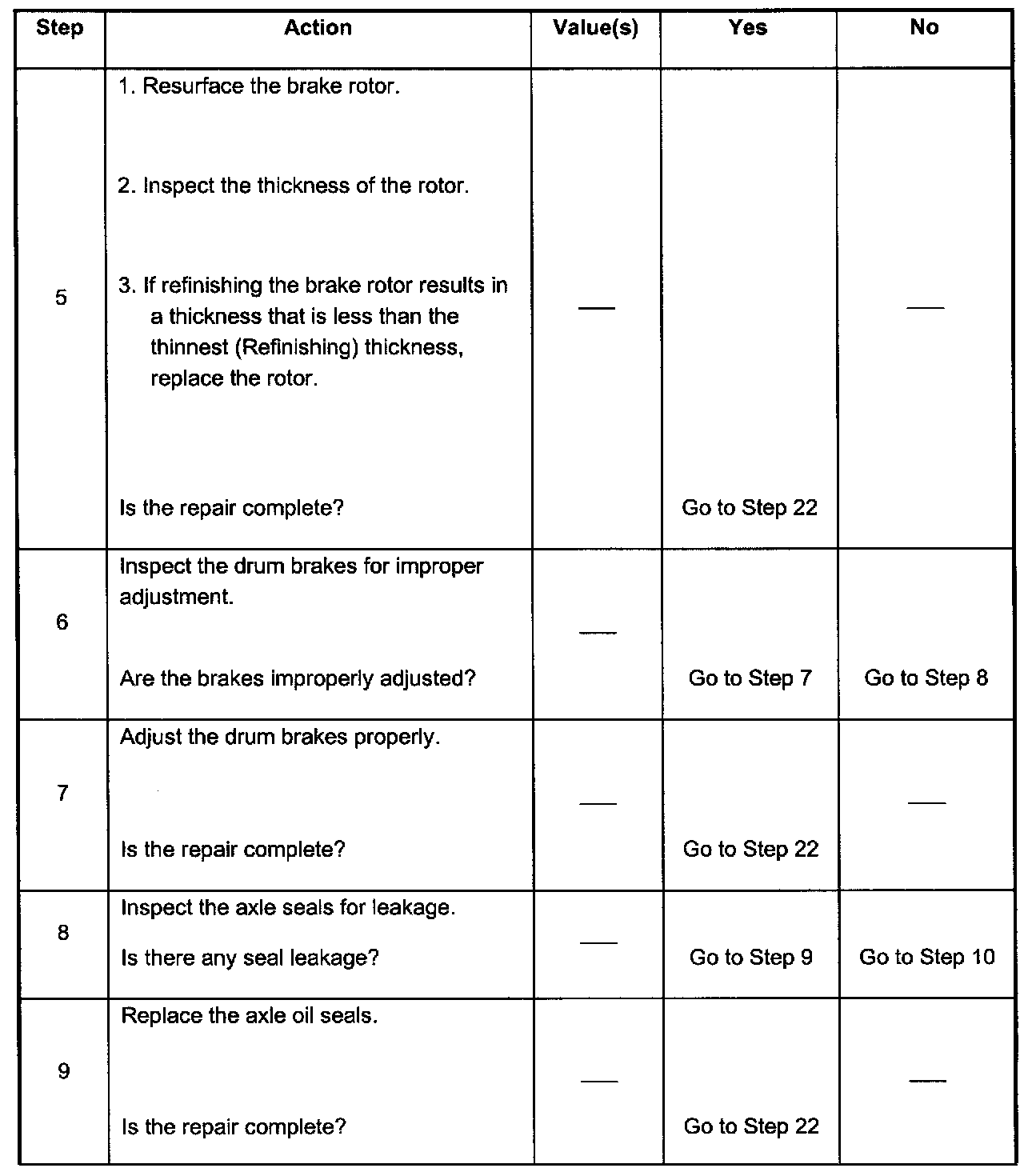

Steps 5 - 9:

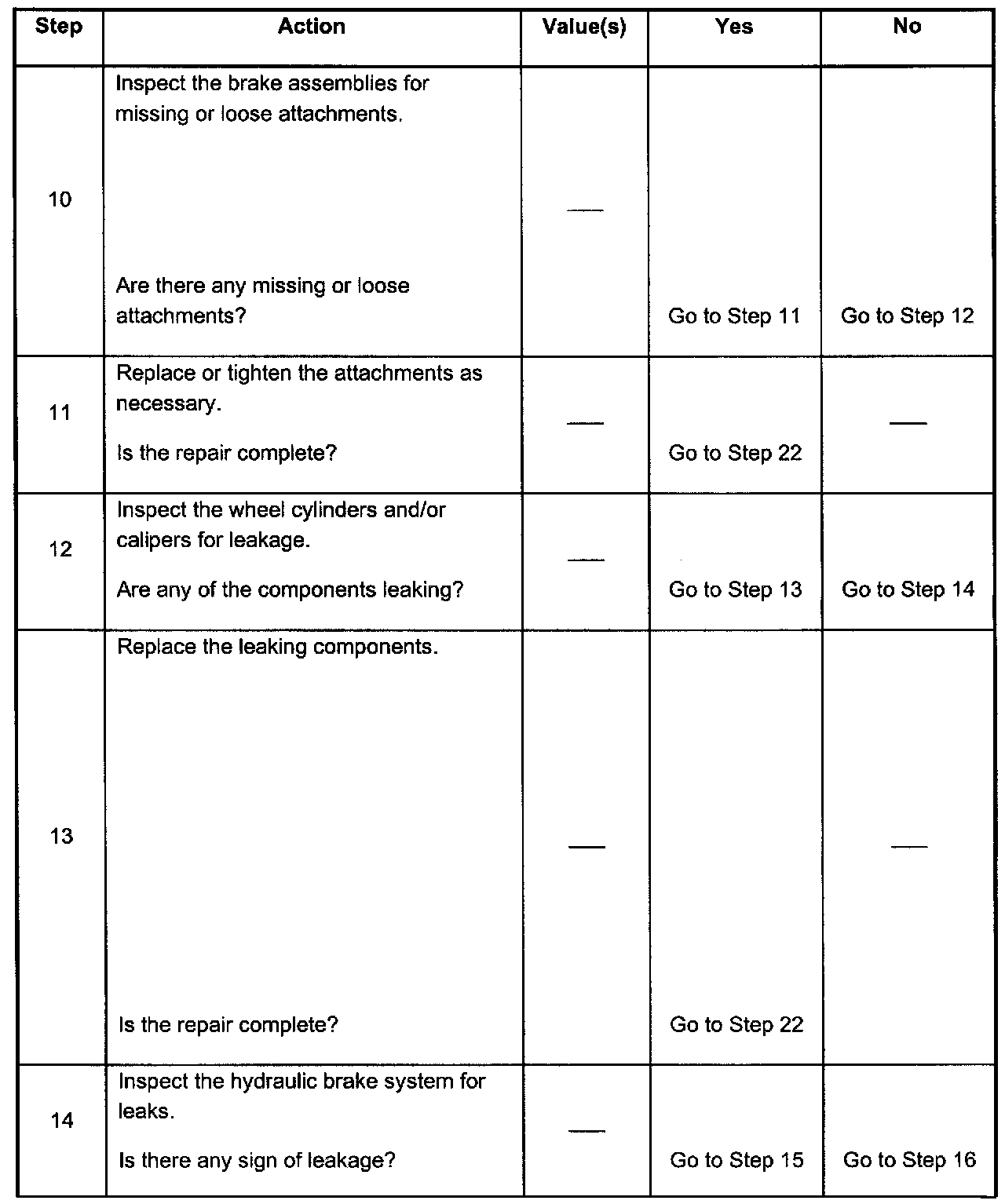

Steps 10 - 14:

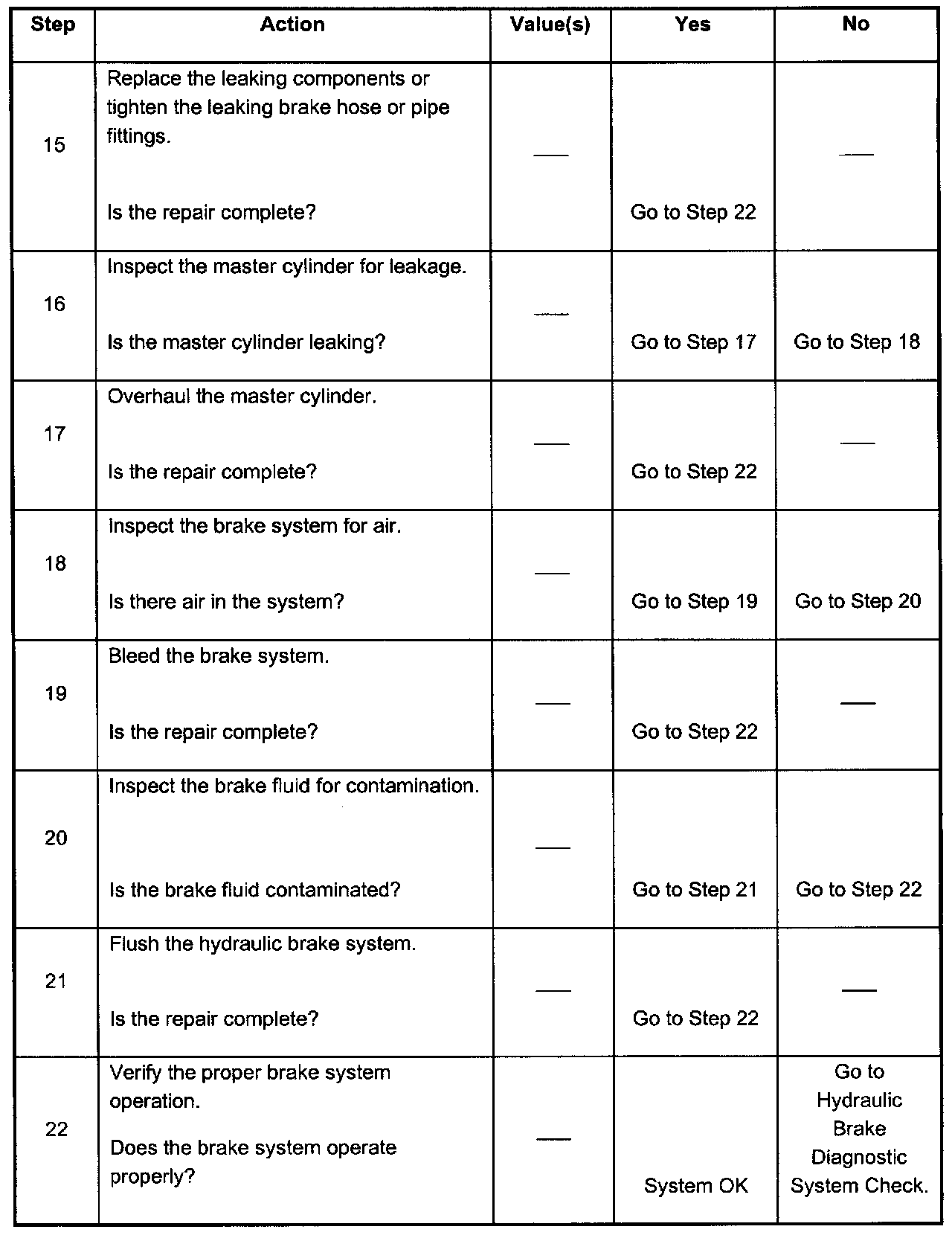

Steps 15 - 22:
Brake Pedal Excessive Travel
