Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Brake Pedal Excessive Effort
Brake Pedal Excessive Effort

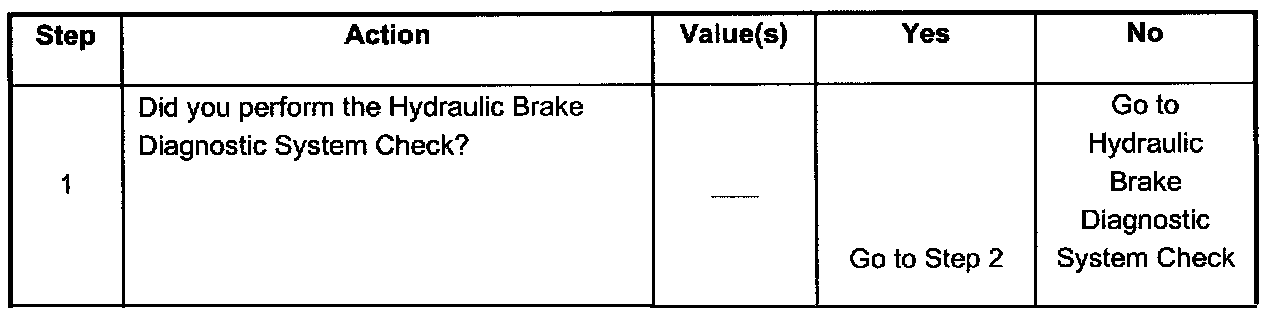

Step 1:

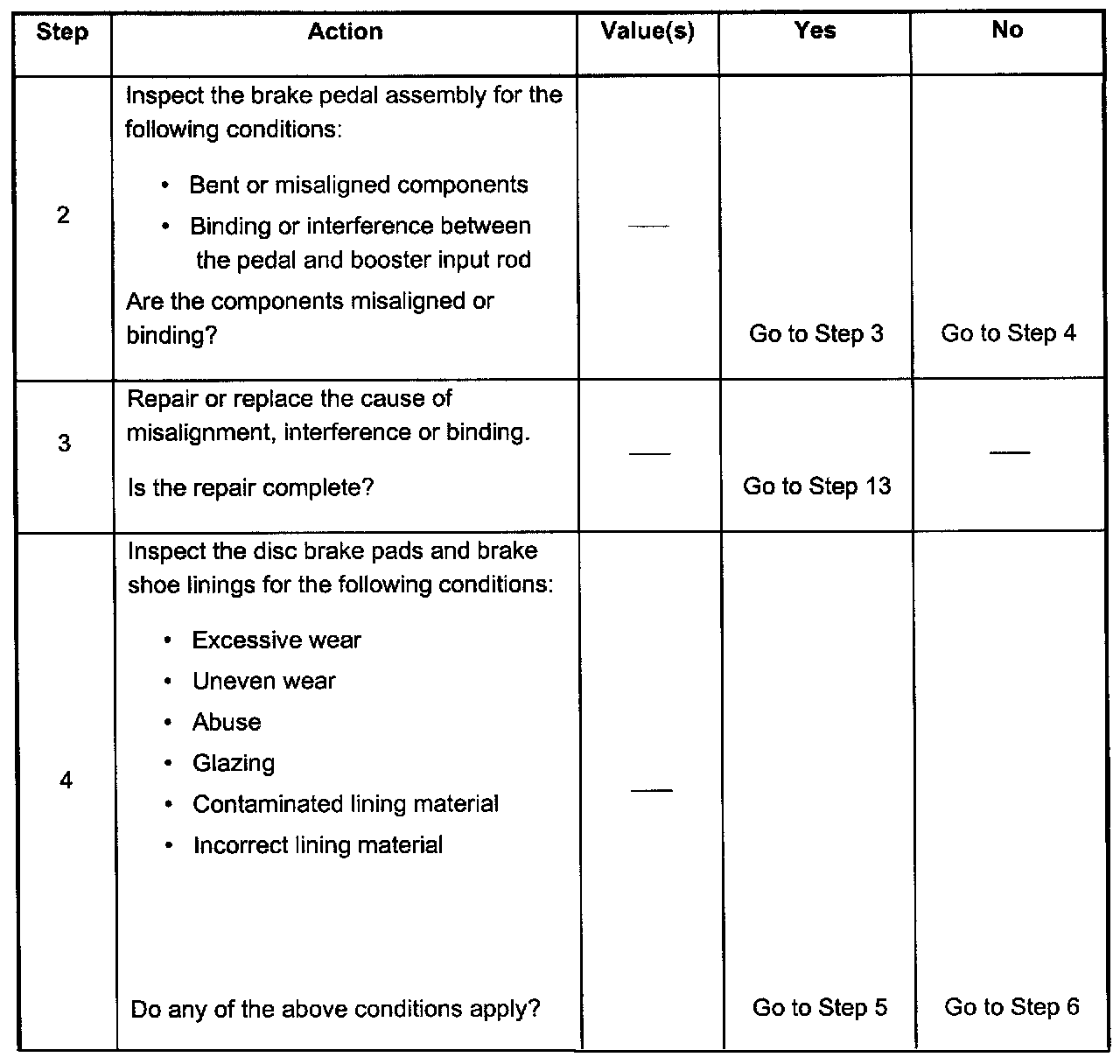

Steps 2 - 4:

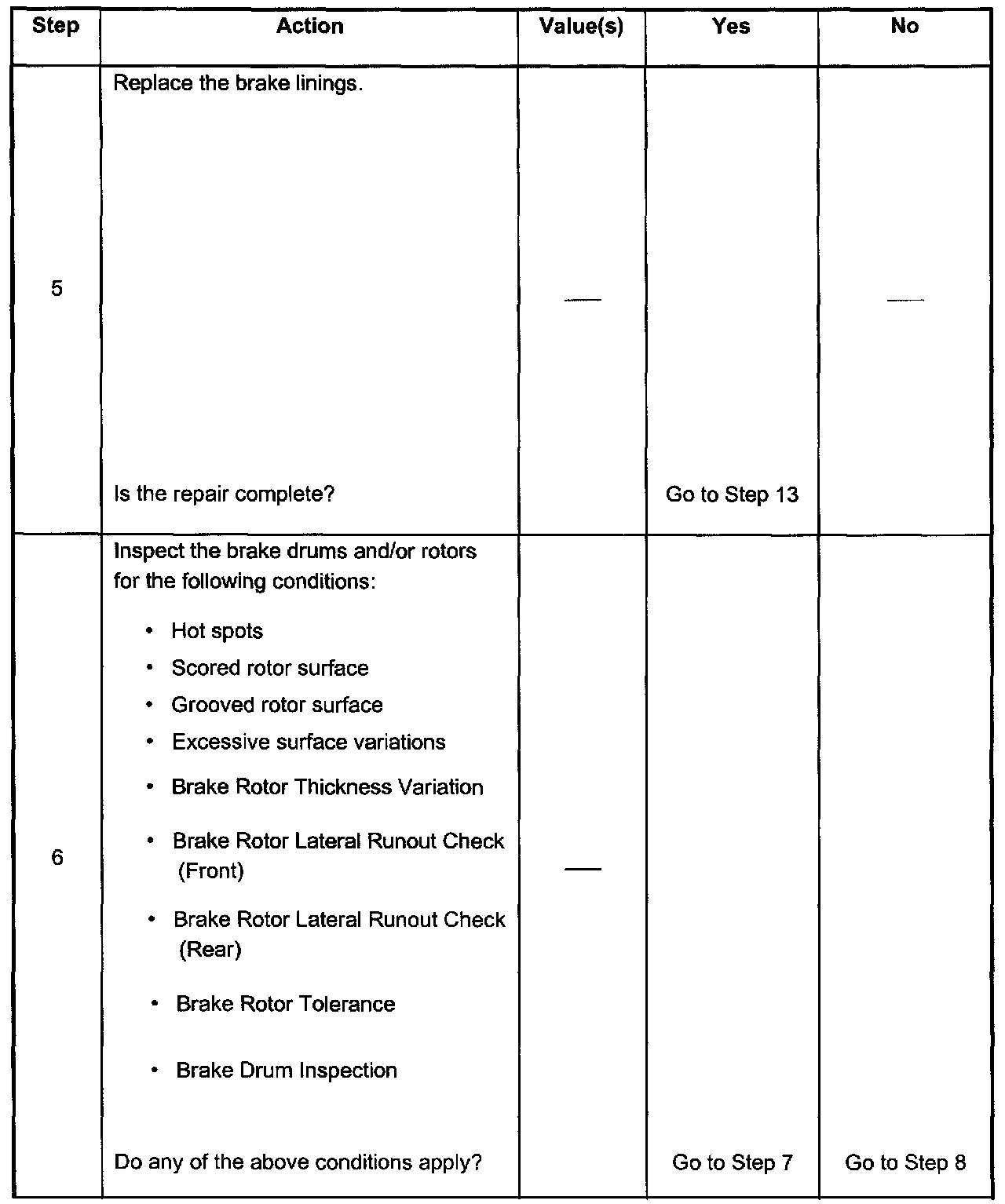

Steps 5 - 6:

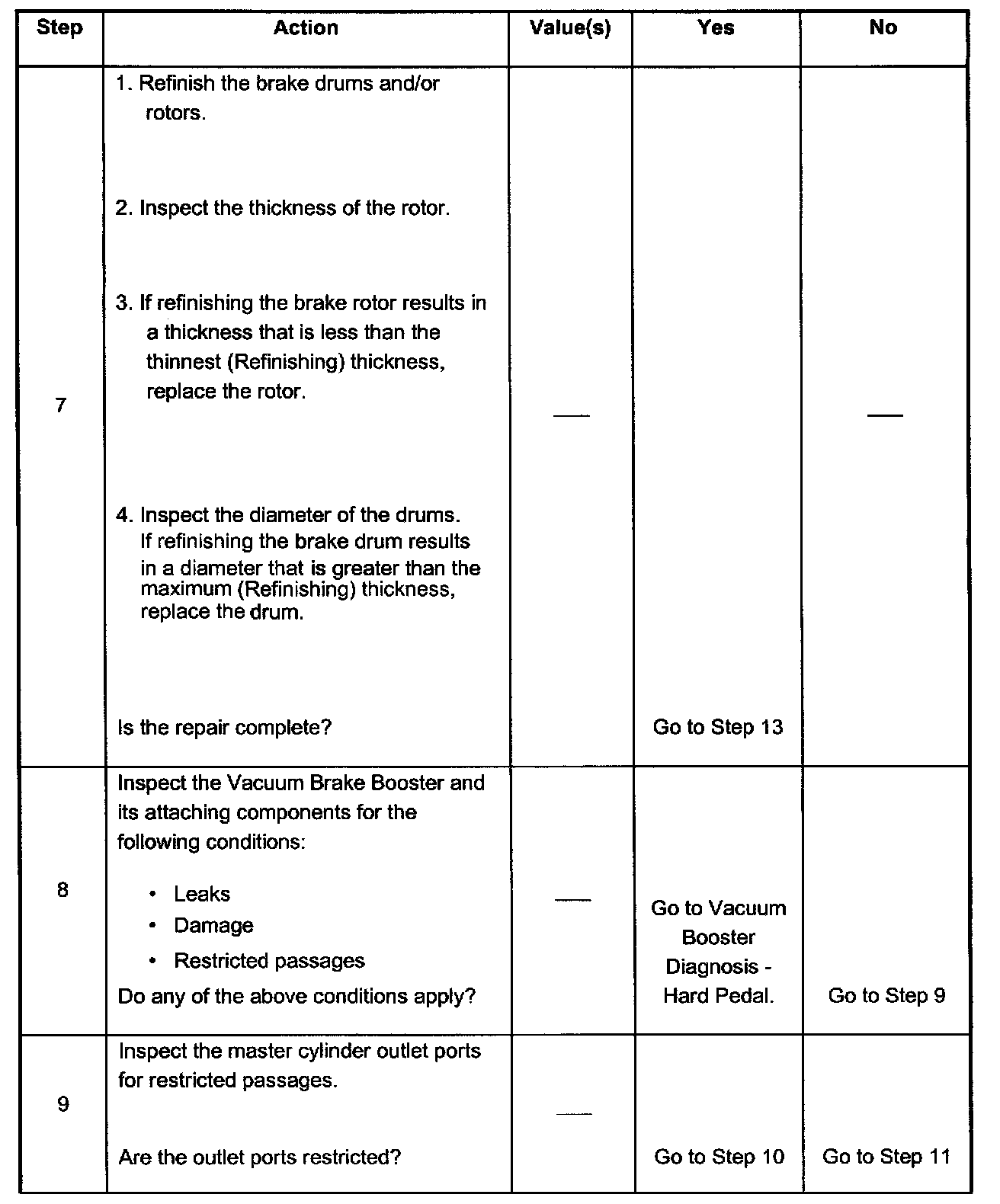

Steps 7 - 9:

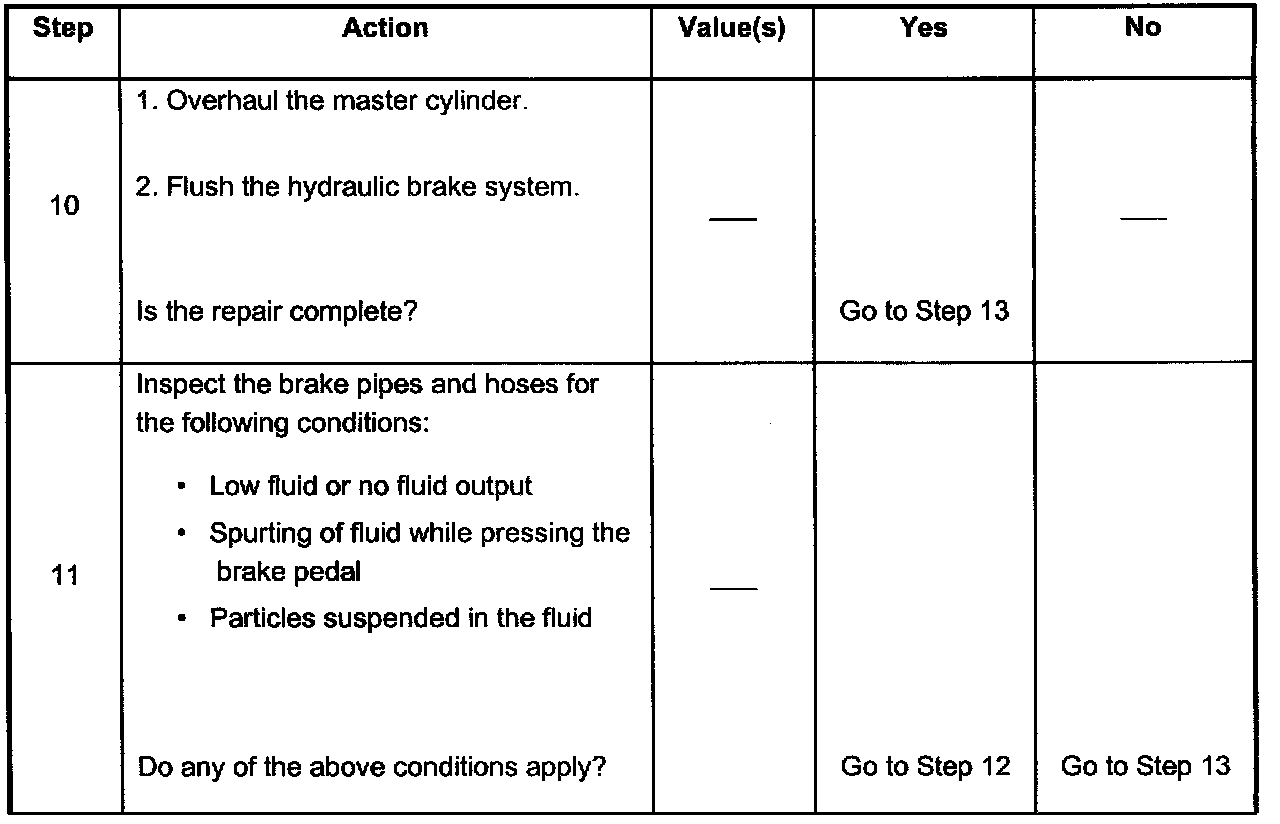

Steps 10 - 11:

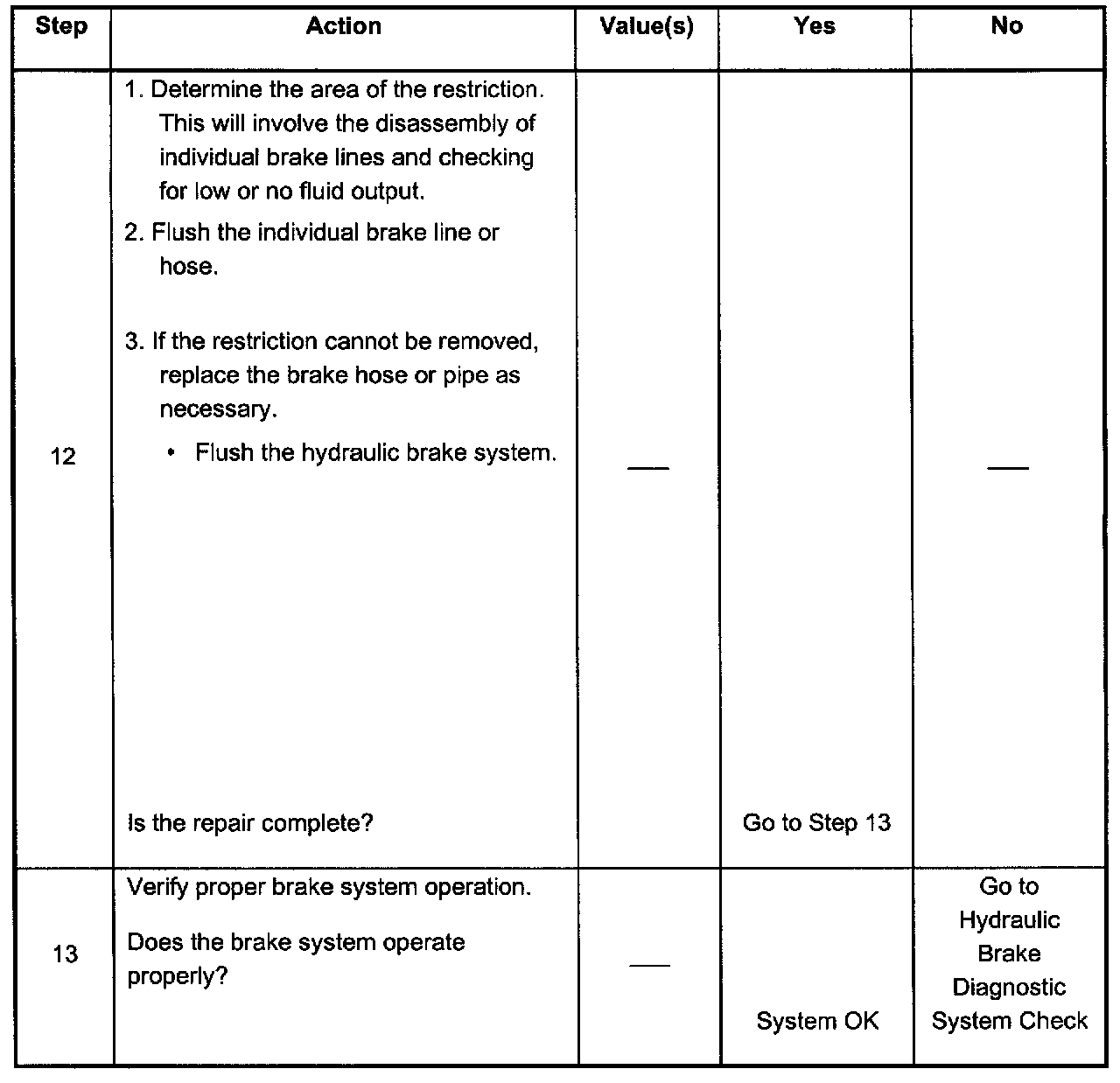

Steps 12 - 13:
Brake Pedal Excessive Effort
