Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Hydraulic Brake Diagnostic System Check
Hydraulic Brake Diagnostic System Check

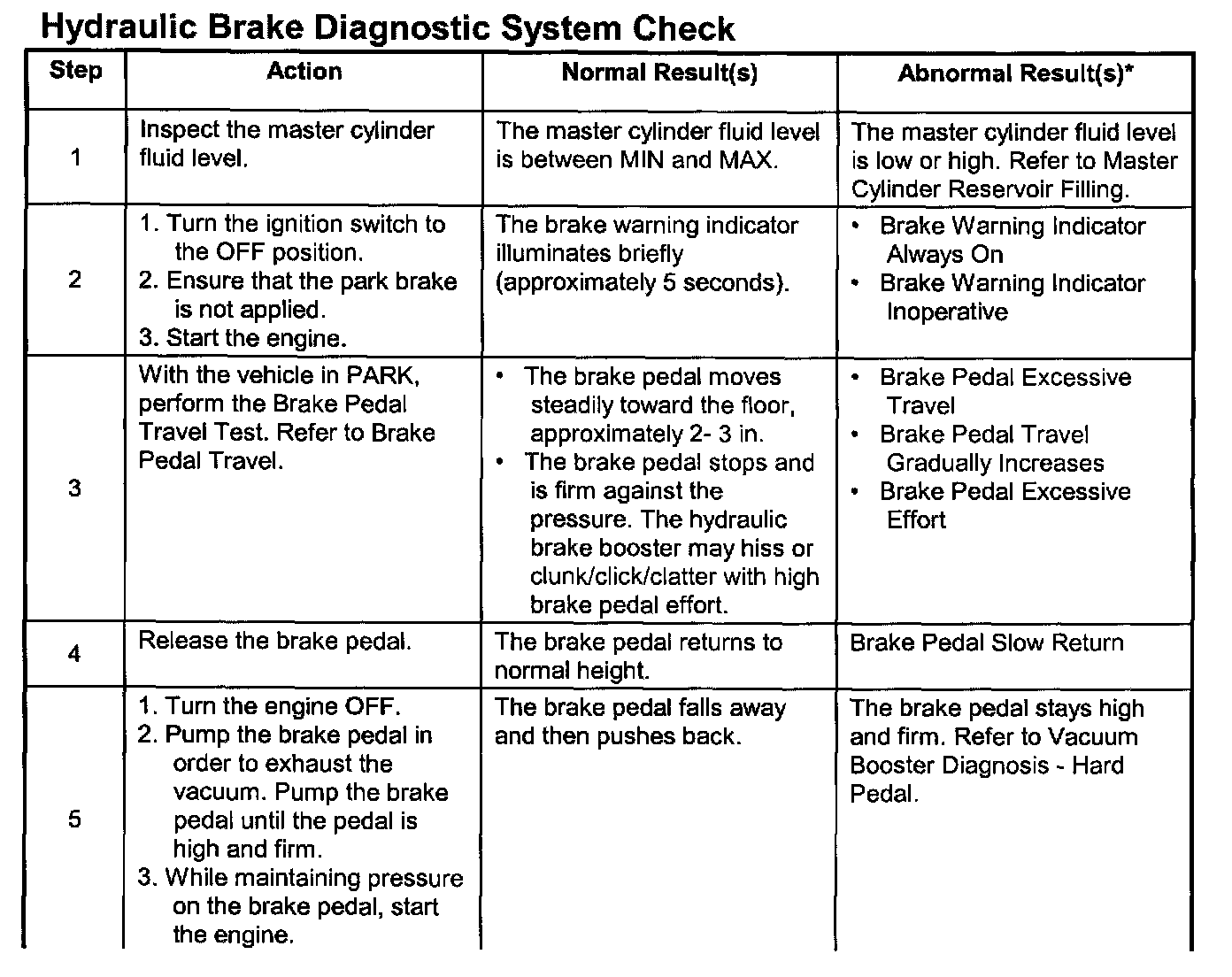

Steps 1 - 5:

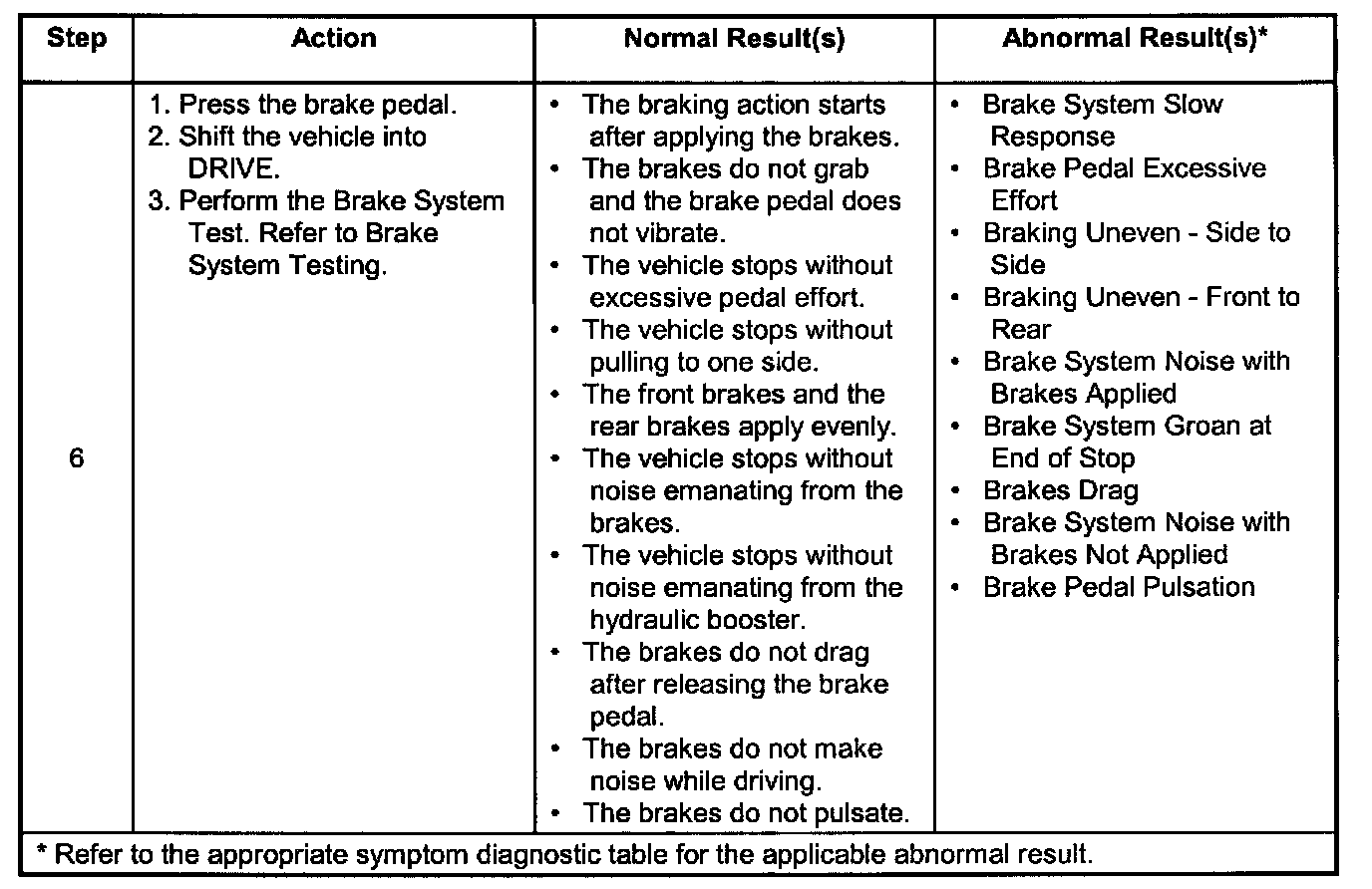

Step 6:
Hydraulic Brake Diagnostic System Check
