Combination Valve Circuit
Combination Valve Circuit

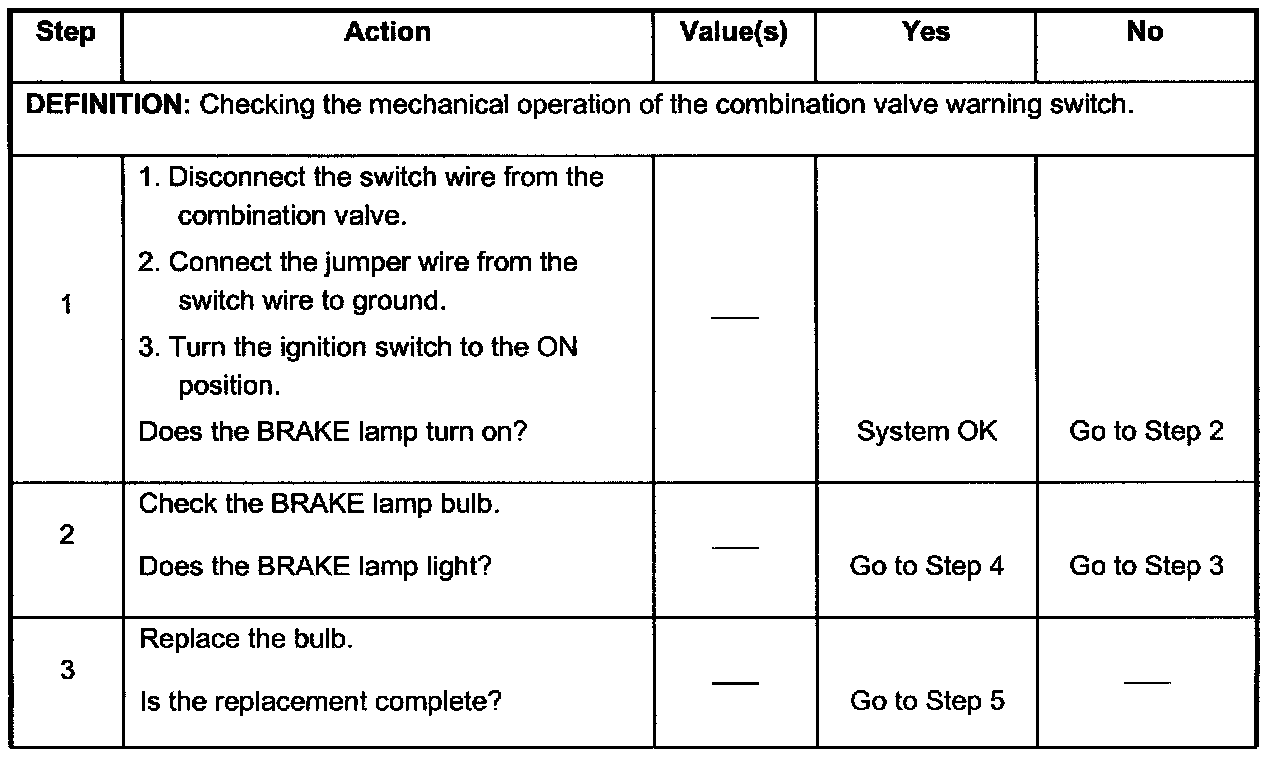

Steps 1 - 3:

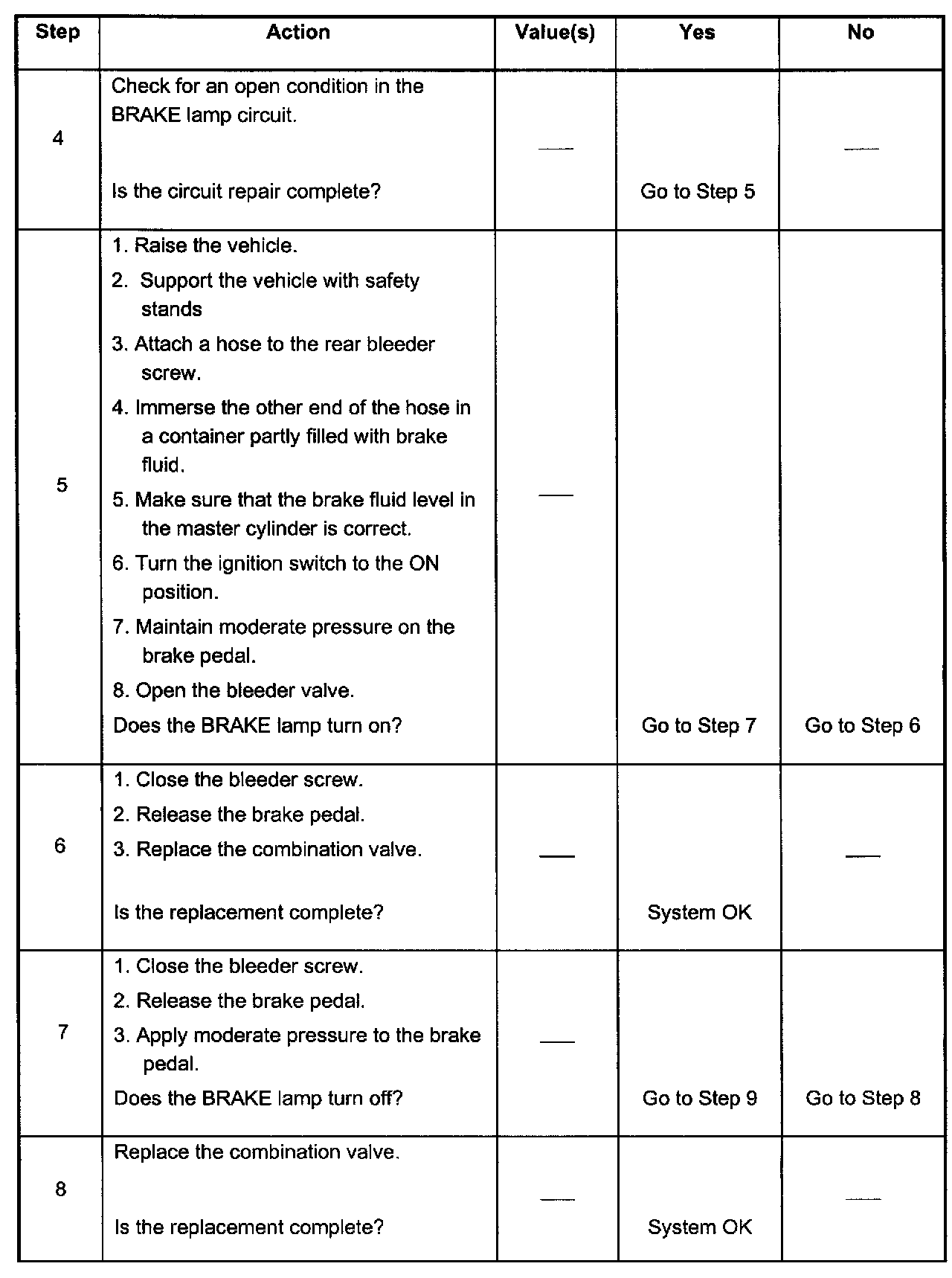

Steps 4 - 8:

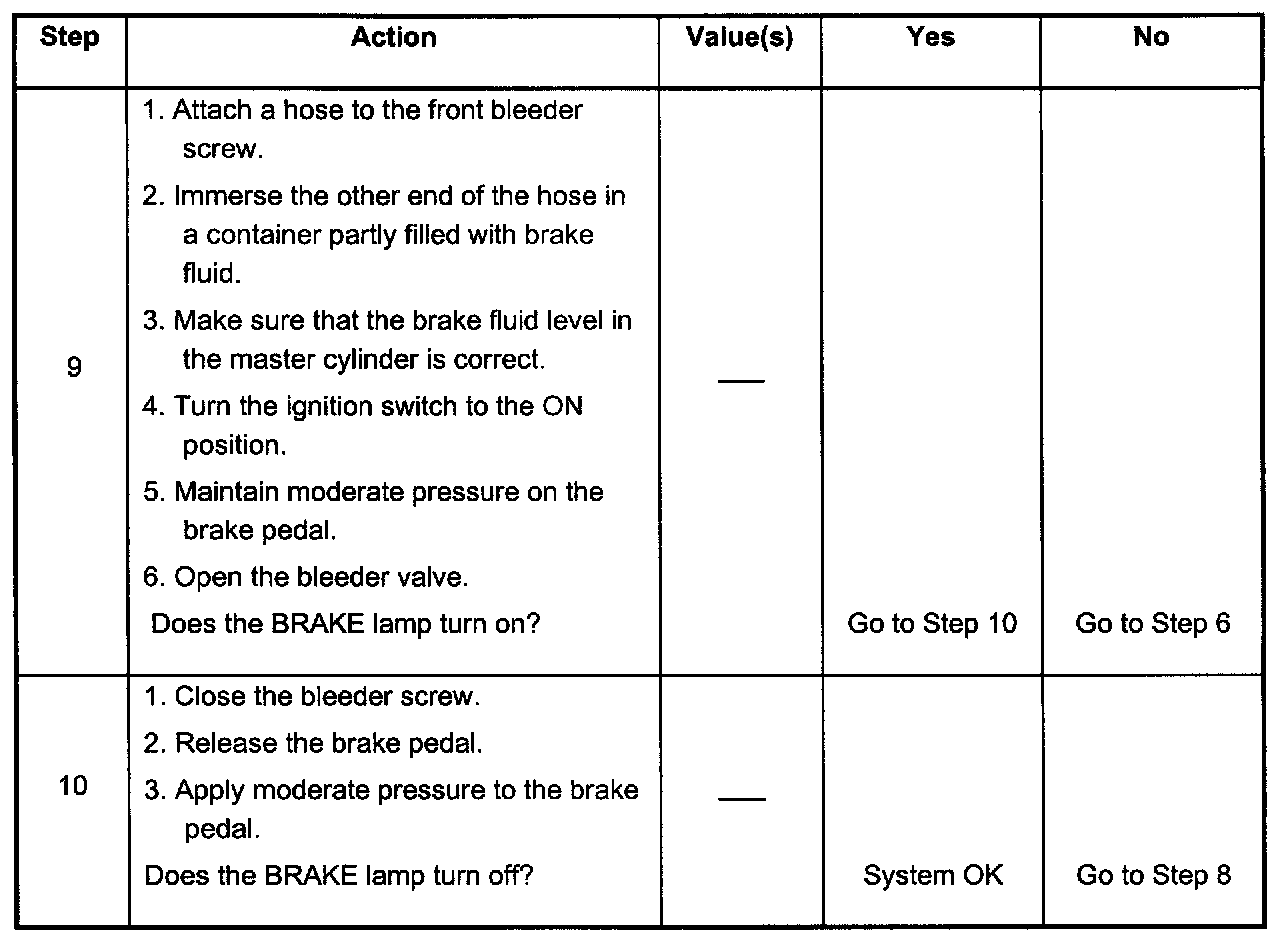

Steps 9 - 10:
Combination Valve Circuit
