Weatherstrip Replacement - Door Opening

Removal Procedure

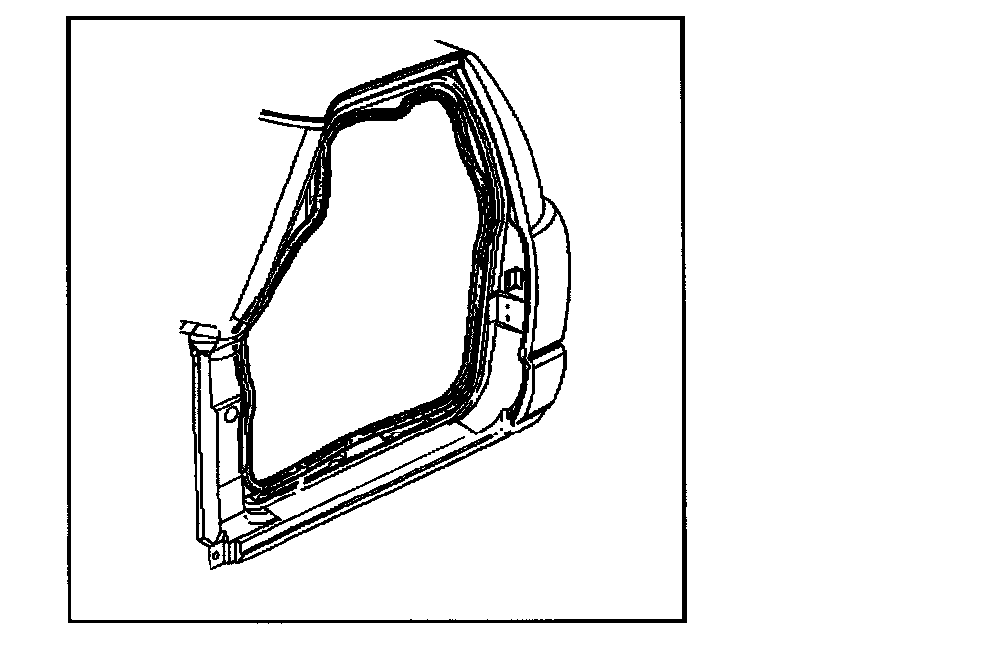

1. Remove the door opening weather-strip from the door opening.
2. Pull the weather-strip from the pinch weld flange.

Installation Procedure




Perform the following steps in order to install the door opening weather-strip to the door opening:
1. Position the pre-formed corner of the weather-strip in the upper rear corner of the door opening.
2. Push the weather-strip onto the pinch weld flange.
Start at the preformed corner and work around the entire edge of the door opening.
