Weatherstrip Replacement - Door

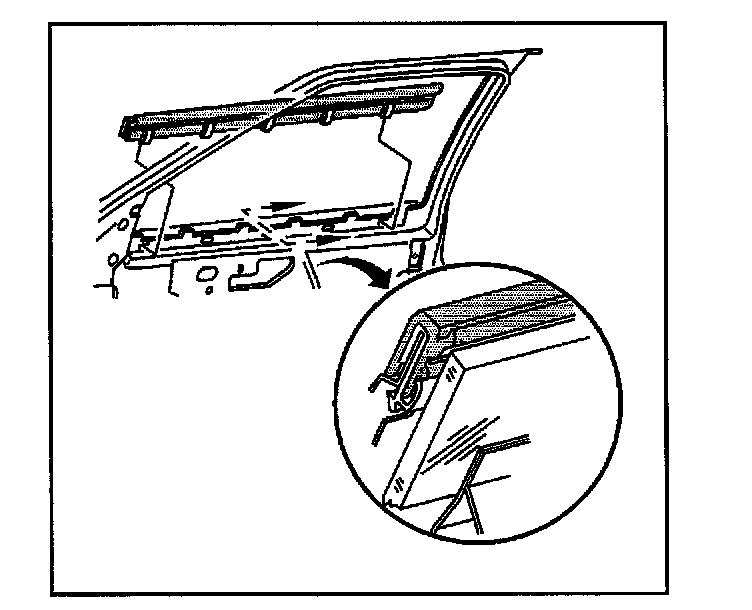

Removal Procedure
The outer door weather-strip is used in order to seal the inner and the outer door panels and the Window at the belt line. You can replace the outer door weather-strip. Do not remove the inner sealing strip because the strip is stapled to the door trim panel.

1. Open the Window.




2. Remove the outer door weather-strip from the door.

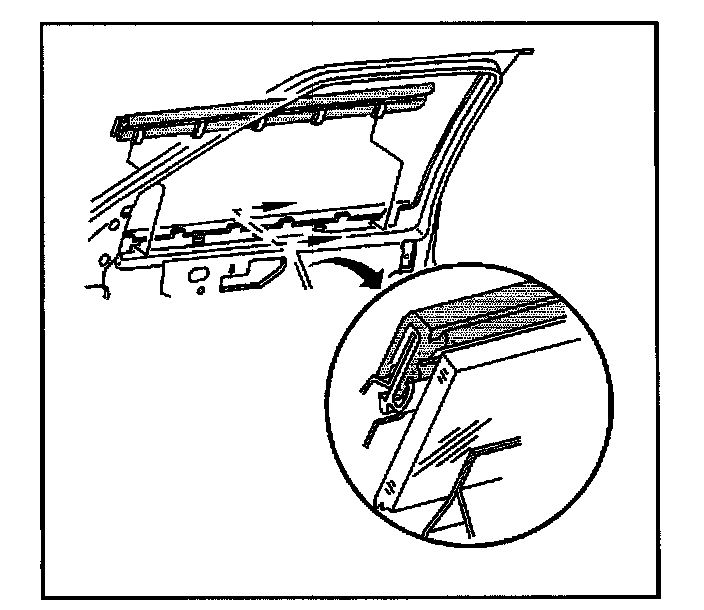

Installation Procedure
1. Install the outer door weather-strip to the door.




2. Position the weather-strip and press the weather-strip into place.
