Weatherstrip Replacement - Auxiliary (Front Door)

Removal Procedure

Tools Required
J 38778 Door Trim Pad Garnish Clip Remover




Use the J 38778 in order to remove the door auxiliary weather-strip from the vehicle.

Installation Procedure

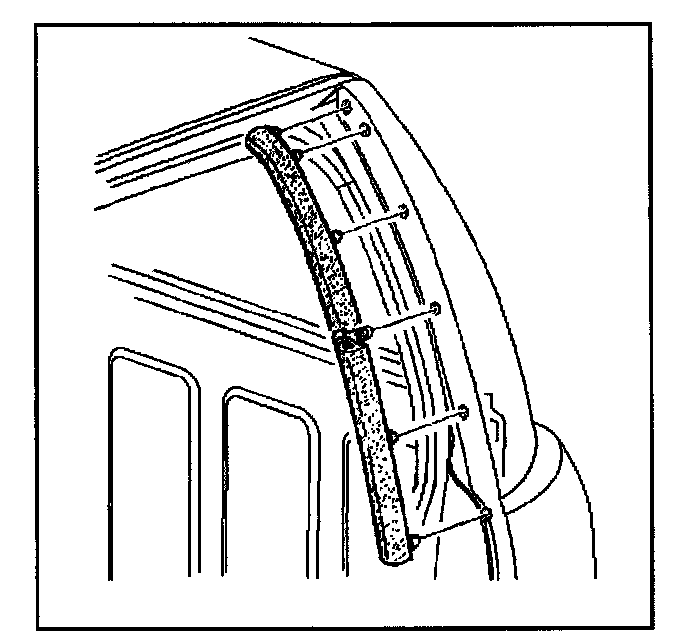

1. Install the door auxiliary weather-strip to the vehicle.




2. Position the weather-strip and press the weather-strip into place.
