Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams

Electrical Diagrams

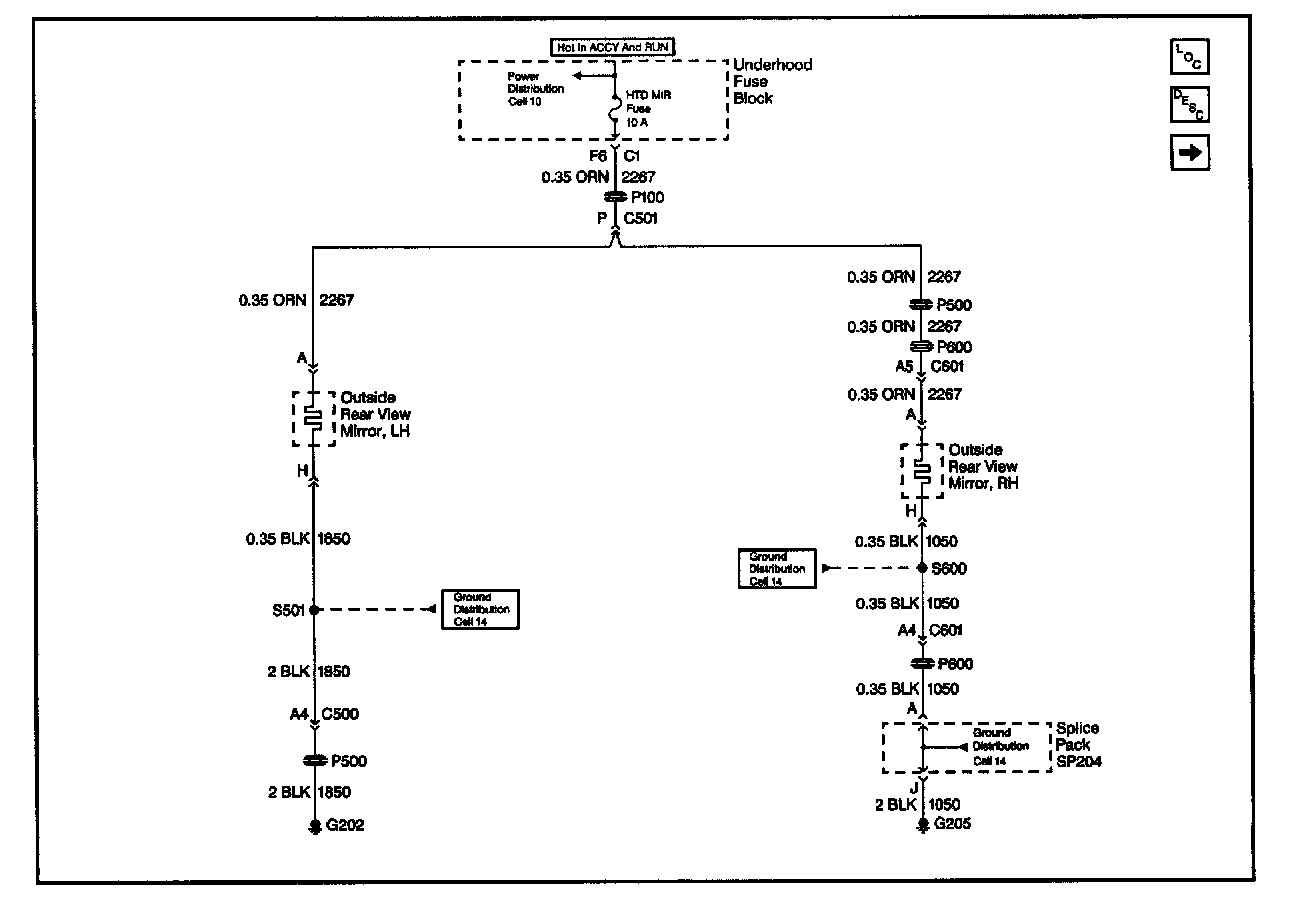

Outside Mirror Schematics-Cell 147 : Outside Rear View Mirrors:

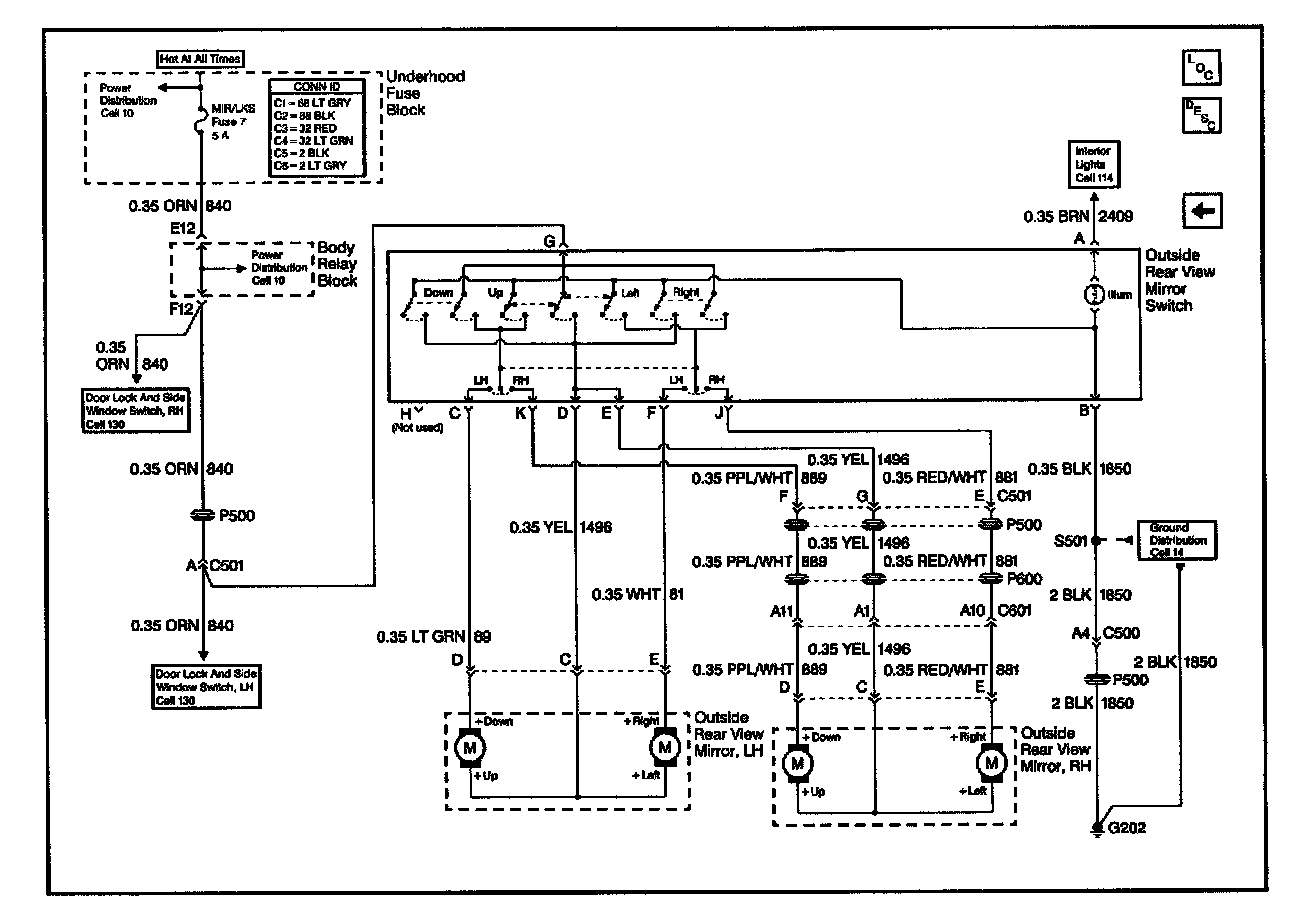

Outside Mirrors Schematics-Cell 147 : Outside Rear View Mirror Switch:
