Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Radio Display Inoperative, No Sound From Speakers

Radio Display Inoperative, No Sound From Speakers

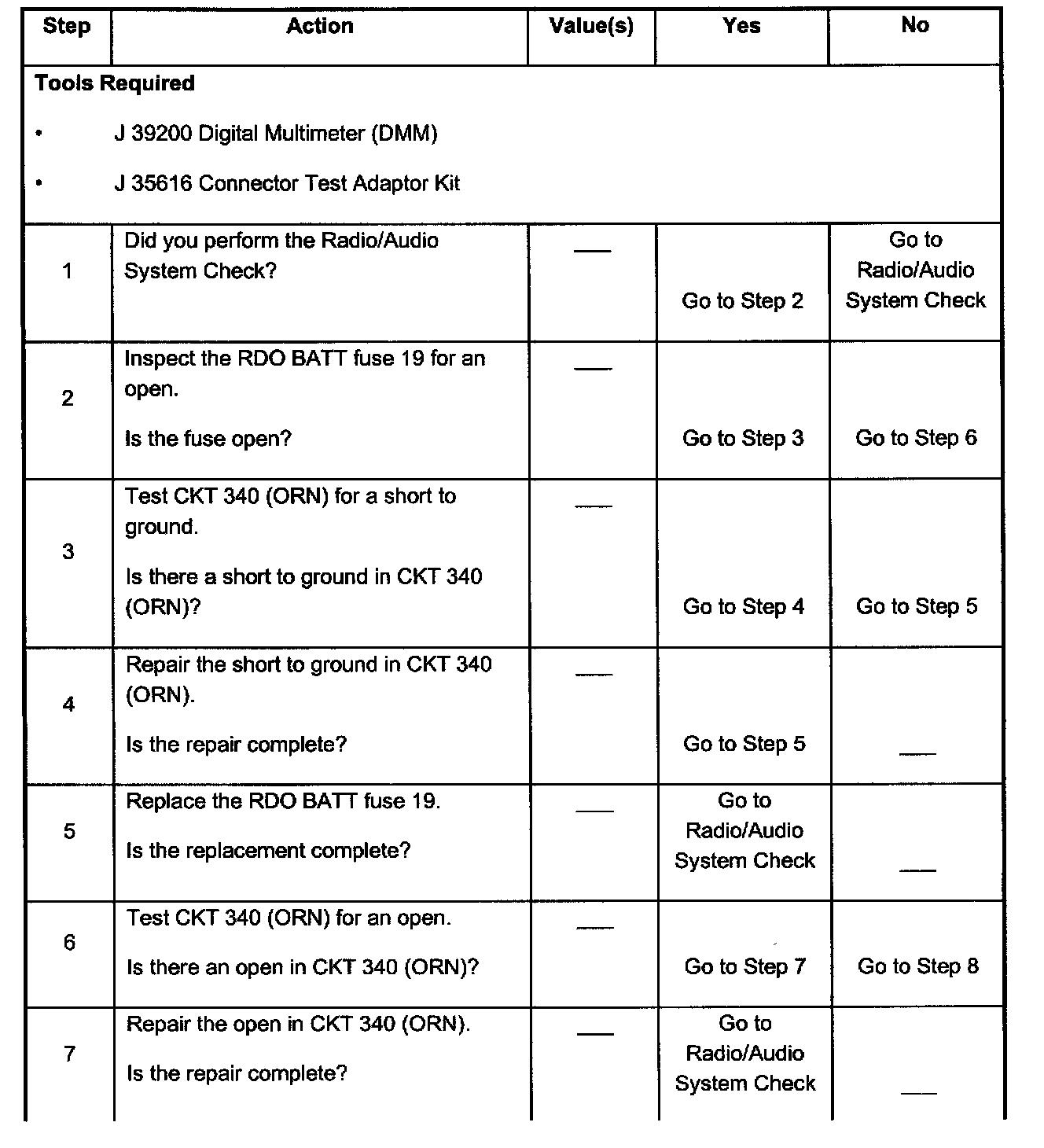

Steps 1 - 7:

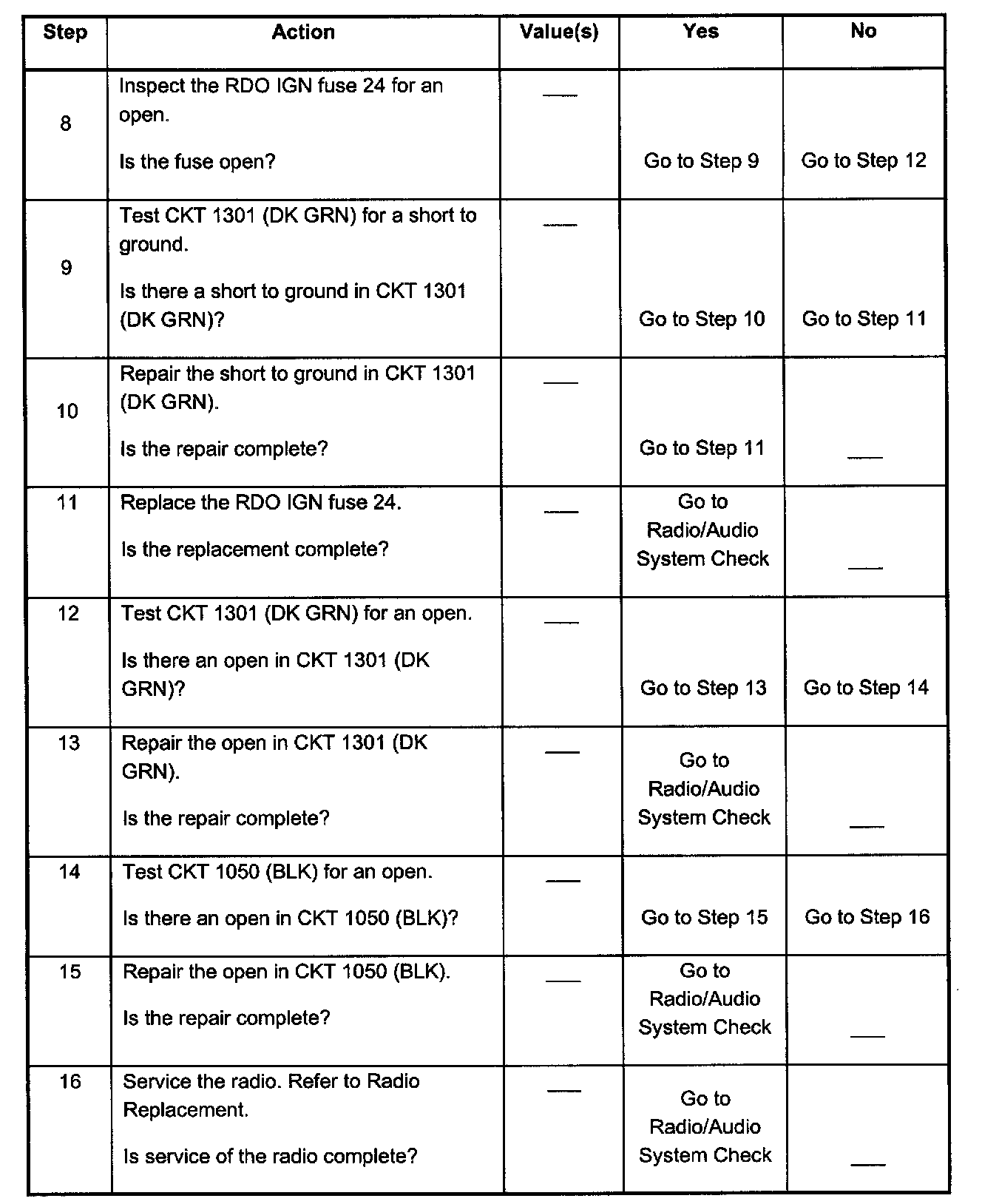

Steps 8 - 16:
