Illum, RDO Ign and RDO Batt Fuses and VSS Signal
Illum, RDO Ign and RDO Batt Fuses and VSS Signal

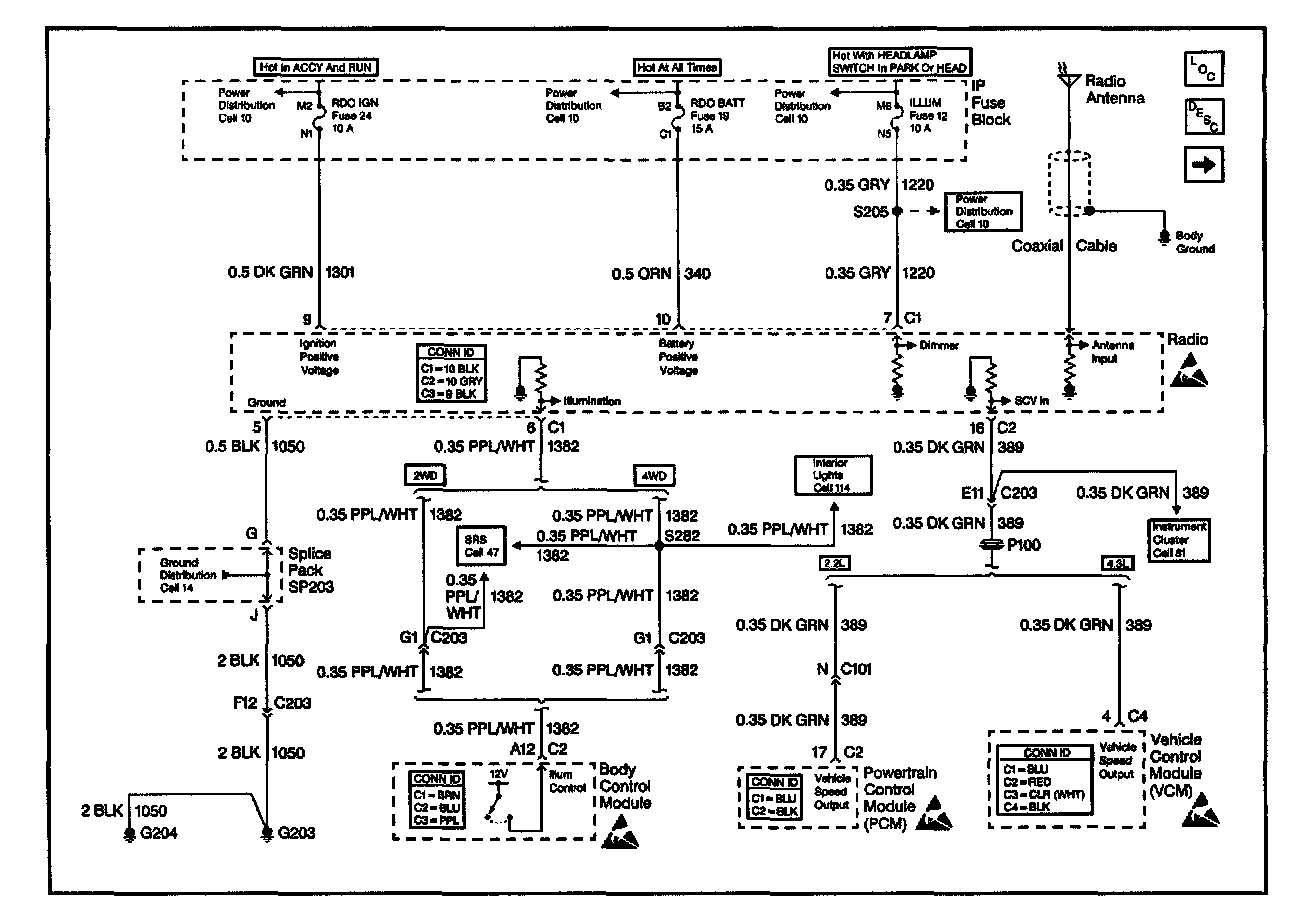

Radio/Audio System Schematics - ILLUM, RDO IGN and RDO BATT Fuses and VSS Signal:
