P0337

DTC P0337 CKP Sensor Circuit Low Frequency

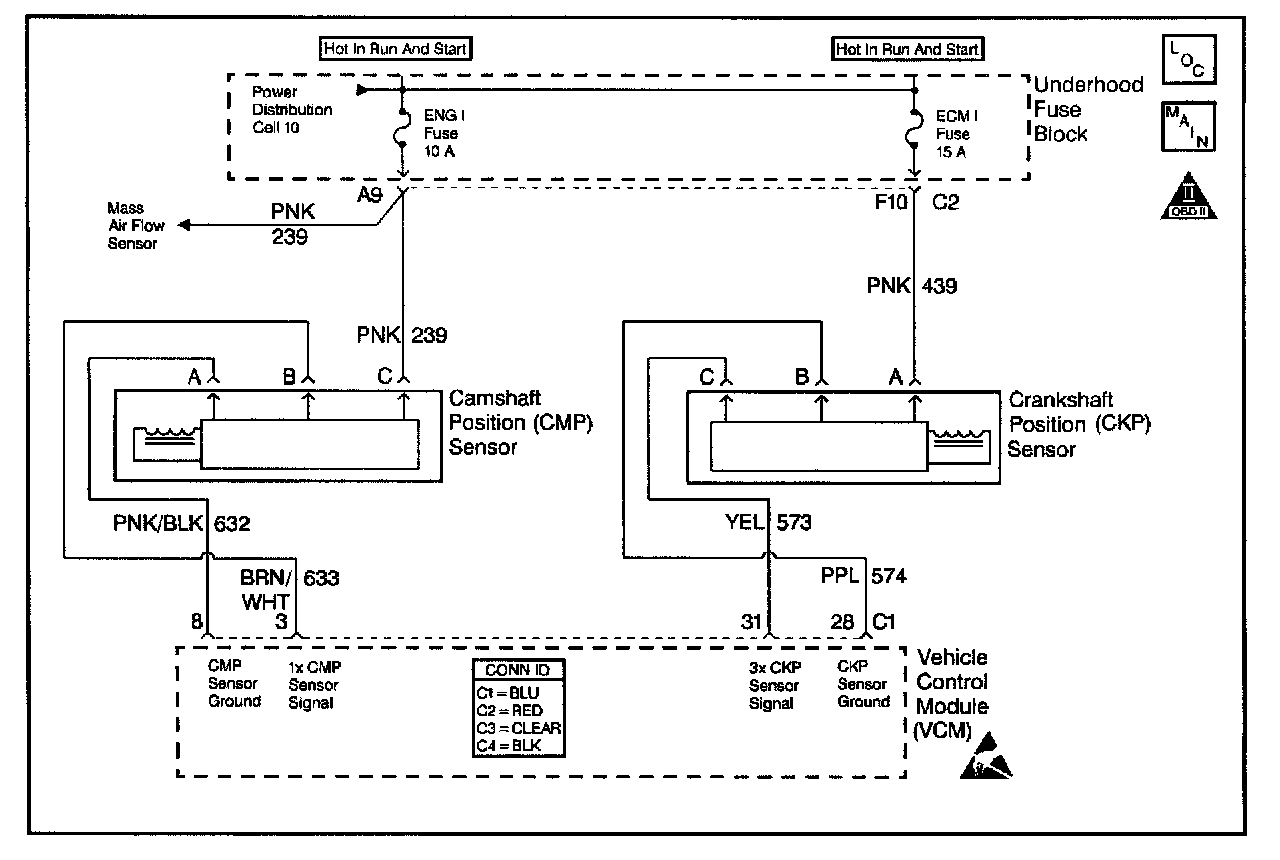

Circuit Description
The Crankshaft Position (CKP) Sensor is mounted in the front of the engine behind the harmonic balancer. The CKP sensor works in conjunction with a 3X (4x on V8 applications) reluctor wheel mounted on the front of the crankshaft. The CKP sensor has a B+ power supply, a ground, and a signal circuit.

As the crankshaft rotates, the reluctor wheel teeth interrupt a magnetic field produced by a magnet located in the sensor. The sensor's internal circuitry detects this field and produces a square wave which the VCM monitors on the signal circuit. The VCM uses this signal to accurately measure crankshaft velocity which is important to ignition control spark timing, fuel injector timing and for misfire detection.

If the frequency of the CKP is less than expected by the VCM, this DTC will be set.

Conditions for Running the DTC
- The engine speed is less than 4,000 RPM.
- The MAF is 5 g/s or greater.

Conditions for Setting the DTC
The crankshaft position sensor duty cycle is less than a calibrated percent

Action Taken When the DTC Sets
The VCM stores a history DTC if it detects an intermittent problem.


Conditions for Clearing the MIL/DTC
- The VCM turns OFF the MIL after 3 consecutive drive trips when the test has Run and Passed.
- A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles (coolant temperature has risen 22 °C (40 °F) from the startup coolant temperature and the engine coolant temperature is more than 70 °C (158 °F) during the same ignition cycle).
- Use the scan tool Clear Information function.

Diagnostic Aids
Inspect the face of the CKP sensor for metallic particles. This could result in an intermittent DTC.

Check for one of the following:
A chipped or damaged reluctor wheel
- An incorrect reluctor wheel
- The incorrect alignment of the CKP sensor to reluctor wheel
- Excessive crankshaft end play Refer to Symptoms.

An intermittent may be caused by any of the following conditions:
- A poor connection
- Rubbed through wire insulation
- A broken wire inside the insulation

Thoroughly check any circuitry that is suspected of causing the intermittent complaint. Refer to Intermittents and Poor Connections Diagnosis.

If a repair is necessary, then refer to Wiring Repairs or Connector Repairs.

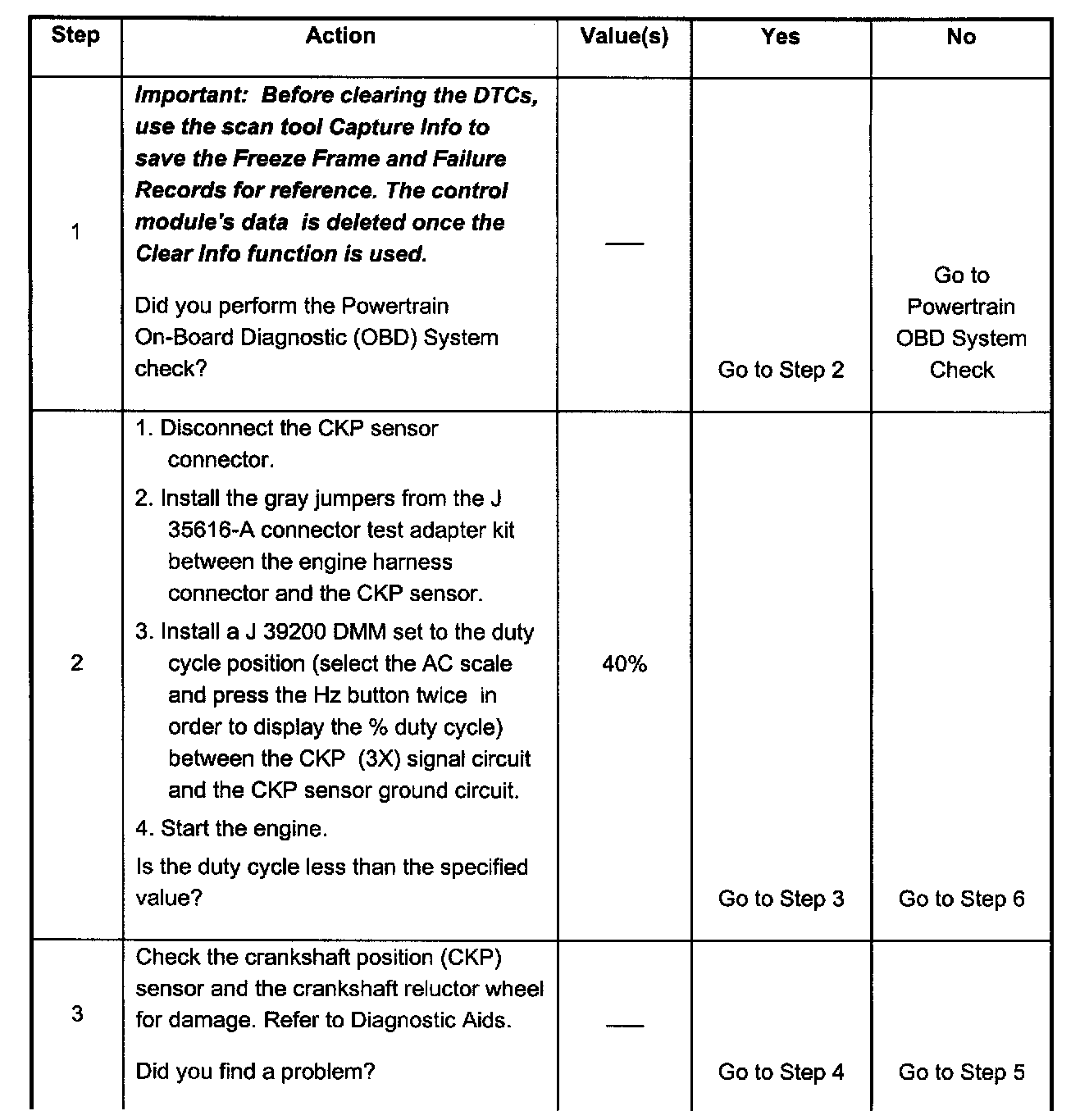

Steps 1 - 3:

Steps 4 - 6:

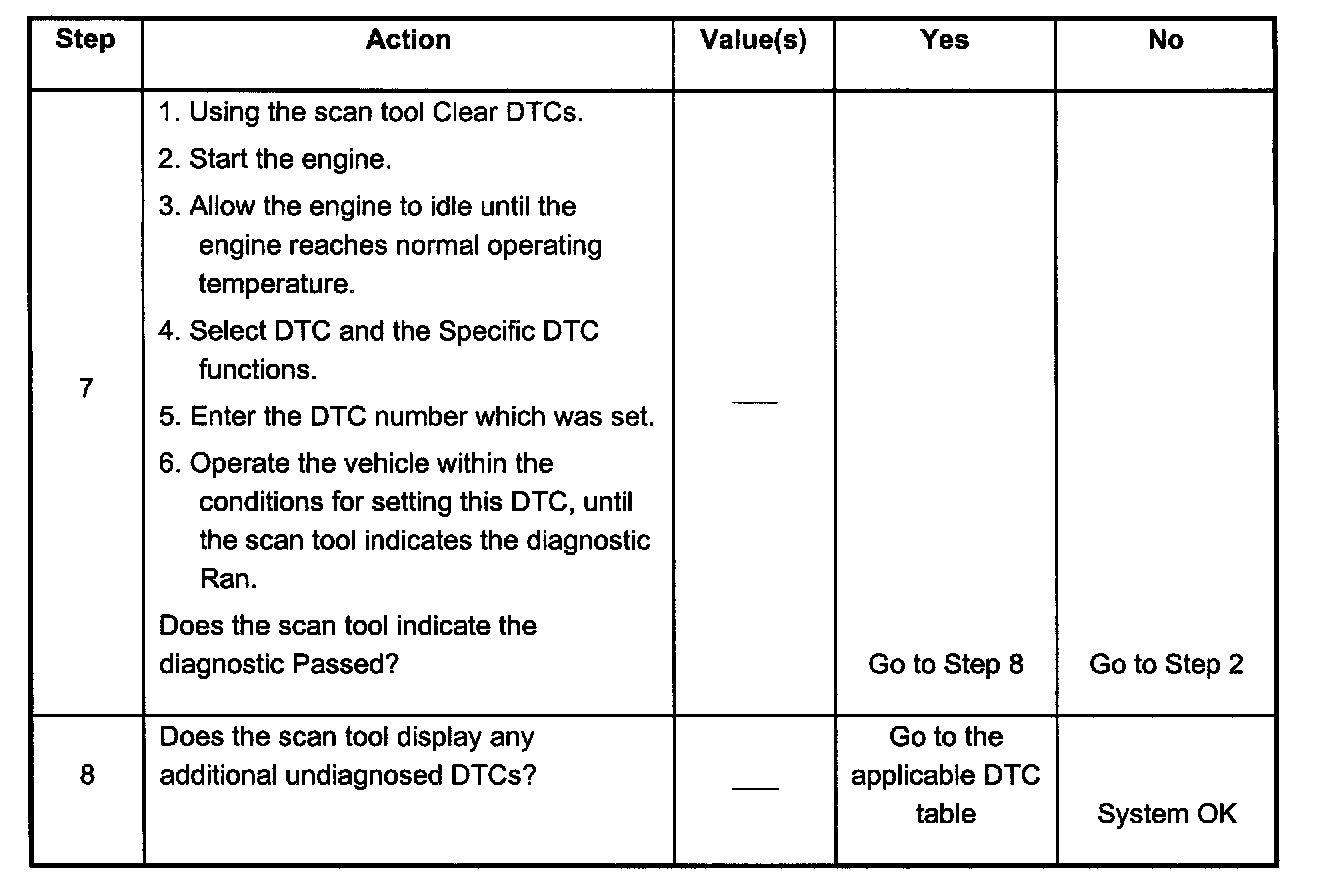

Steps 7 - 8:

Test Description
The number below refers to the step number on the diagnostic table.
2. This step checks the duty cycle output of the crankshaft position (CKP) sensor. An engine will start with a low duty failure but will not run very well All three circuits need to be jumpered for the engine to run.
