Transmission Control Systems

Part 1 Of 5:

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

Part 5 Of 5:

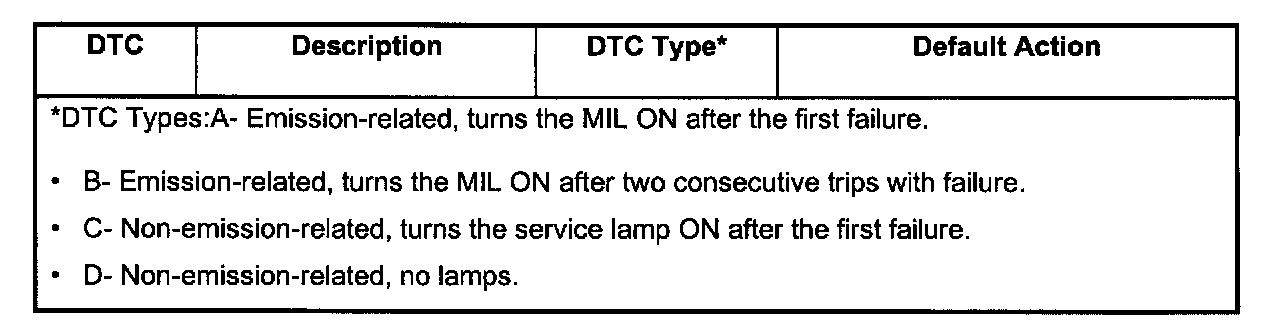

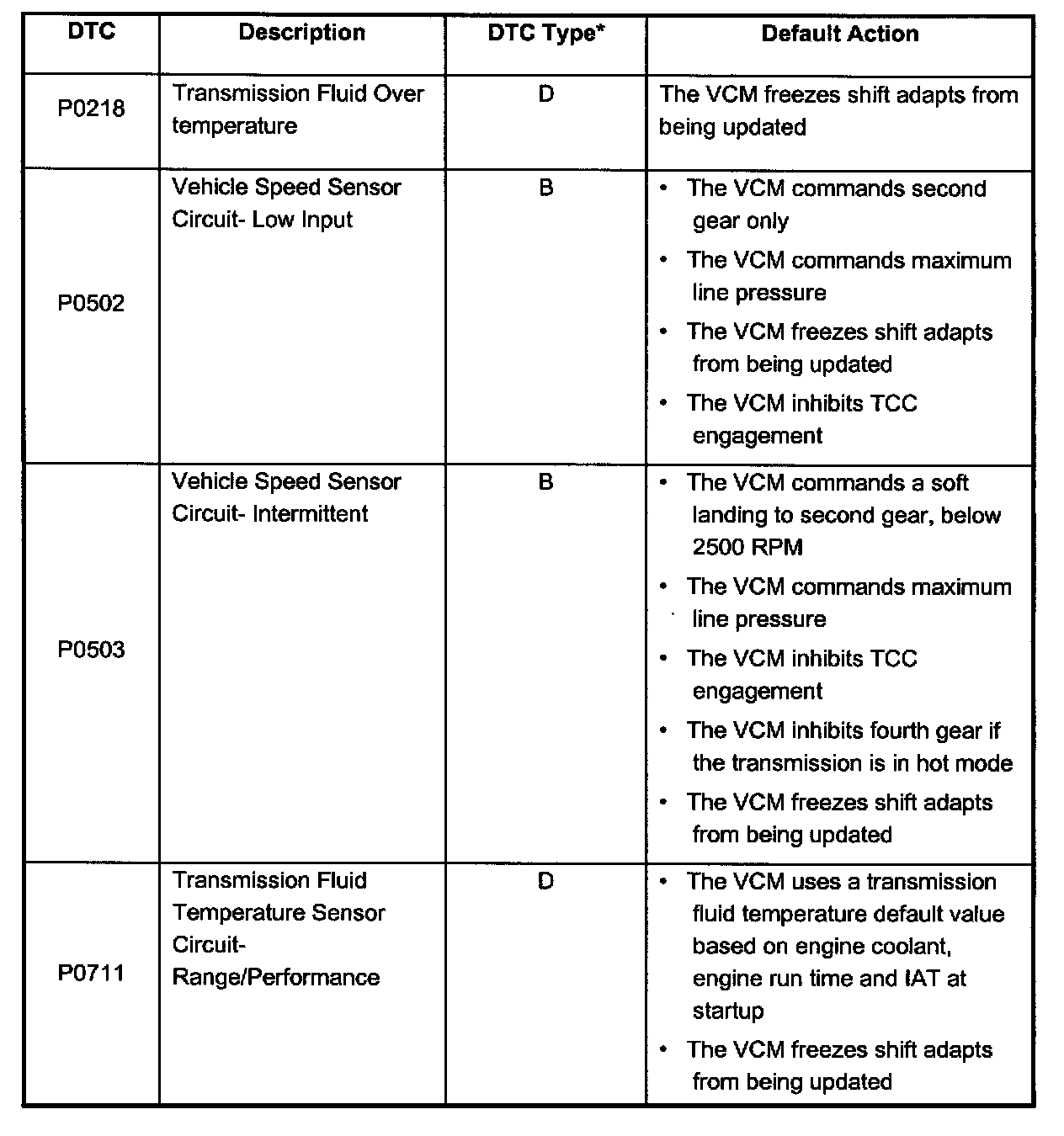

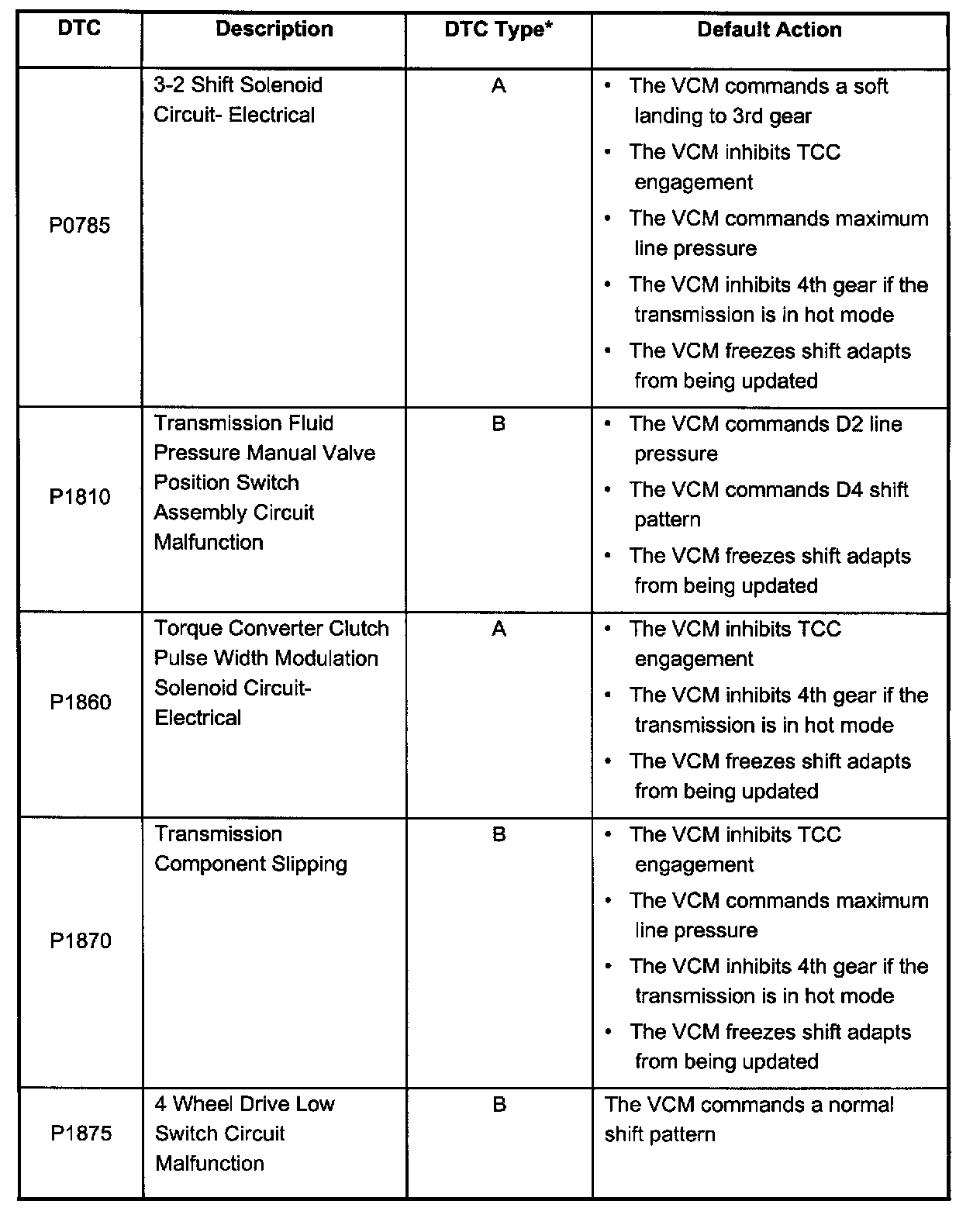

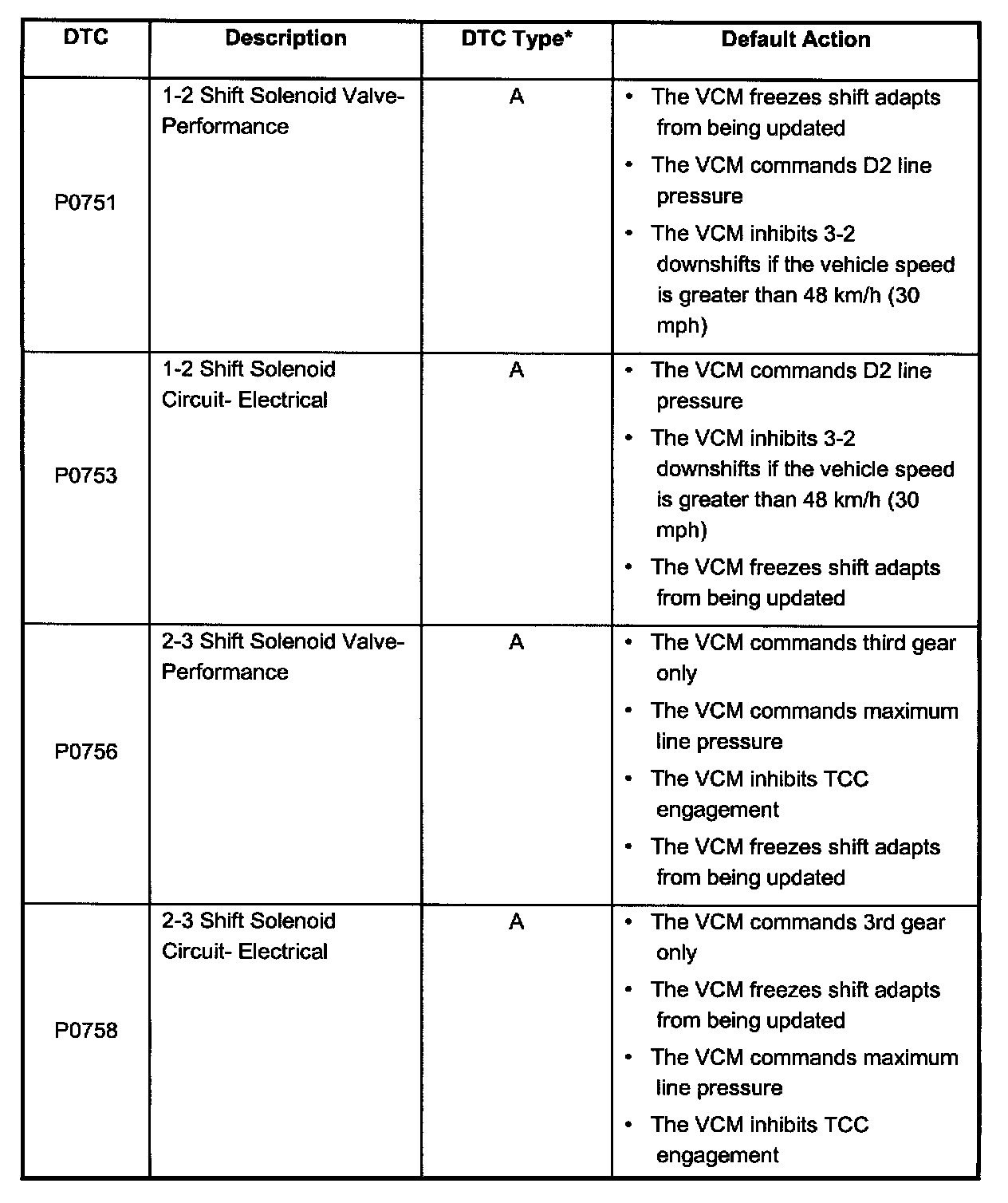

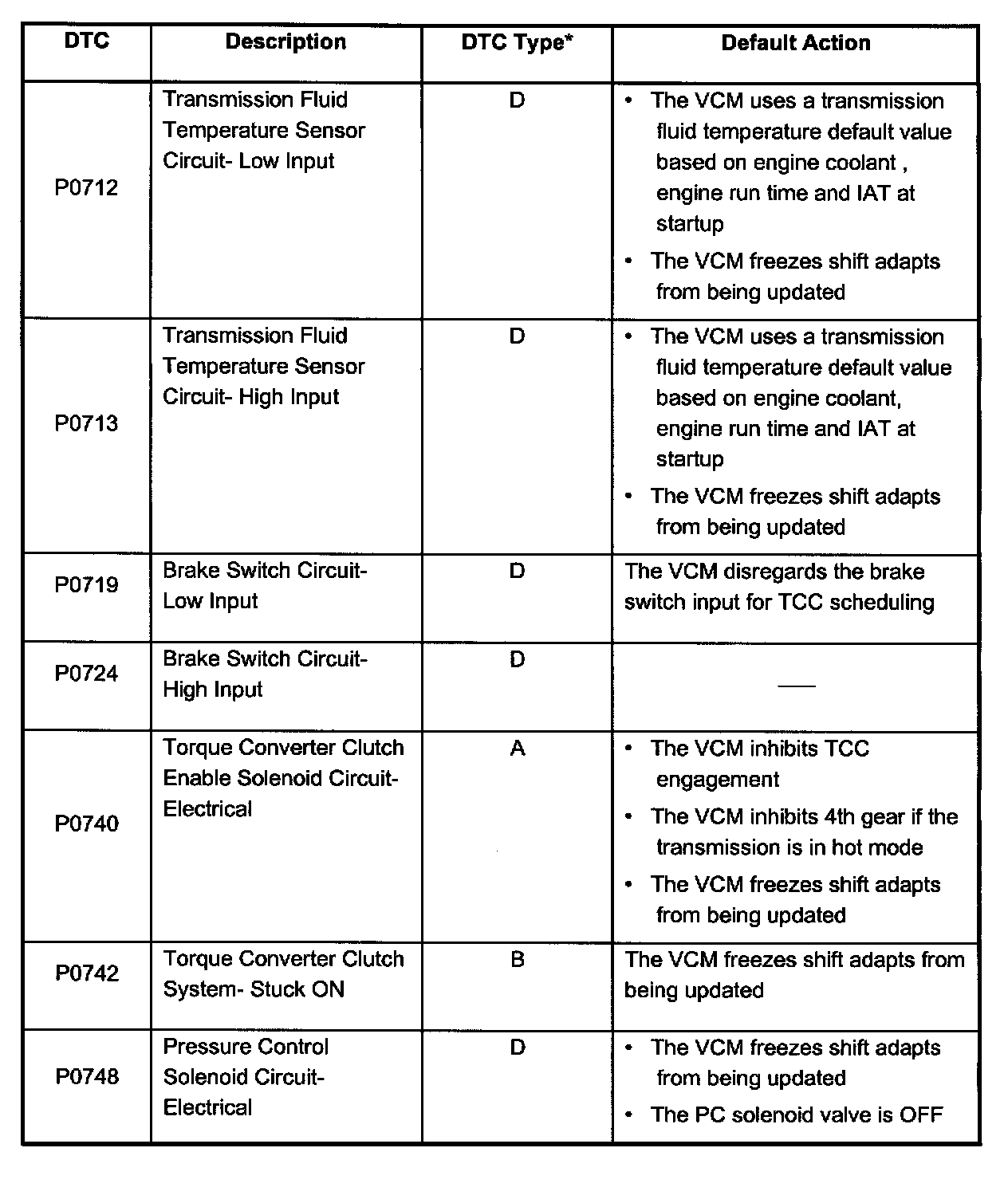

Diagnostic Trouble Code Identification

DTC types:
A - Emission-related, turns the MIL ON after the first failure.
B - Emission-related, turns the MIL ON after two consecutive trips with failure.
C - Non-emission-related, turns the service lamp ON after the first failure.
D - Non-emission-related, no lamps.
