C0235

DTC C0235 Rear Wheel Speed Signal Circuit Open (4.3L)

Circuit Description




The EBCM receives the rear wheel speed signal from the Vehicle Control Module (VCM). The rear wheel speed signal originates from the Vehicle Speed Sensor (VSS) which is connected to the VCM. The vehicle speed sensor coil emits an electromagnetic field. A toothed ring in the transmission passes by the vehicle speed sensor and disrupts this electromagnetic field. The disruption in the field causes the vehicle speed sensor to produce a sinusoidal (AC) voltage signal. The frequency and amplitude of the sinusoidal (AC) voltage signal are proportional to the speed of the transmission output shaft. The amplitude of the vehicle speed signal is also directly related to the distance between the wheel speed sensor coil and the toothed ring. This distance is referred to as the air gap.

Conditions for Setting the DTC

EBCM not seeing the correct voltage level from the VCM at startup.

Action Taken When the DTC Sets

- The ABS indicator lamp turns on
- The ABS disables
DTC C0235 is a Condition Latched DTC, which indicates that the above actions remain true only as long as the condition persists.
DTC C0235 is a DRP Critical DTC, which means that DRP is disabled and the BRAKE indicator lamp will also light

Conditions for Clearing the DTC

- Repair the conditions responsible for setting the DTC.
- Use the scan tool Clear DTCs function.
- A Condition Latched DTC may exist momentarily, or constantly. In either case, the DTC will be stored in the EBCM memory until it is repaired,and/or the DTC is cleared. After the DTC is repaired and/or cleared and the ignition is turned to ON, the ABS lamp will remain lit until the EBCM completes a power-up self test. This test concludes when the vehicle has reached a speed of greater than 13 km/h (8 mph) and the wheel speed inputs have been checked by the EBCM.

Conditions for Clearing the DTC

- Repair the conditions responsible for setting the DTC.
- Use the scan tool Clear DTCs function.
- A Condition Latched DTC may exist momentarily, or constantly. In either case, the DTC will be stored in the EBCM memory until it is repaired,and/or the DTC is cleared. After the DTC is repaired and/or cleared and the ignition is turned to ON, the ABS lamp will remain lit until the EBCM completes a power-up self test. This test concludes when the vehicle has reached a speed of greater than 13 km/h (8 mph) and the wheel speed inputs have been checked by the EBCM.

Test Description

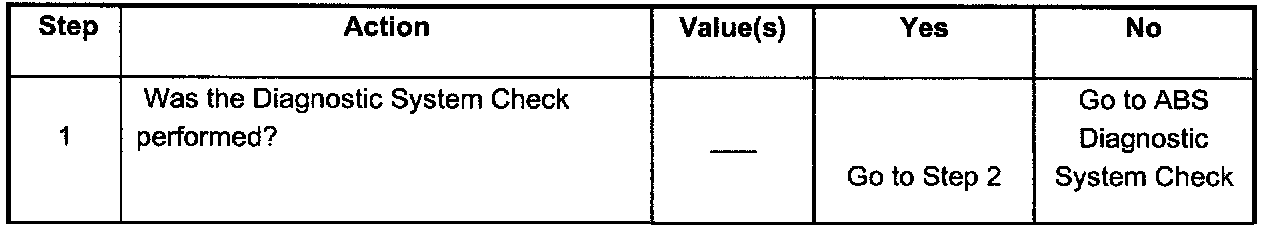

Step 1:

Steps 6 - 9:

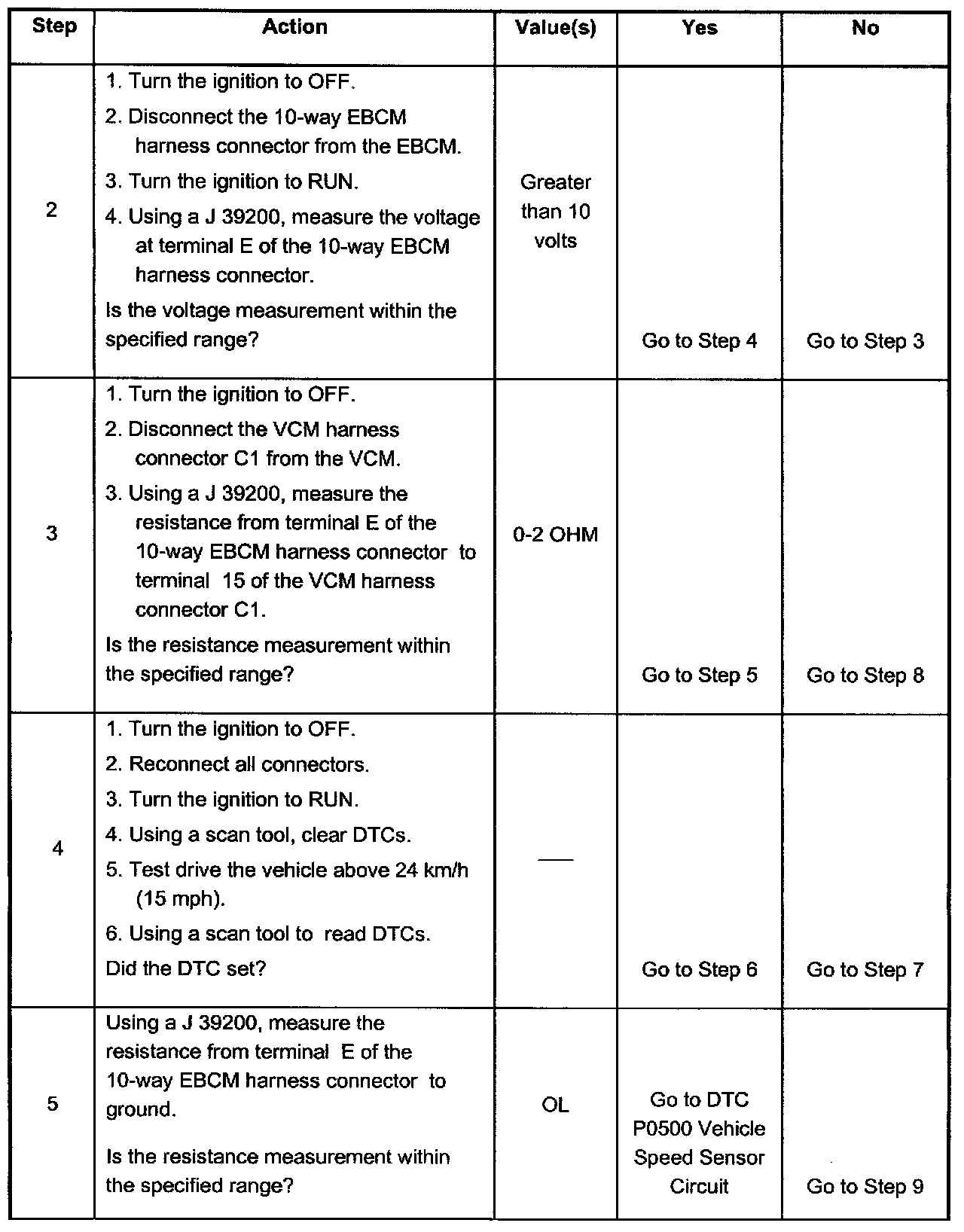

The numbers below refer to the steps in the diagnostic table:
2. This step uses the voltage output from the VCM to check the 1827 CKT.
3. This step checks the 1827 CKT for proper resistance.
5. This step checks for a short in the wiring between the ECBM and the VCM.
