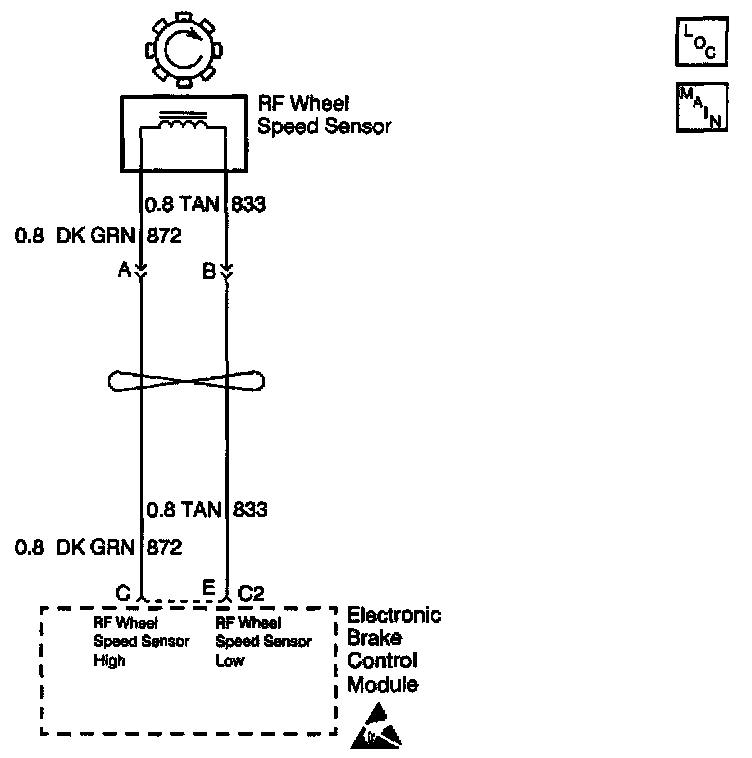

DTC C0222 RF Wheel Speed Signal MissingCircuit Description
The wheel speed sensor coil emits an electromagnetic field. A toothed ring on the wheel passes by the wheel speed sensor and disrupts this electromagnetic field. The disruption in the field causes the wheel speed sensor to produce a sinusoidal (AC) voltage signal. The frequency and amplitude of the sinusoidal (AC) voltage signal are proportional to the speed of the wheel. The amplitude of the wheel speed signal is also directly related to the distance between the wheel speed sensor coil and the toothed ring. This distance is referred to as the air gap.
Conditions for Setting the DTC
- The right front wheel speed is less than 6 km/h (4 mph)
- All other wheel speeds are greater than 13 km/h (8 mph)
- No unexpected wheel acceleration/deceleration. Anything that keeps the right front wheel speed sensor low while the vehicle is moving above 13 km/h (8 mph).
Action Taken When the DTC Sets
- The ABS indicator lamp turns on
- The ABS disables
DTC C0222 is a Condition Latched DTC, which indicates that the above actions remain true only as long as the condition persists.
DTC C0222 is a DRP Non Critical malfunction. If any other DTC sets before this DTC is investigated and cleared, this will become a DRP Critical malfunction and the BRAKE indicator lamp will also turn on.
Conditions for Clearing the DTC
- Repair the conditions responsible for setting the DTC.
- Use the scan tool Clear DTCs function.
- A Condition Latched DTC may exist momentarily, or constantly. In either case, the DTC will be stored in the EBCM memory until it is repaired,and/or the DTC is cleared. After the DTC is repaired and/or cleared and the ignition is turned to ON, the ABS lamp will remain lit until the EBCM complete sits power-up self test. This test concludes when the vehicle has reached a speed of greater than 13 km/h (8 mph) and the wheel speed inputs have been checked by the EBCM.
Diagnostic Aids
If DTC C0221 is set along with this DTC, troubleshoot the cause of DTC C0221 first.
Any of the following conditions may cause an intermittent malfunction:
- A poor connection
- Wire insulation that is rubbed through
- A wire breaks inside the insulation
Thoroughly check any circuitry that is suspected of causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal to wiring connections
- Physical damage to the wiring harness
If the customer says that the ABS indicator lamp is on only during humid conditions such as rain, snow, or vehicle wash, then thoroughly inspect all wheel speed sensor circuits for signs of water intrusion. Use the following procedure:
1. Spray the suspected area with a 5% salt water solution (two teaspoons of salt to 12 oz. of water).
2. Drive the vehicle above 24 km/h (15 mph) for at least 30 seconds. If the DTC returns, replace the suspected harness.
When inspecting a wheel speed sensor, inspect the sensor terminals and the harness connector for corrosion. If evidence of corrosion exists, then replace the wheel speed sensor.
Resistance of the wheel speed sensor will increase with an increase in sensor temperature. Refer to the following tables for temperature/resistance values.

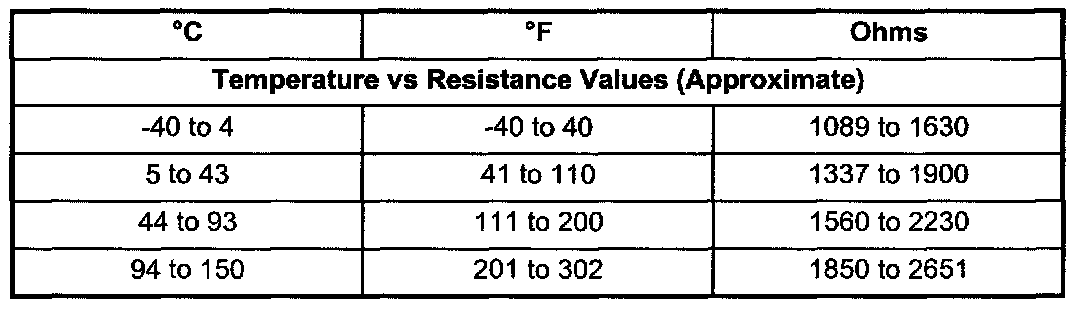

WSS Temperature vs. Sensor Resistance (S- Pickup)

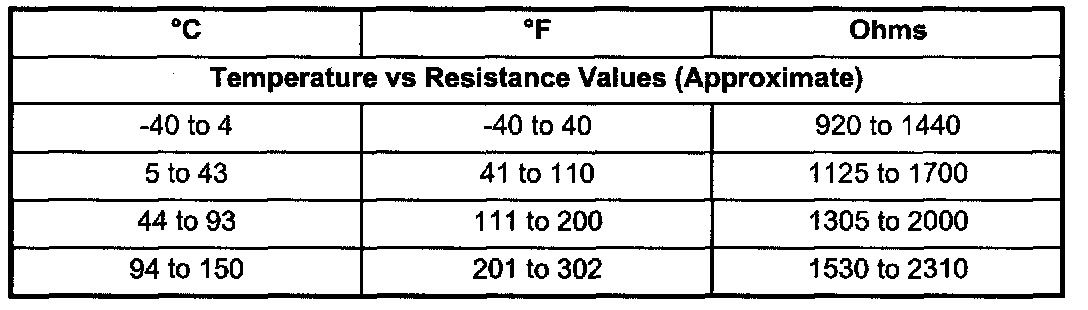

WSS Temperature vs. Sensor Resistance (T- Pickup)
Test Description

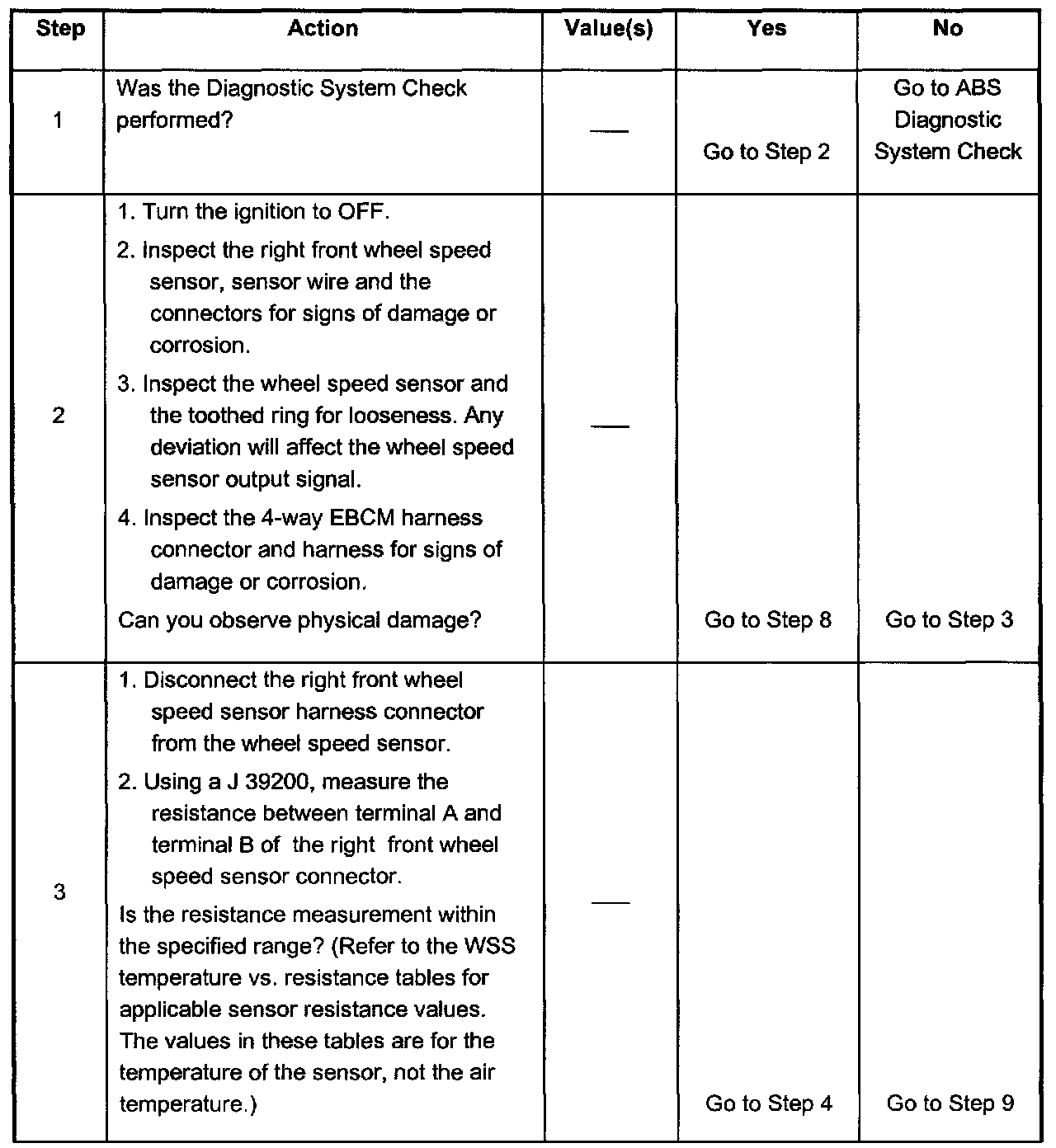

Steps 1 - 3:

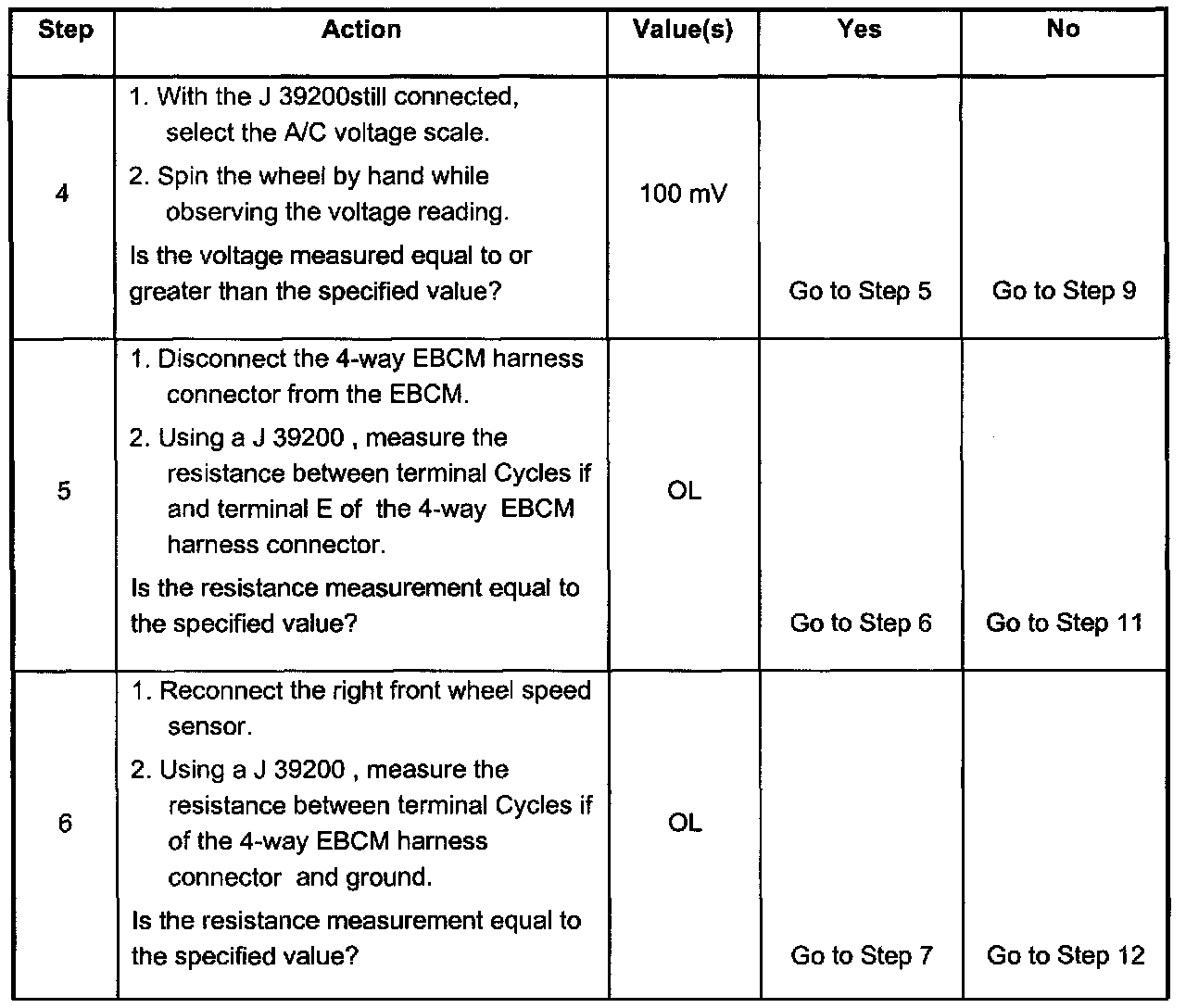

Steps 4 - 6:

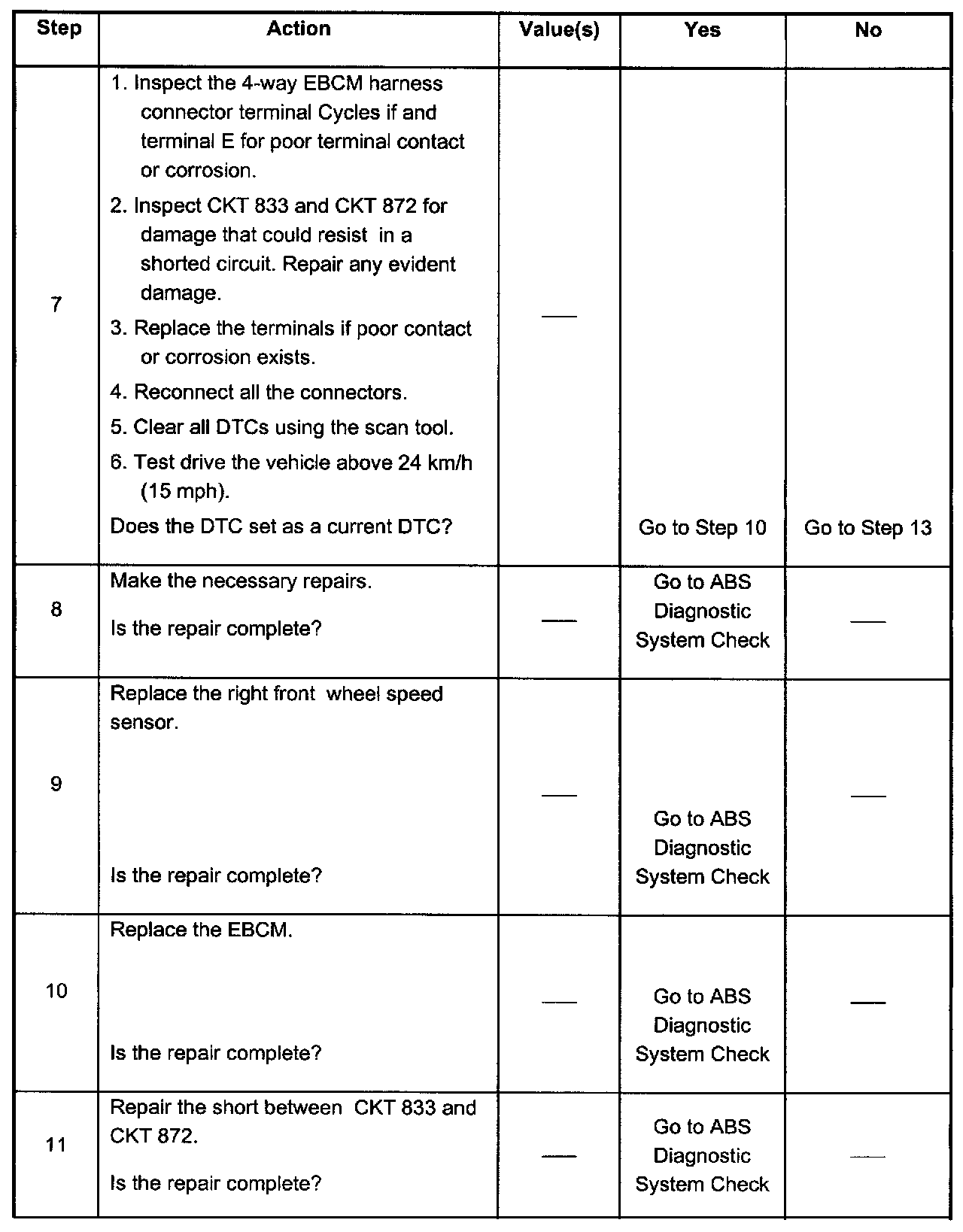

Steps 7 - 11:

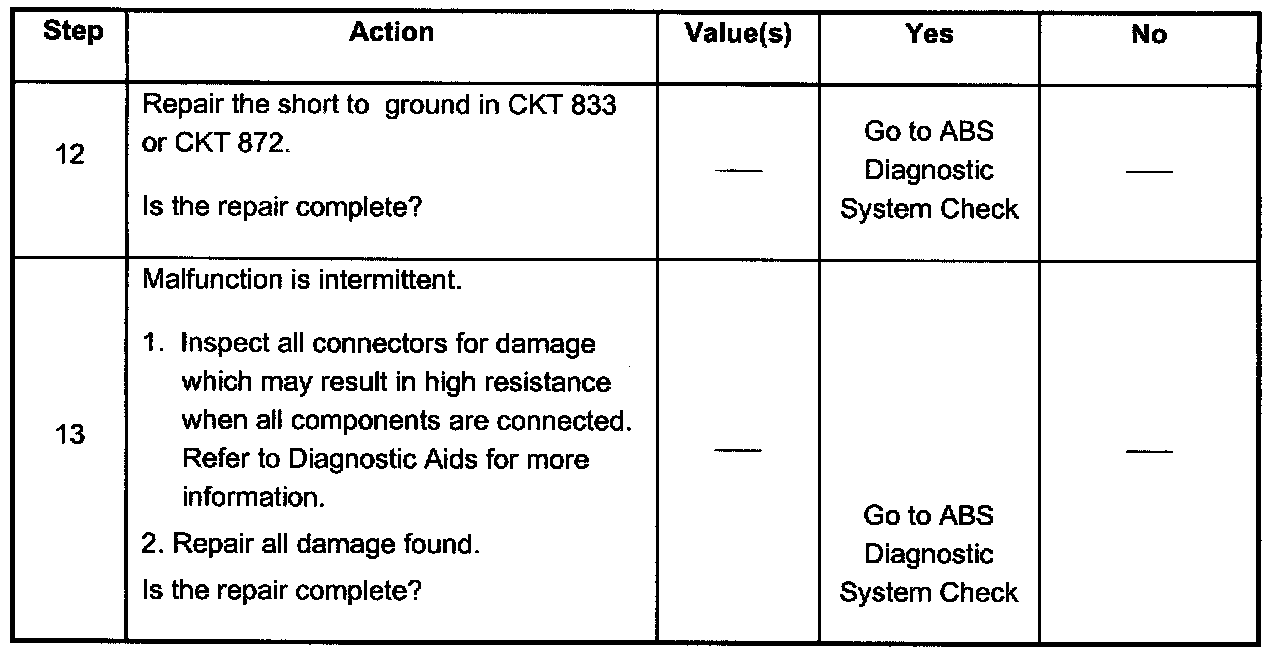

Steps 12 - 13:
The numbers below refer to the steps in the diagnostic table:
3. This step checks the resistance of the right front wheel speed sensor.
4. This step checks the voltage output of the right front wheel speed sensor.
5. This step checks for a short in the wiring between the wheel speed sensor circuits.
6. This step checks for a short to ground in the right front wheel speed sensor circuits.
