B1061

Circuit Description

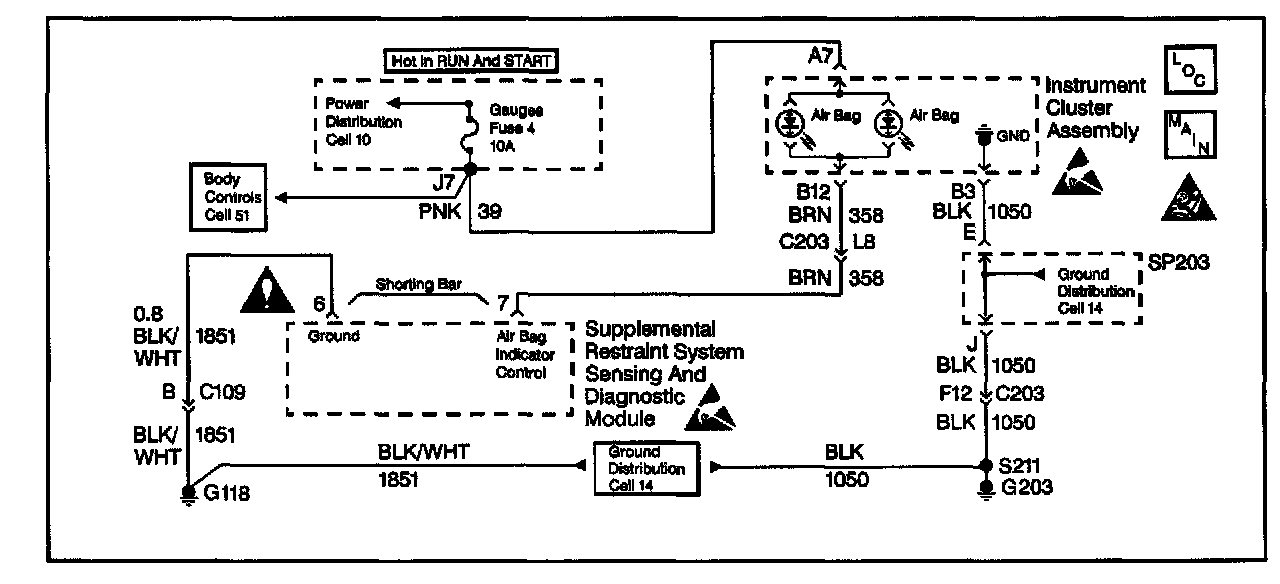

In the RUN position, the ignition switch applies battery voltage to the AIR BAG warning lamp and to the IGNITION 1 input terminal 10. The supplemental restraint sensing and diagnostic module (SDM) by flashing the AIR BAG warning lamp 7 times. The SDM monitors the lamp driver output by comparing the output state at the AIR BAG INDICATOR control terminal 7 to the microprocessor commanded state.

Conditions for Setting the DTC
The output state at the SUPPLEMENTAL RESTRAINT INDICATOR terminal 7 does not match the commanded state of the lamp driver for 400 milliseconds.
The CONTINUOUS MONITORING test inspects for this DTC. This test occurs when IGNITION 1 is within the normal operating voltage range.

Action Taken When the DTC Sets
- The SDM sets a diagnostic trouble code.
- The SDM attempts to turn ON the AIR BAG warning lamp.

Conditions for Clearing the DTC
- Current DTC-
The output state at the SUPPLEMENTAL RESTRAINT INDICATOR terminal 7 matches the commanded state of the lamp driver for 400 milliseconds.
- History DTC
- You issue a scan tool CLEAR CODES command.
- After 250 malfunction free ignition cycles have occurred.

Diagnostic Aids
Refer to AIR BAG Warning Lamp Comes On Steady and AIR BAG Warning Lamp Does Not Come On to diagnose warning lamp circuit malfunctions.

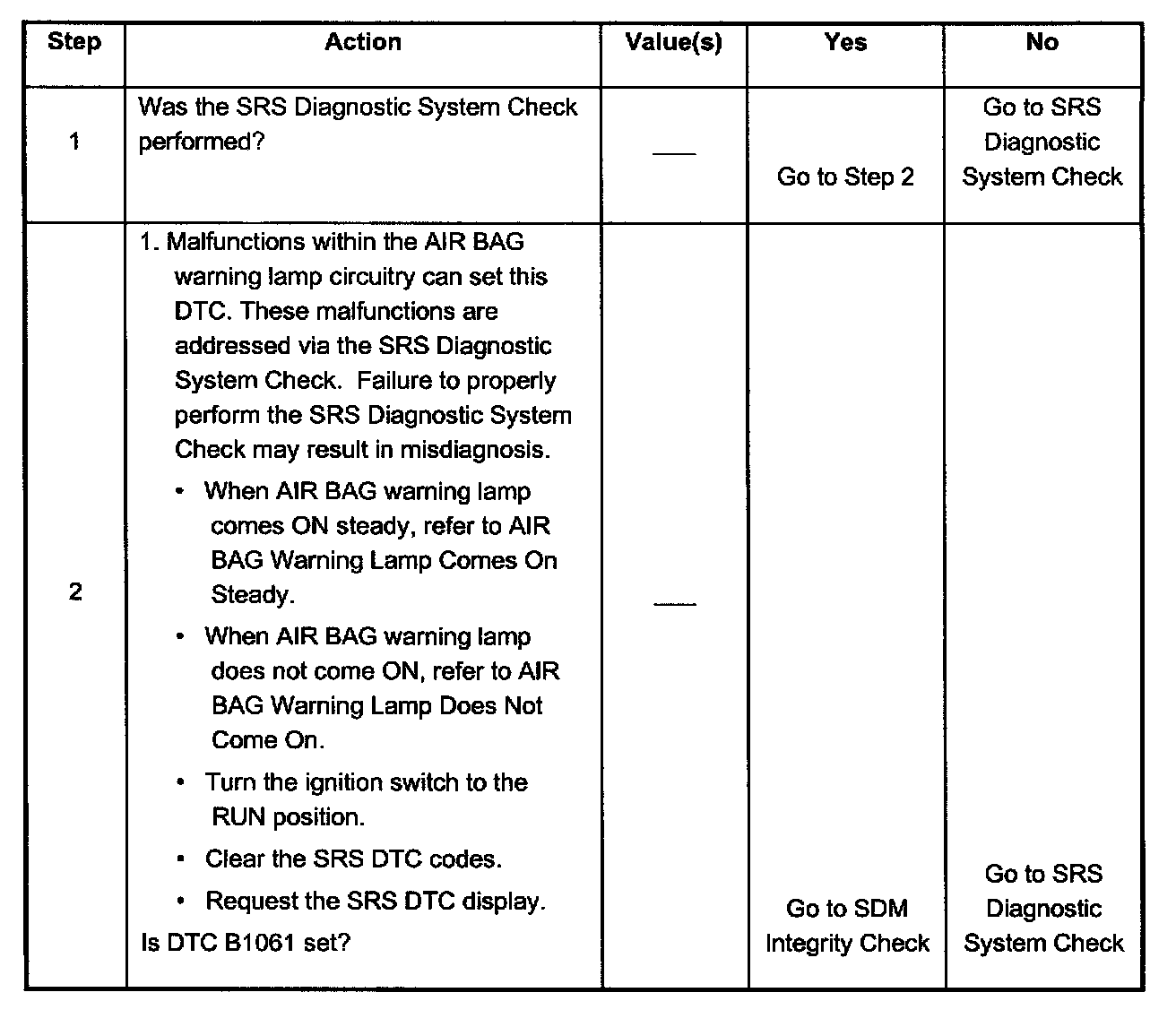

Step 1 - 2:

Test Description
The number below refers to the step number on the diagnostic table:
2. When the supplemental restraint sensing and diagnostic module (SDM) is configured for a serial data controlled warning indicator (smart cluster), DTC B1061 will set.
