System Wiring Circuit
System Wiring Circuit

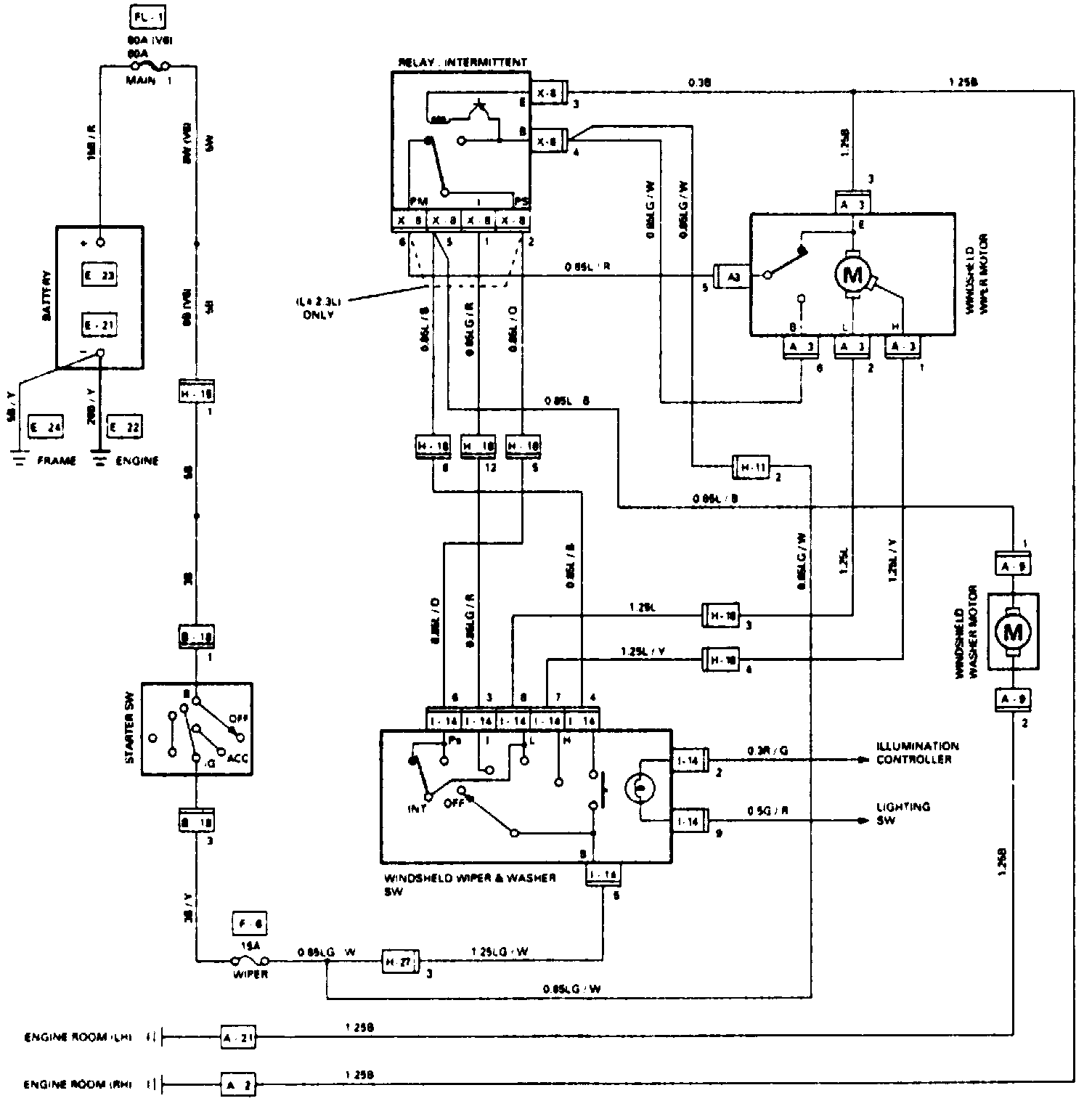

Fig. 1 Wiper System Schematic:
Refer to
Fig. 1
for wiper system schematic.
