Alternator - Noise

BULLETIN NUMBER
SB93-04-008

ISSUE DATE
December 1993

GROUP
ELECTRICAL

1994 PICKUP (TF) V6 ALTERNATOR NOISE

AFFECTED VEHICLES

1994 Pickup (TF) models equipped with 3.1L V6 engine.

SERVICE INFORMATION

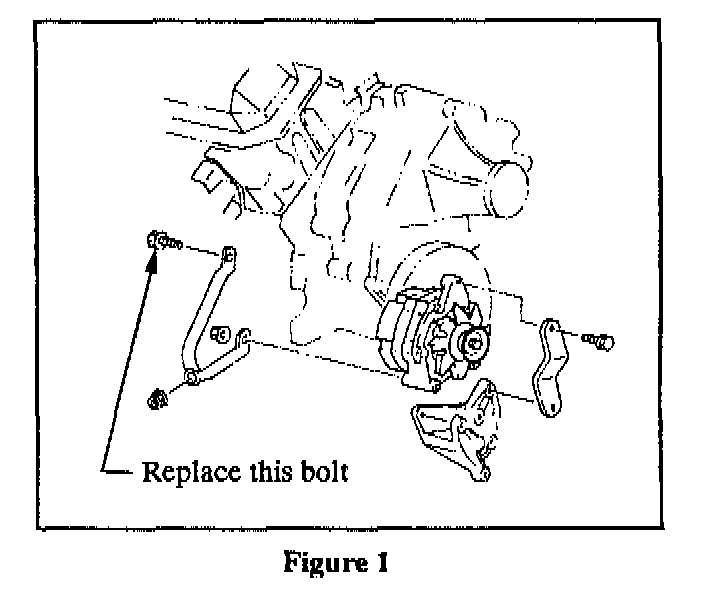

On some affected vehicles, a noise coming from the alternator may be due to an overlength alternator bracket bolt (Figure 1) contacting the alternator. Replacing the alternator bracket bolt with a shorter length bolt (listed in "Parts Information" section of this Service Bulletin) will eliminate the noise.

SERVICE PROCEDURE

To eliminate noise coming from the alternator, replace the alternator bracket bolt (Figure 1), using the bolt listed in the "Parts Information" section below.

PARTS INFORMATION

Part No. Description

8-11508-106-0 Alternator Bracket Bolt

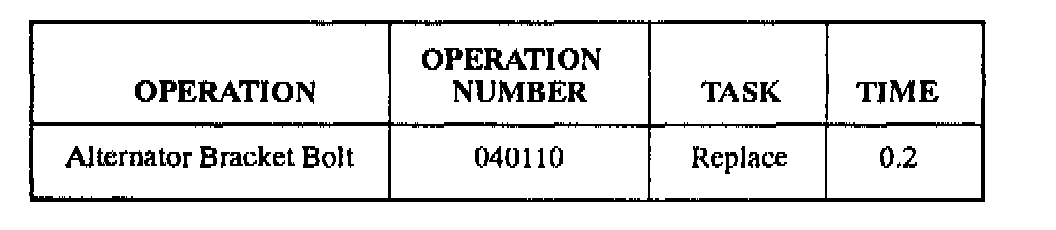

FLAT RATE MANUAL UPDATE INFORMATION





Use the new Flat Rate Manual labor operation shown.
