Pinout Values and Diagnostic Parameters

26 Pin ECM Connector:

22 Pin ECM Connector:

ECM CONNECTOR WIRE COLORS

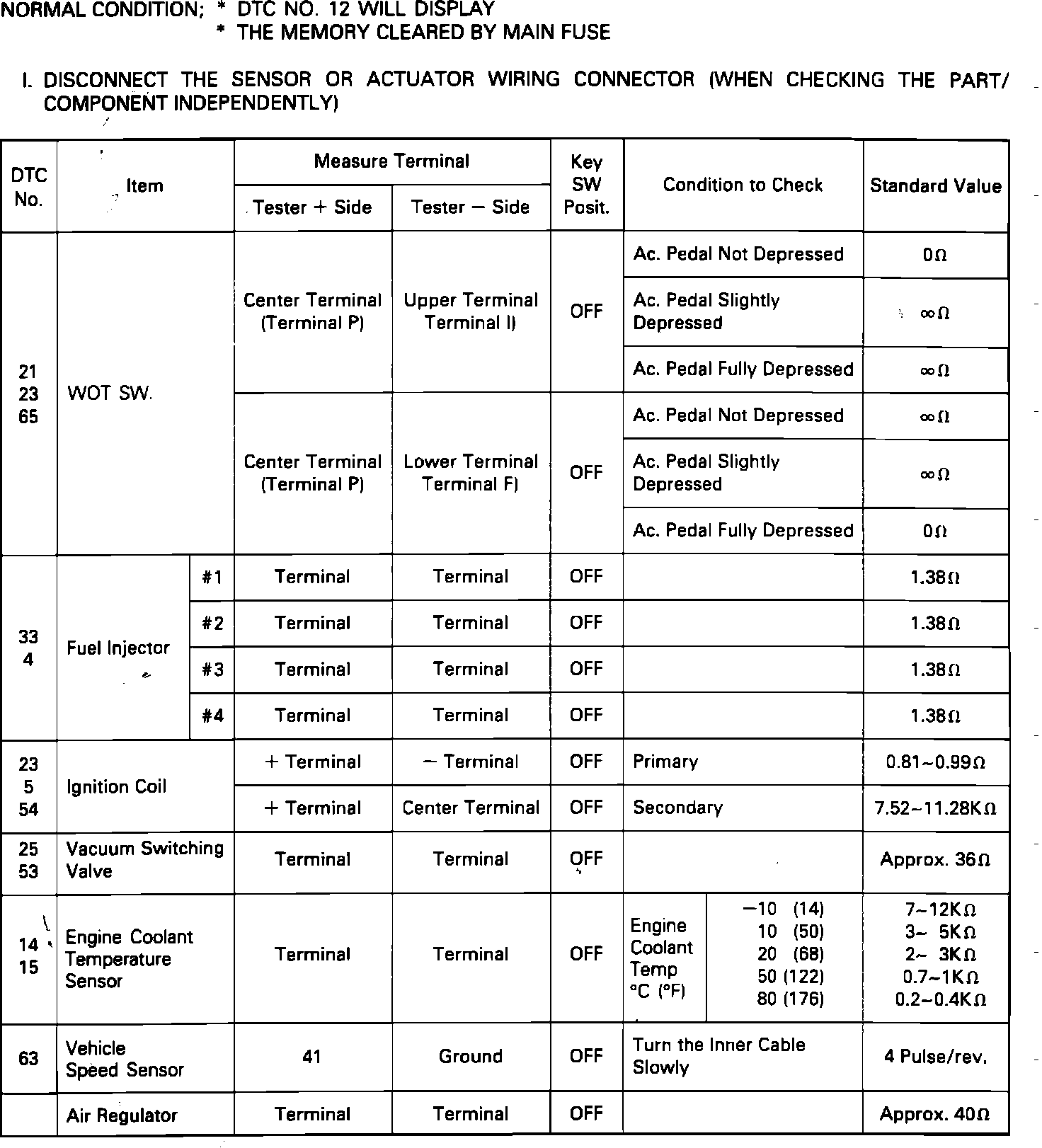

Component Values:

Component Values:

EXPECTED VALUES AT COMPONENT(S) WITH HARNESS DISCONNECTED

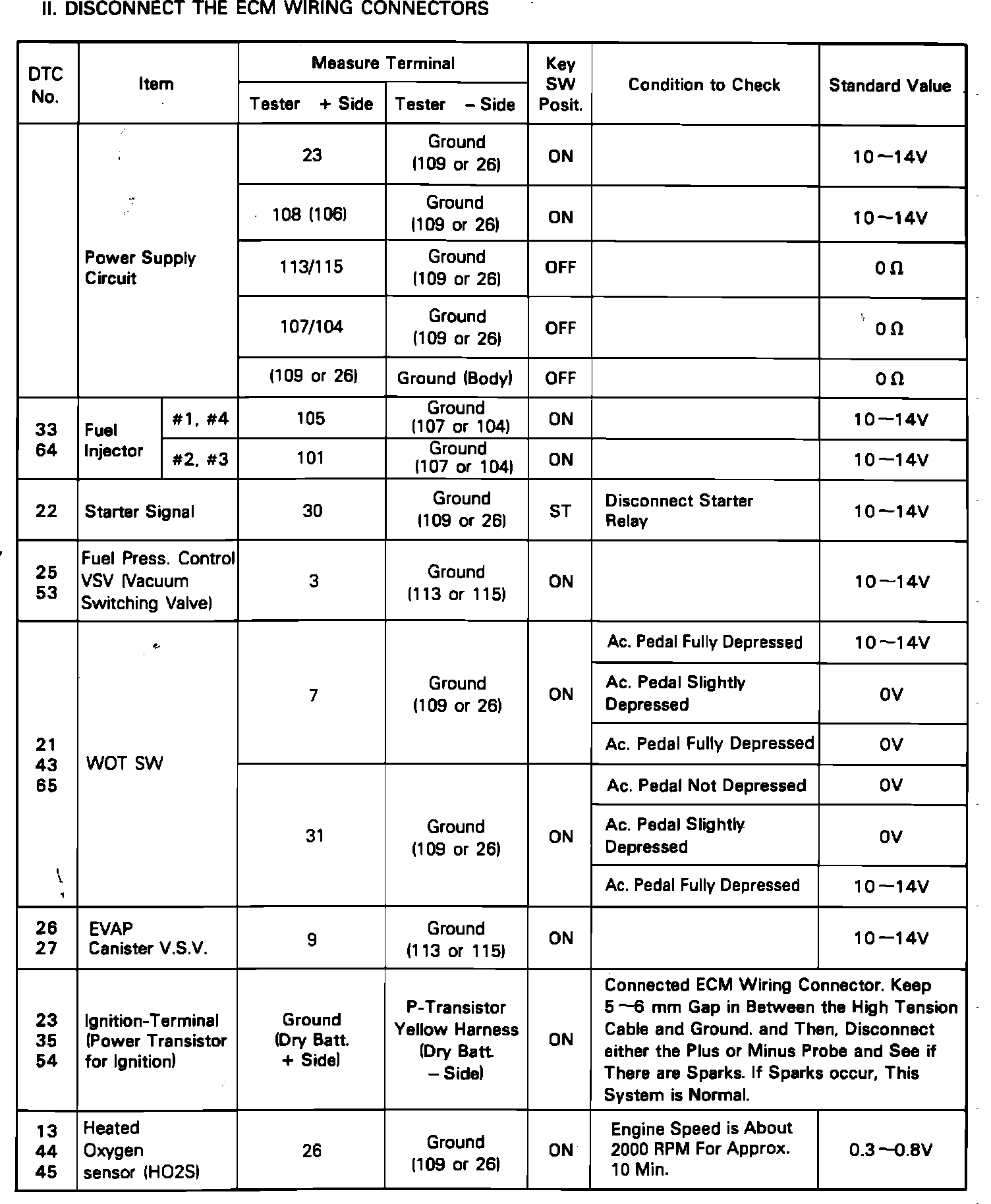

ECM Pin Voltages:

EXPECTED VALUES AT ECM WITH HARNESS DISCONNECTED
