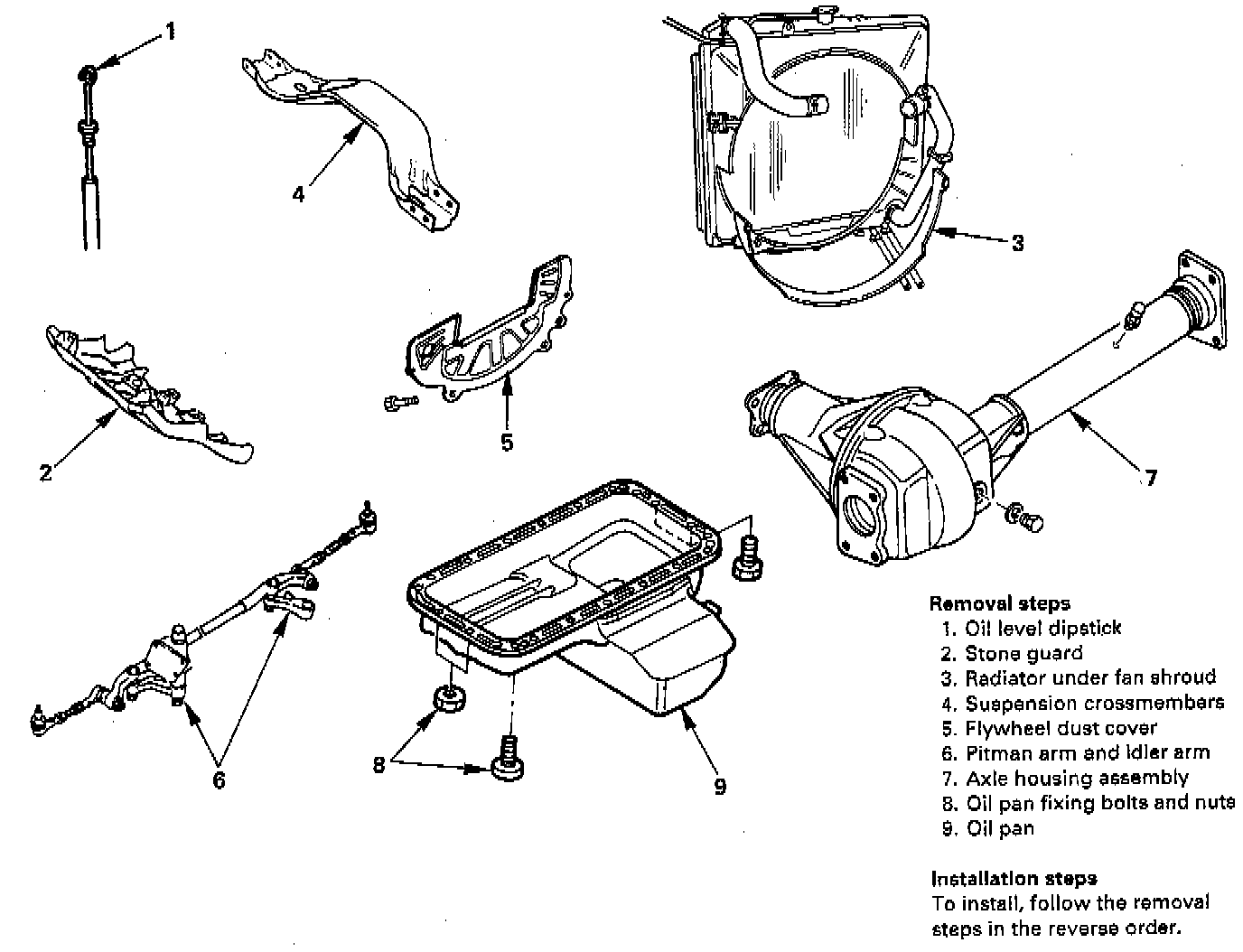

Installation

1. Oil pan [9]
- Remove residual sealant, lubricant and moisture from mounting surface, then dry thoroughly.
- Apply a properly wide bead of sealant (TB 1207C or equivalent) to mounting surface of oil pan. Sealant bead must be continuous.
- Oil pan must be installed within 5 minutes after sealant is applied.
2. Oil pan fixing bolts and nuts [8]
- Tighten oil pan fixing bolts and nuts to 10 Nm (87 inch lbs.).
3. Axle housing assembly [7]
- Tighten fixing bolts to 82 Nm (61 ft. lbs.).
- Tighten fixing bolts and nuts to 152 Nm (112 ft. lbs.).
4. Pitman arm and idler arm [6]
- Tighten idler arm fixing bolt to 44 Nm (33 ft. lbs.).
- Engage teeth of pitman arm and steering unit, and tighten bolt to 216 Nm (159 ft. lbs.).
5. Flywheel dust cover [5]
6. Suspension cross member [4]
- Tighten fixing bolts to 78 Nm (58 ft. lbs.).
7. Radiator under fan shroud [3]
8. Stone guard [2]
9. Dipstick [1]
- Fill oil to proper level.
