Fuse Block

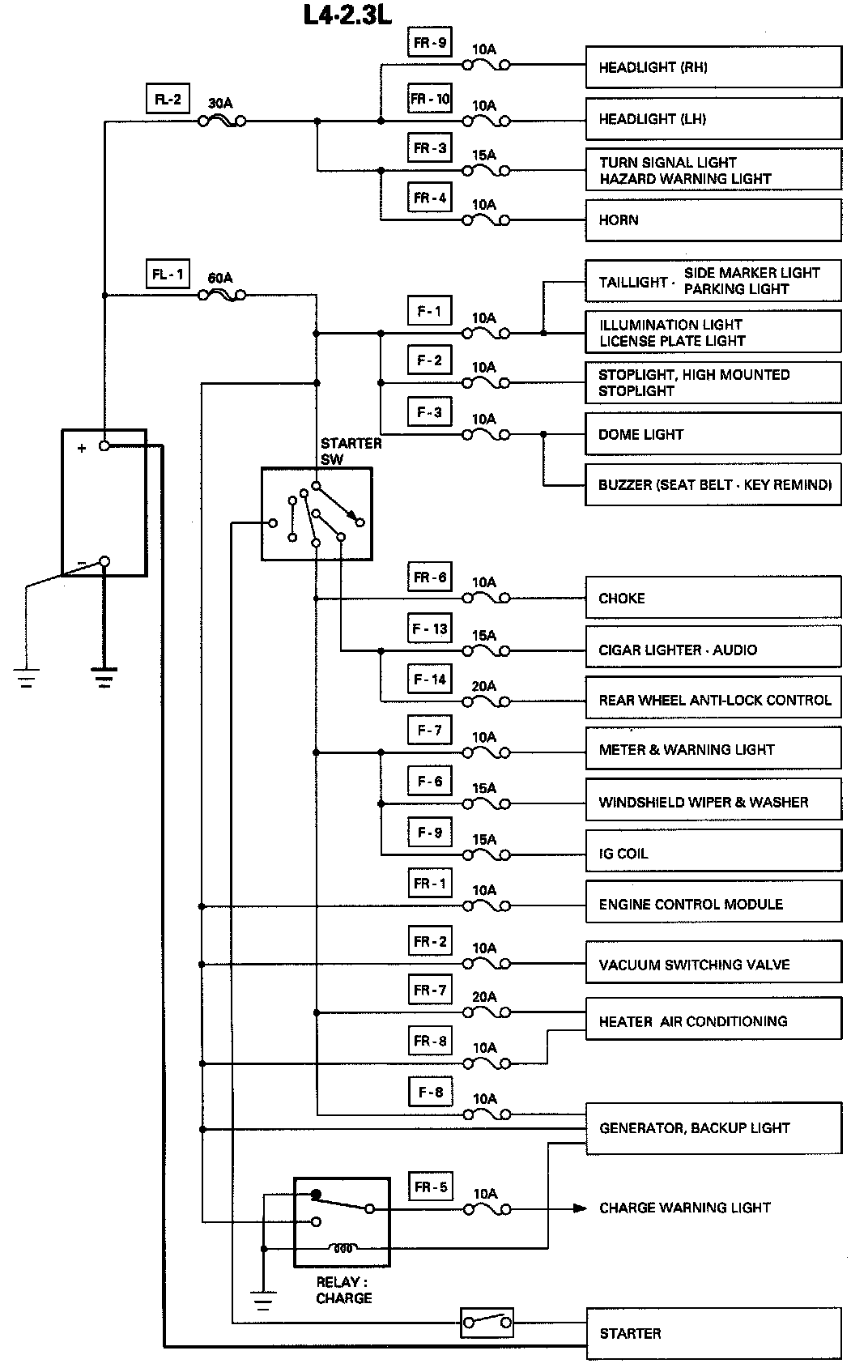

1994-95 2.3 L






1994-95 2.6 L

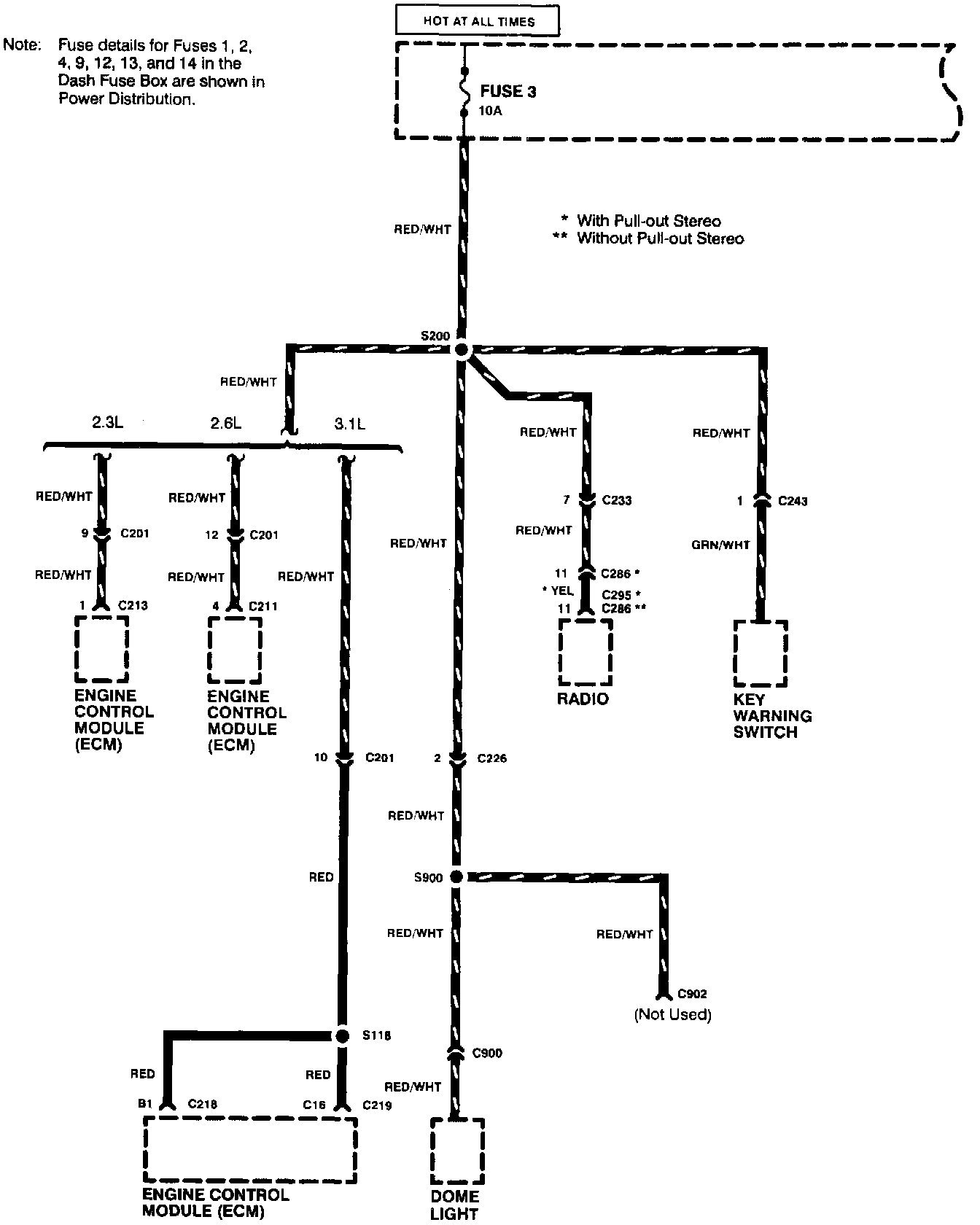

Dash Fuse Box (Part 1 Of 5):

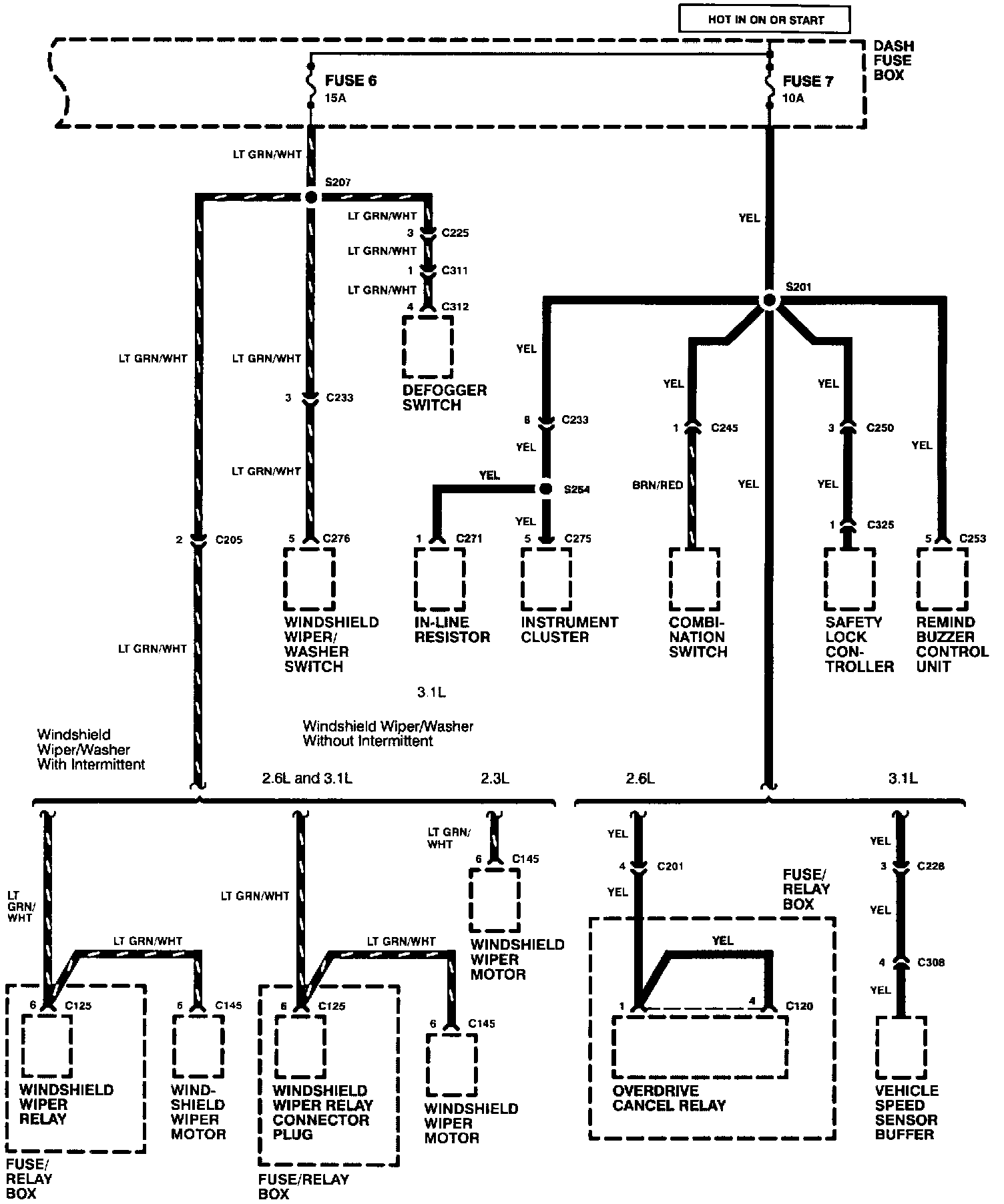

Dash Fuse Box (Part 2 Of 5):

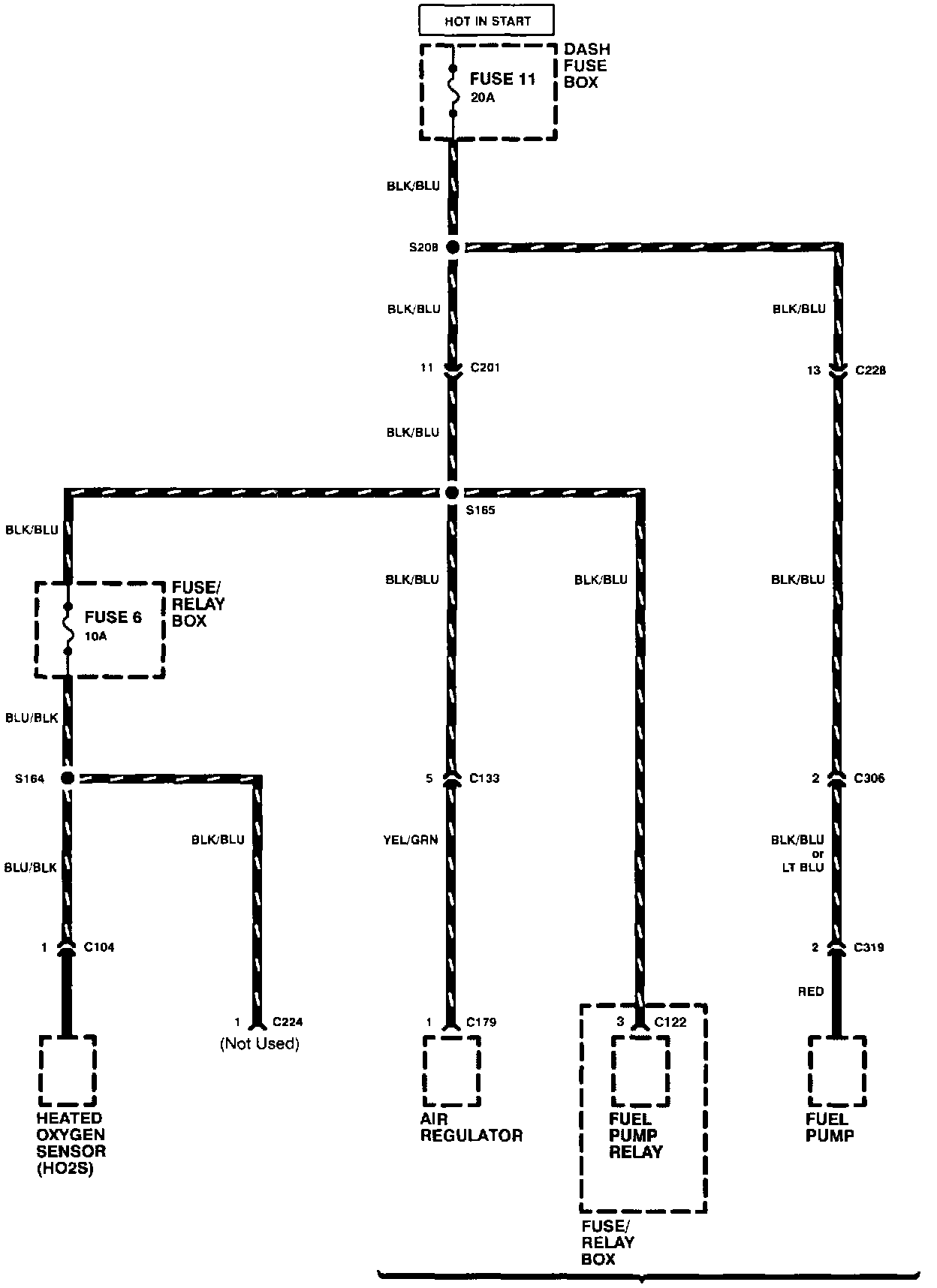

Dash Fuse Box (Part 3 Of 5):






Dash Fuse Box (Part 4 Of 5):






Dash Fuse Box (Part 5 Of 5):
