FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Isuzu Truck
>>
1994
>>
Pickup 4WD V6-3137cc 3.1L (CPC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Marker Lamp
Marker Lamp

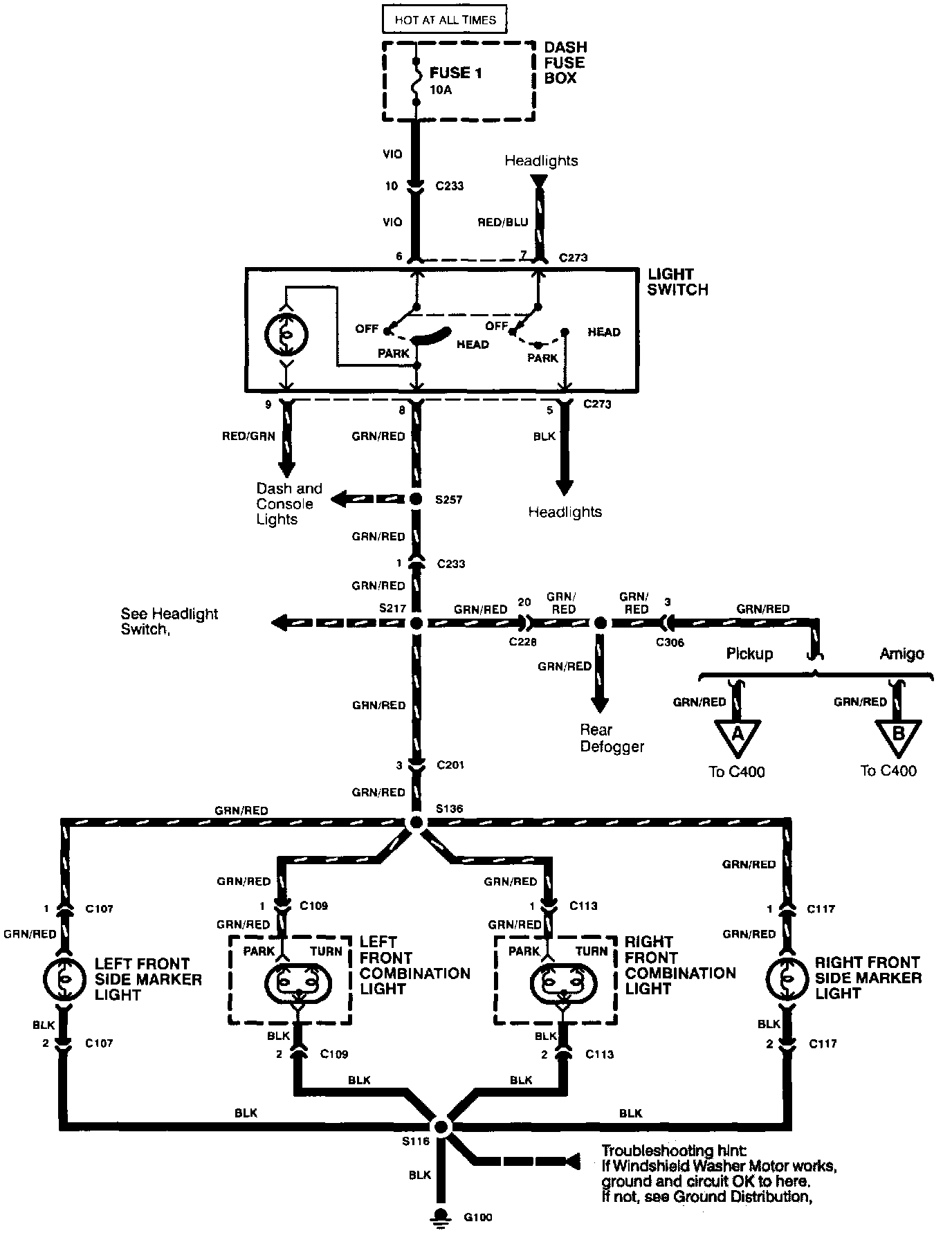

Front Side Marker, Front Park, Rear Park And License Plate Lights (Part 1 Of 3):
Front Side Marker, Front Park, Rear Park And License Plate Lights:
