Wiper Continuously Operates When Int Switch Is on
Wiper Continuously Operates When Int Switch Is on

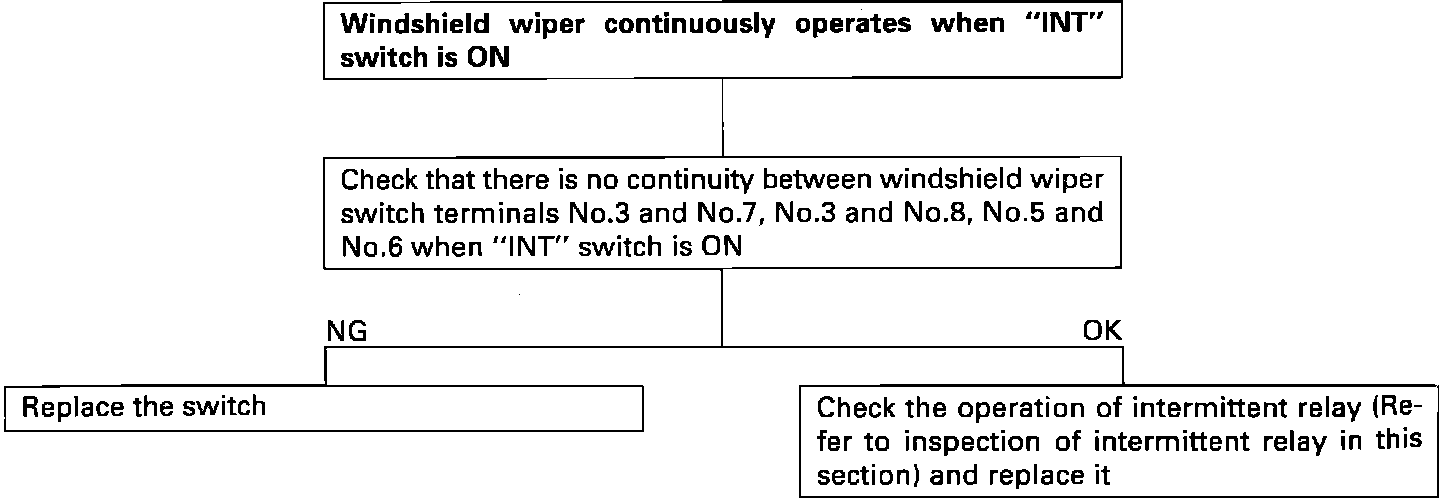

Fig. 13 Diagnostic chart, wiper continuously operates when INT switch is On:
