Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Quick Check Chart

Diagnostic Quick Check Chart

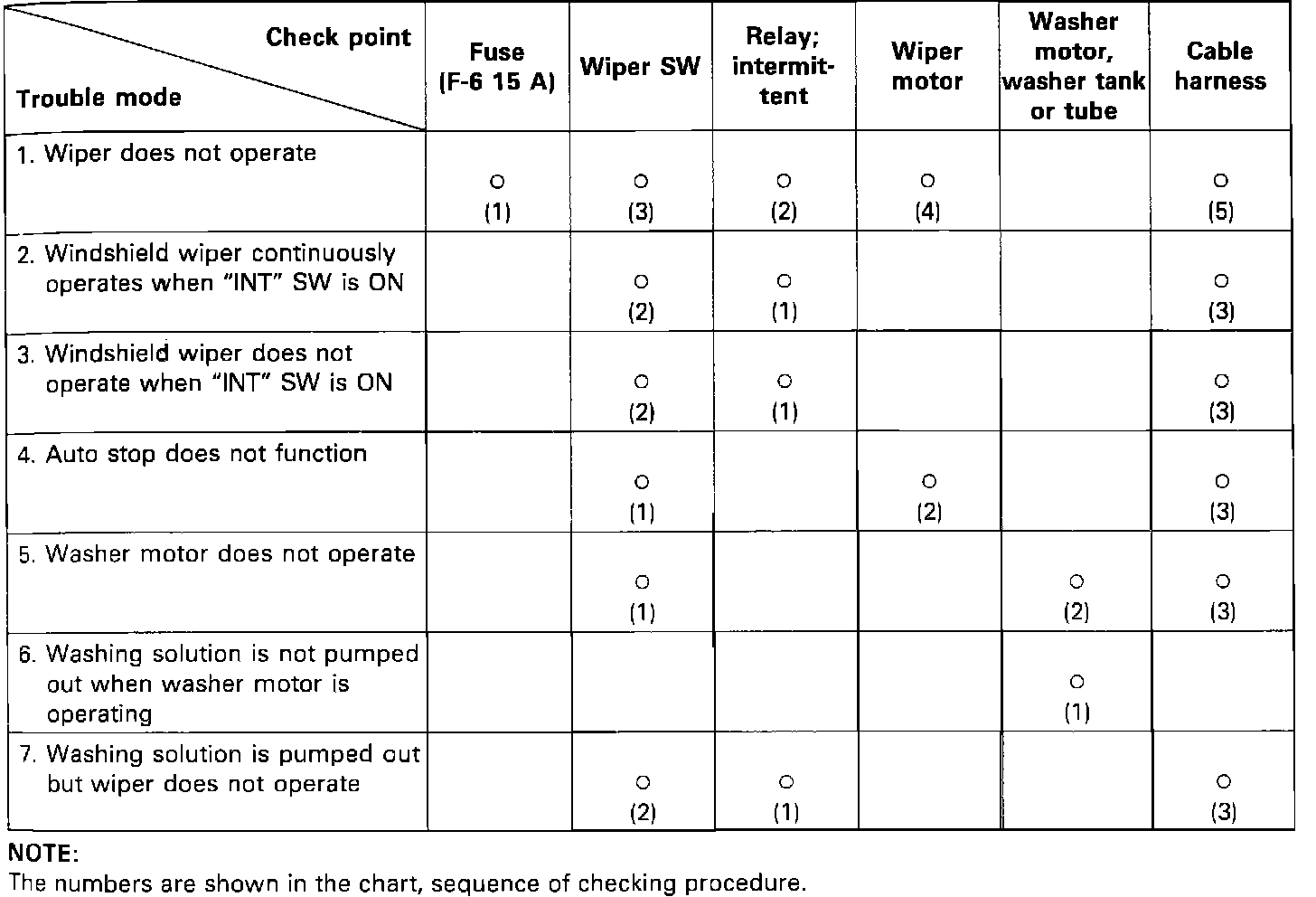

Fig. 11 Diagnostic quick check chart:
