Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Auto Stop Does Not Function

Auto Stop Does Not Function

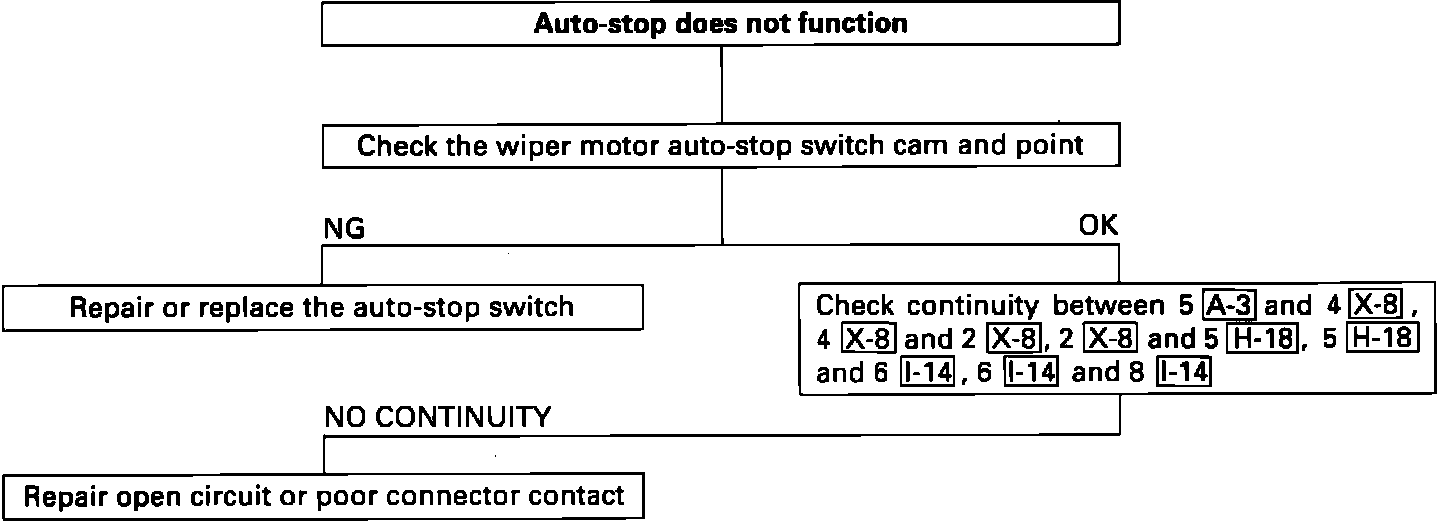

Fig. 15 Diagnostic chart, auto stop does not function:
