Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Case >> Service and Repair

Case: Service and Repair

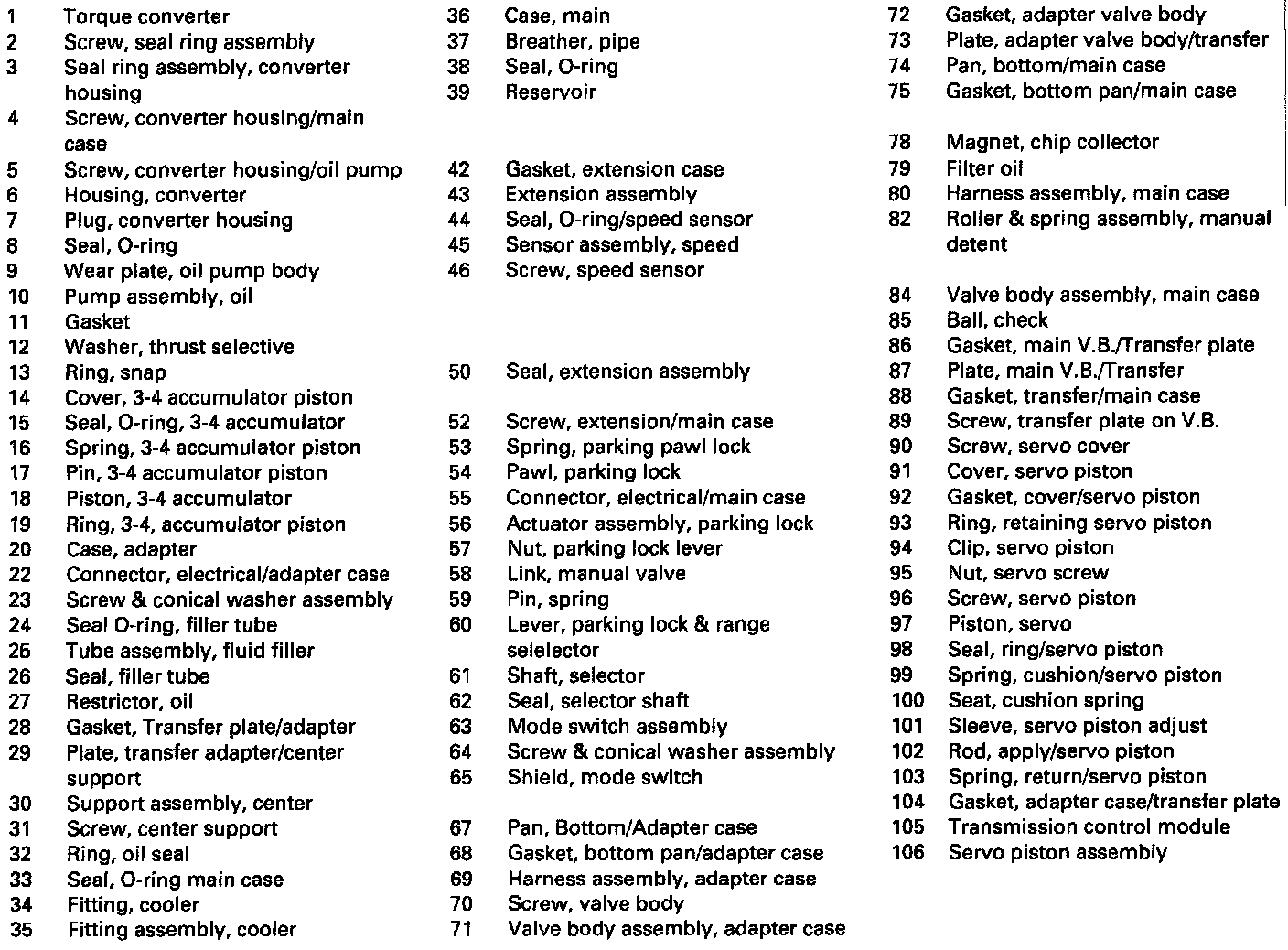

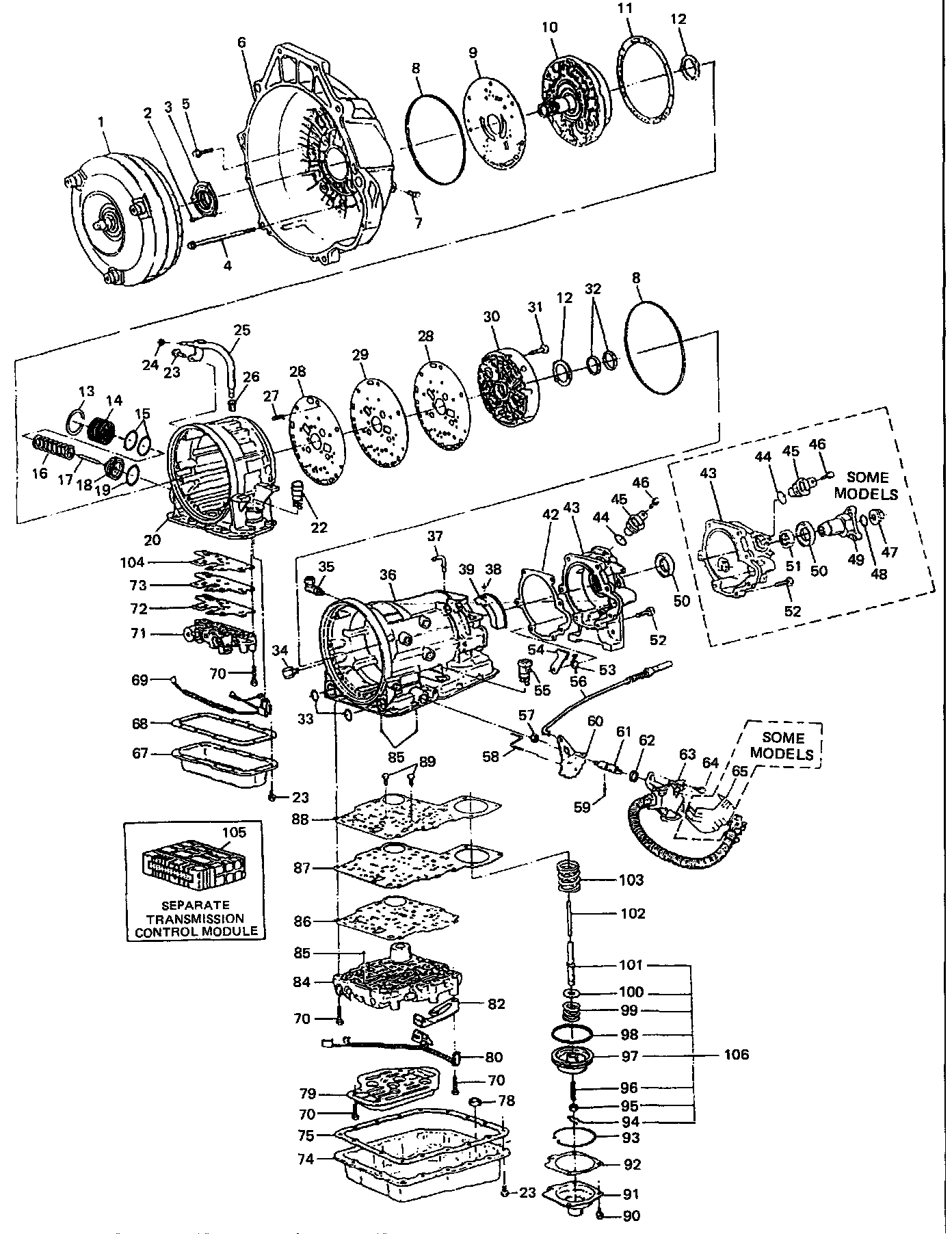

CASE AND ASSOCIATED PARTS

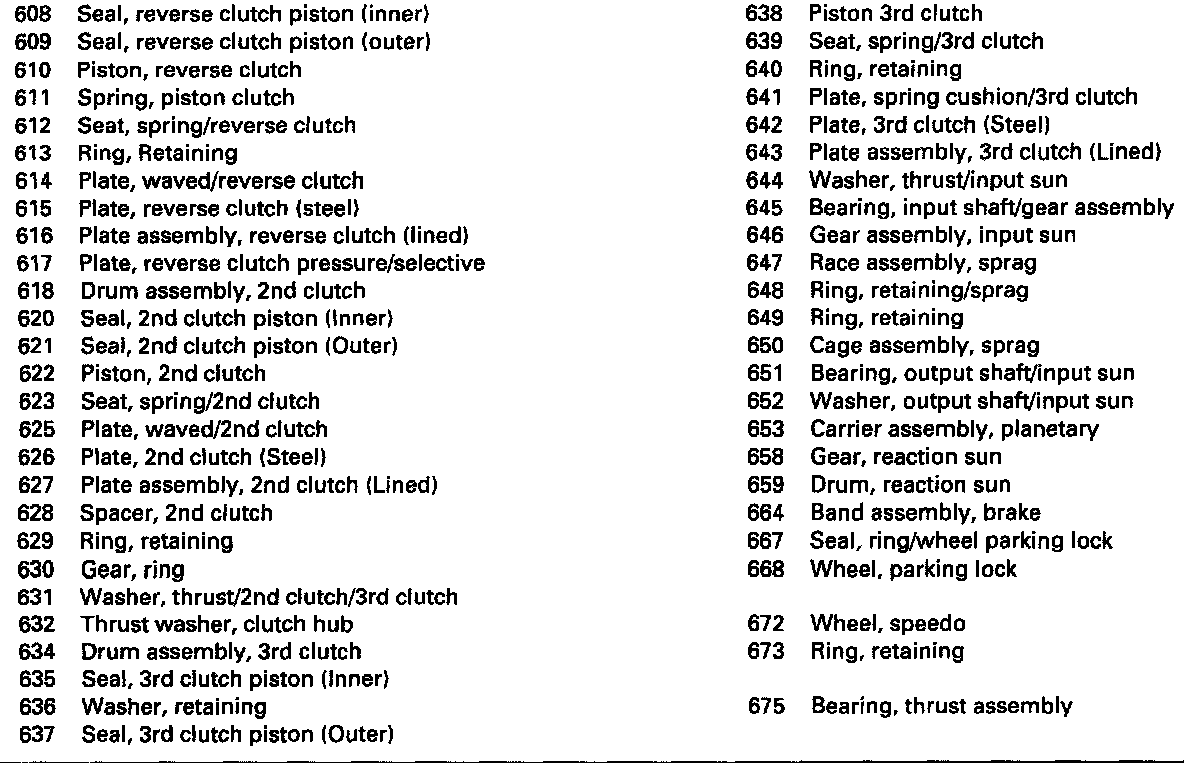

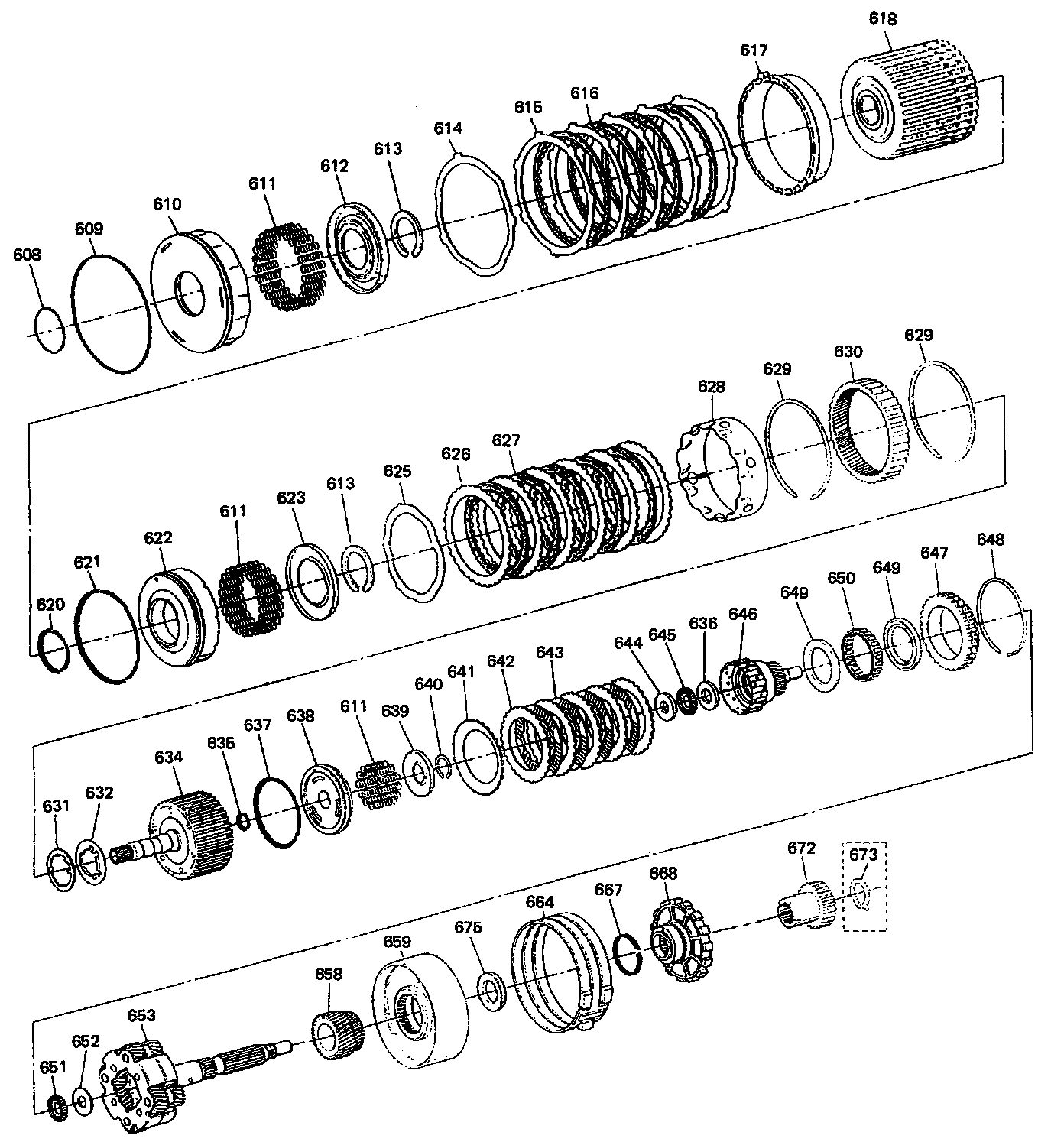

INTERNAL PARTS






CENTER SUPPORT
