Wiper Switch: Testing and Inspection

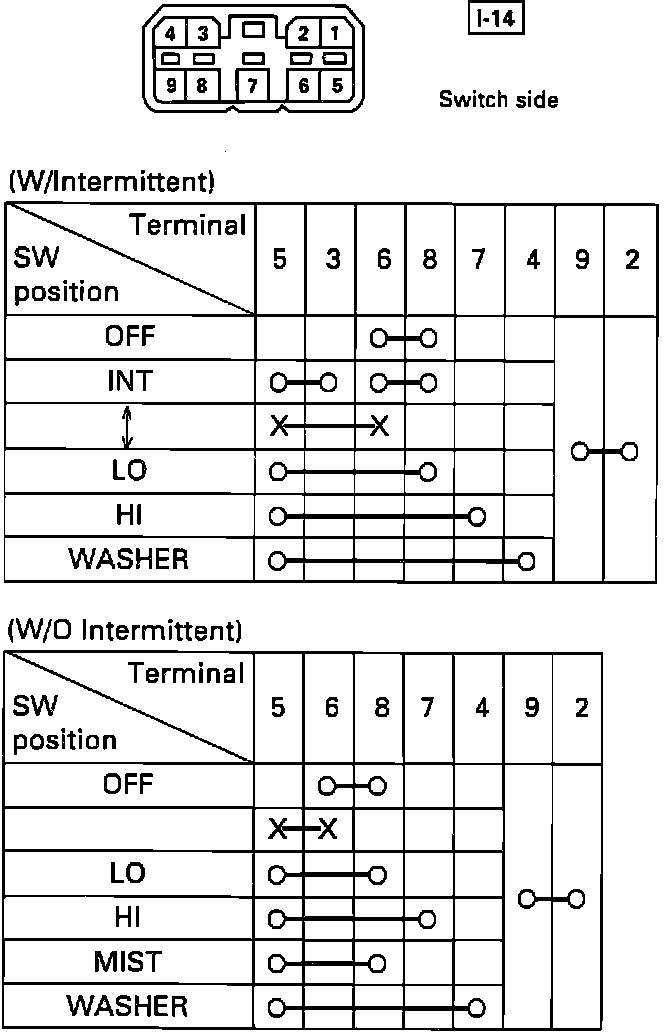

Fig. 47 Wiper switch:





Refer to Fig. 47, for testing switch terminal continuity.
