Intake Manifold: Service and Repair

Intake Manifold Removal:

1. Disconnect battery ground cable before beginning. Follow the steps as outlined in the illustration.

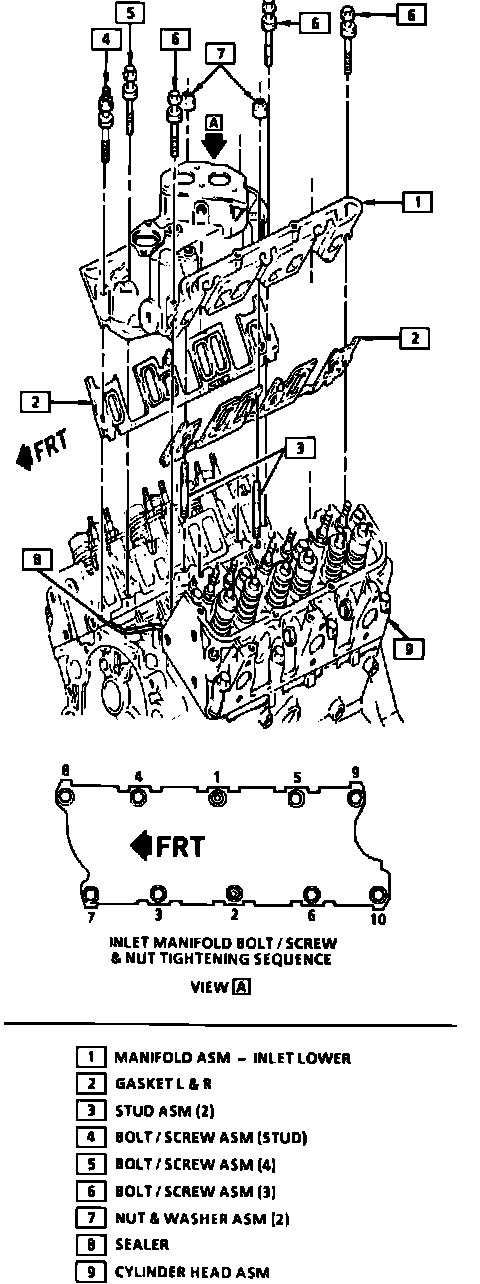

Fig. 4 Intake manifold tightening sequence.:

2. When ready to install, always use new gaskets. Ensure no oil or water is present on surface when new RTV is applied. Place a 3/16 inch bead of RTV sealant, part No. 1052917 or equivalent, on each ridge. Install manifold retaining bolts and nuts and torque in the sequence shown in Fig. 4 to specification.
