Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> System Diagram

System Diagram

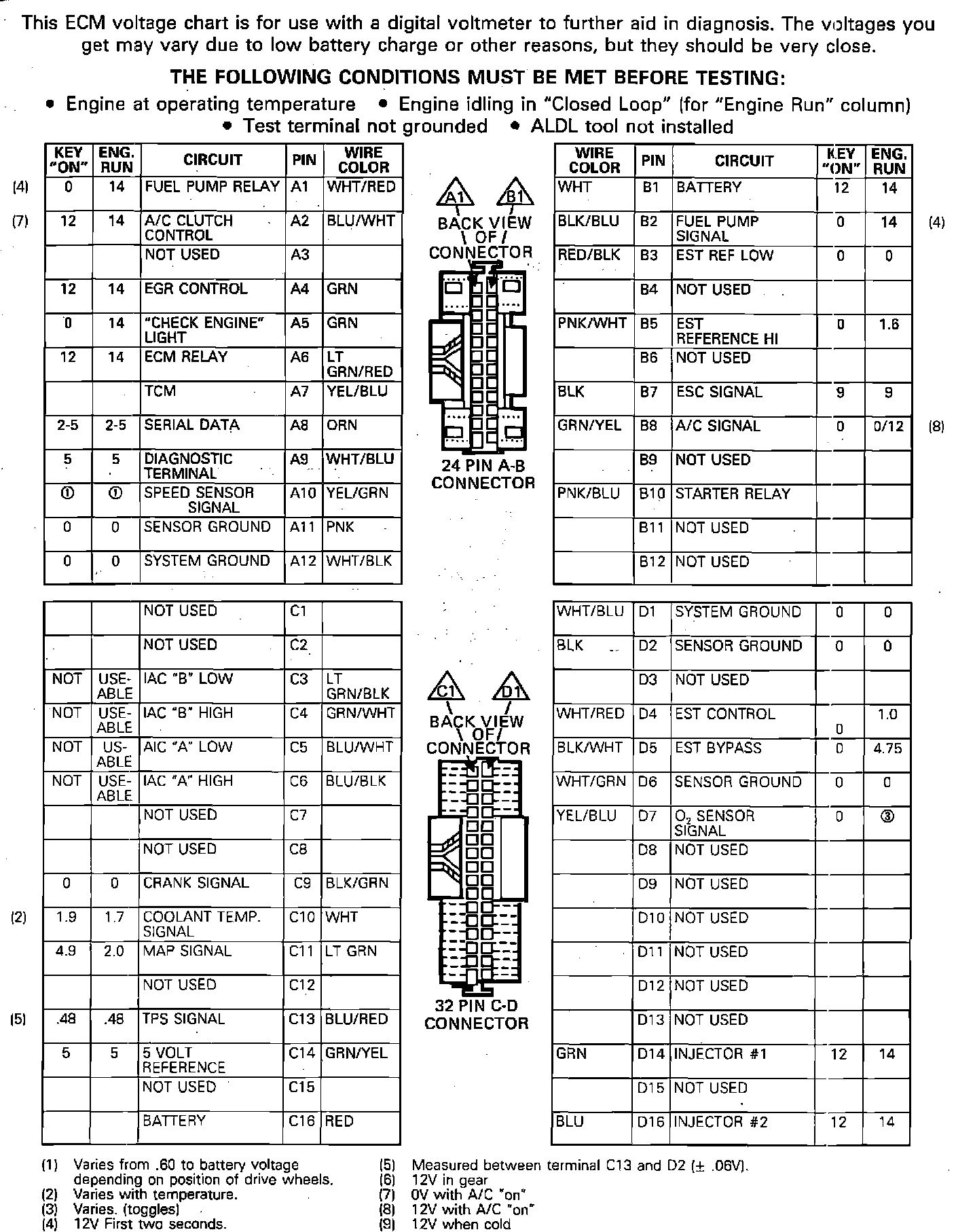

ECM Connector I.D.:

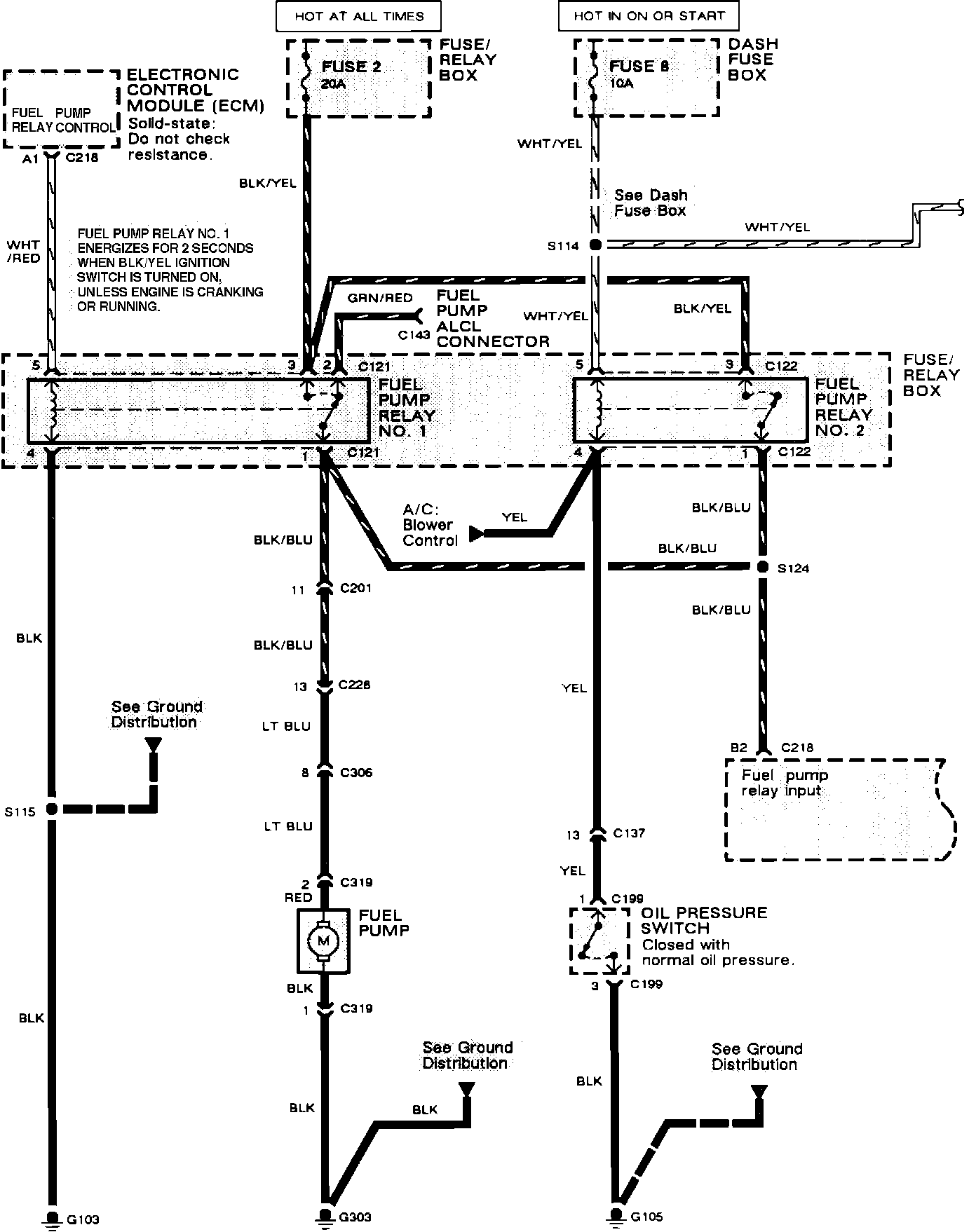

Electronic Engine Control:

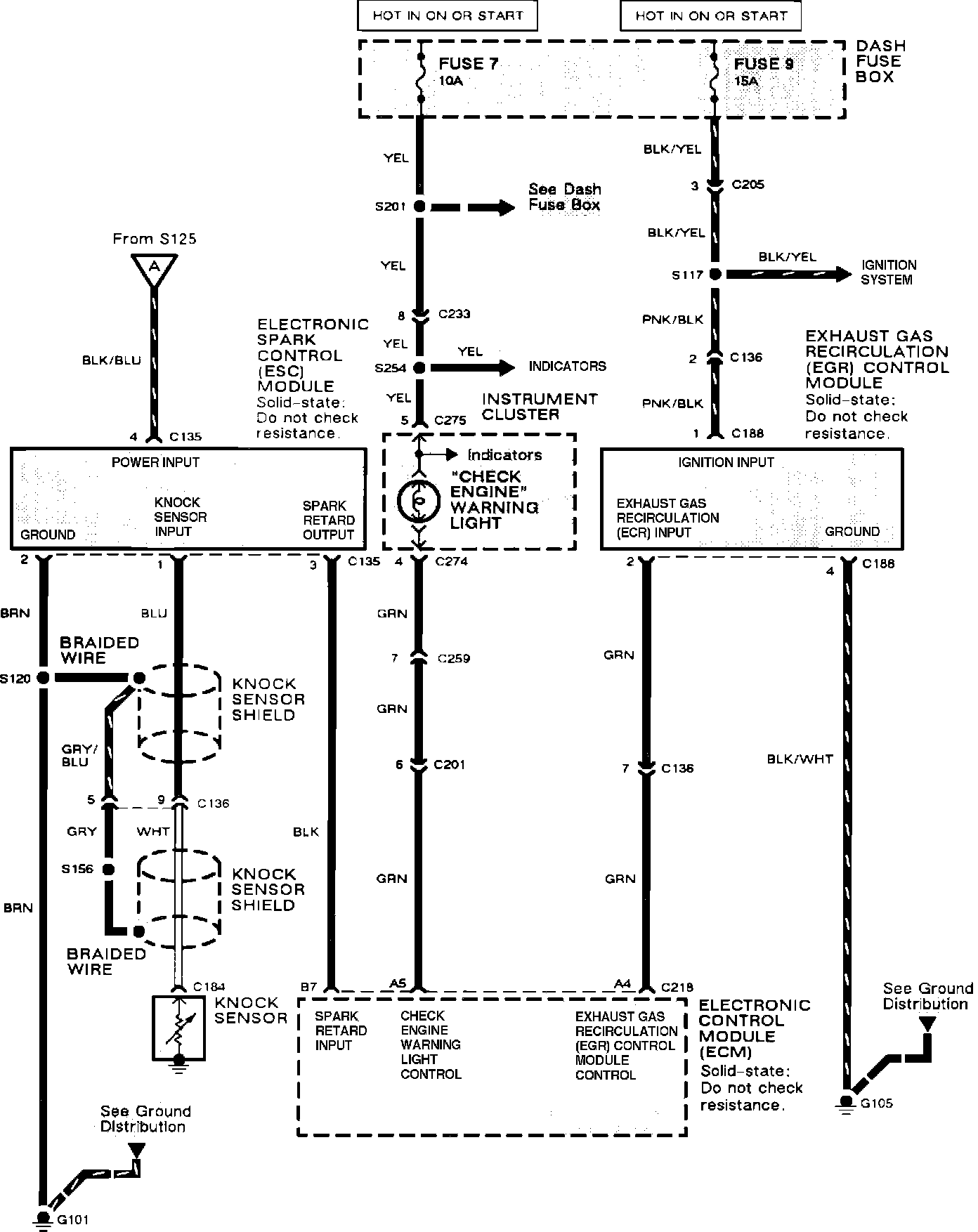

Electronic Engine Control:

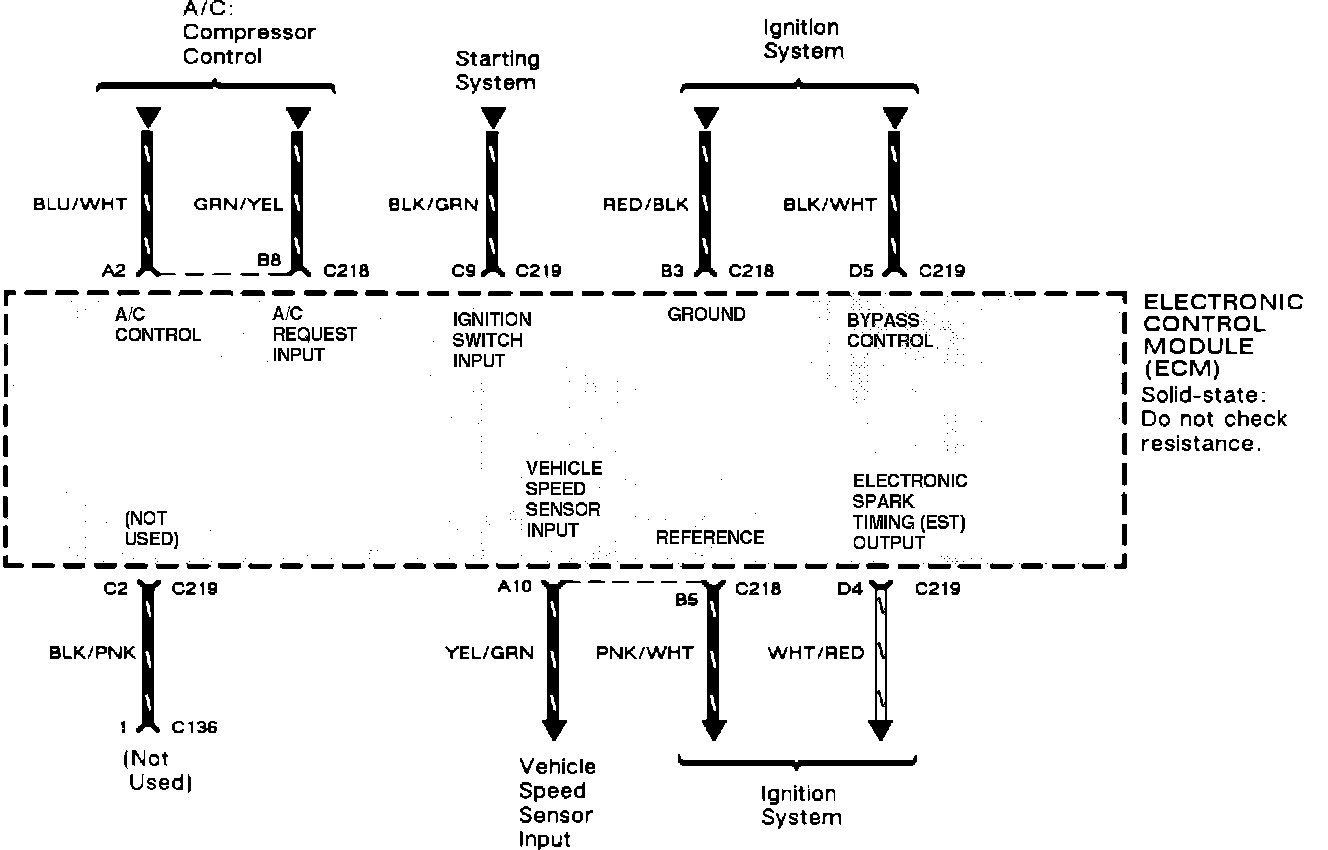

Electronic Engine Control:



Electronic Engine Control:



Electronic Engine Control:
