System Diagram

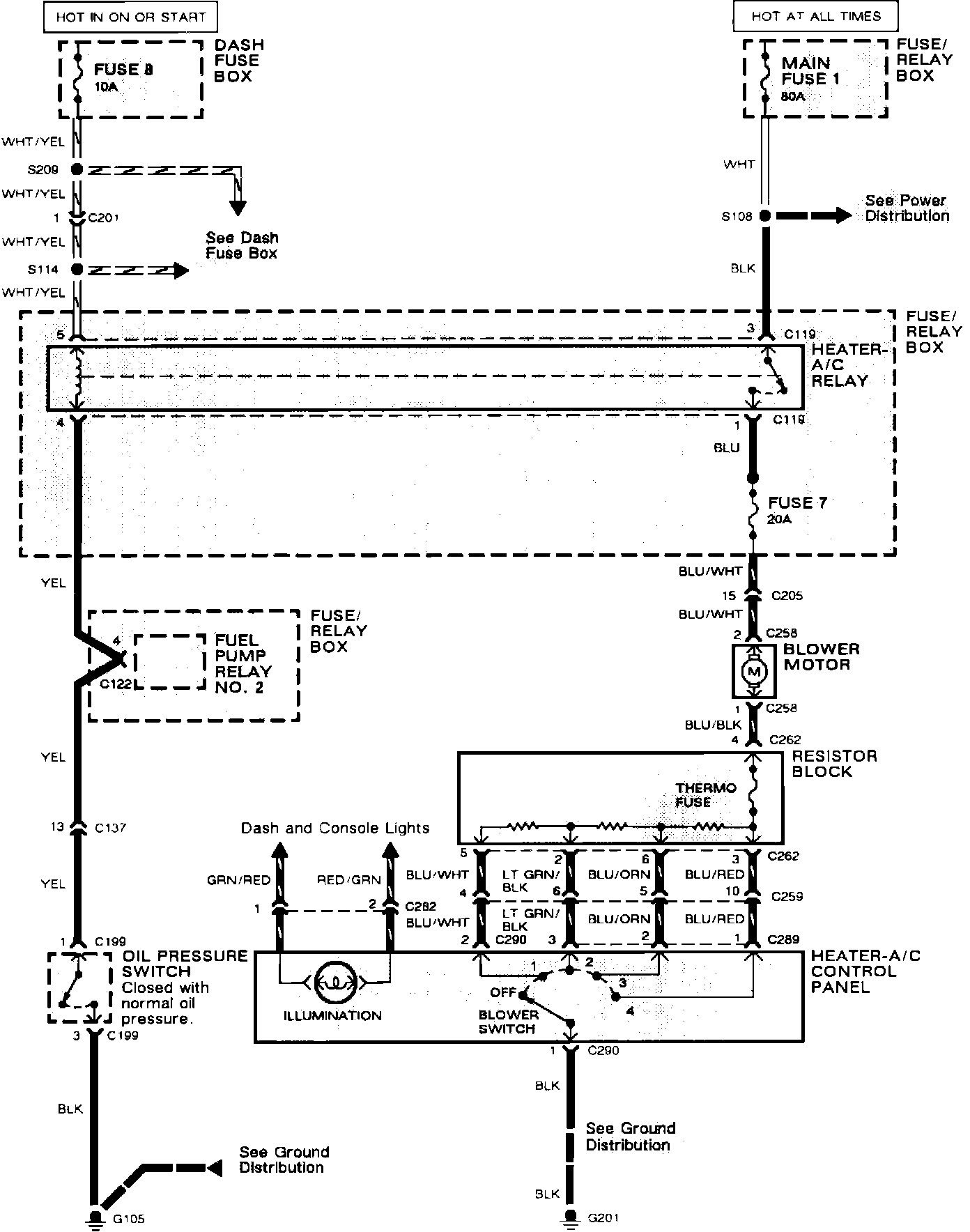

Heater:



Air Conditioning: Blower Control:



Air Conditioning: Compressor Control:
