Cruise Control Switch: Testing and Inspection

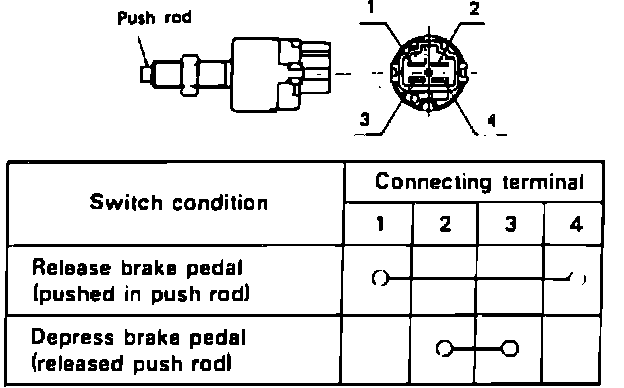

Fig. 14 Testing cruise & stop switch:

1. Check continuity between switch terminals as shown in Fig. 14.
2. If continuity is not as indicated, replace switch.
