Chart C - Anti-Lock & Brake Lamps on No Flashout Code

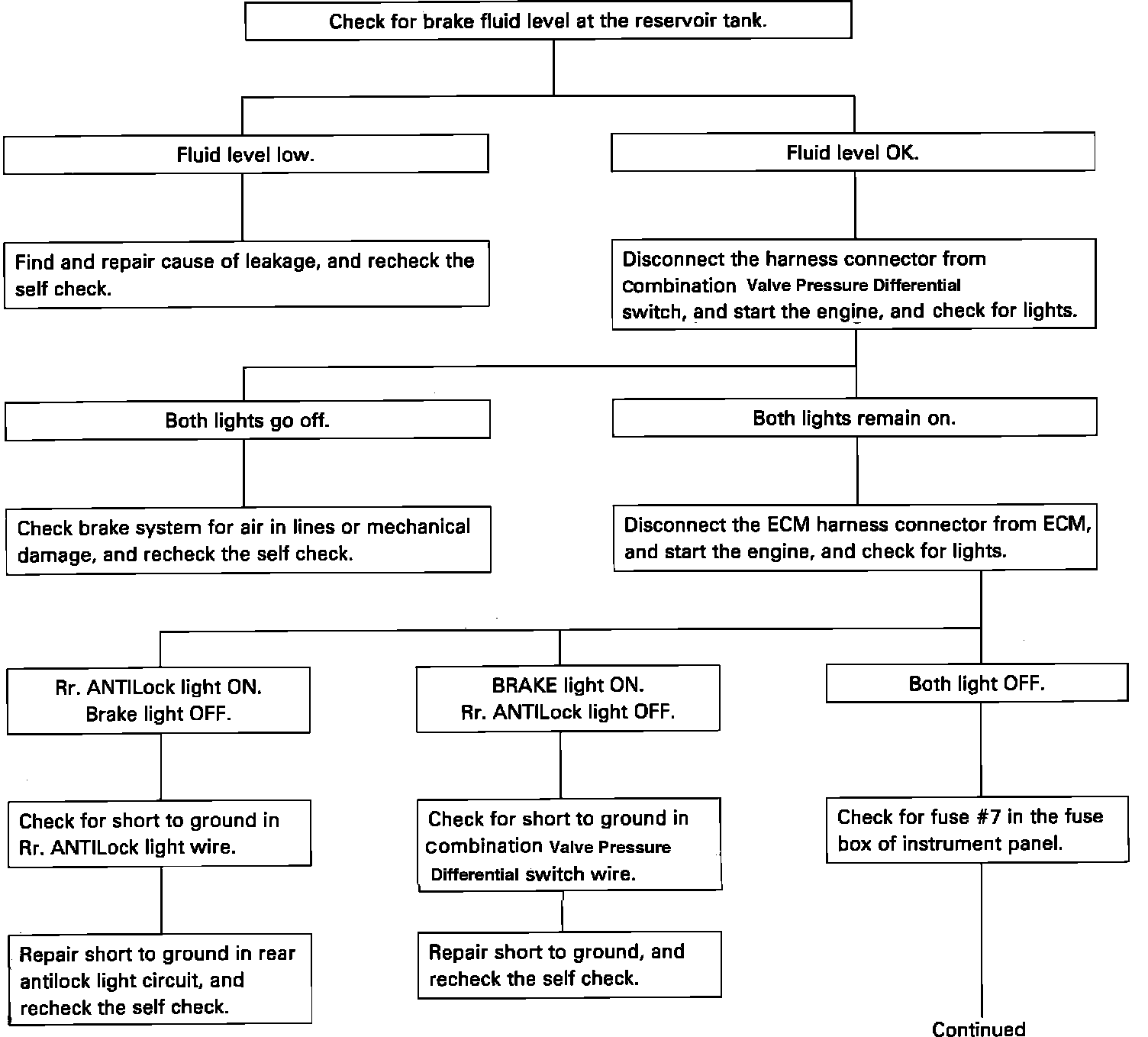

Fig. 32 Chart C, anti-lock & brake lamps ``On'' no Flashout codes (Part 1 of 2).:

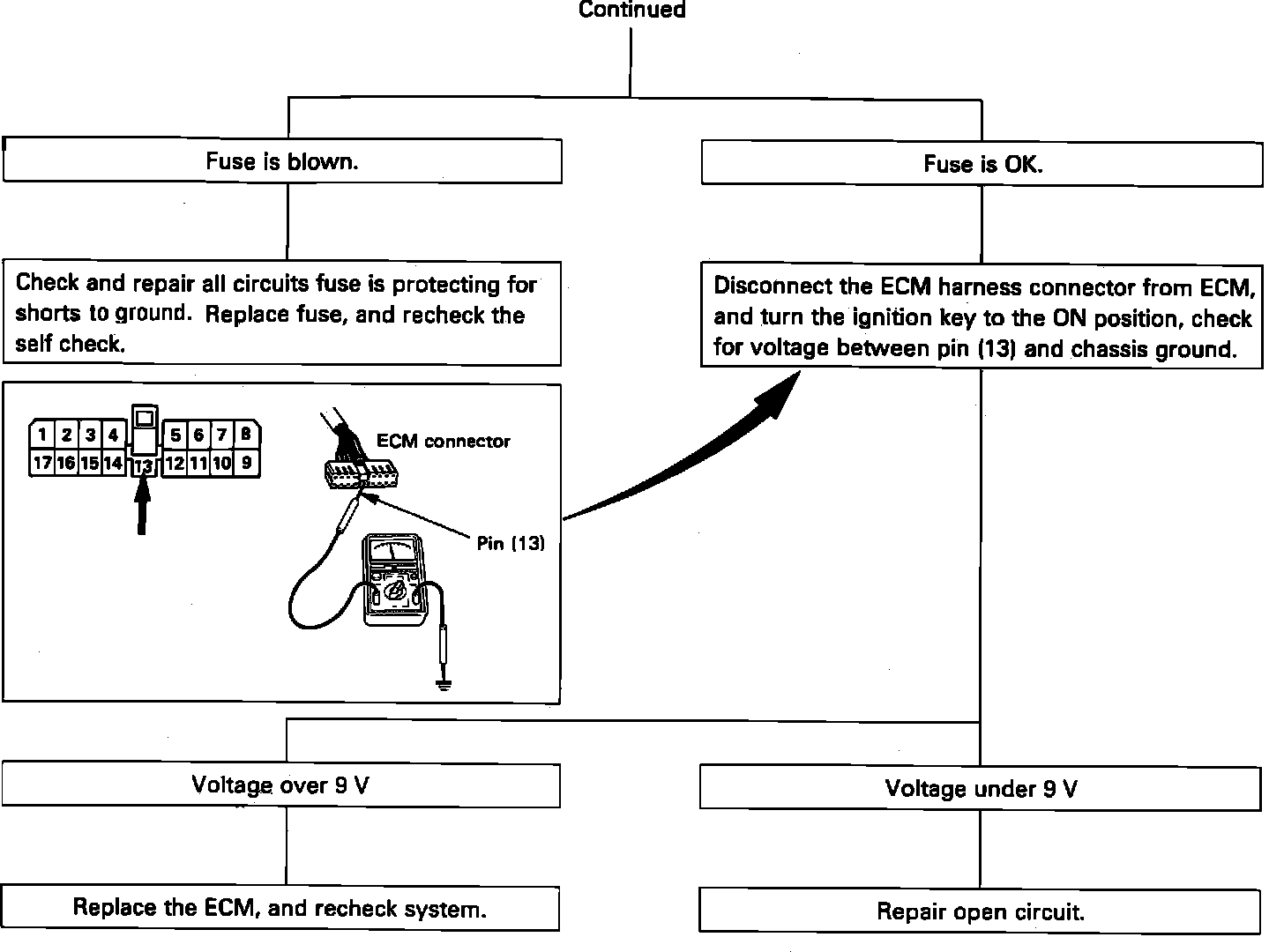

Fig. 32 Chart C, anti-lock & brake lamps ``On'' no flashout codes (Part 2 of 2).:
