Chart B - Brake Lamp on Anti-Lock Lamp Off & Does Self Check
Chart B - Brake Lamp on Anti-Lock Lamp Off & Does Self Check

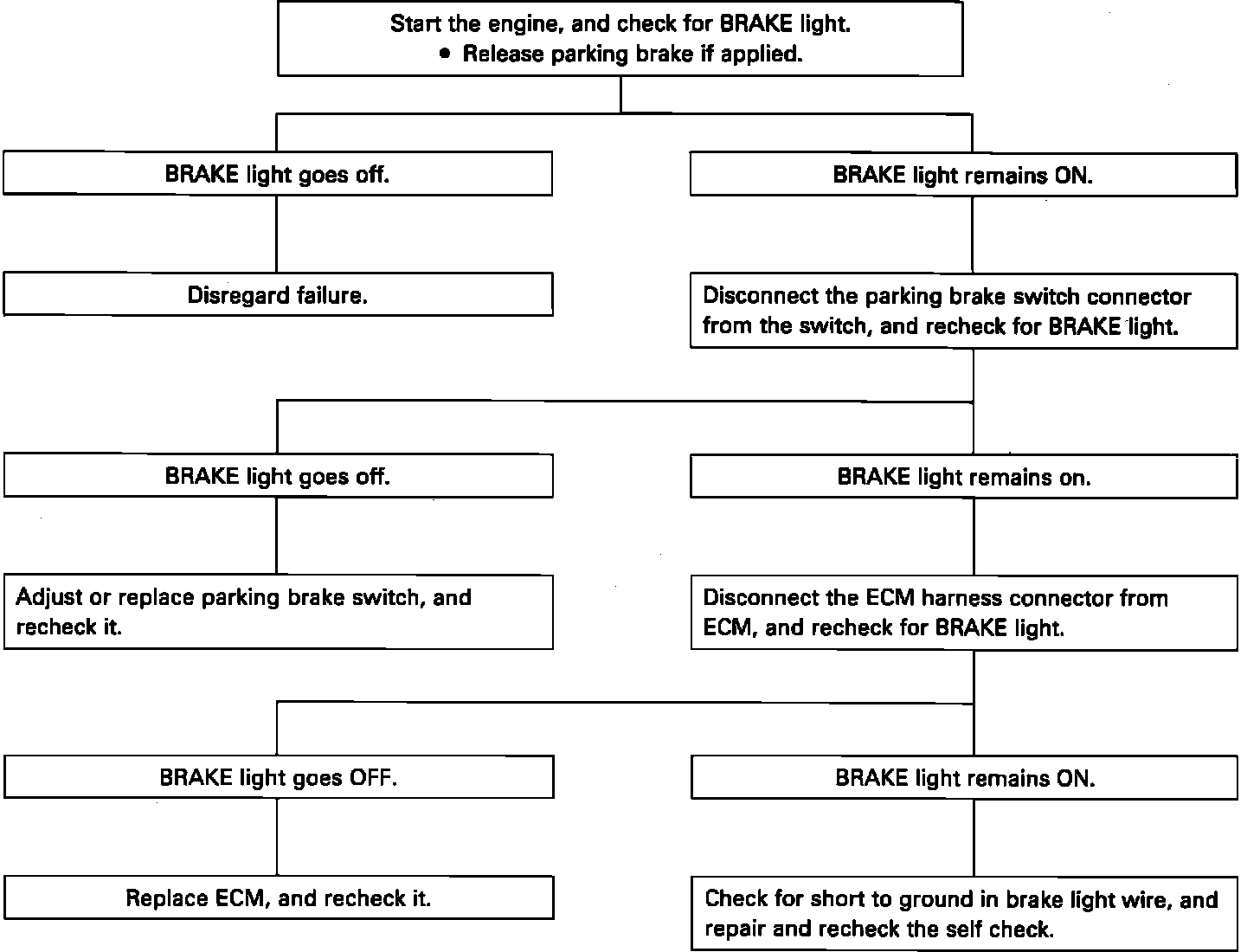

Fig. 31 Chart B, brake lamp ``On,'' anti-lock lamp ``Off'' & does self check.:
