Chart A - Rear Anti-Lock Lamp Off & Will Not Self Check

Fig. 30 Chart A, rear anti-lock lamp off & will not self check (Part 1 of 2).:

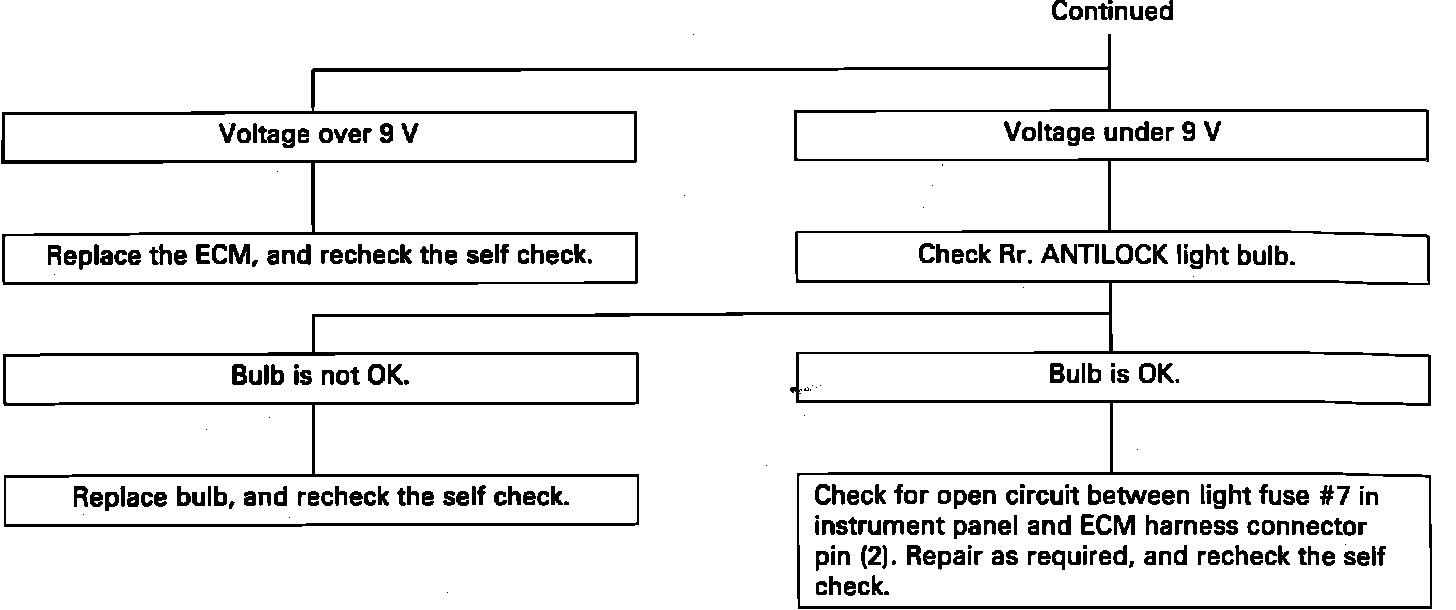

Fig. 30 Chart A, rear anti-lock lamp off & will not self check (Part 2 of 2).:
