Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brake System >> DTC 7

DTC 7

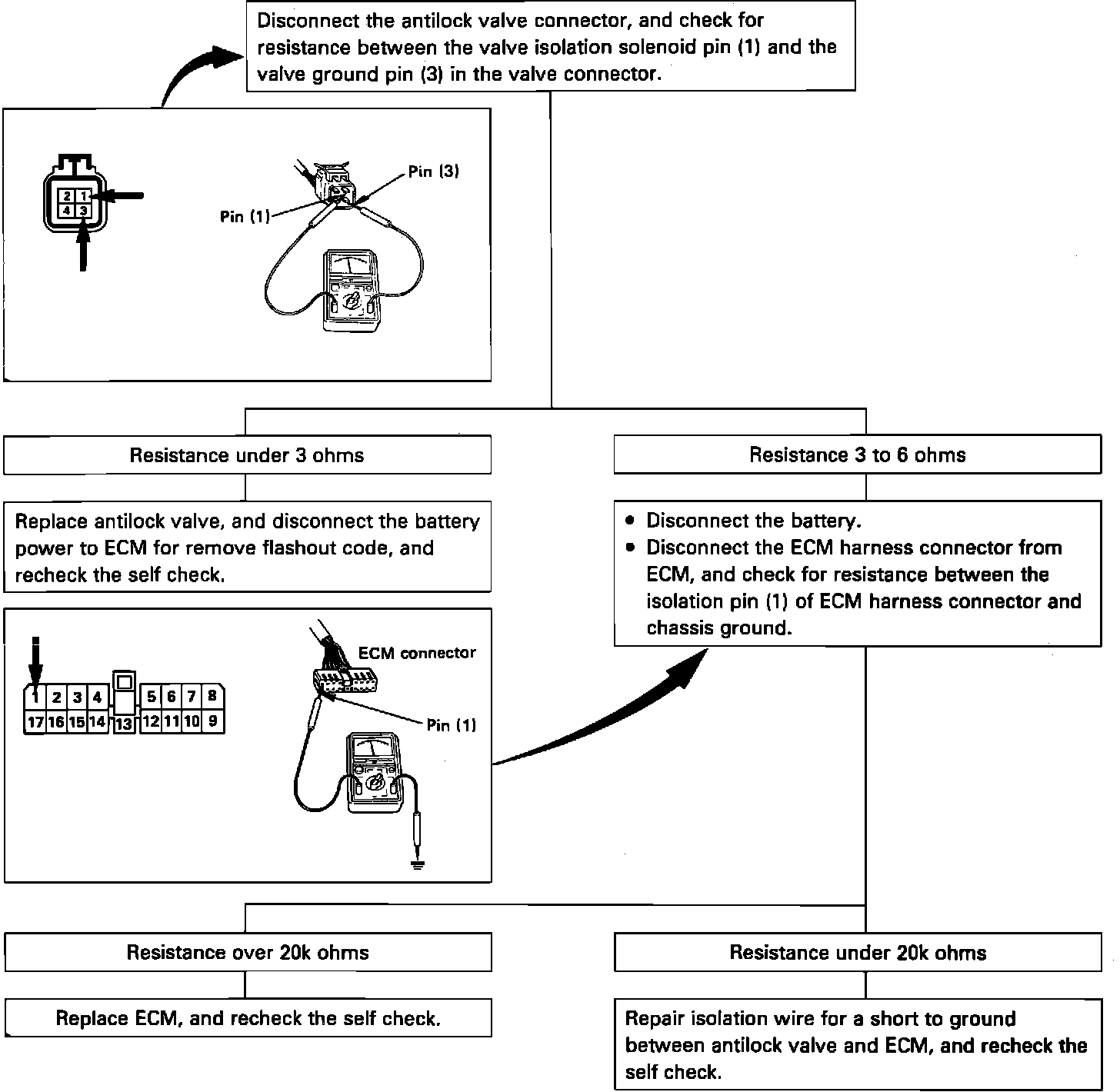

Fig. 41 Code 7, Isolation output missing or anti-lock valve wiring shorted to ground.:
