Home >> Isuzu Truck >> 1991 >> Pickup 2WD V6-3137cc 3.1L (CPC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brake System >> DTC 4

DTC 4

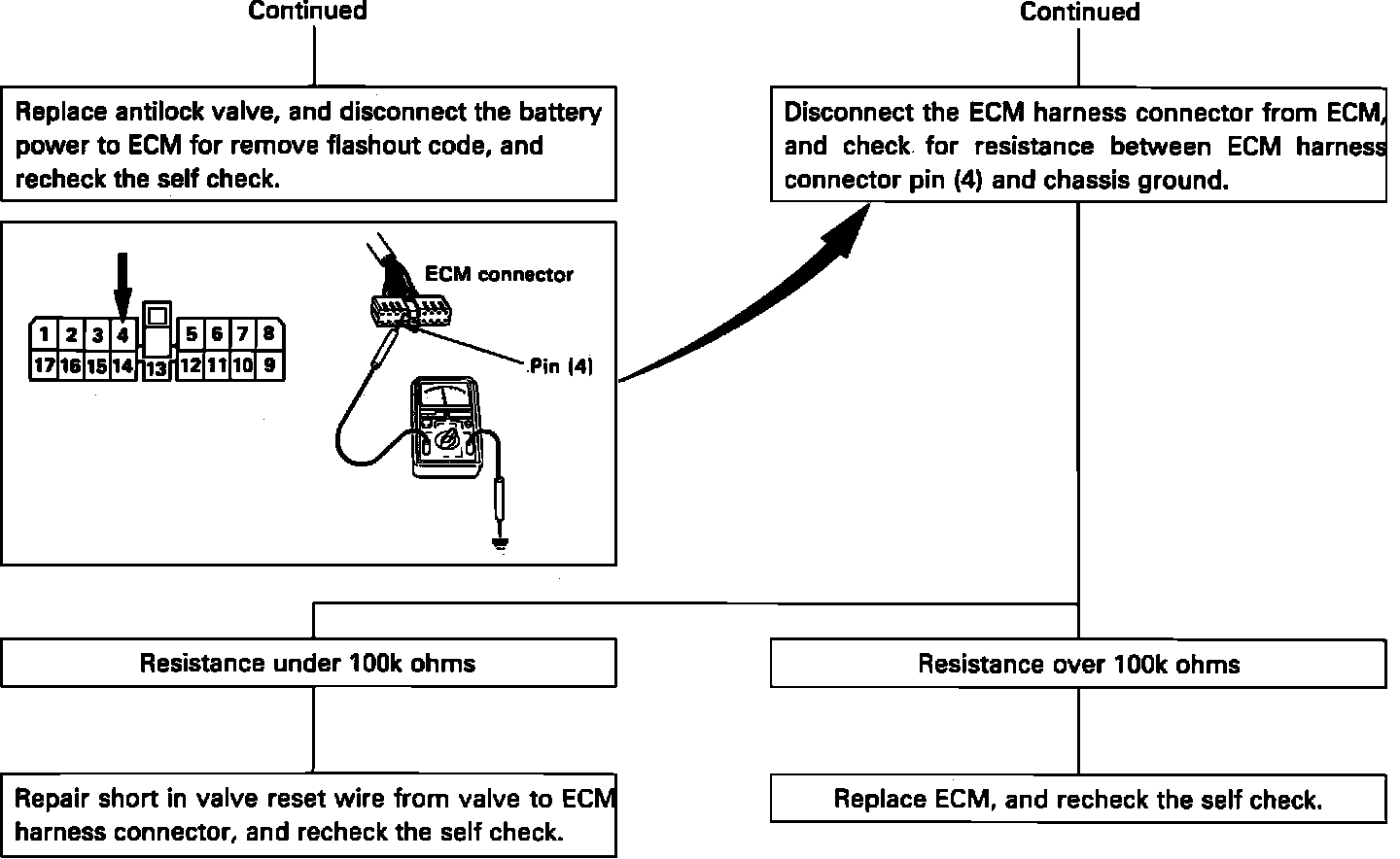

Fig. 38 Code 4, closed rear wheel anti-lock valve switch (Part 1 Of 2).:



Fig. 38 Code 4, closed rear wheel anti-lock valve switch (Part 2 Of 2).:
