Isuzu Truck
>>
1991
>>
Pickup 2WD V6-3137cc 3.1L (CPC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
DTC 3
DTC 3

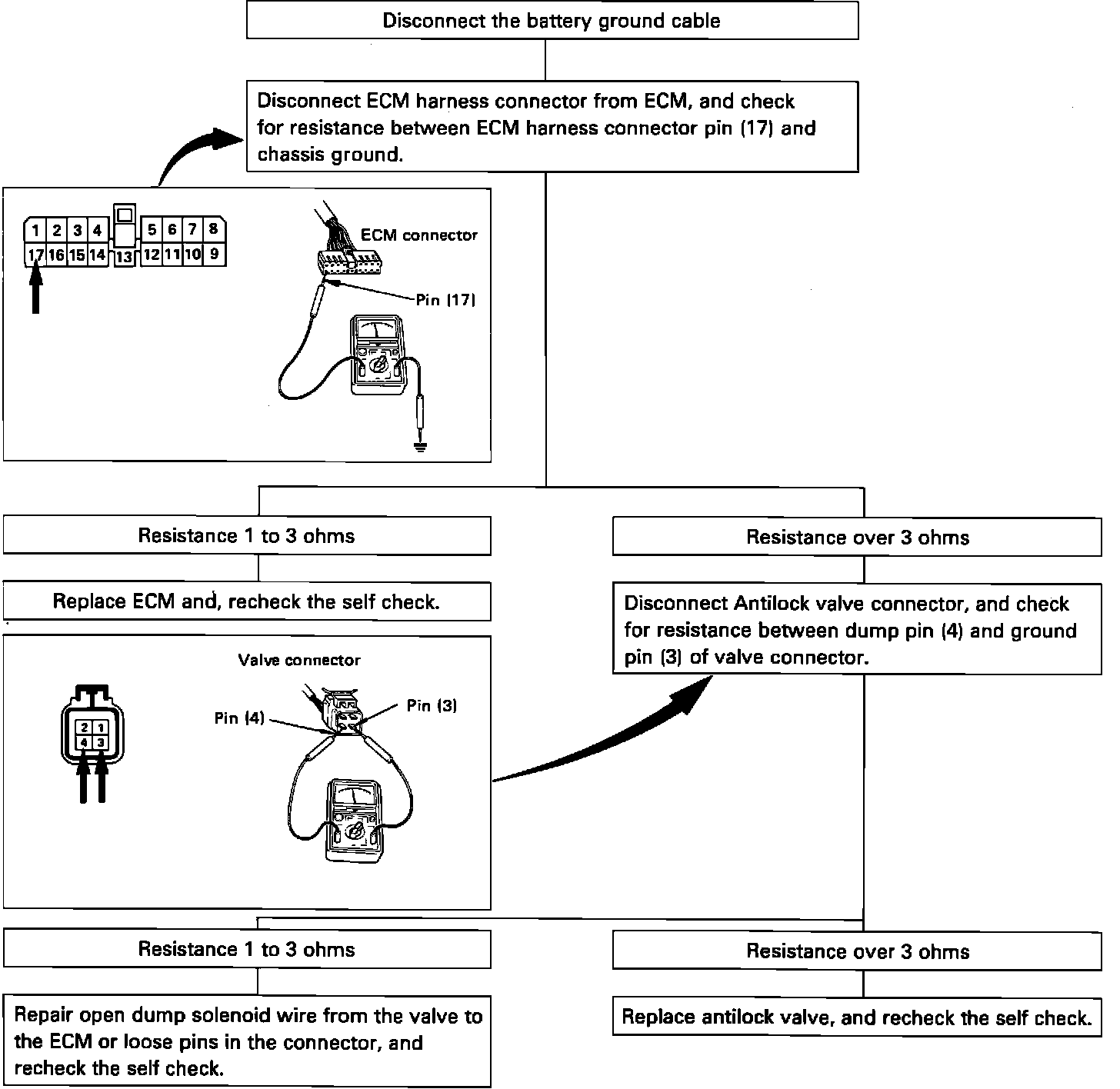

Fig. 37 Code 3, open dump circuit or malfunctioning ECM.:
Fig. 56 Code 3, open dump circuit or faulty EBCM (Part 2 of 2). W/RWAL:
