Isuzu Truck
>>
1991
>>
Pickup 2WD V6-3137cc 3.1L (CPC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
DTC 11
DTC 11

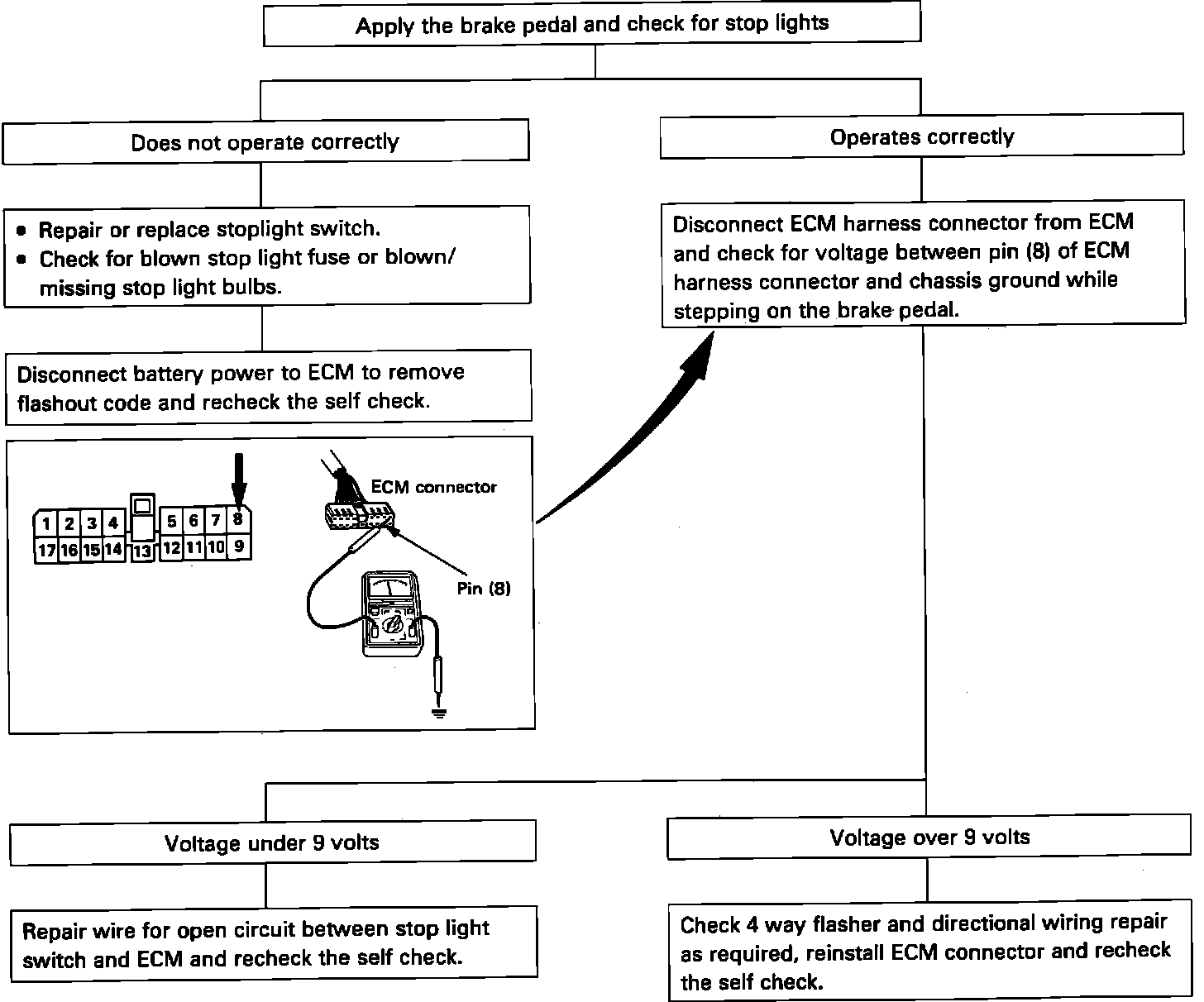

Fig. 45 Code 11, stop lamp switch circuit defective condition indicated only when driving above 35 mph.:
