Turning on the TCU During Pre-Delivery Inspection (PDI)

Turning ON the TCU During PDI

NOTE:
The TCU is OFF when delivered to the dealership and will need to be turned ON during PDI.

1. Connect the CONSULT-III (C-III) plus VI to the vehicle.

2. Set the parking brake.

3. Push the push button ignition switch twice to ON mode.

4. Launch C-III plus on the CONSULT PC.





5. Select Diagnosis (One System).

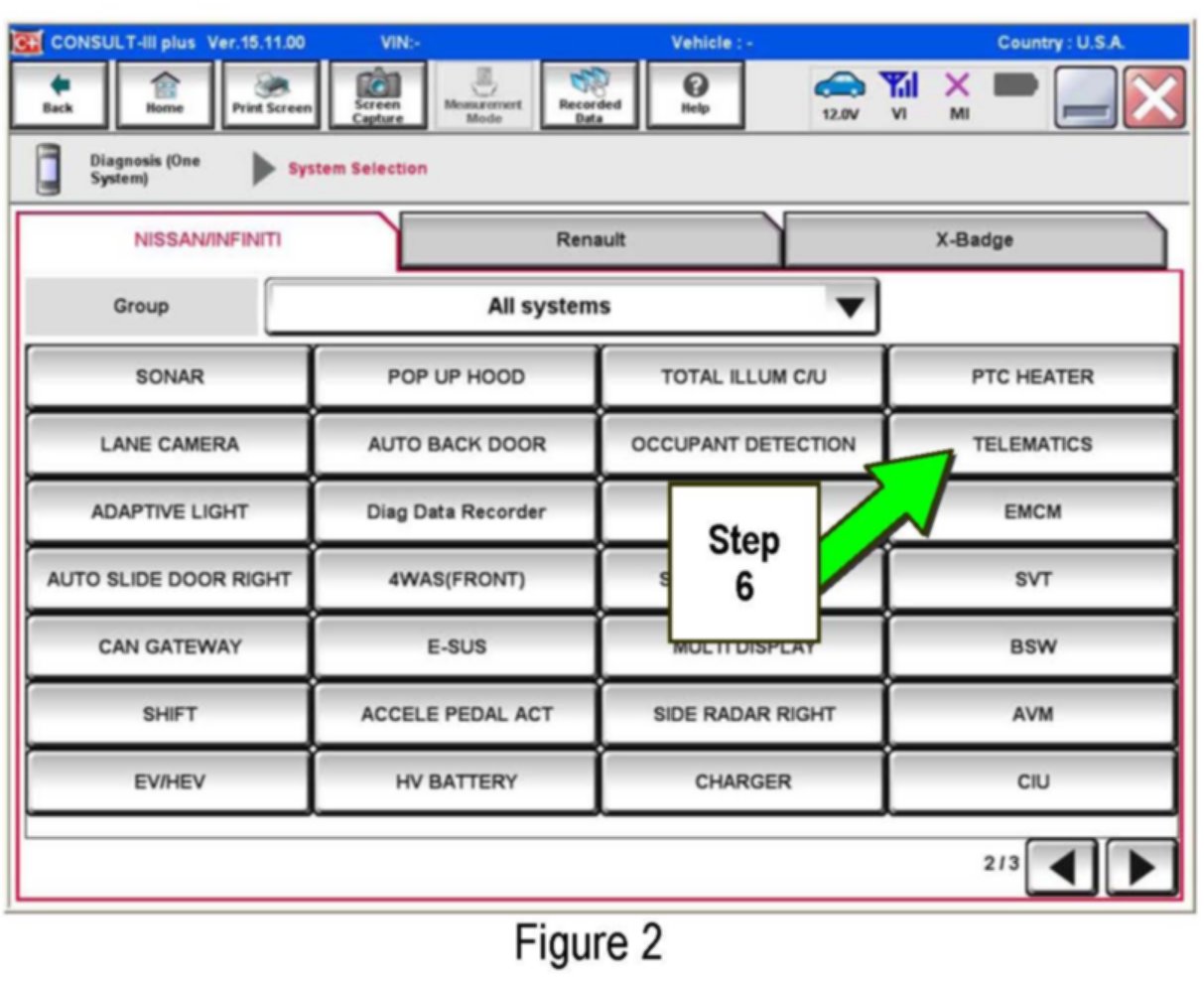

6. Select Telematics as shown above of the all systems list.

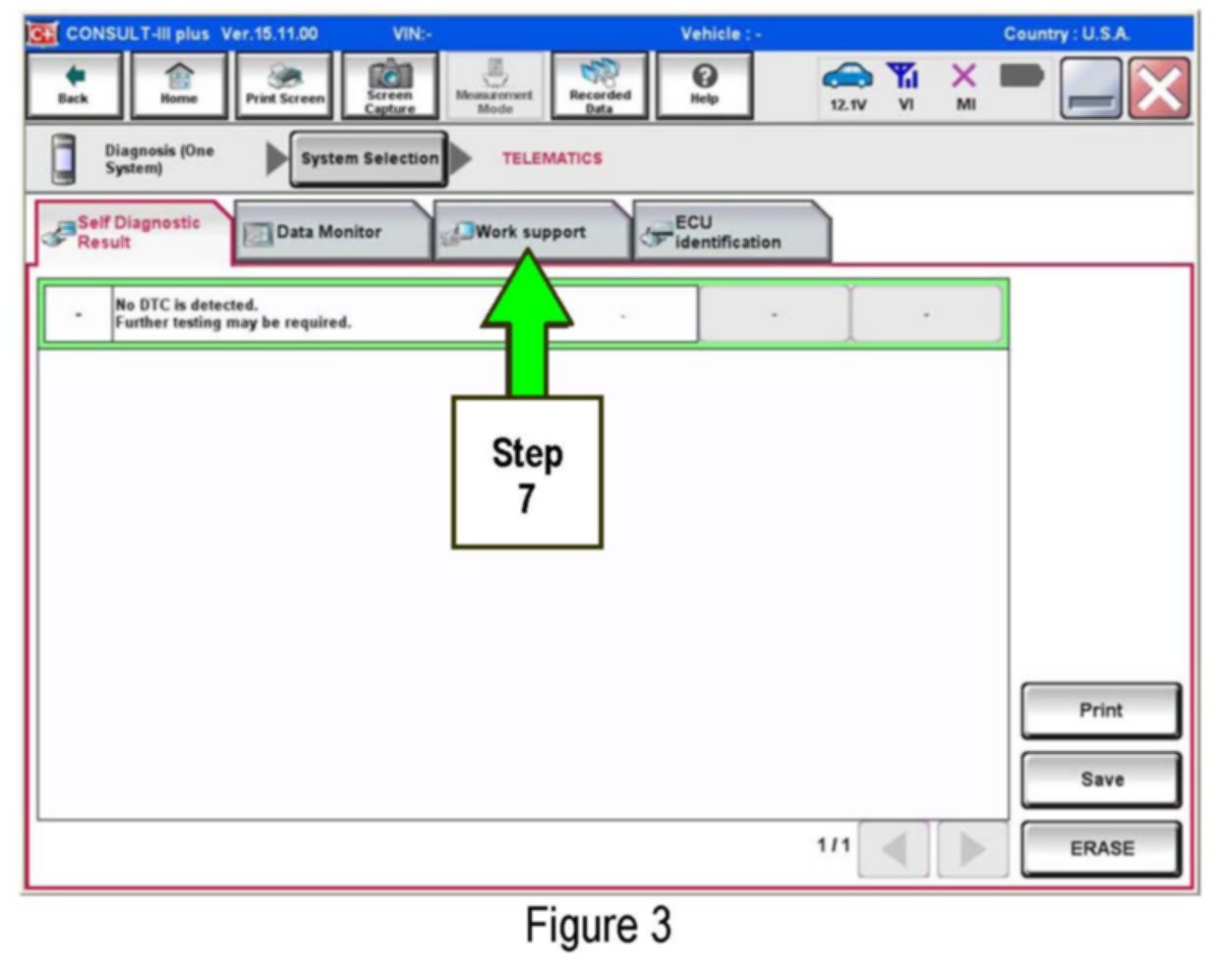

7. Select Work Support.

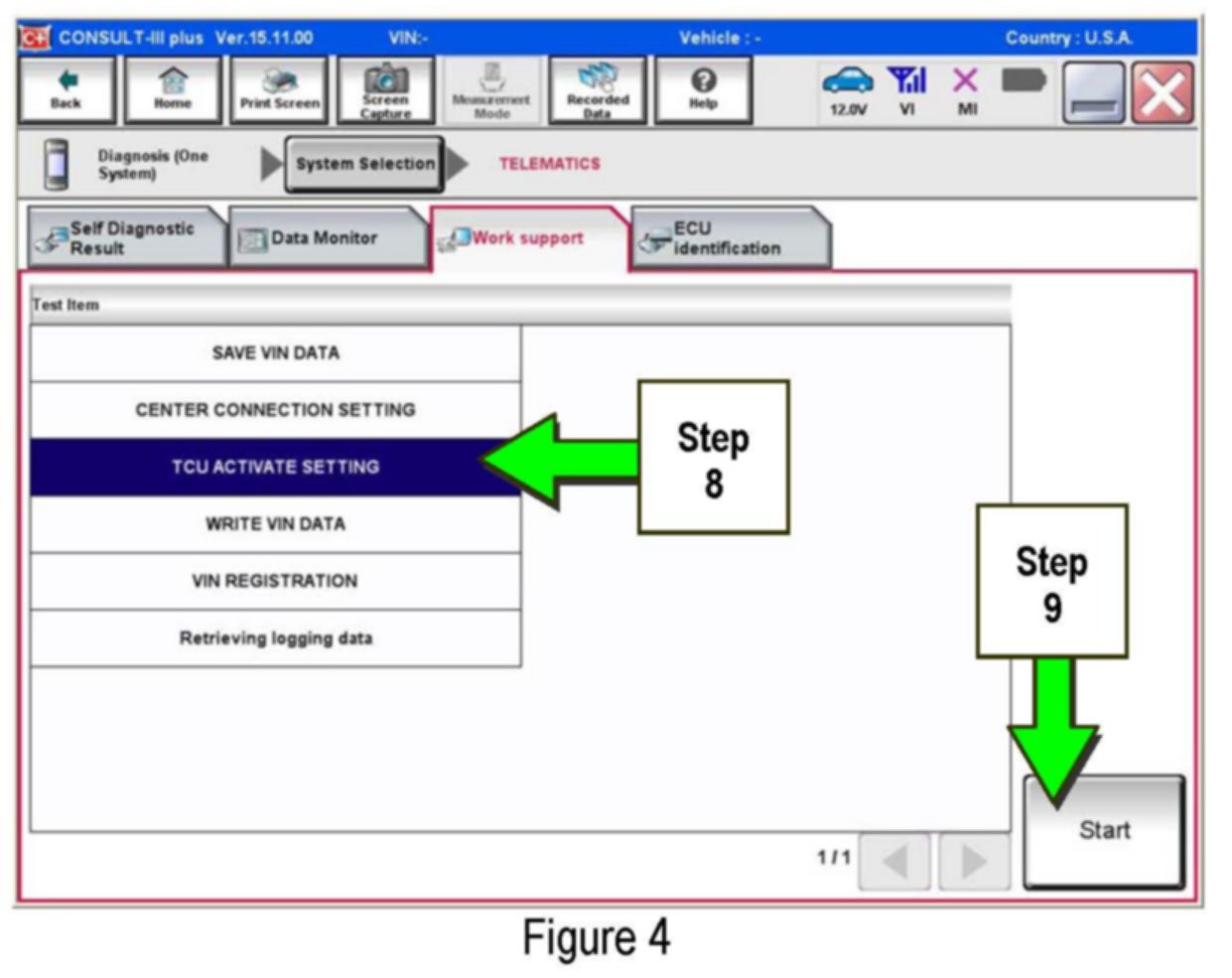

8. Select TCU Activate Setting.

9. Select Start.

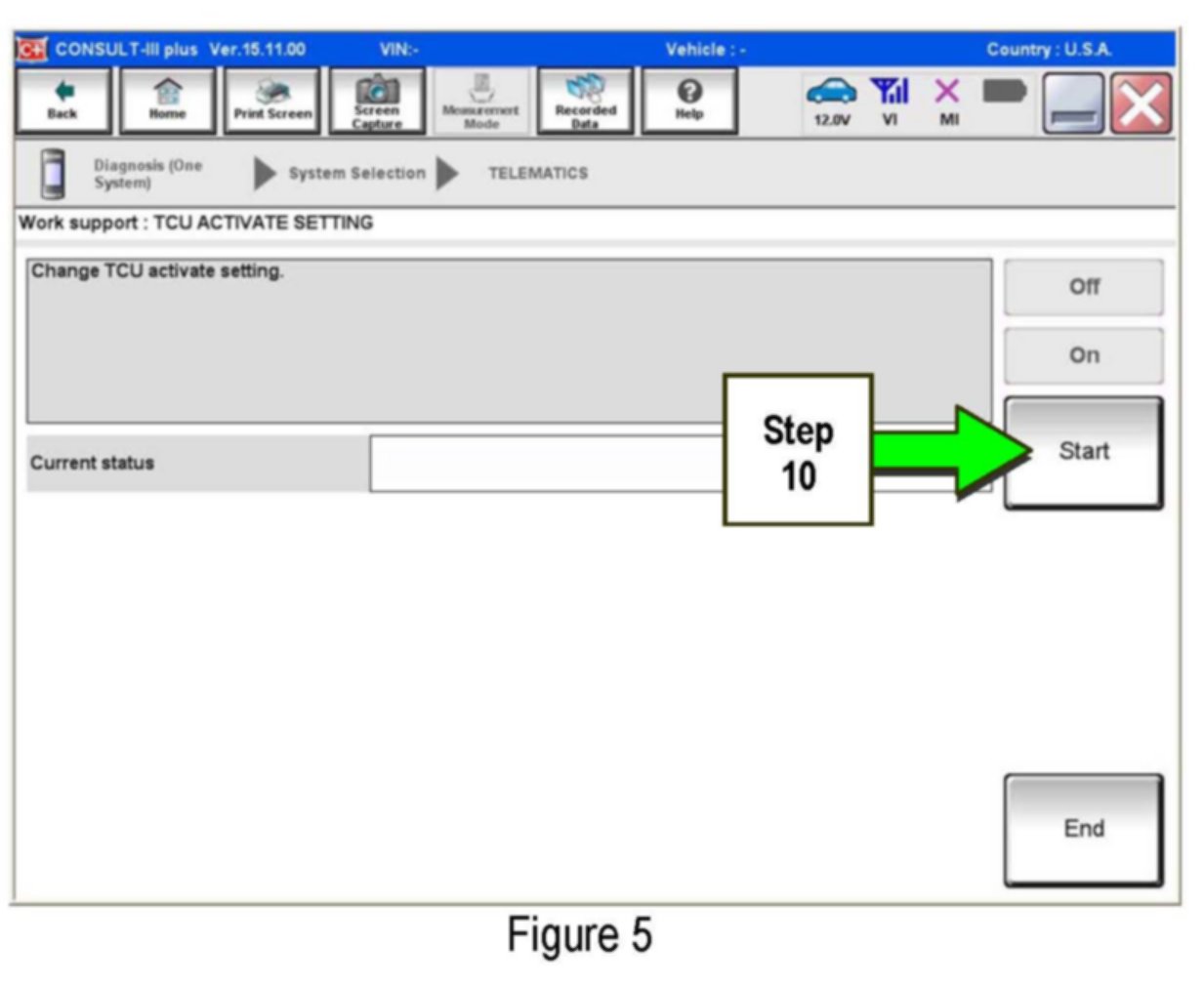

10. Select Start.

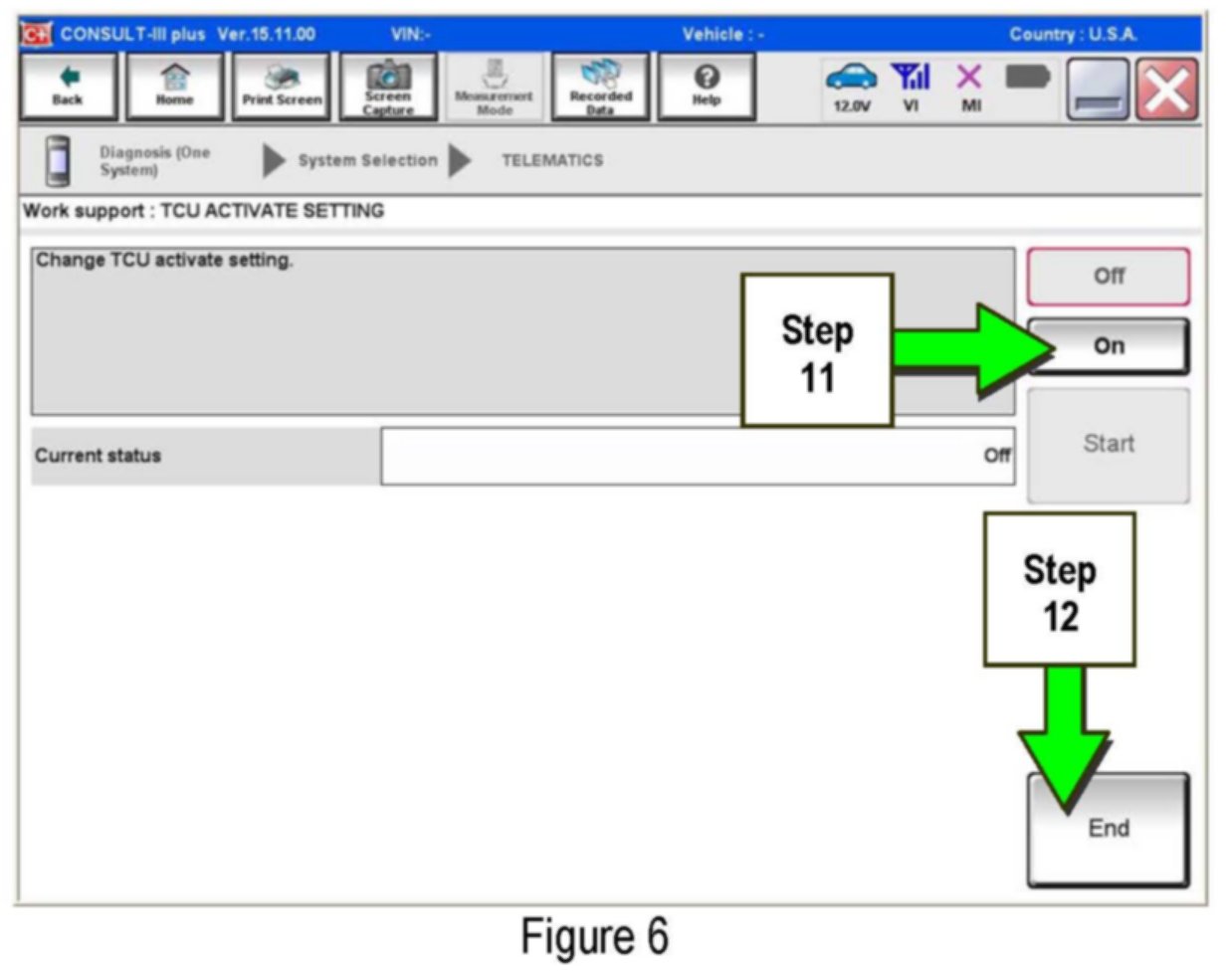

11. Select ON to turn ON the TCU.

12. Select END.

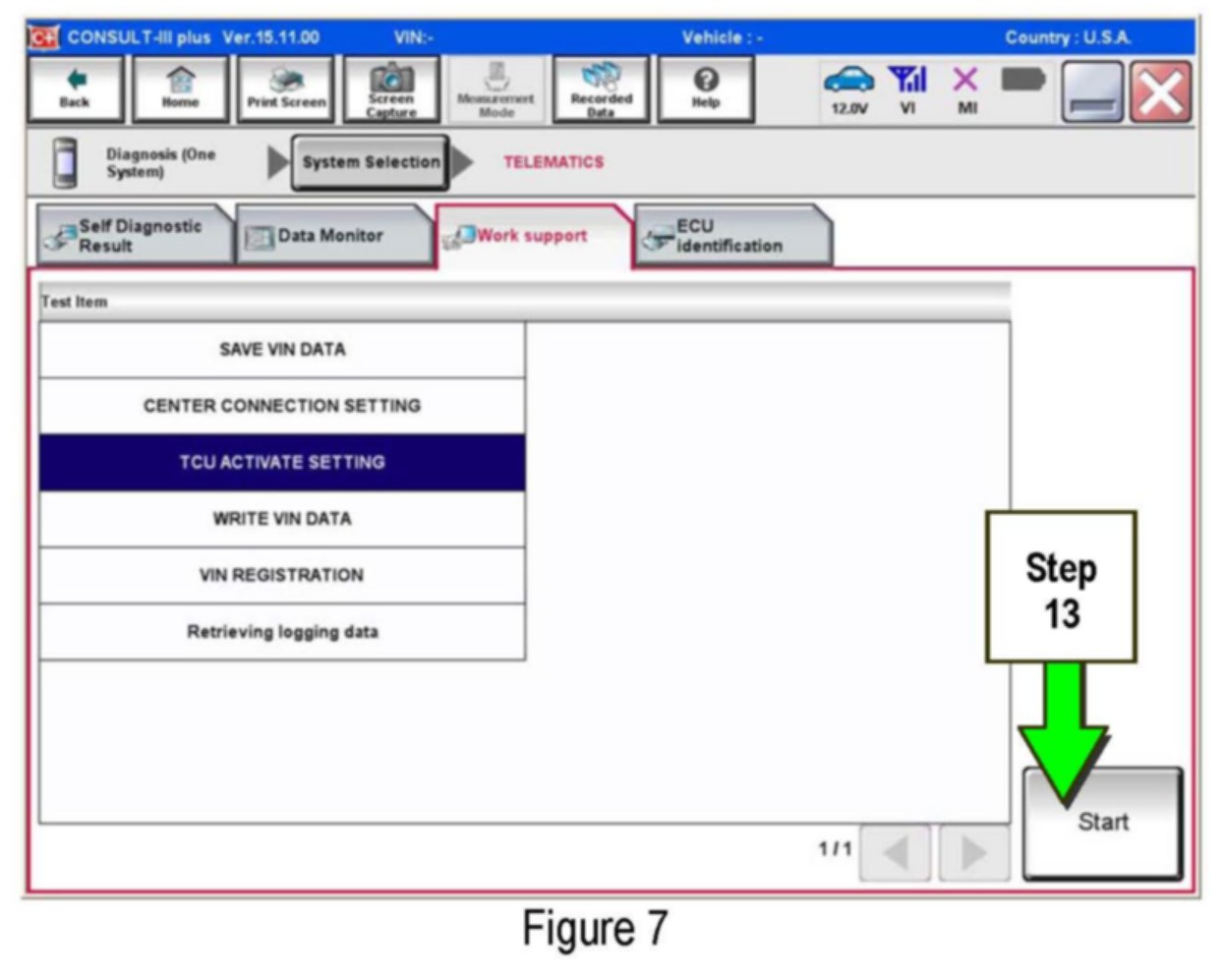

13. Select Start.

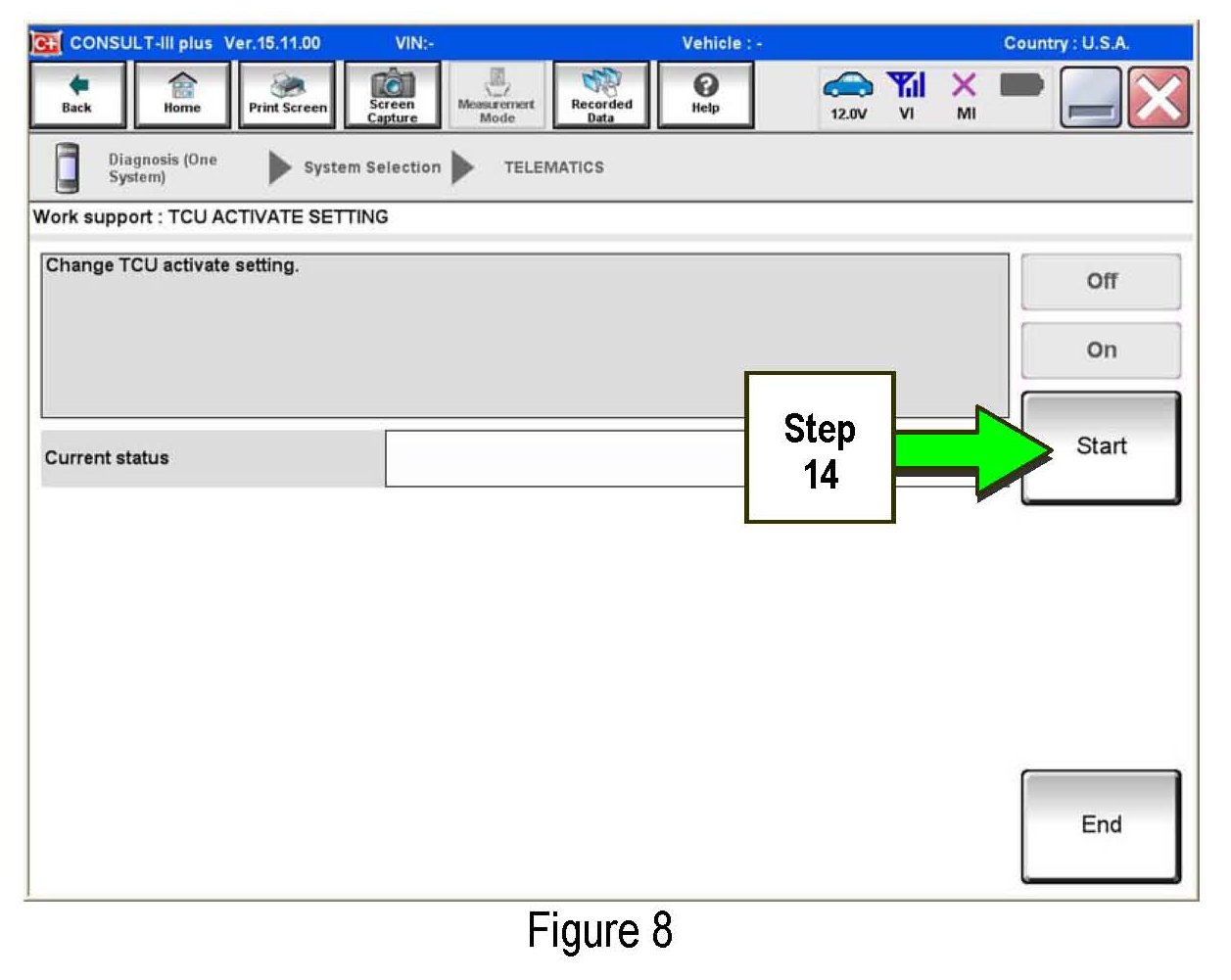

14. Select Start.

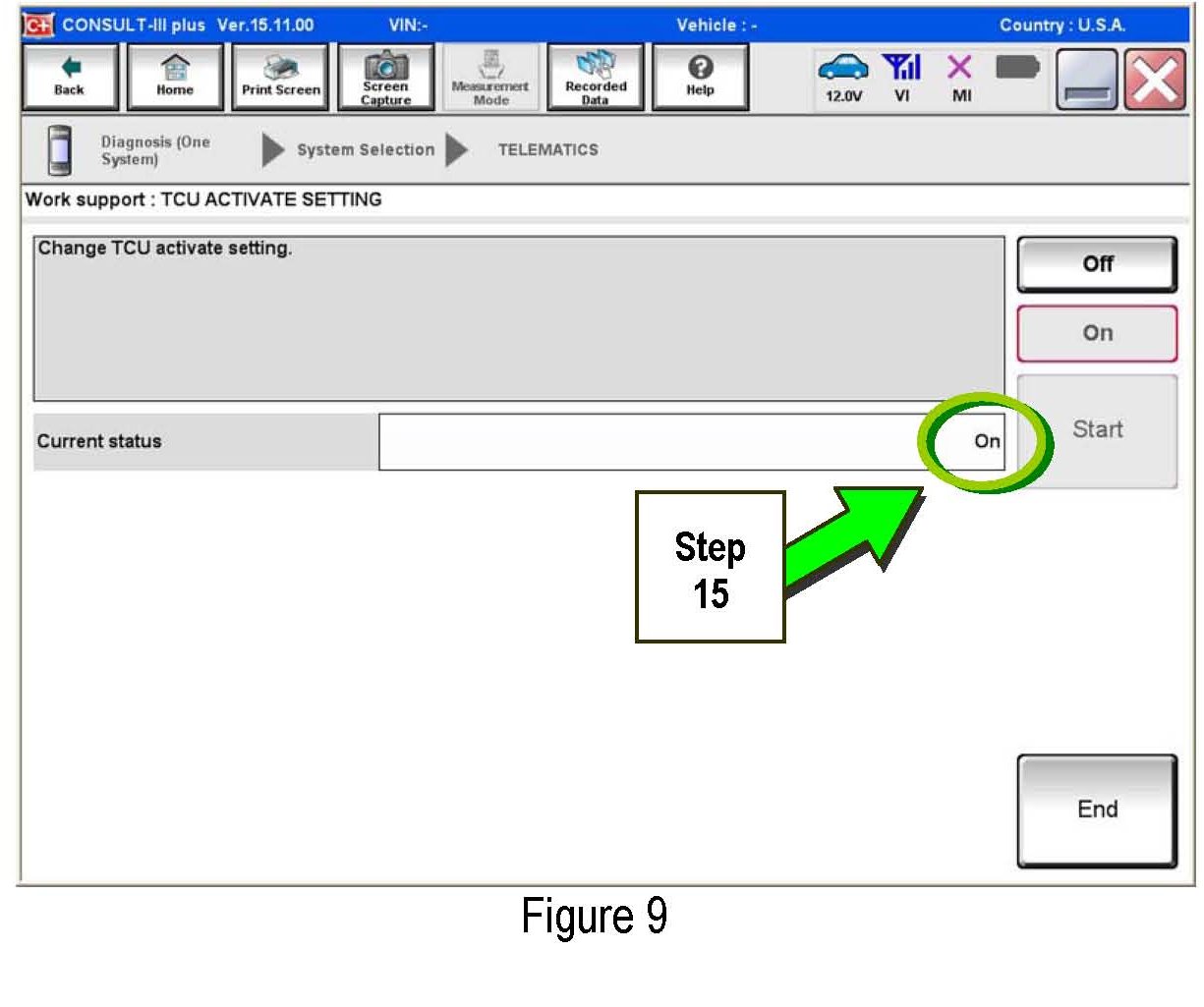

15. Confirm "On" is displayed in the Current status field.
