Manually Enter VIN Data (If Needed)

Manually Enter VIN Data ( if needed )

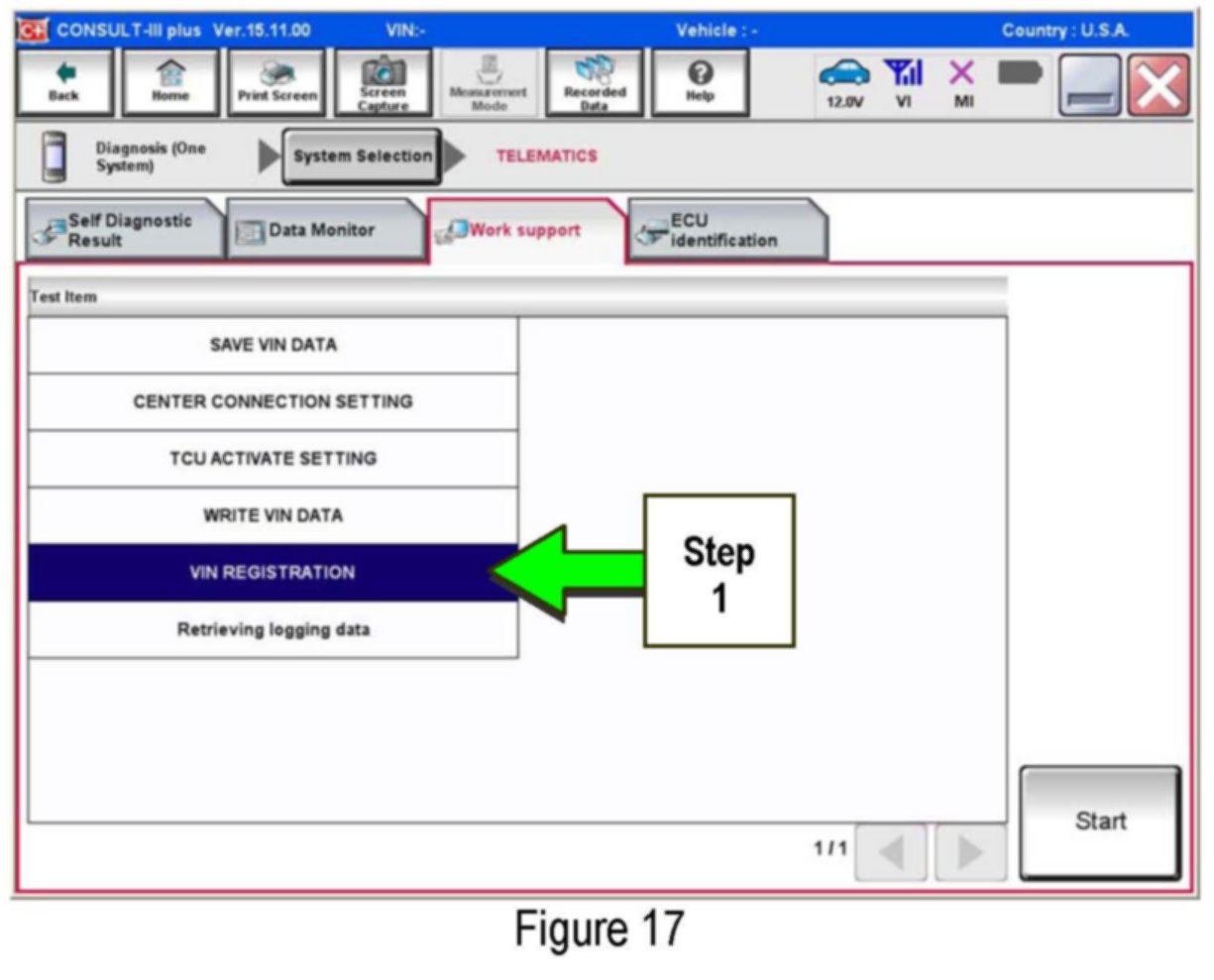

1. Select VIN REGISTRATION.





2. Enter the VIN.

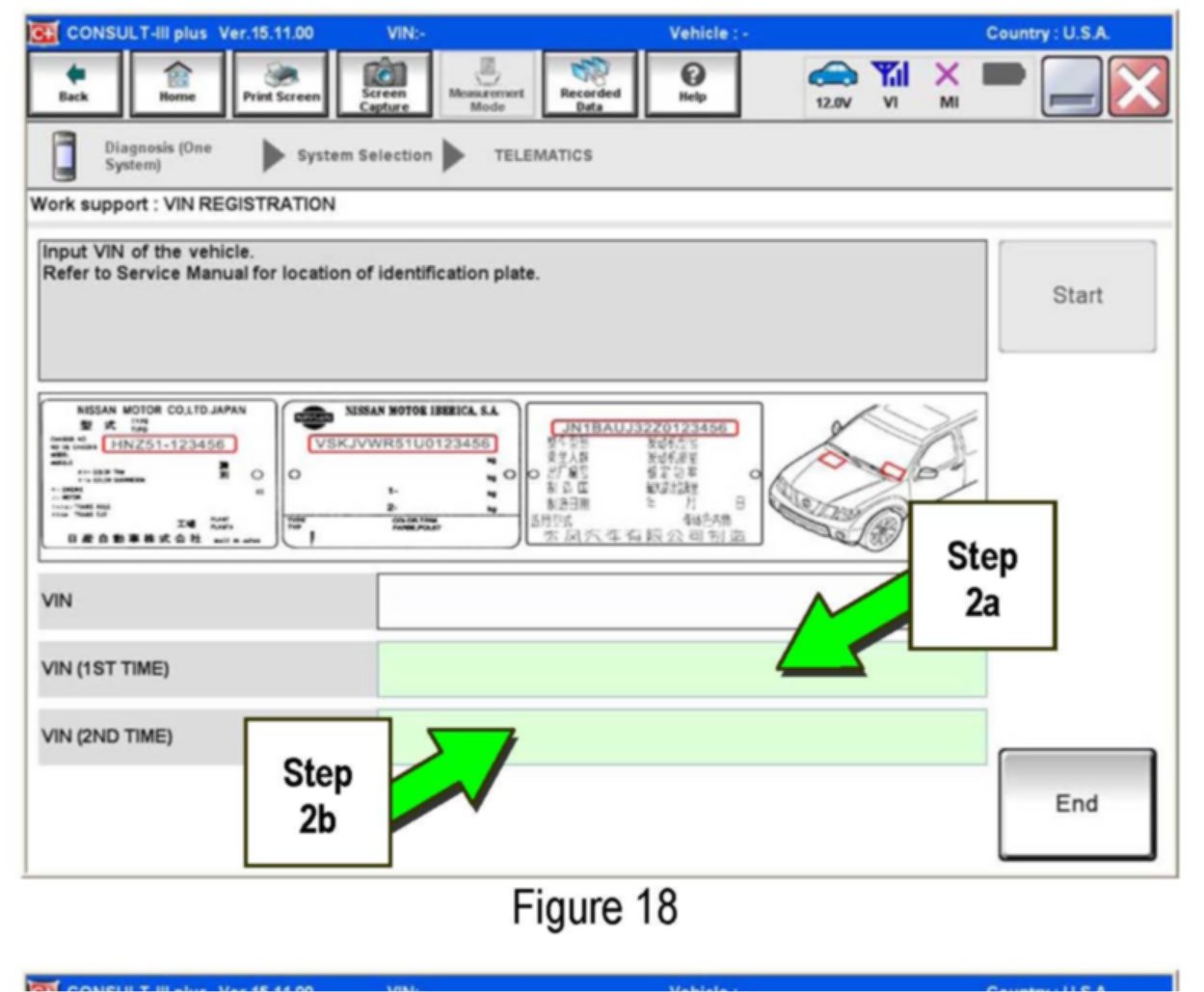

a) Touch the VIN (1ST TIME) input field and type in the VIN.

b) Touch the VIN (2ND TIME) input field and type in the VIN again.

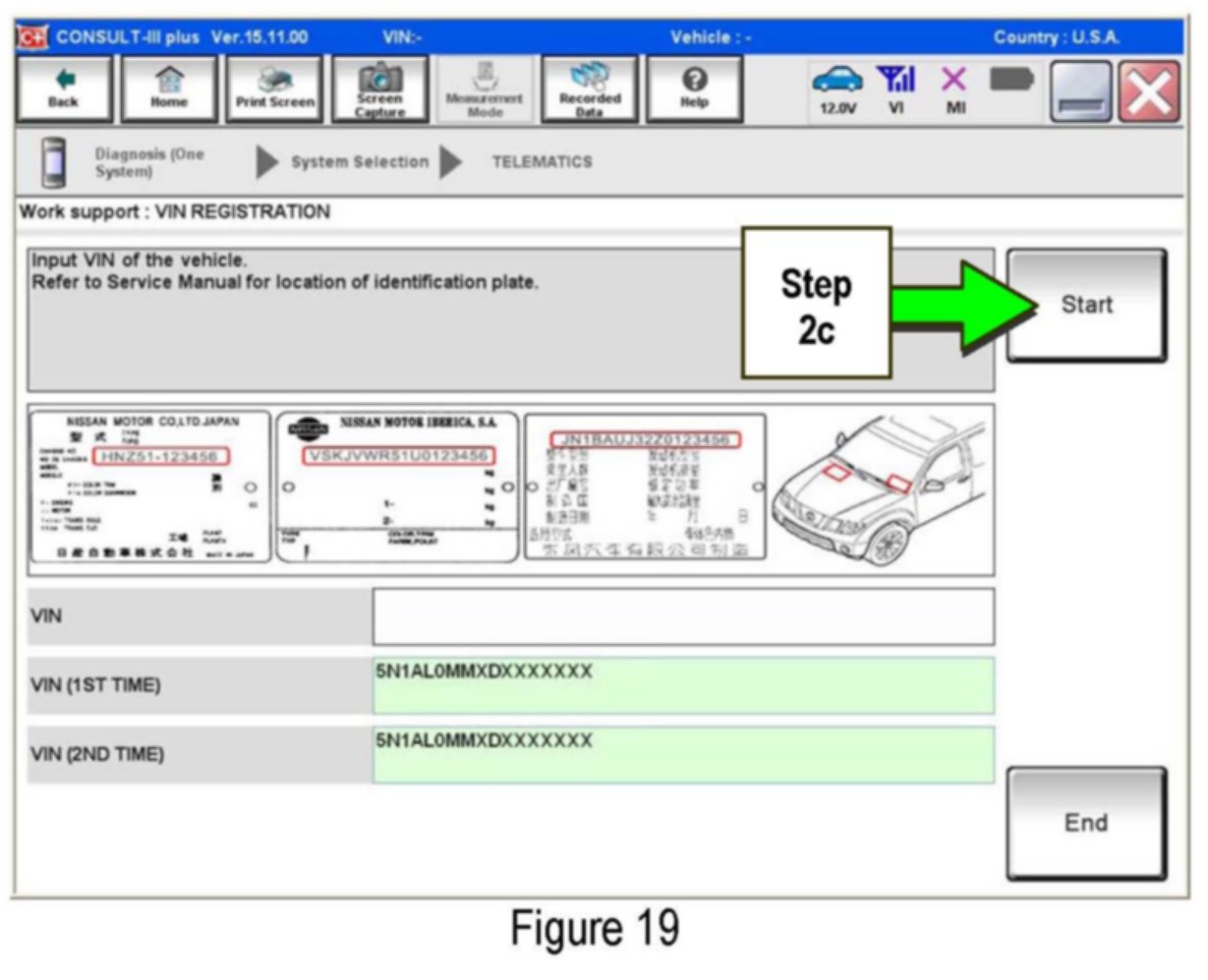

c) Select Start.





3. Select End.

4. Turn ON the TCU.

^ Perform steps 8-15 of the Turning ON the TCU During PDI procedure.
