Replacement

FRONT WIPER BLADE

Replacement

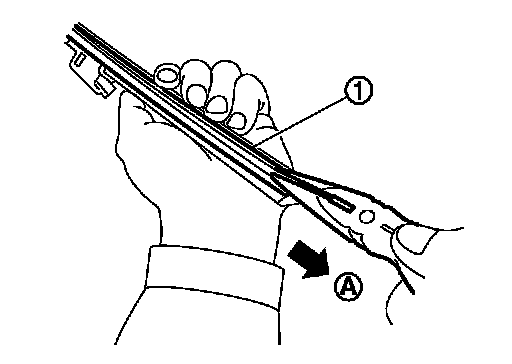

1.Hold the rip of old wiper refill (1) at the rear end of the wiper blade with long-nose pliers, and pull out the wiper refill to the direction (A).

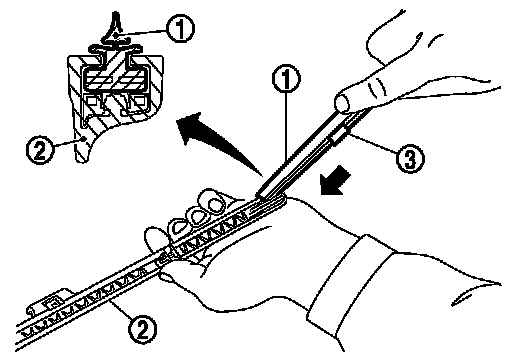

2.Insert the tip of new wiper refill (1) into the rear end of wiper blade (2). Slide the new wiper refill to the direction shown by the arrow while pressing the new wiper refill onto the wiper blade rear end.
NOTE:
- Insert the wiper refill to be held securely by tab of wiper blade as shown in section.
*
- After the wiper refill is fully inserted, remove the holder (3).
: Attached to service parts.

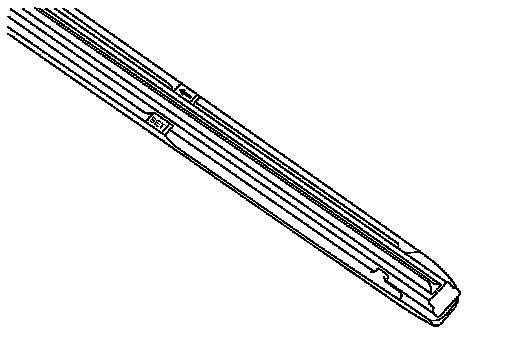

3.Insert the new wiper refill toward the direction shown by the mark "" until the stopper at the rear end of wiper refill fits in the
"SET" mark tab on wiper blade.
4.Untwist the twisted wiper refill at the rear end of wiper blade, if any.
5.Check the following items after replacing wiper refill.
- Wiper refill is not twisted at all.
- Wiper refill thoroughly fits in the tab on wiper blade.
- Wiper refill is inserted from the proper direction.
NOTE:
When the vertebra is detached.

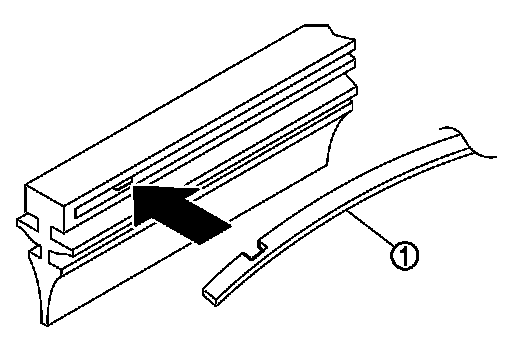

- Insert the vertebra (1) into the wiper blade to the same bending direction.
- If a vertebra has a notch, fit it to a protrusion inside the wiper refill.
