Removal and Installation

FRONT WIPER ARM

Removal and Installation


REMOVAL

1.Operate the front wiper to move it to the auto stop position.
2.Open the hood.
3.Remove the wiper arm cap.
4.Remove the wiper arm mounting nut.
5.Raise wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

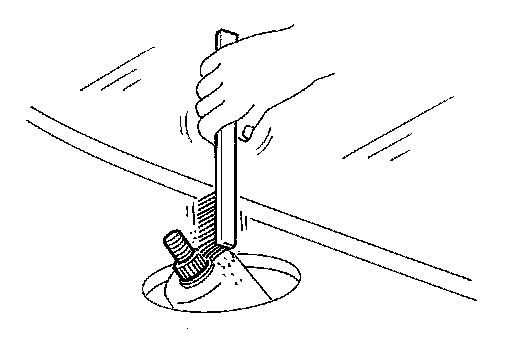

1.Clean wiper arm mount as shown in the figure to prevent nuts from being loosened.
2.Operate the front wiper motor to move the wiper to the auto stop position.
3.Adjust the wiper blade position. Refer to "Adjustment" Adjustments.
4.Install the wiper arm by tightening the mounting nut.
5.Inject the washer fluid.
6.Operate the front wiper to move it to the auto stop position.
7.Check that the wiper blades stop at the specified position.
8.Install the wiper arm cap.
