Removal and Installation

WASHER TANK

Removal and Installation


REMOVAL

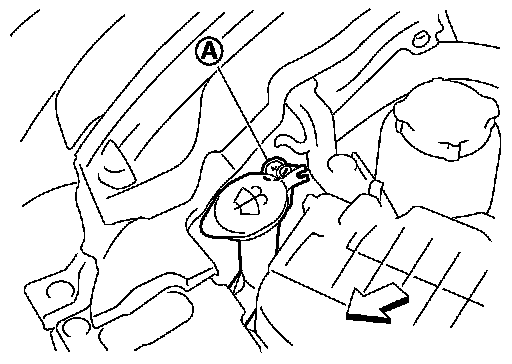

1.Remove the clip (A).





2.Pull out the washer tank inlet from the washer tank.
3.Remove the front bumper fascia. Refer to "Removal and Installation" Removal and Installation.
4.Disconnect the washer pump connector.
5.Disconnect the washer level switch connector.
6.Disconnect the washer tube.
7.Remove the washer tank mounting bolts.
8.Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.
