Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Front Wiper and Washer System Symptoms >> Without Rain Sensor Symptom Table

Without Rain Sensor Symptom Table




FRONT WIPER AND WASHER SYSTEM SYMPTOMS

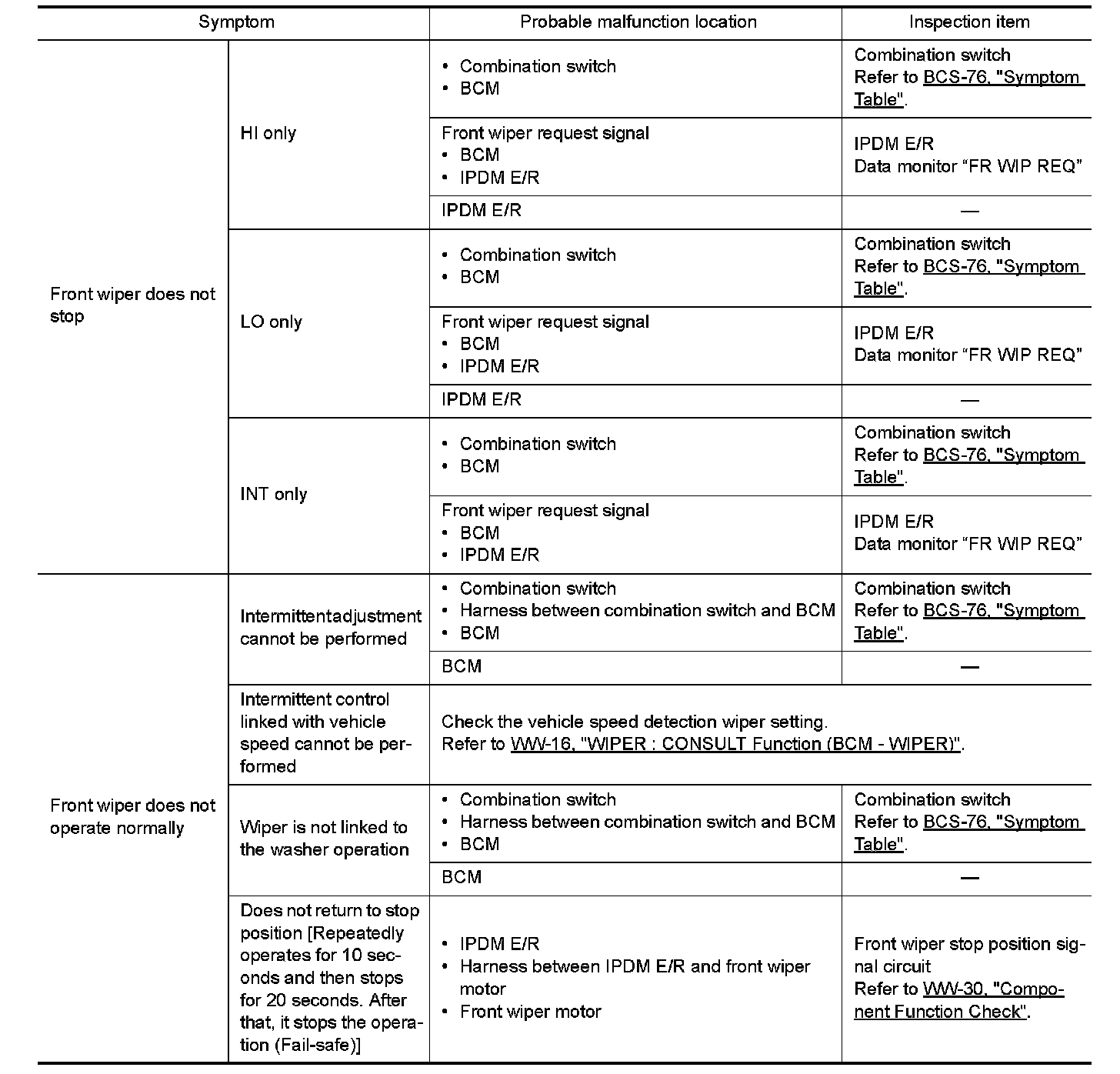

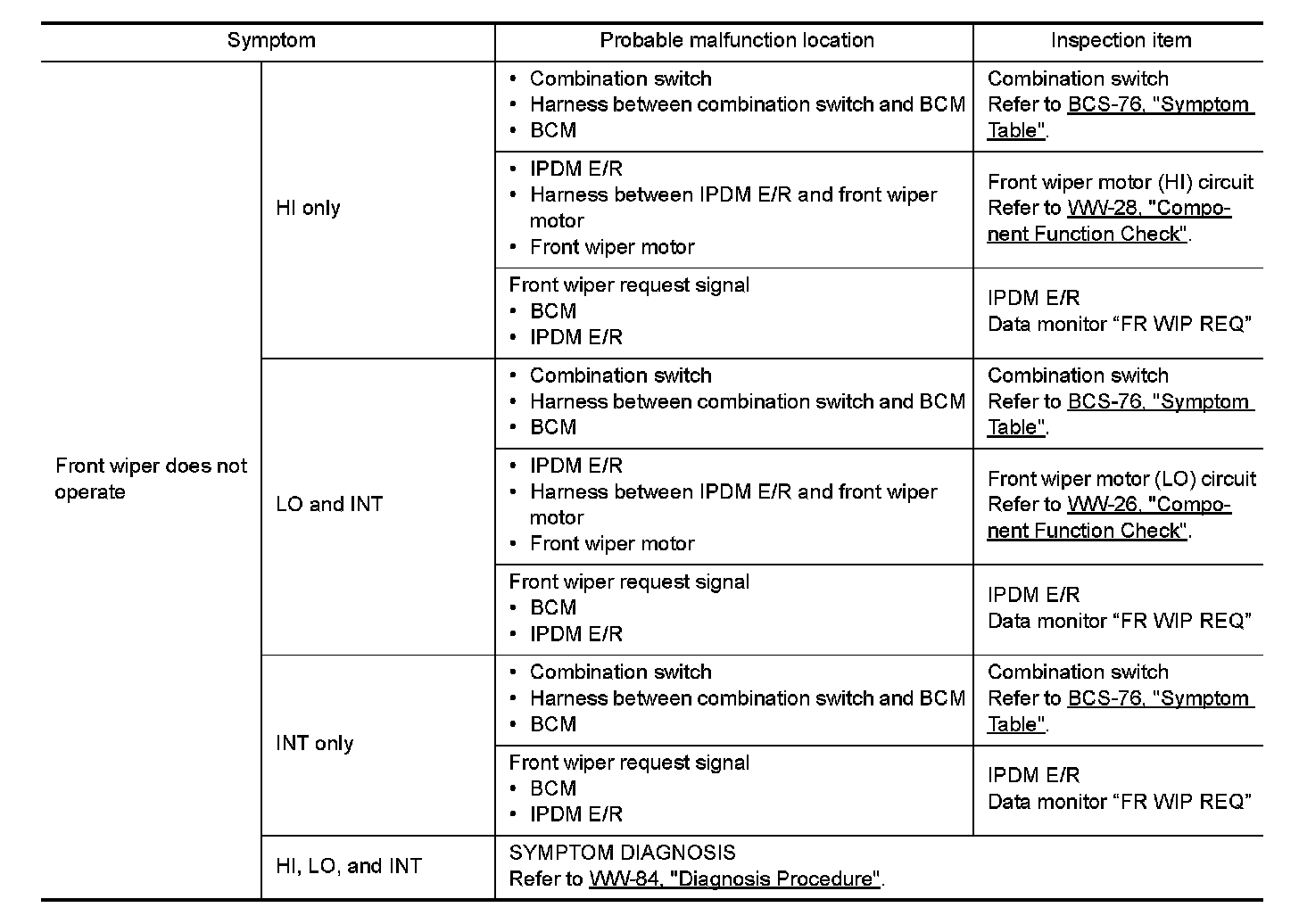

WITHOUT RAIN SENSOR : Symptom Table


CAUTION:
Perform the self-diagnosis with CONSULT before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.
