CONSULT-III Function (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT Function (IPDM E/R)

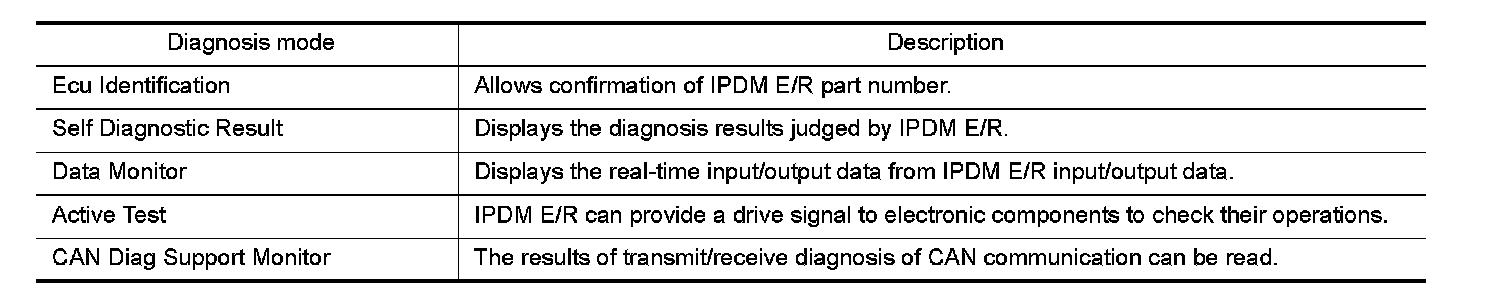

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.






SELF DIAGNOSTIC RESULT

Refer to "DTC Index" Testing and Inspection.

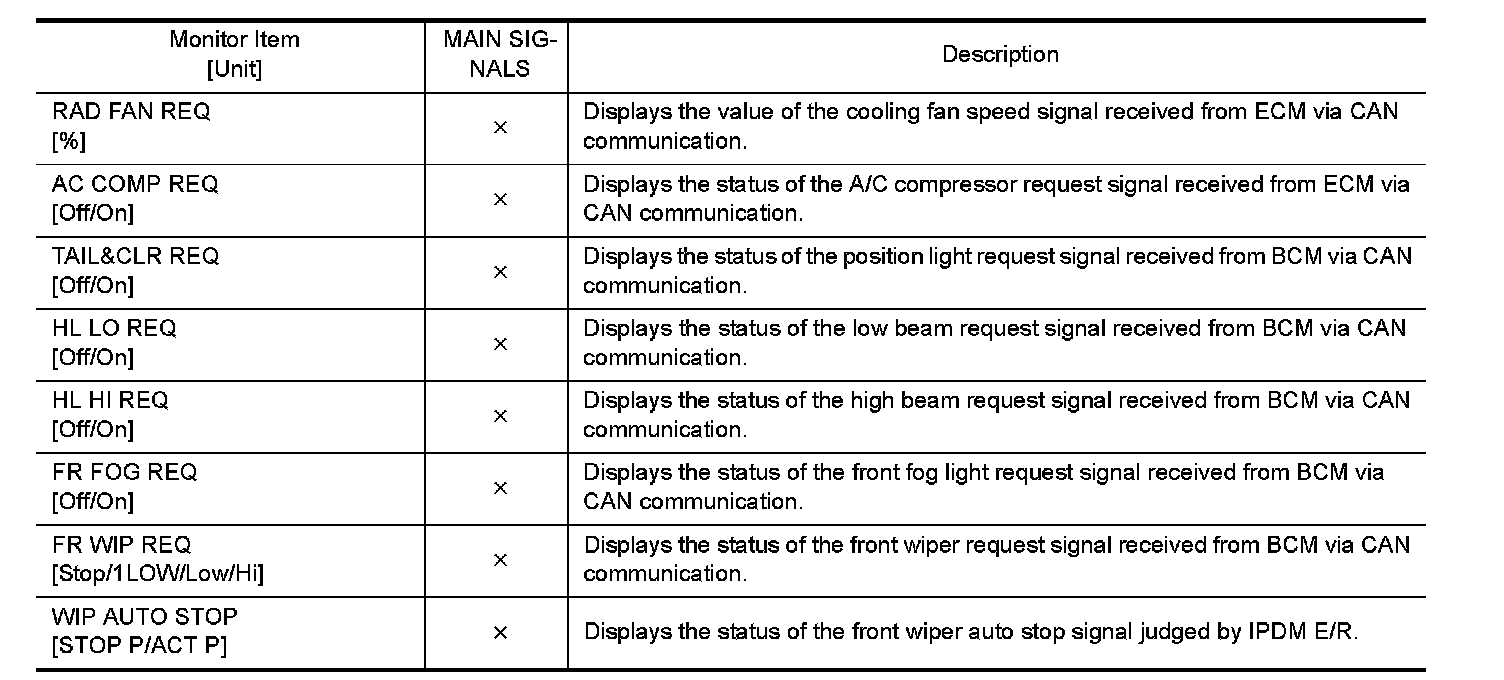

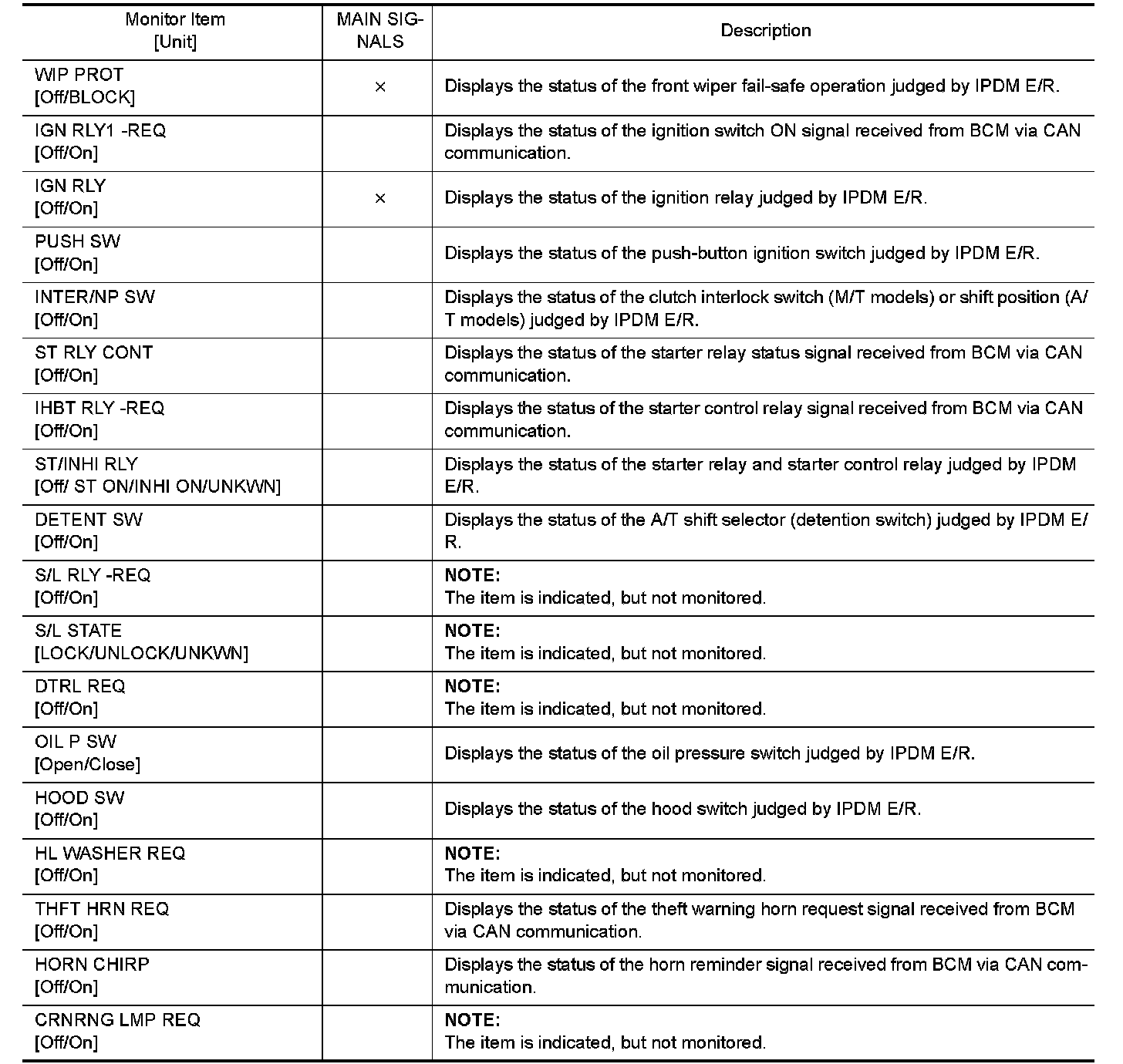

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.











ACTIVE TEST
