IPDM E/R (Intelligent Power Distribution Module Engine Room)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Reference Value

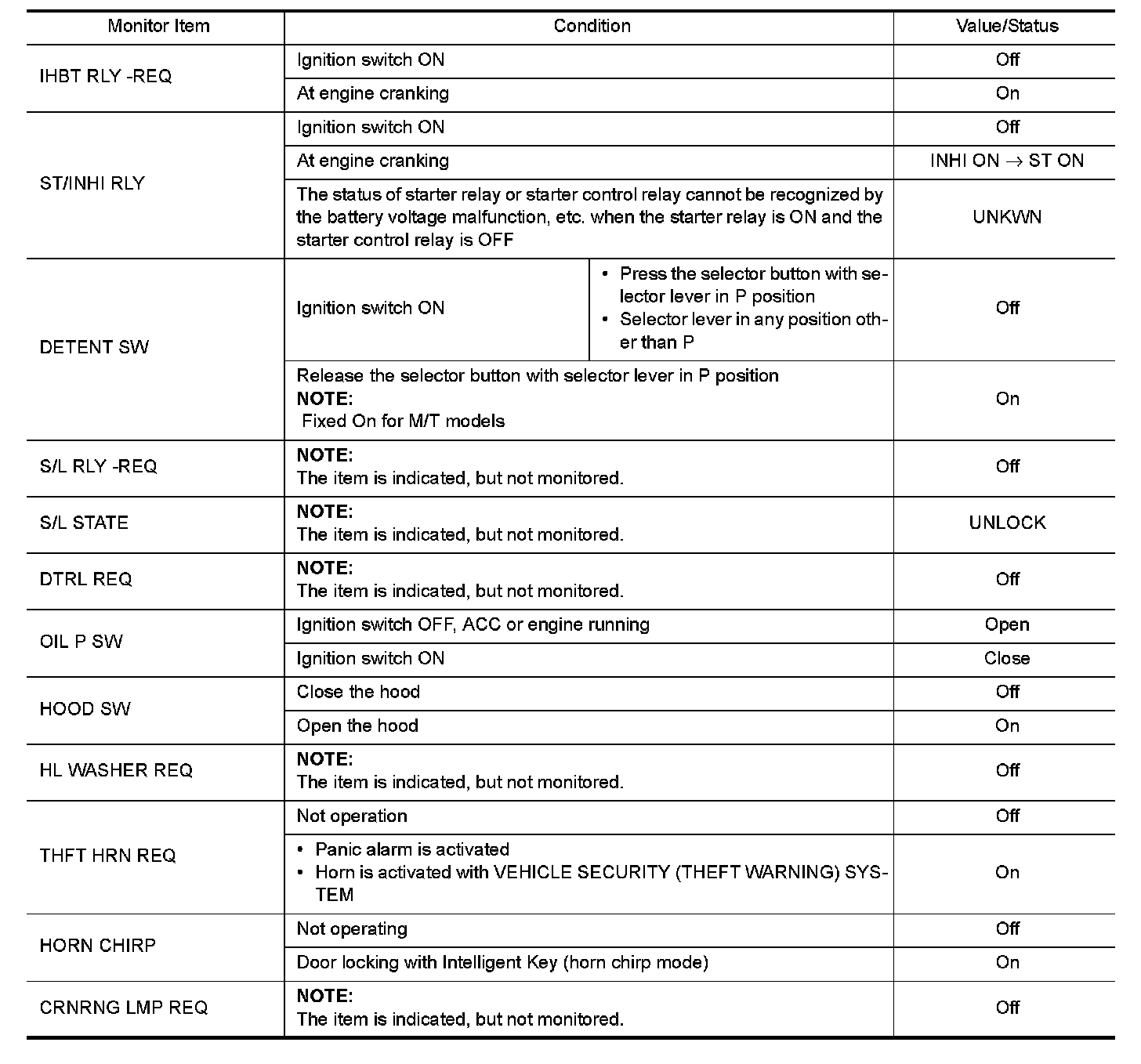

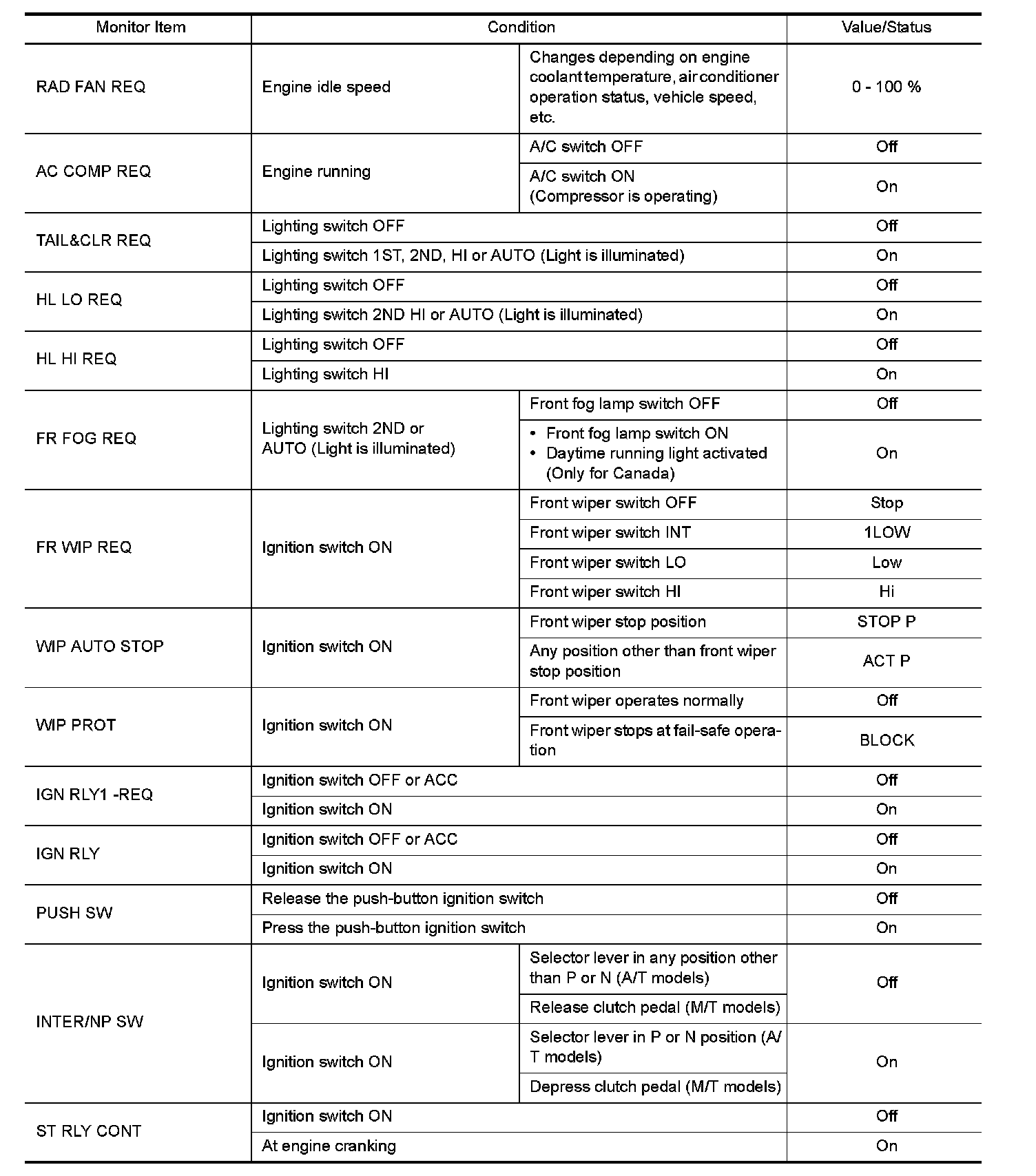

VALUES ON THE DIAGNOSIS TOOL

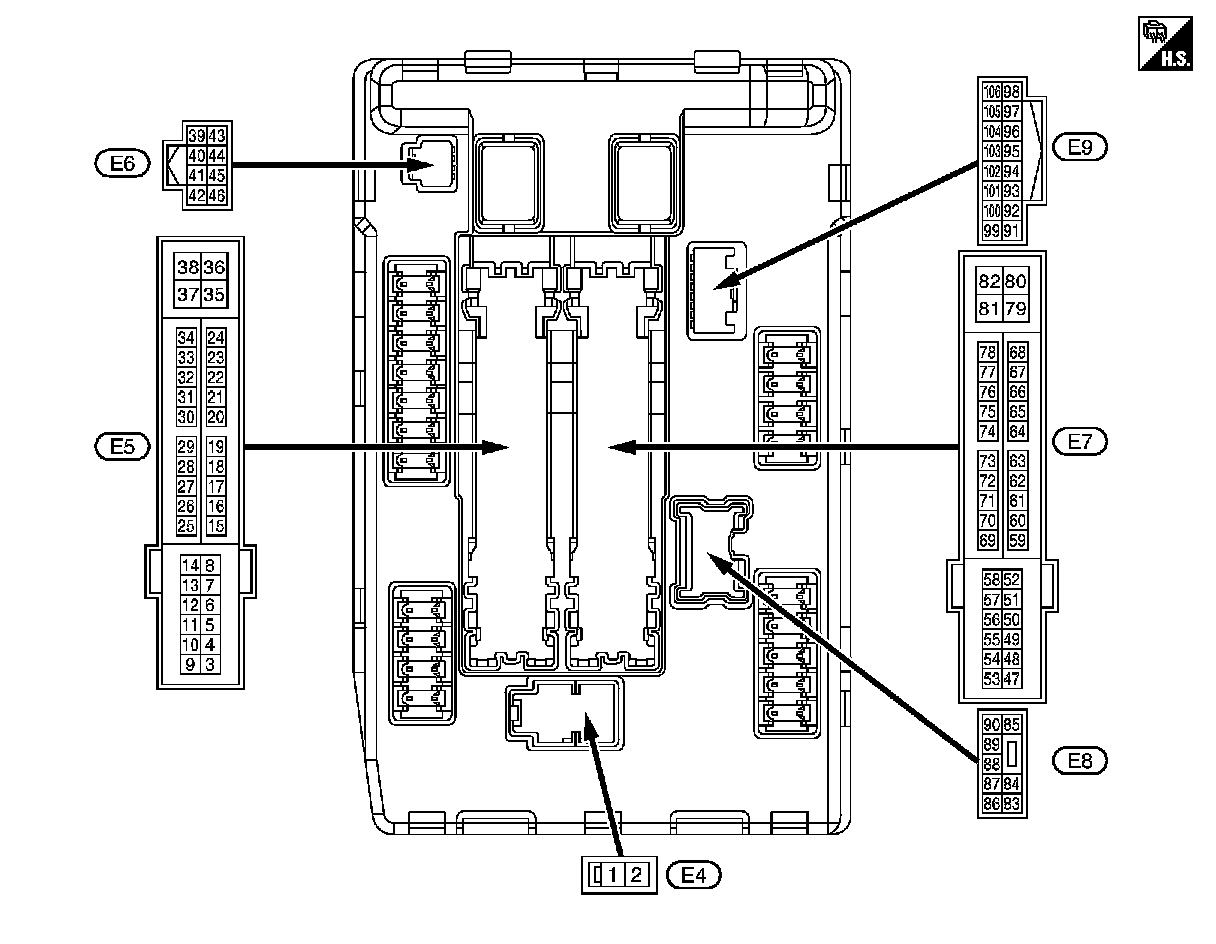

TERMINAL LAYOUT

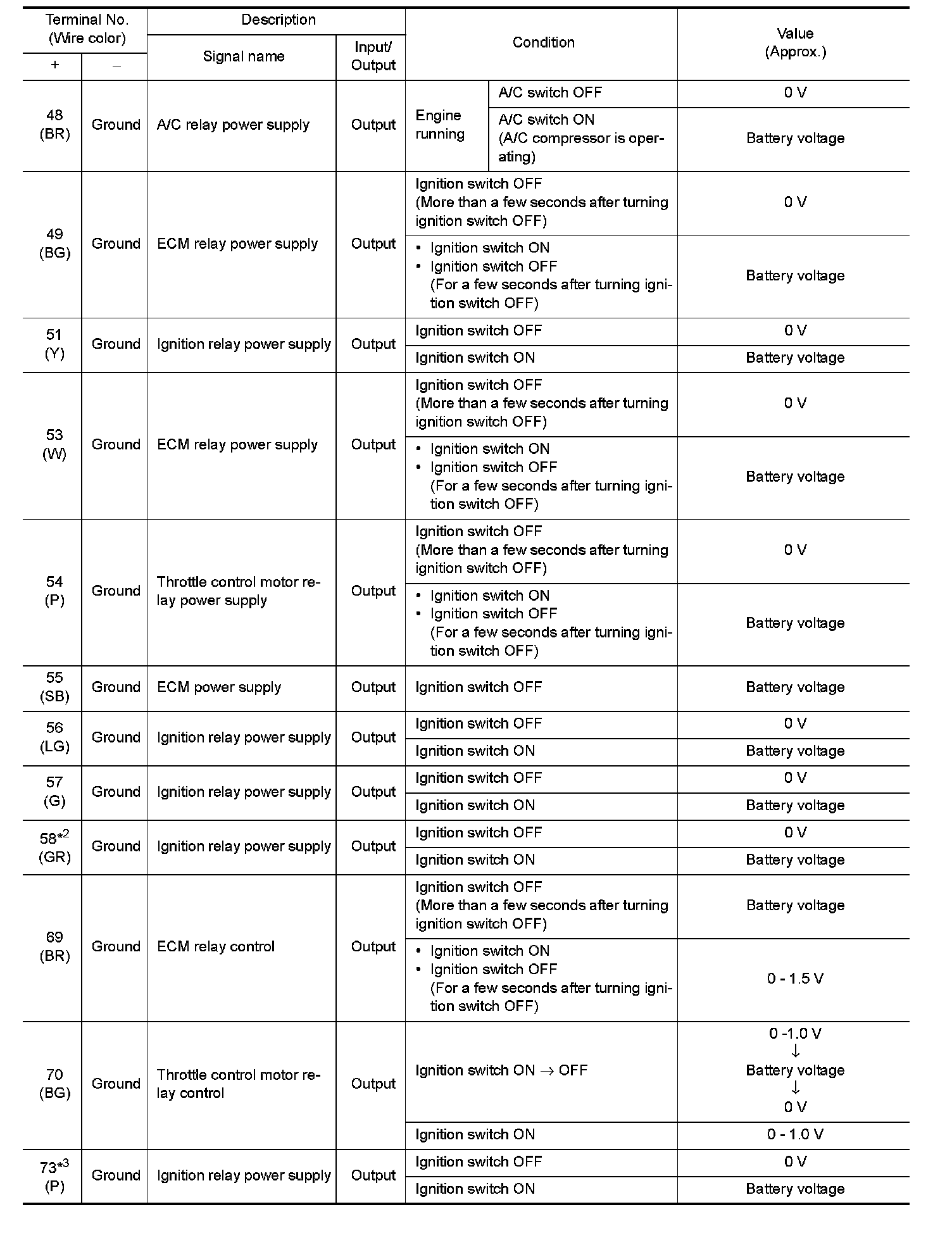

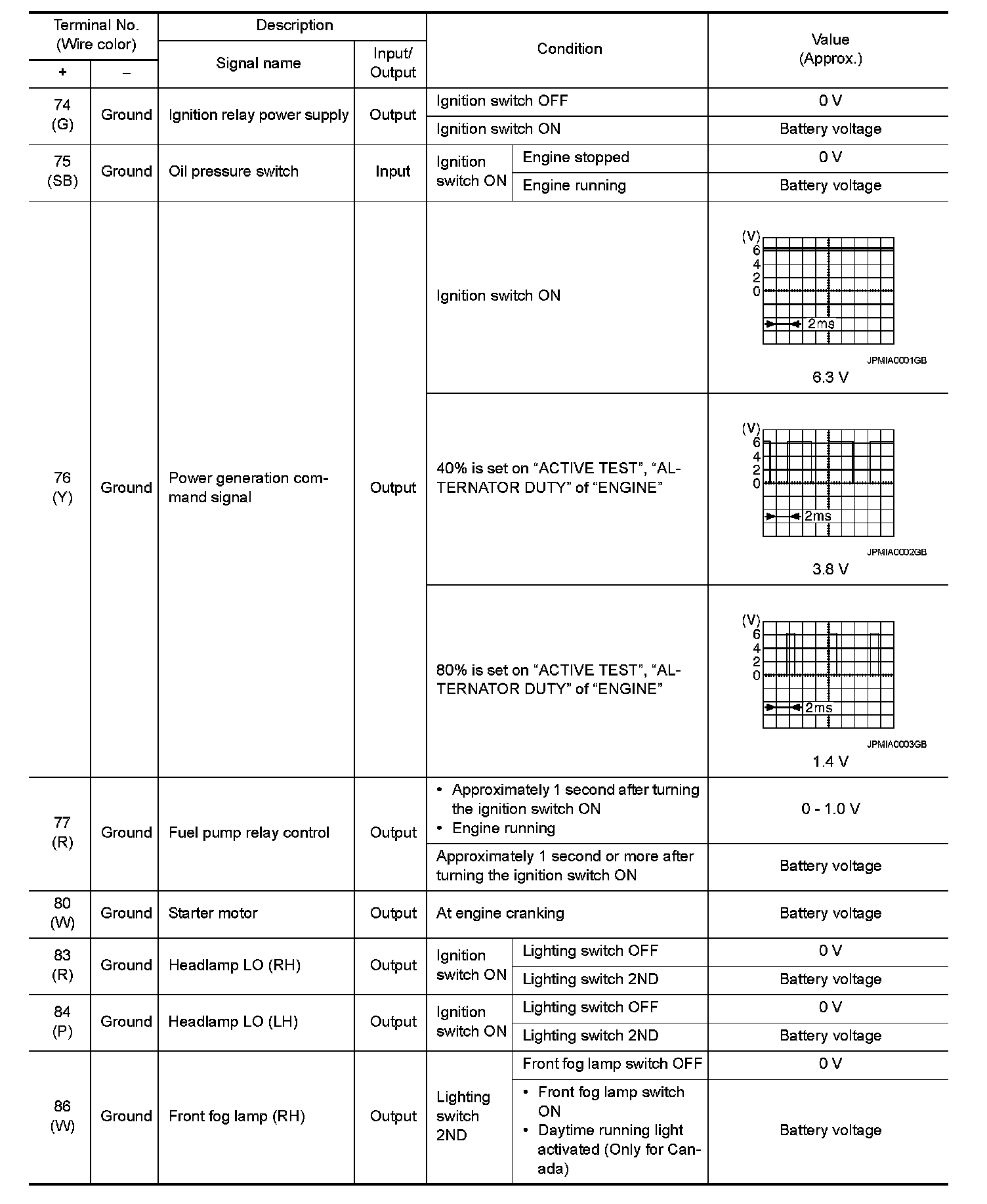

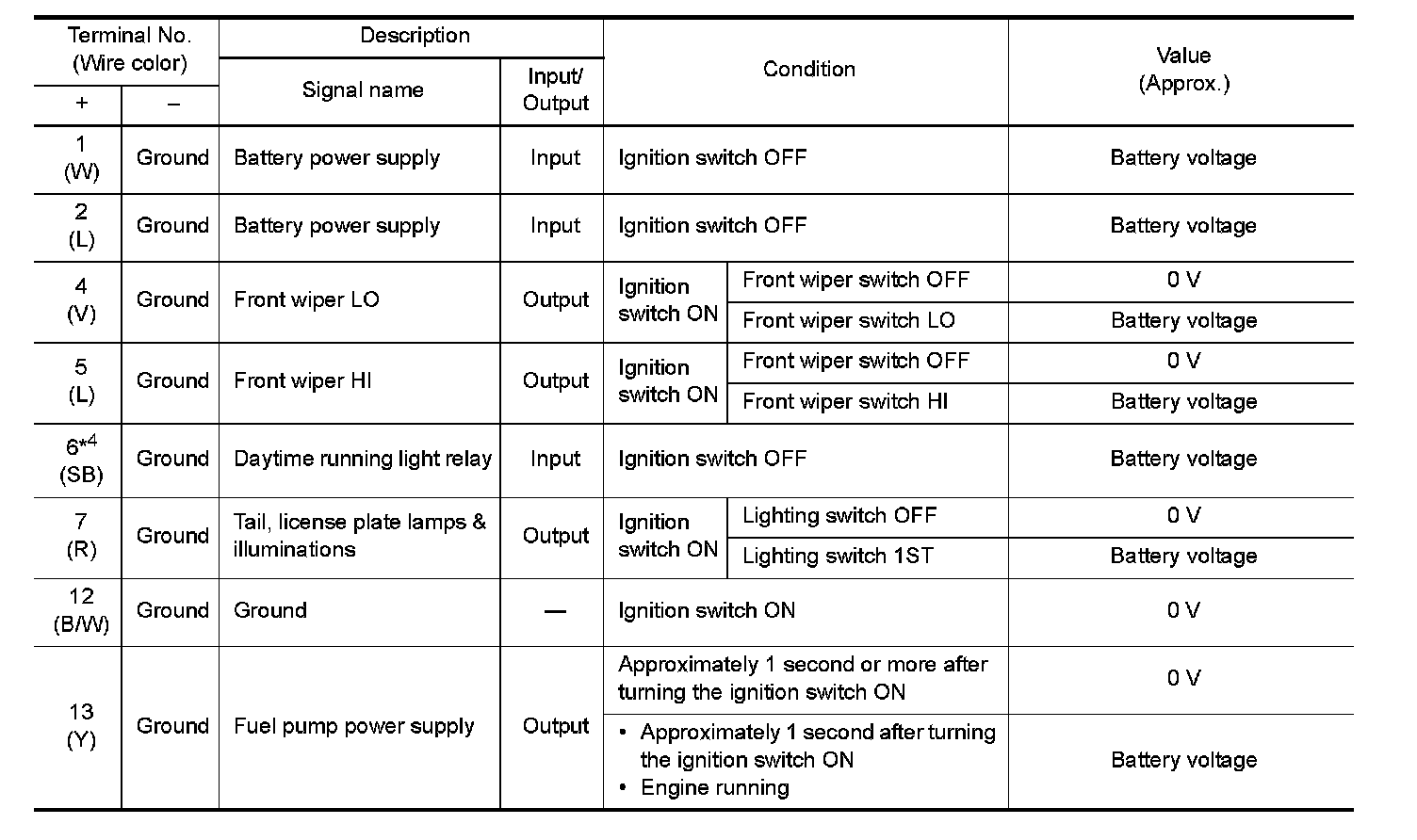

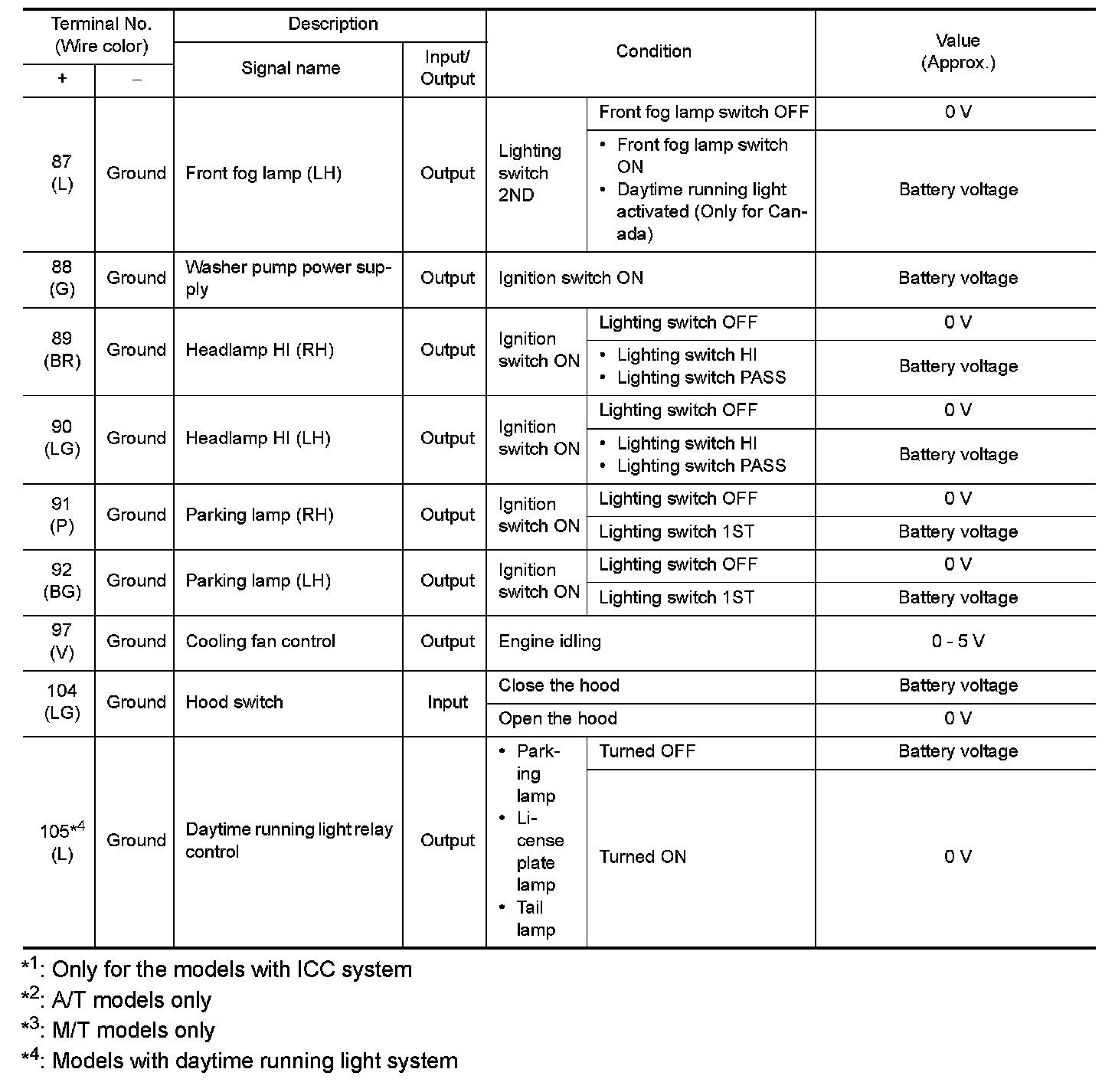

PHYSICAL VALUES


























1
*: Only for the models with ICC system
2
*: A/T models only
3
*: M/T models only
4
*: Models with daytime running light system
