BCM (Body Control Module)




BCM (BODY CONTROL MODULE)

Reference Value


VALUES ON THE DIAGNOSIS TOOL

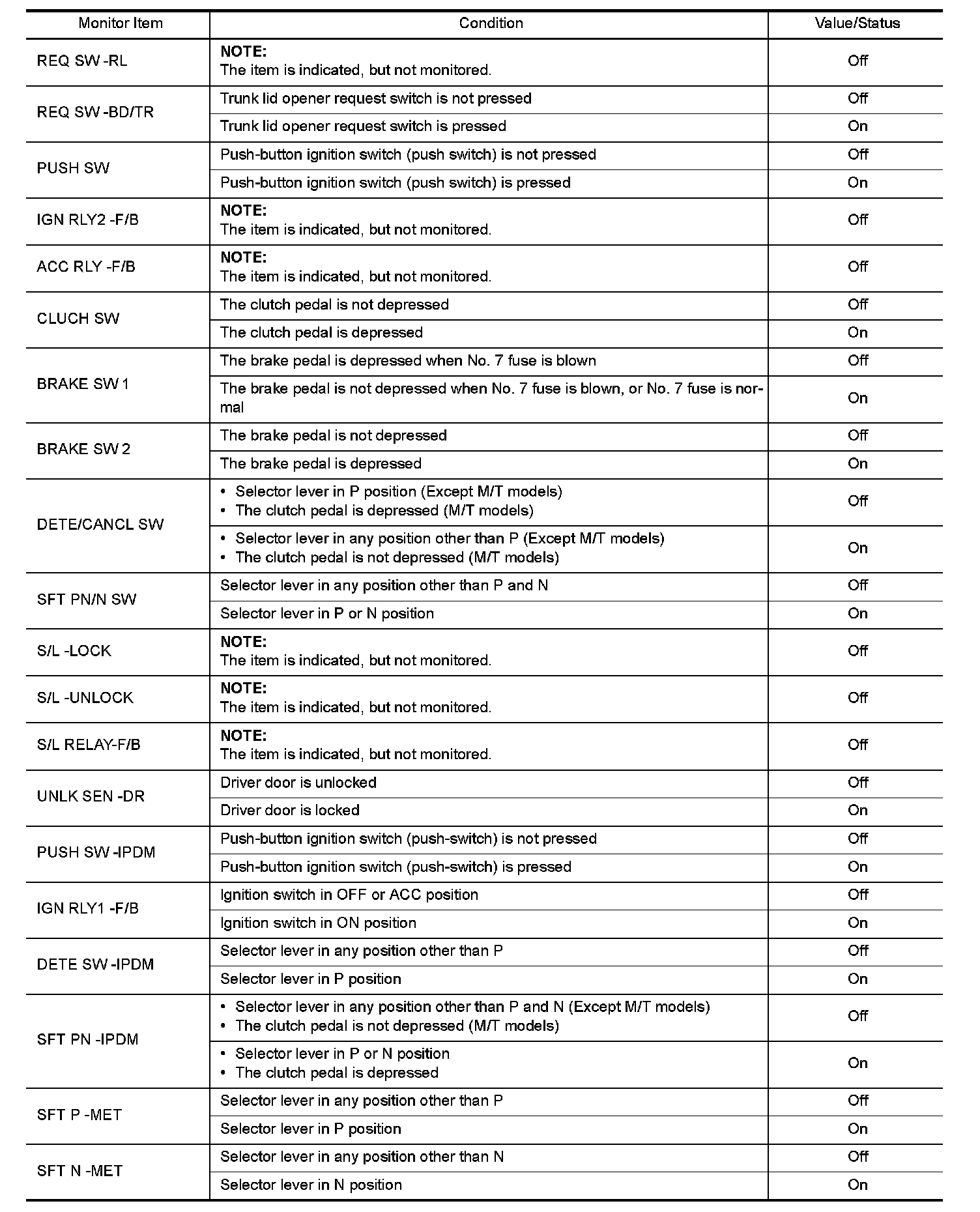

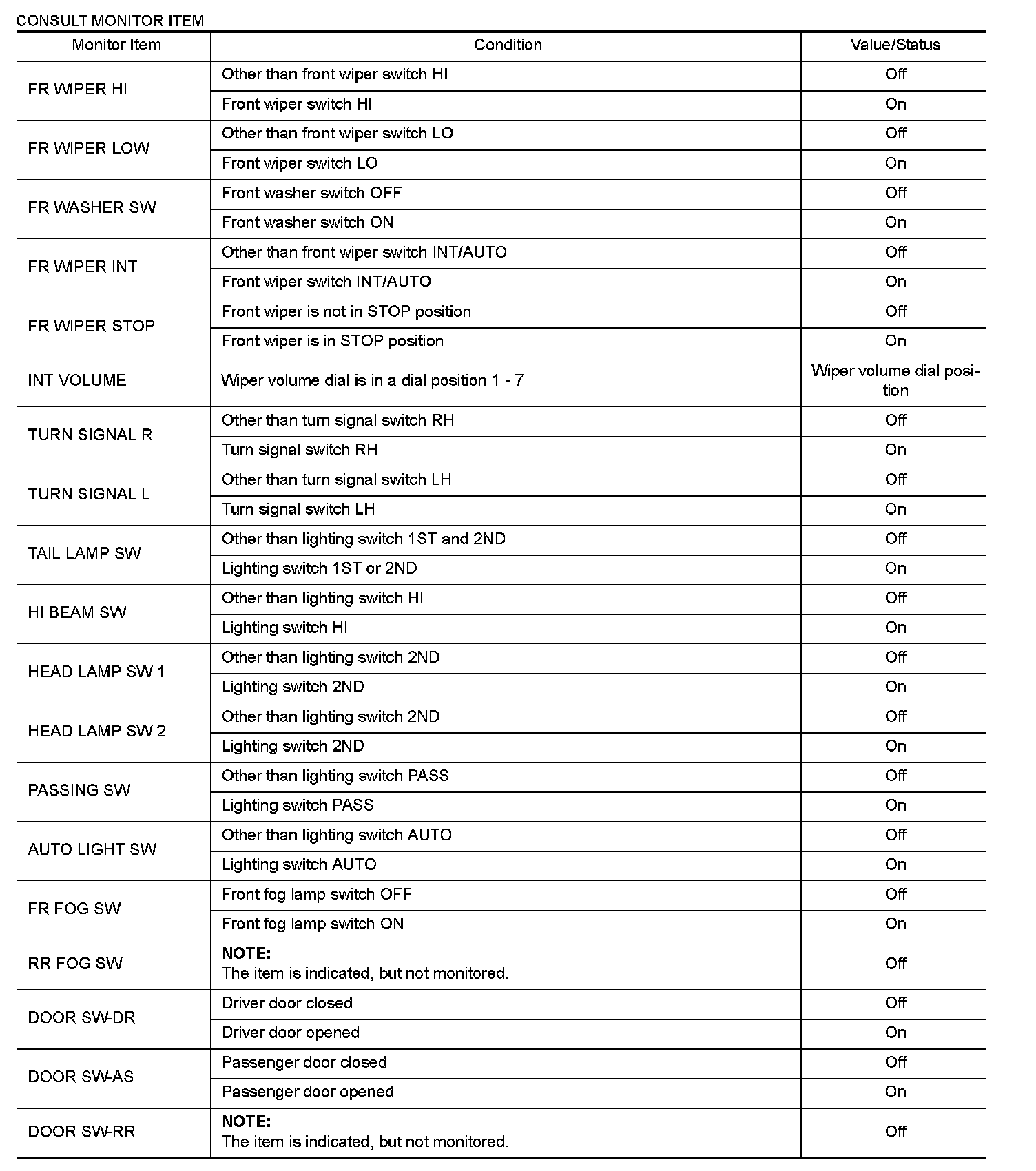

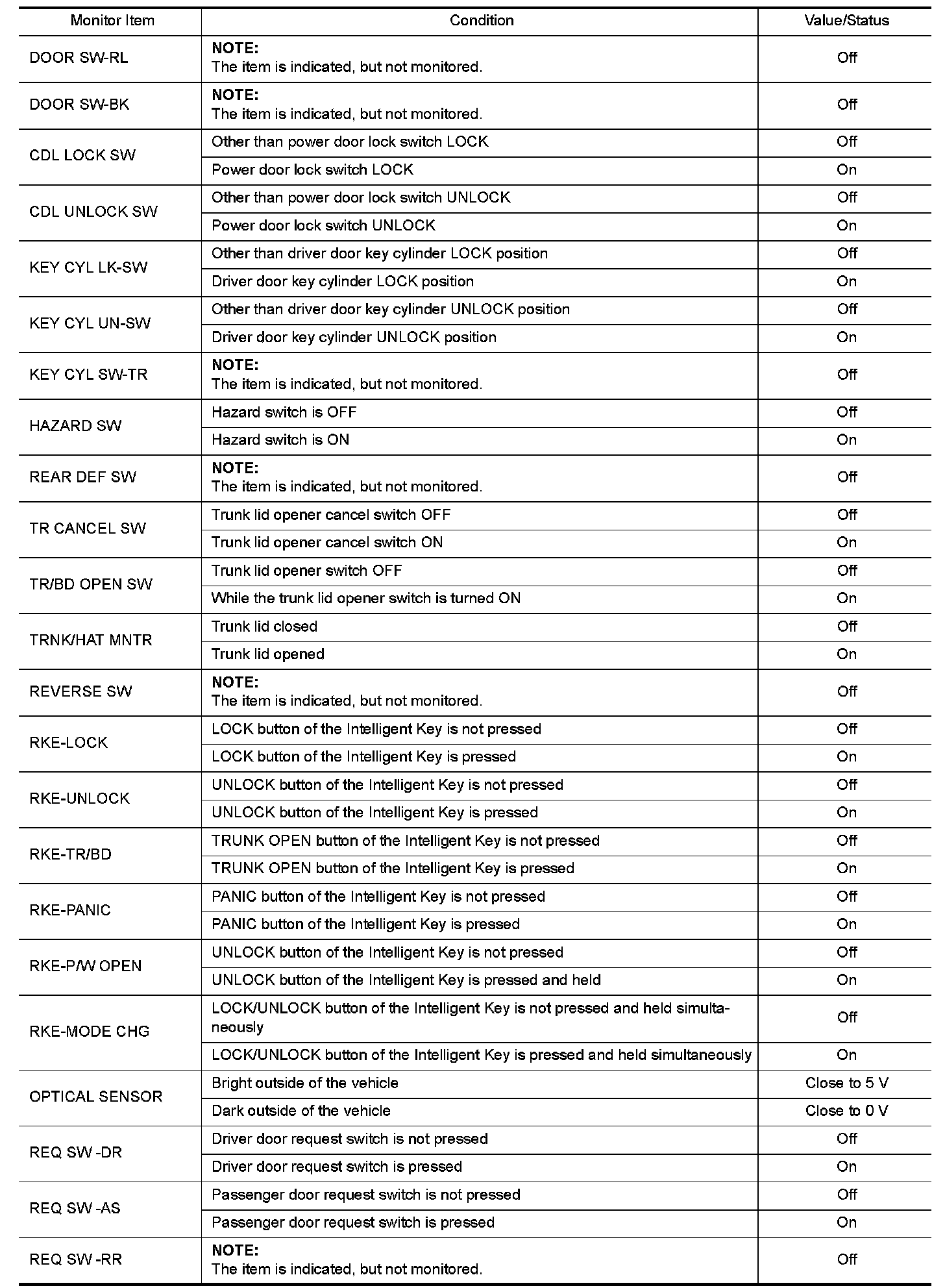

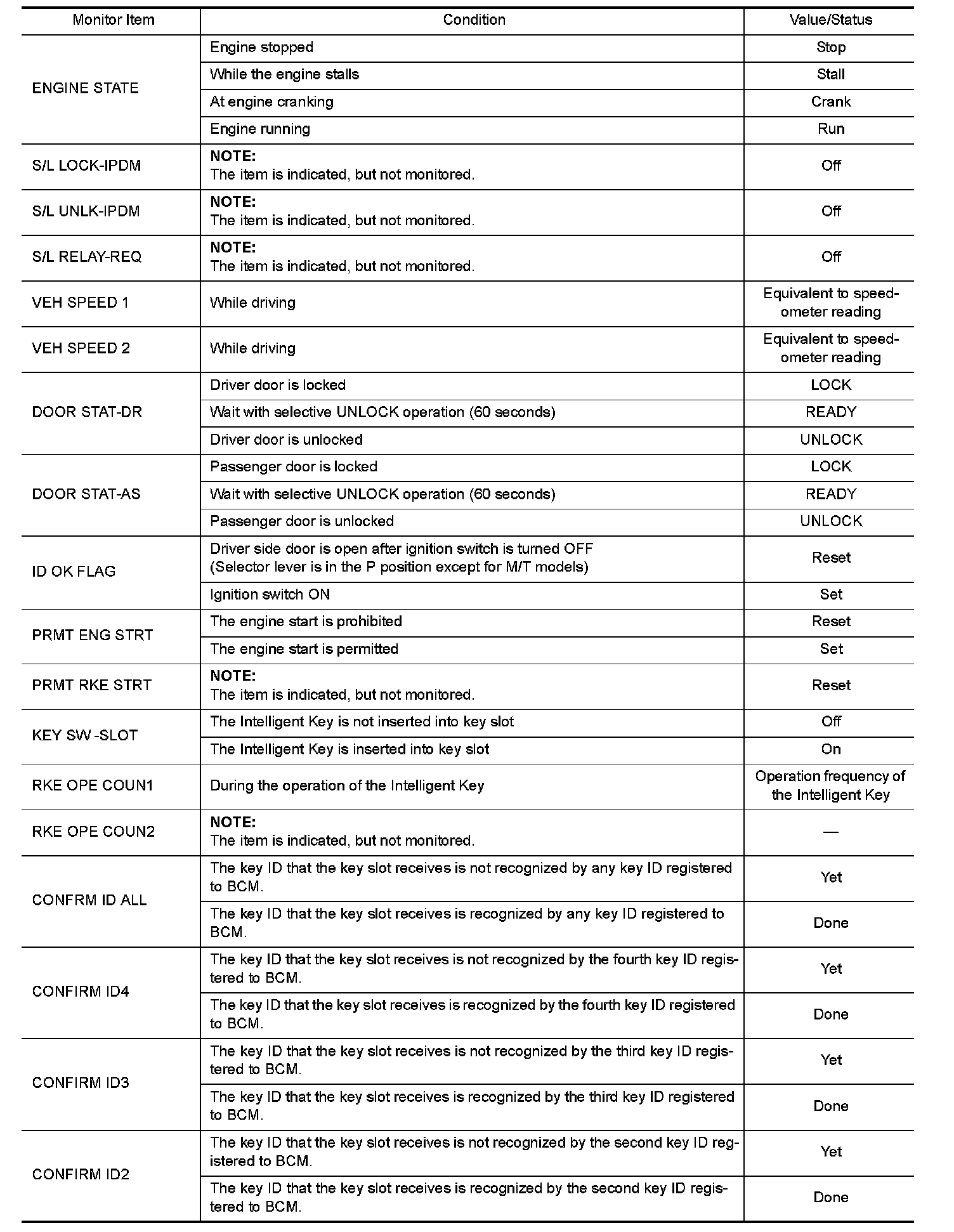

CONSULT MONITOR ITEM

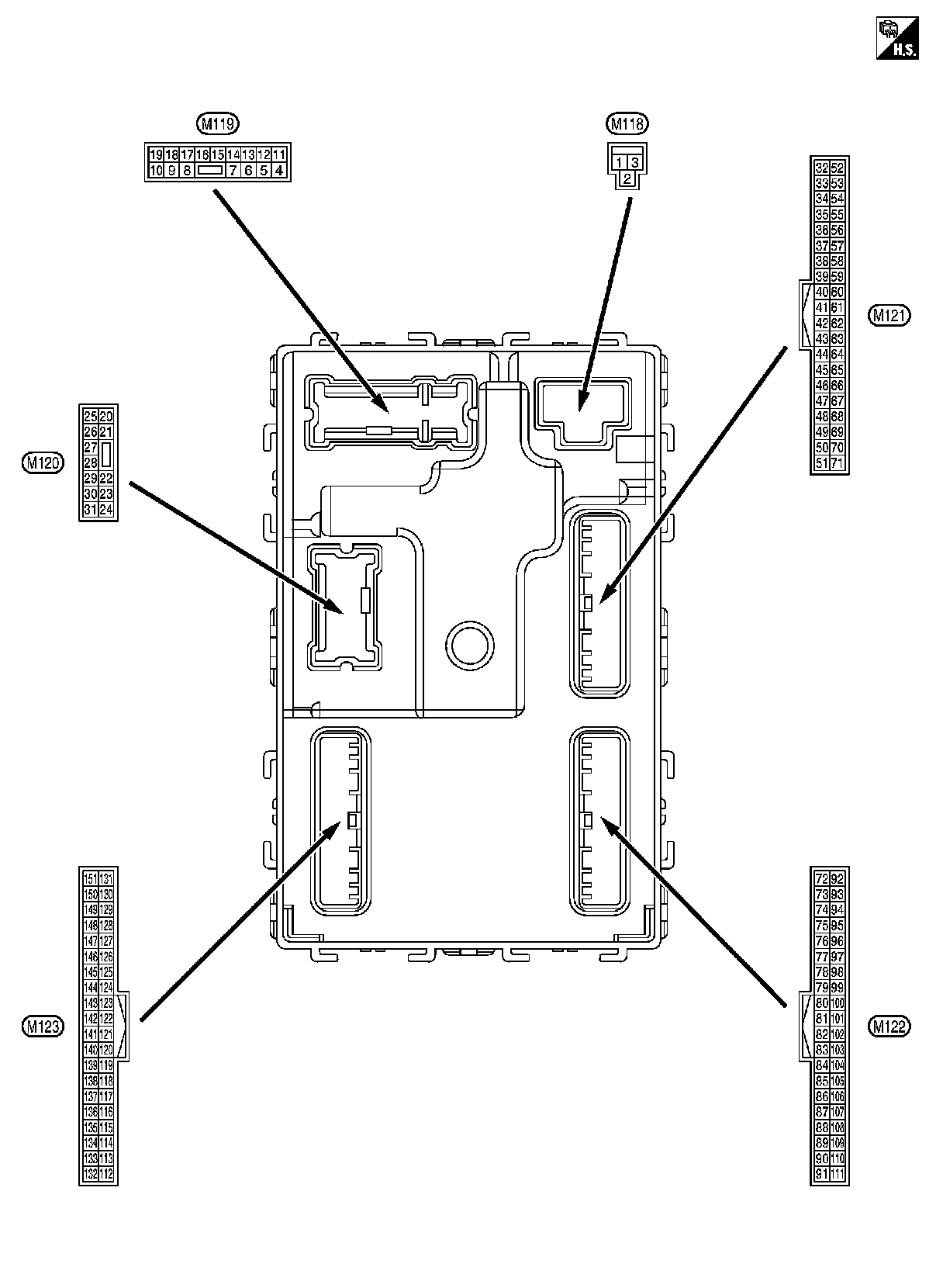

TERMINAL LAYOUT

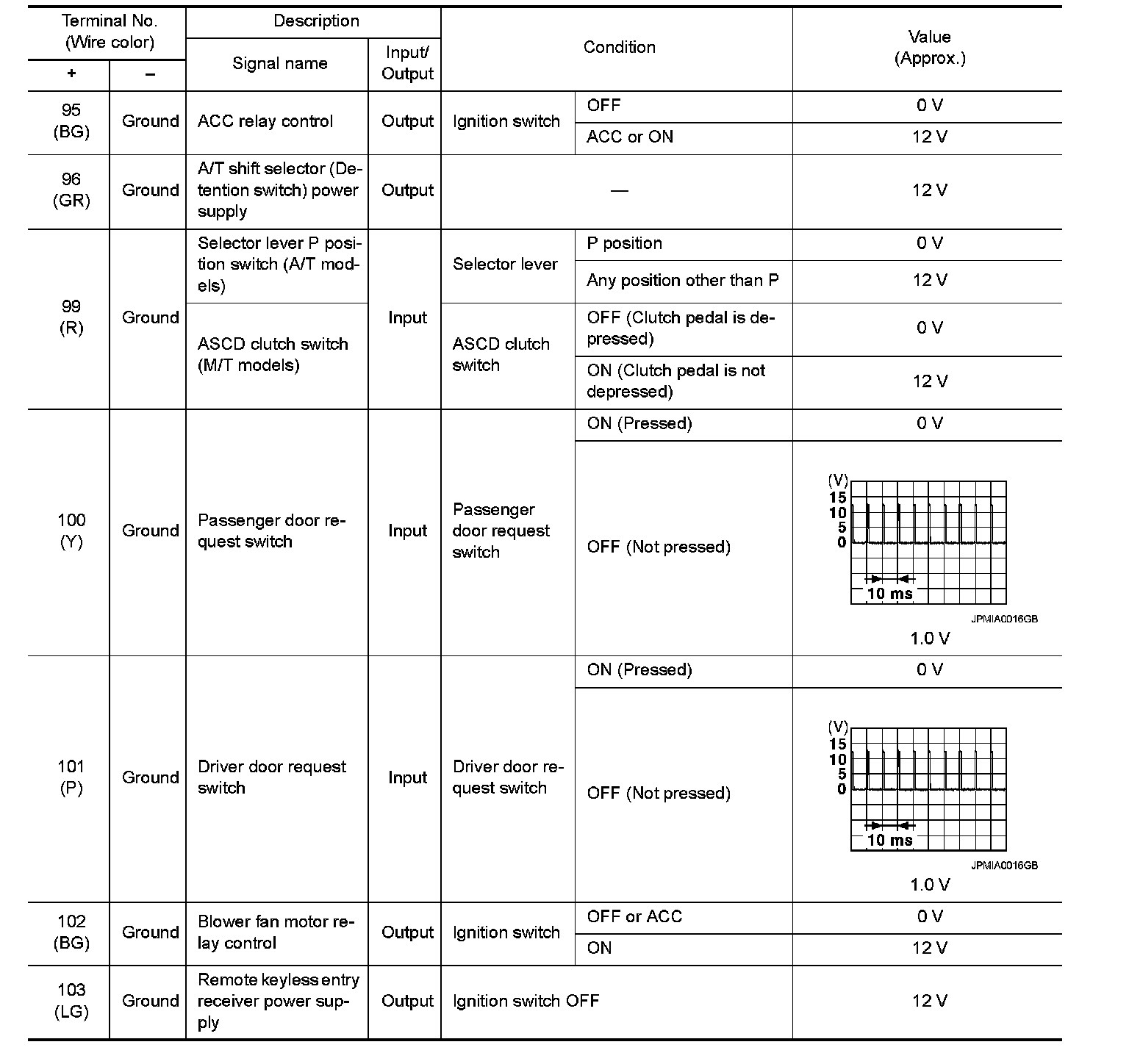

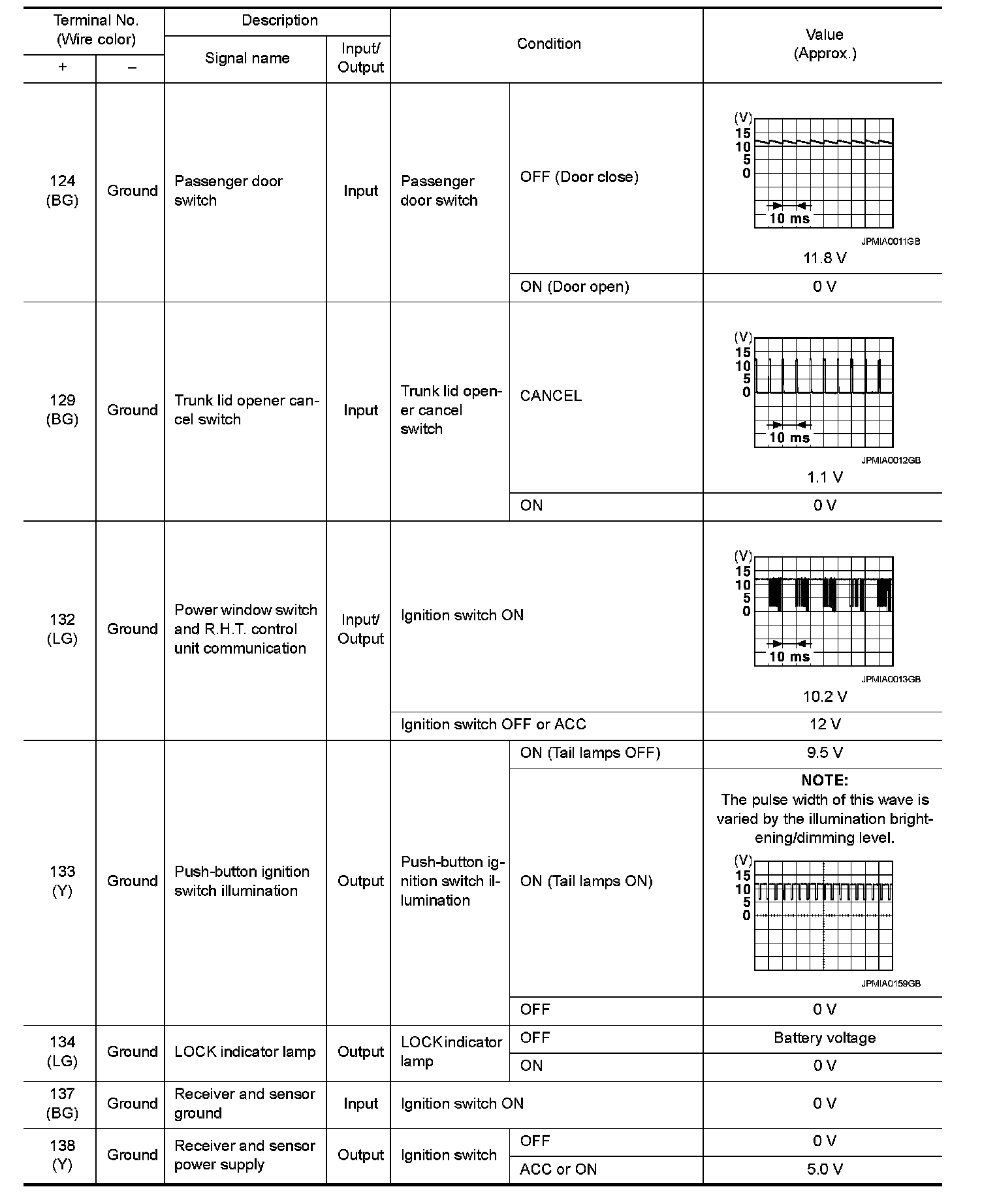

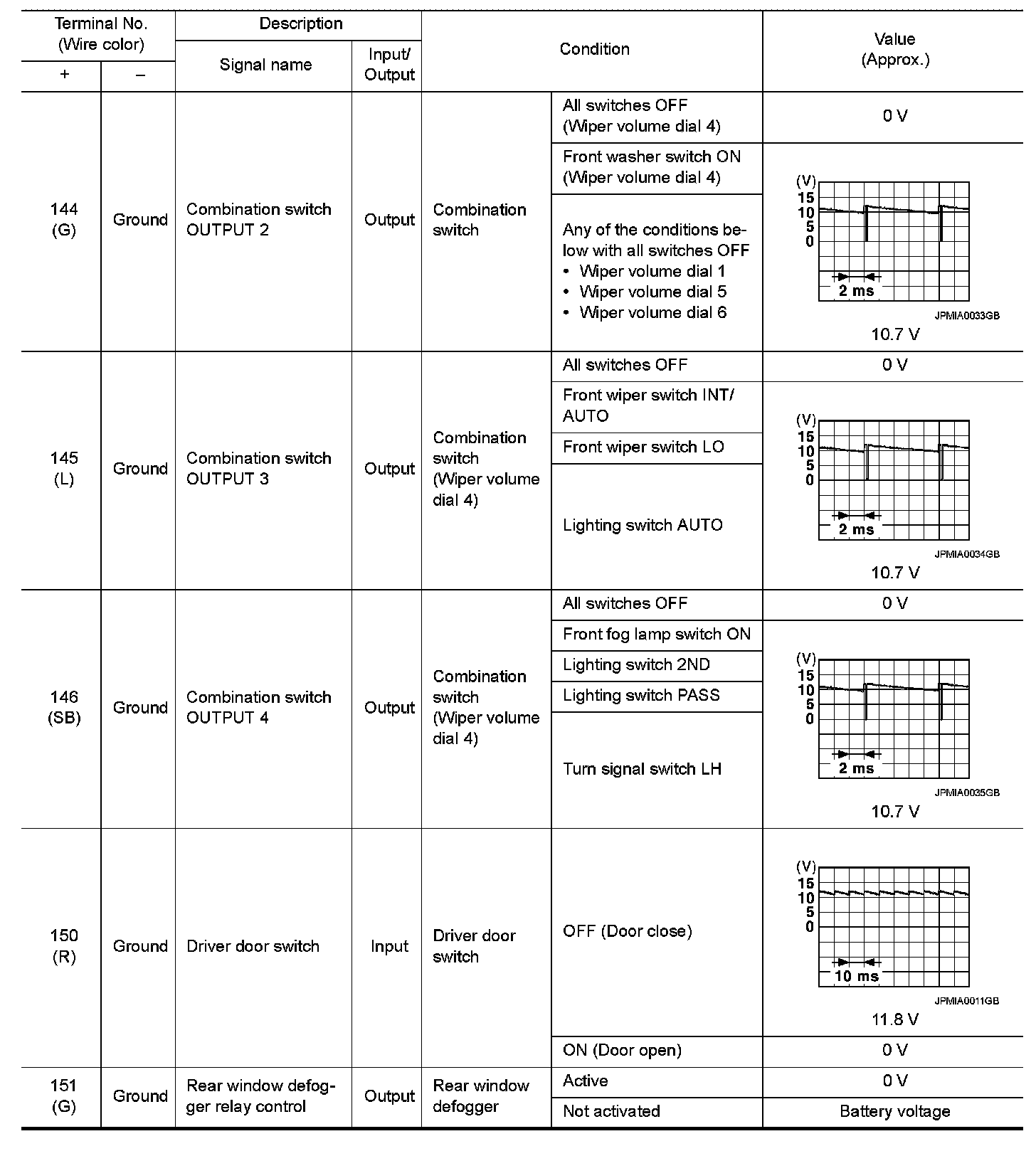

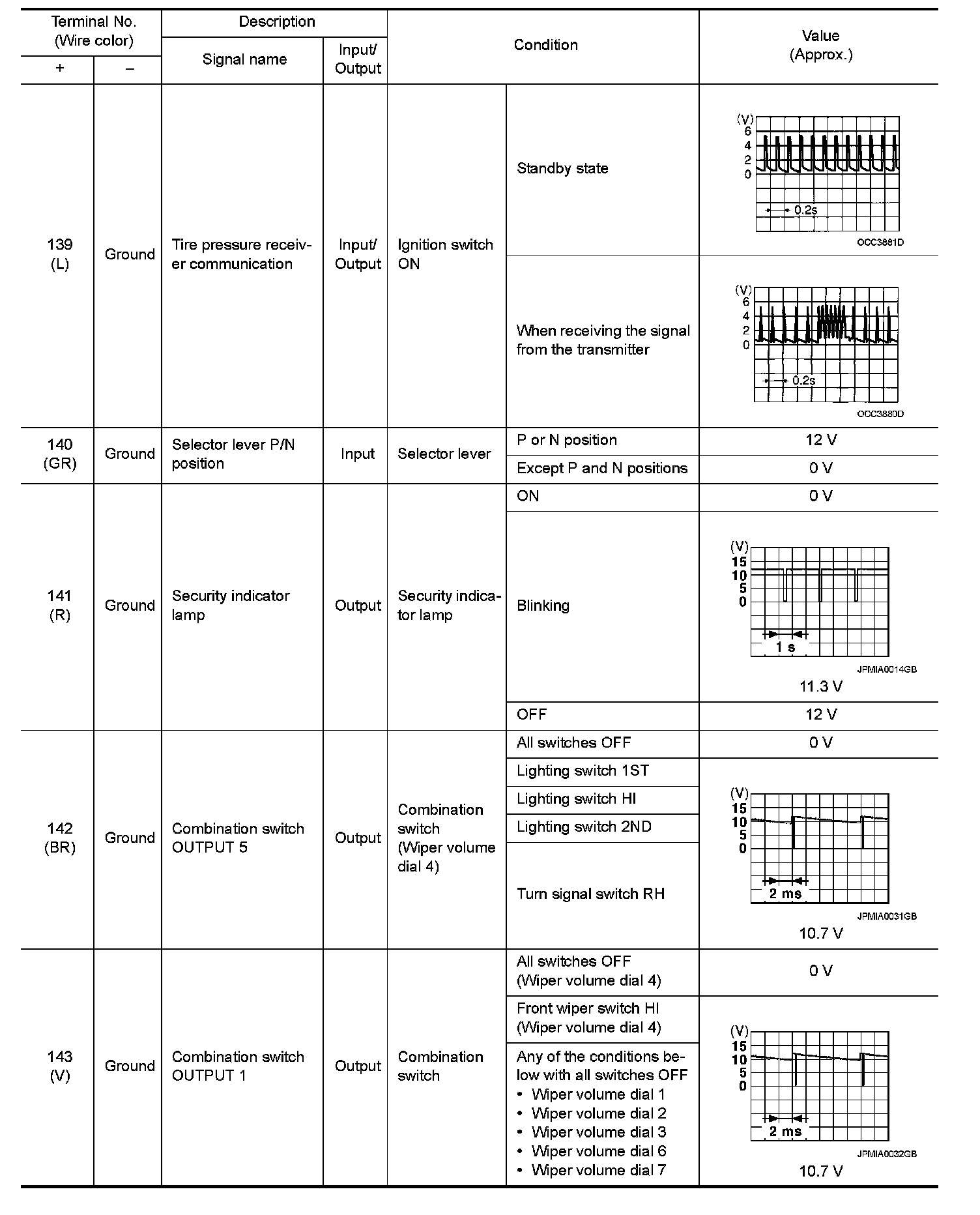

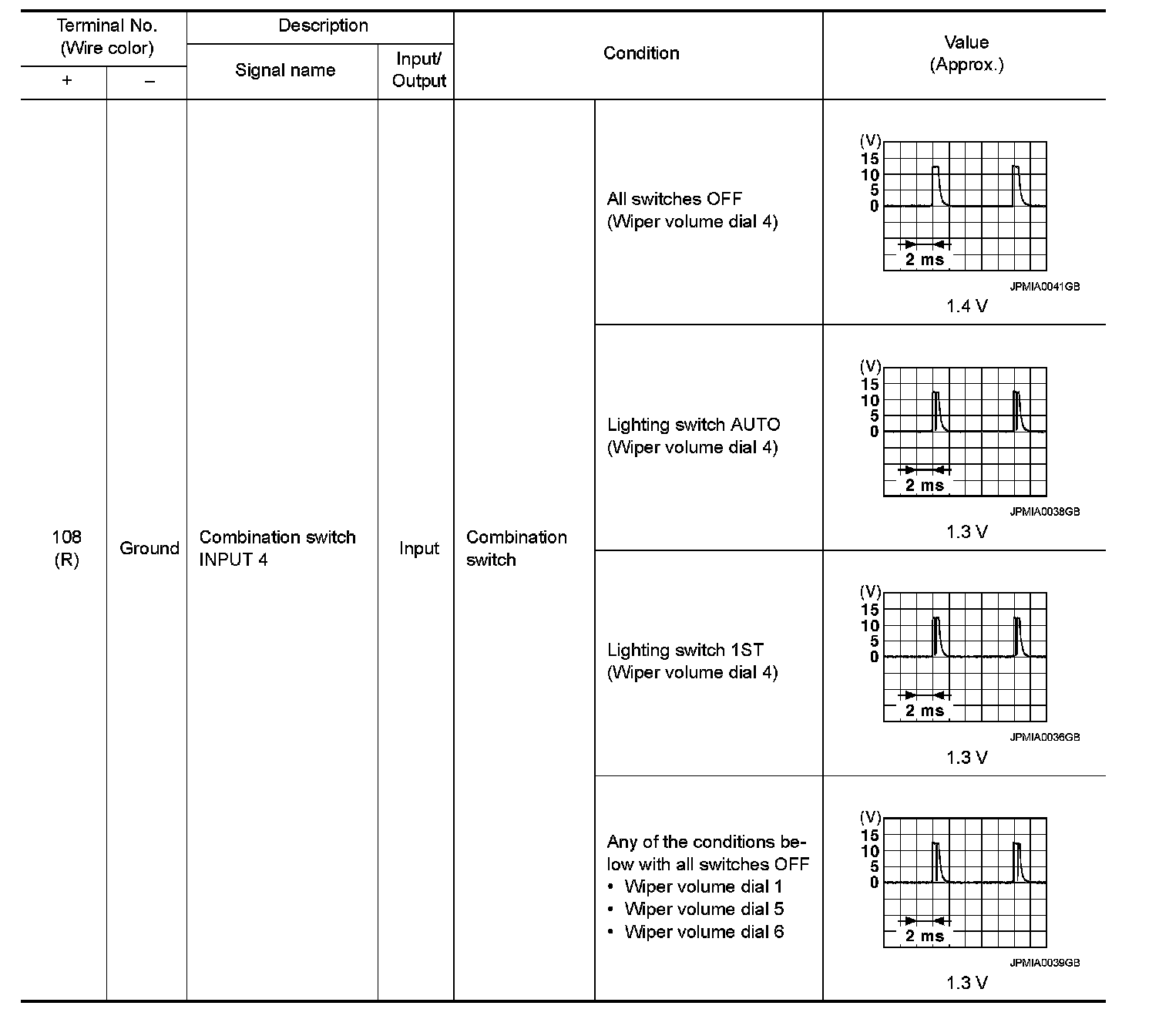

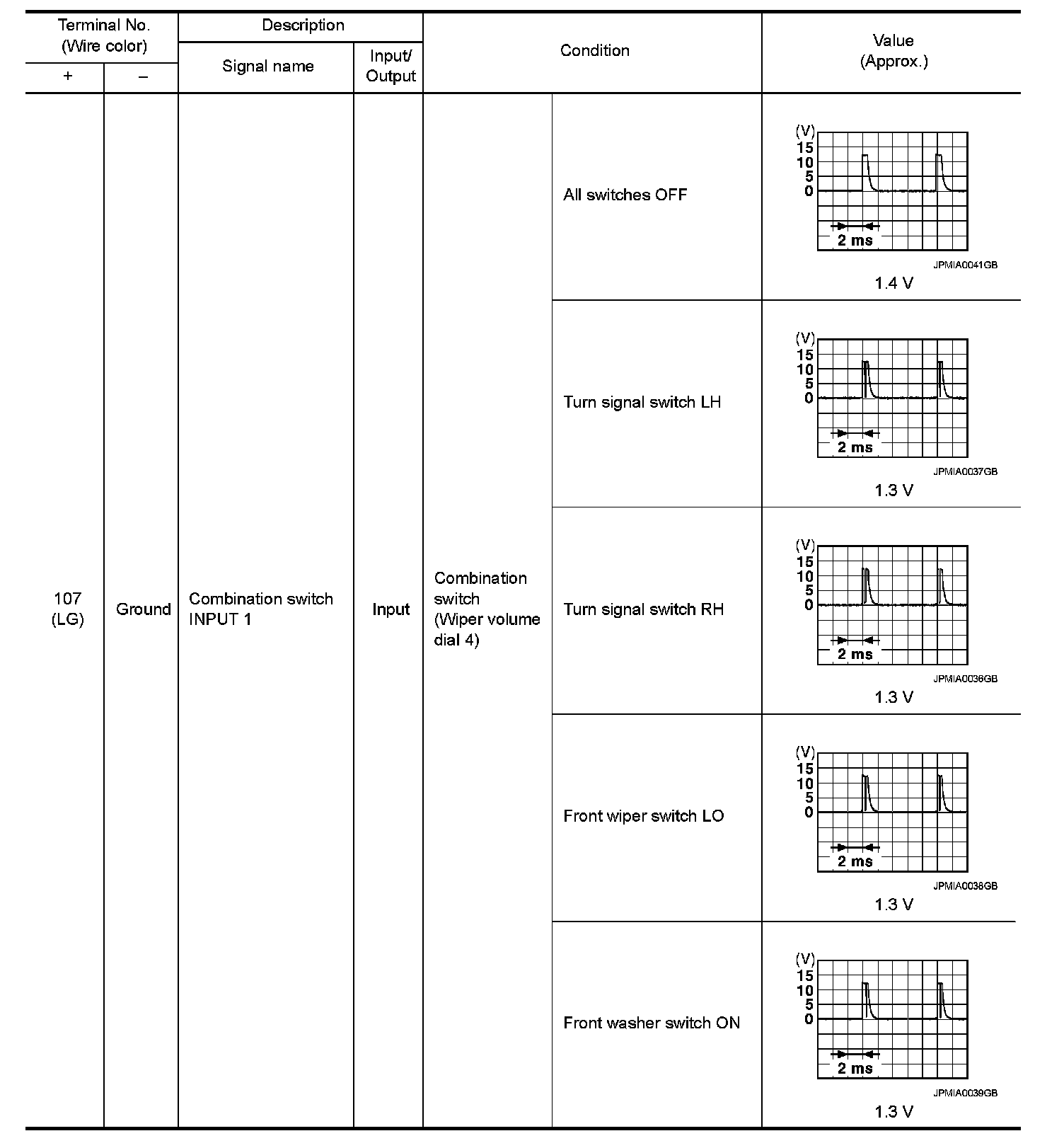

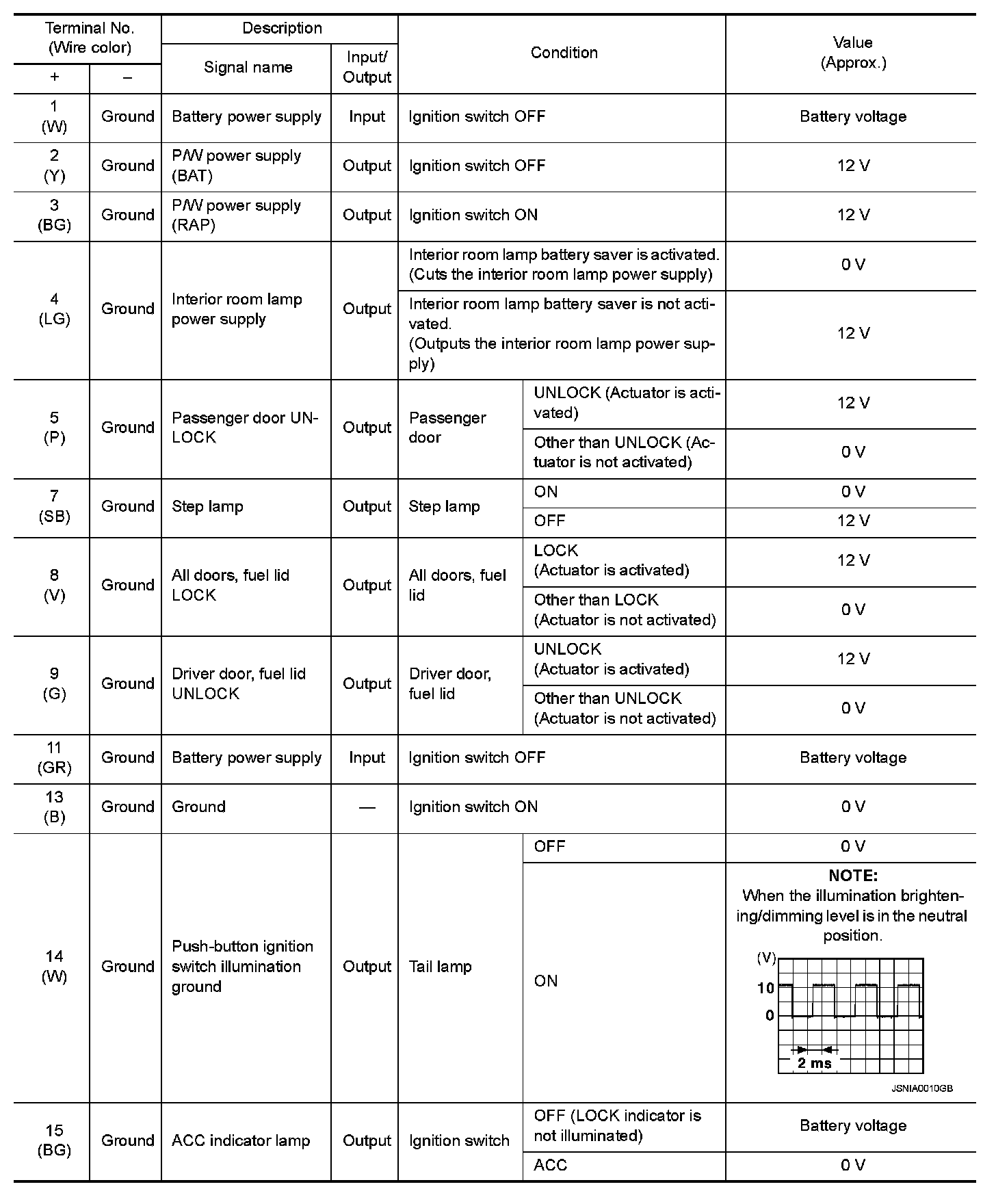

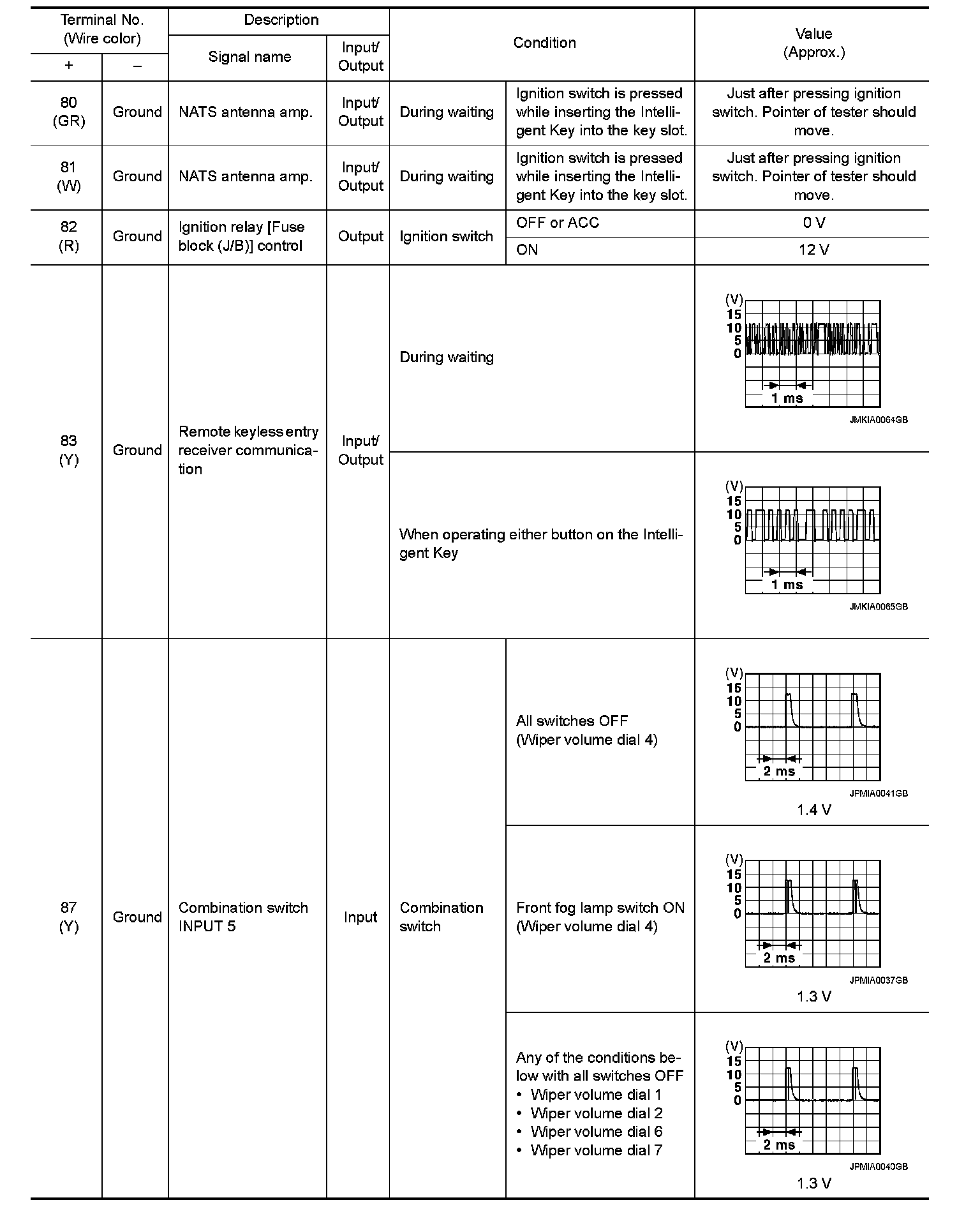

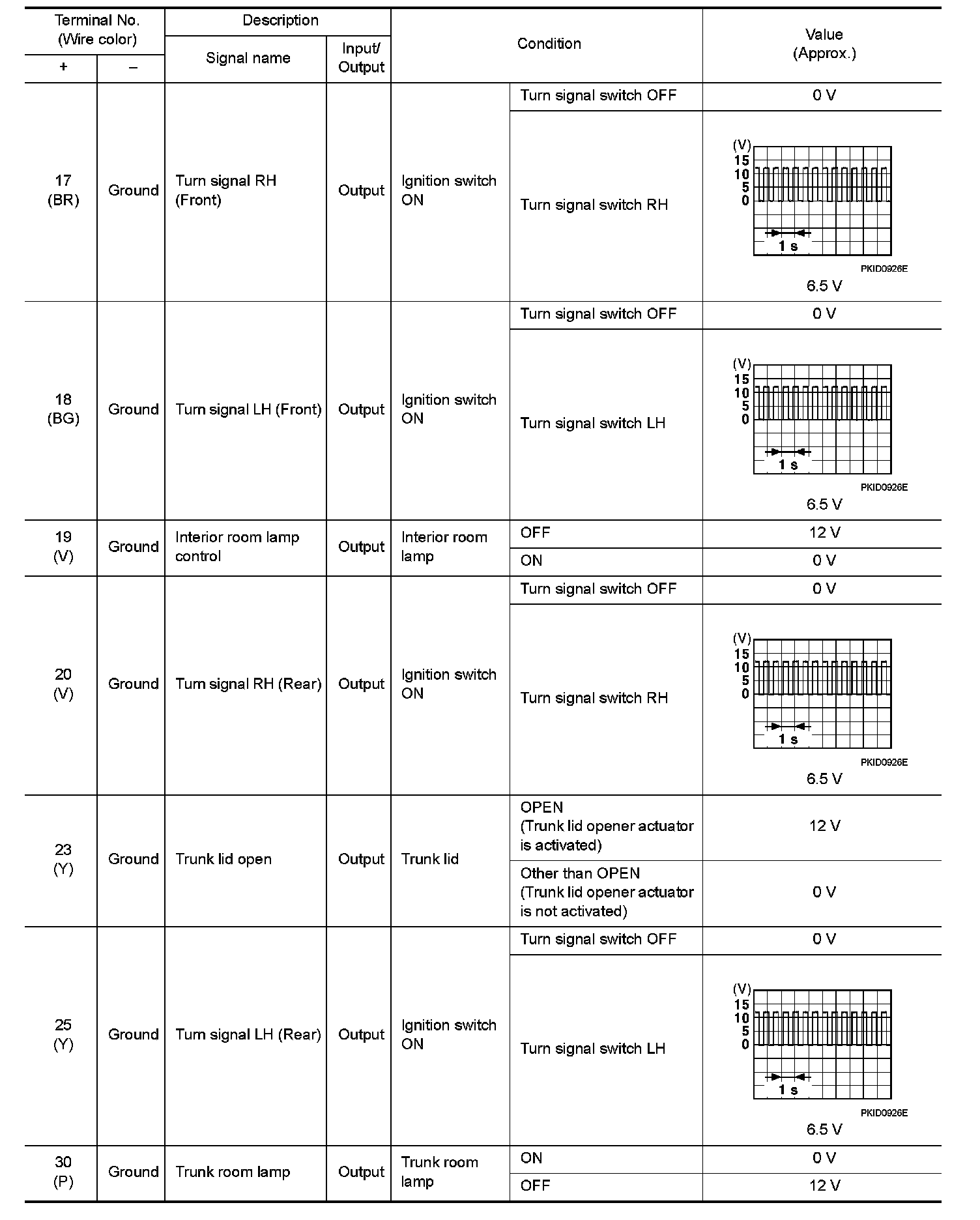

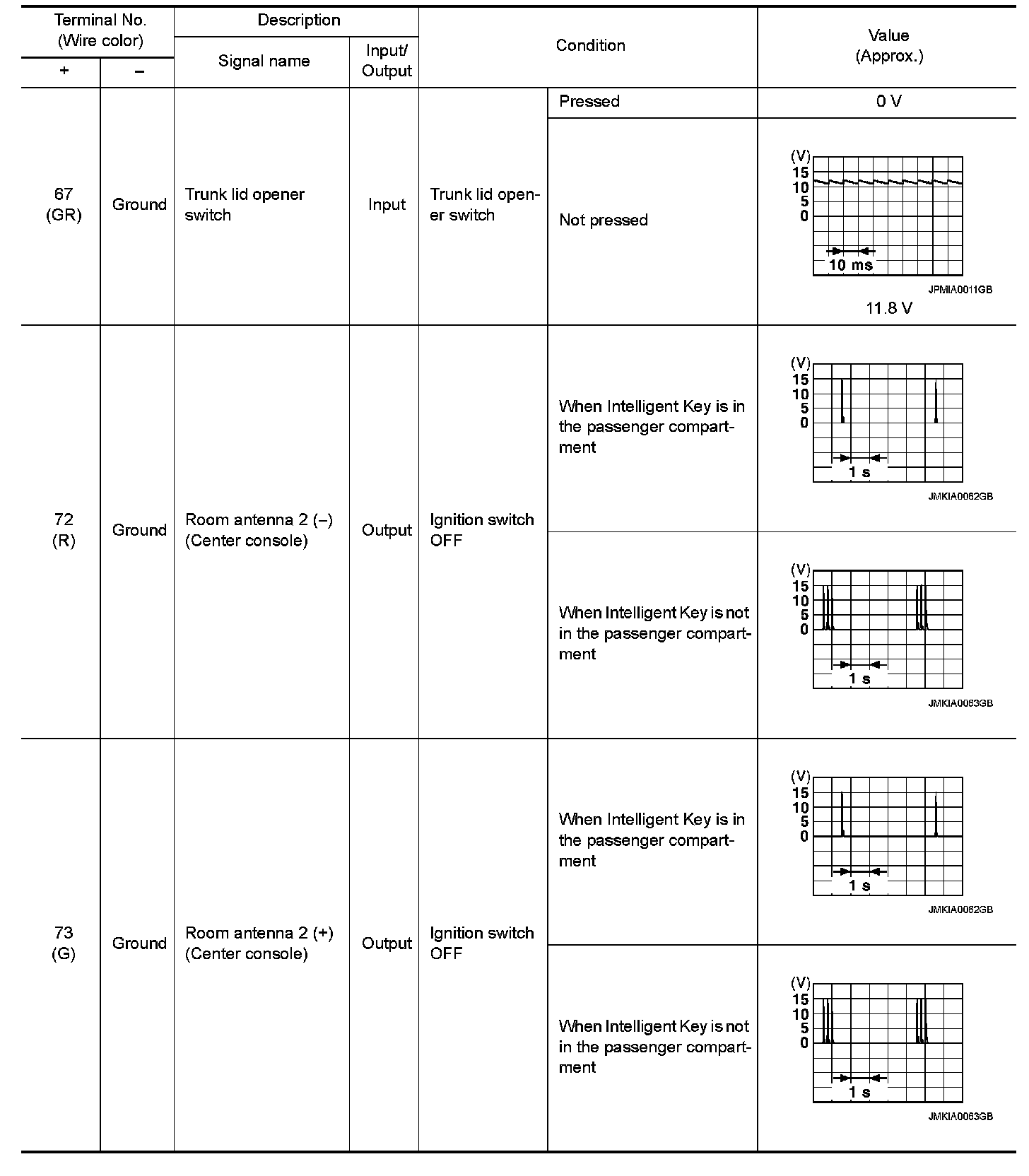

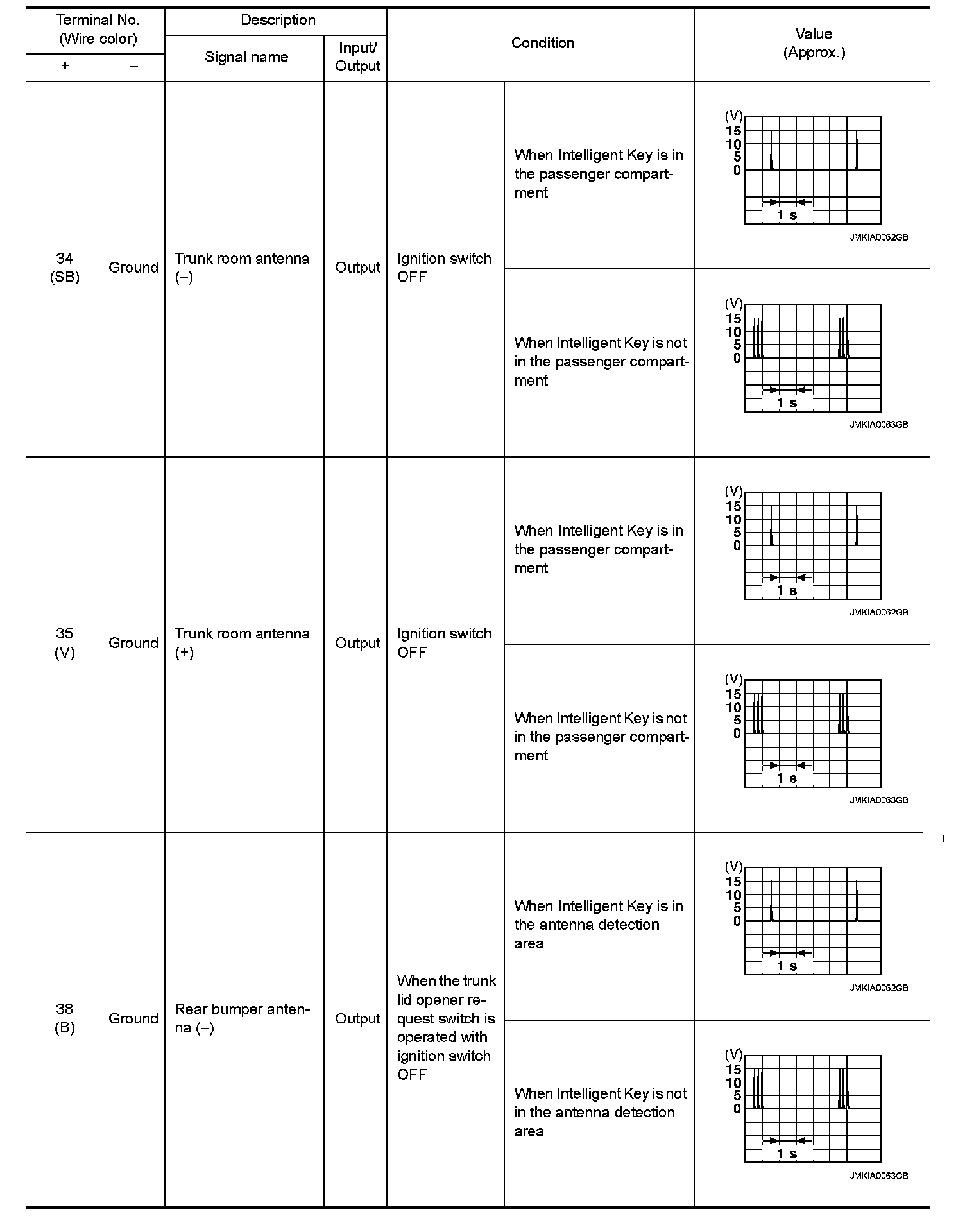

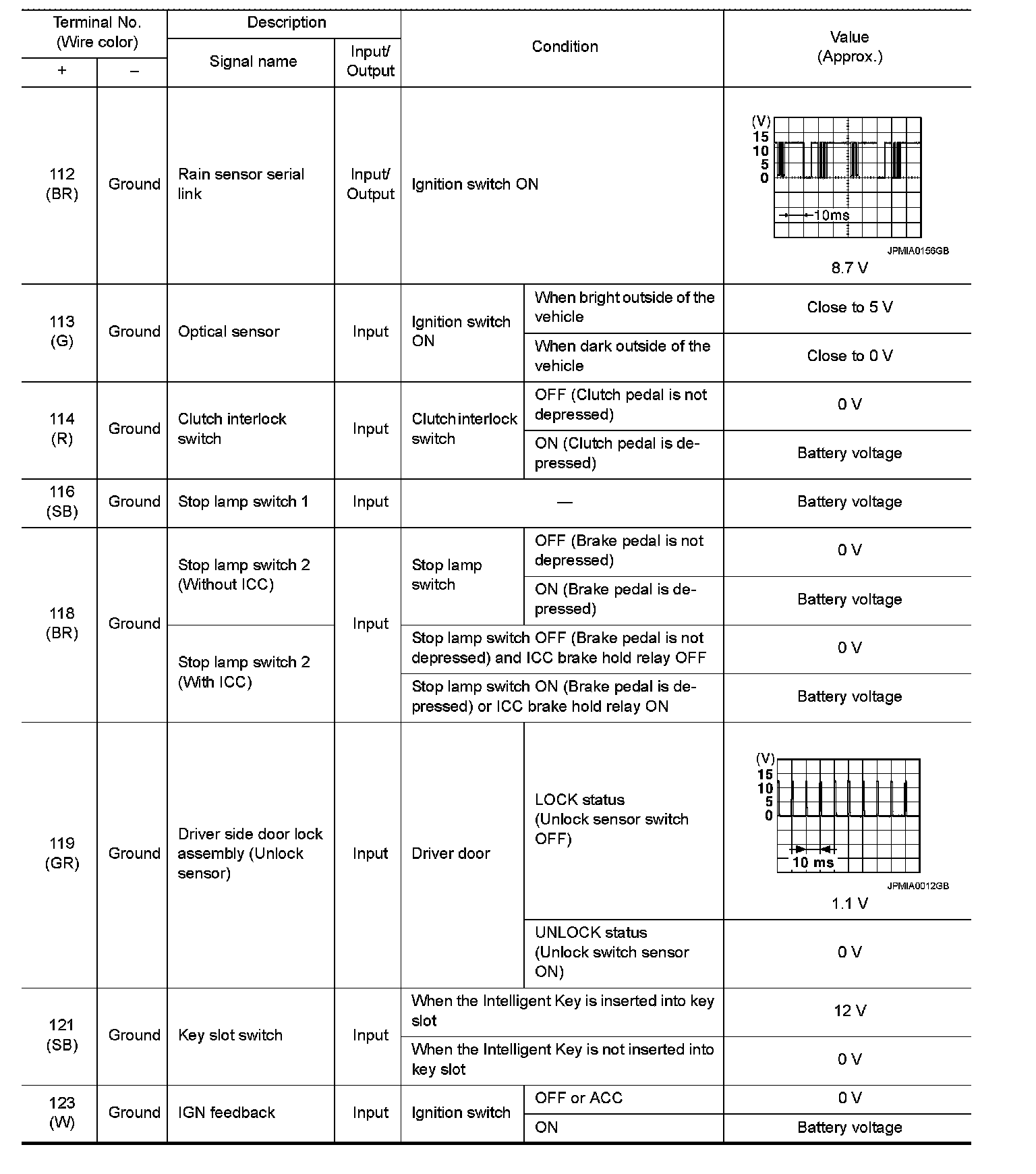

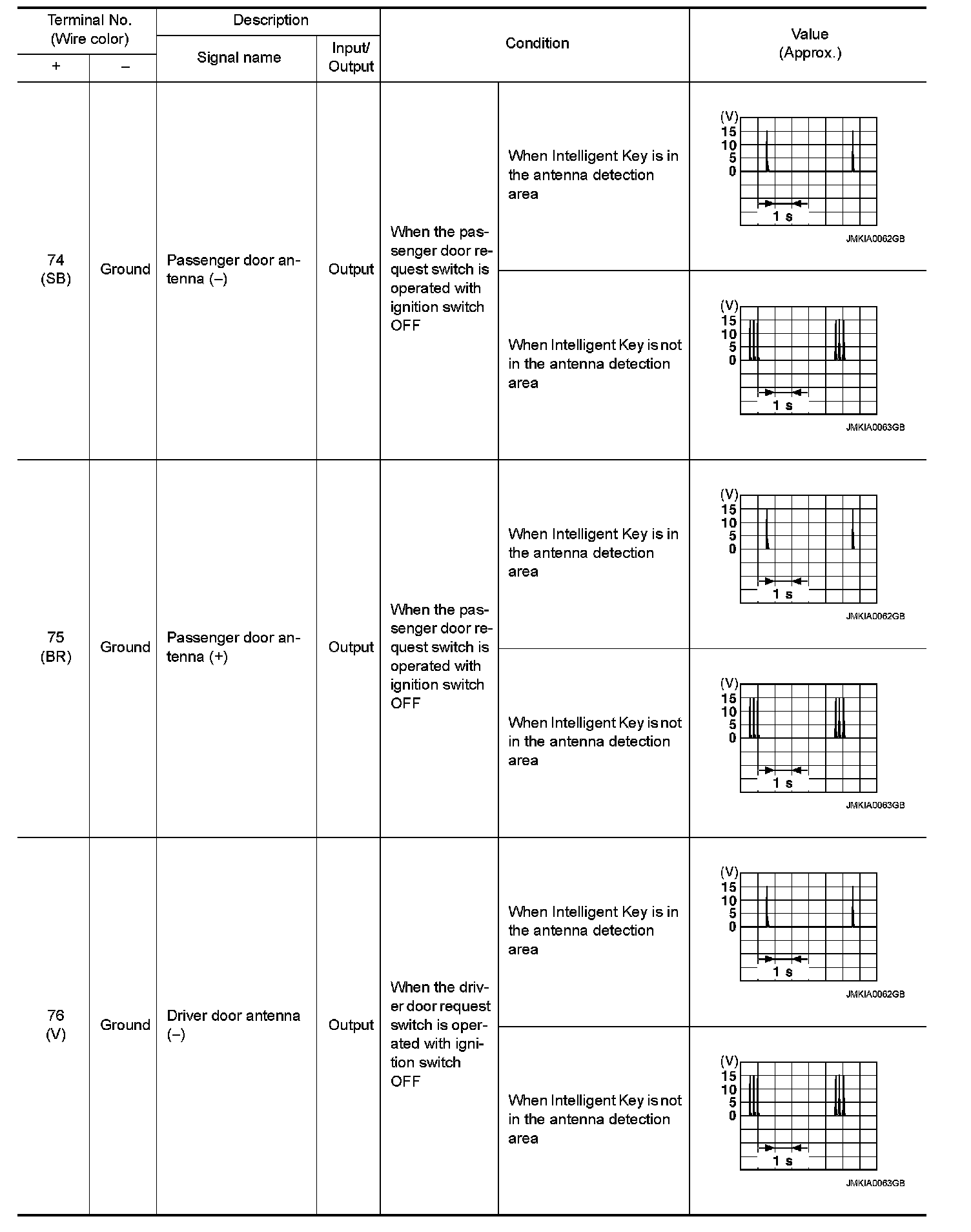

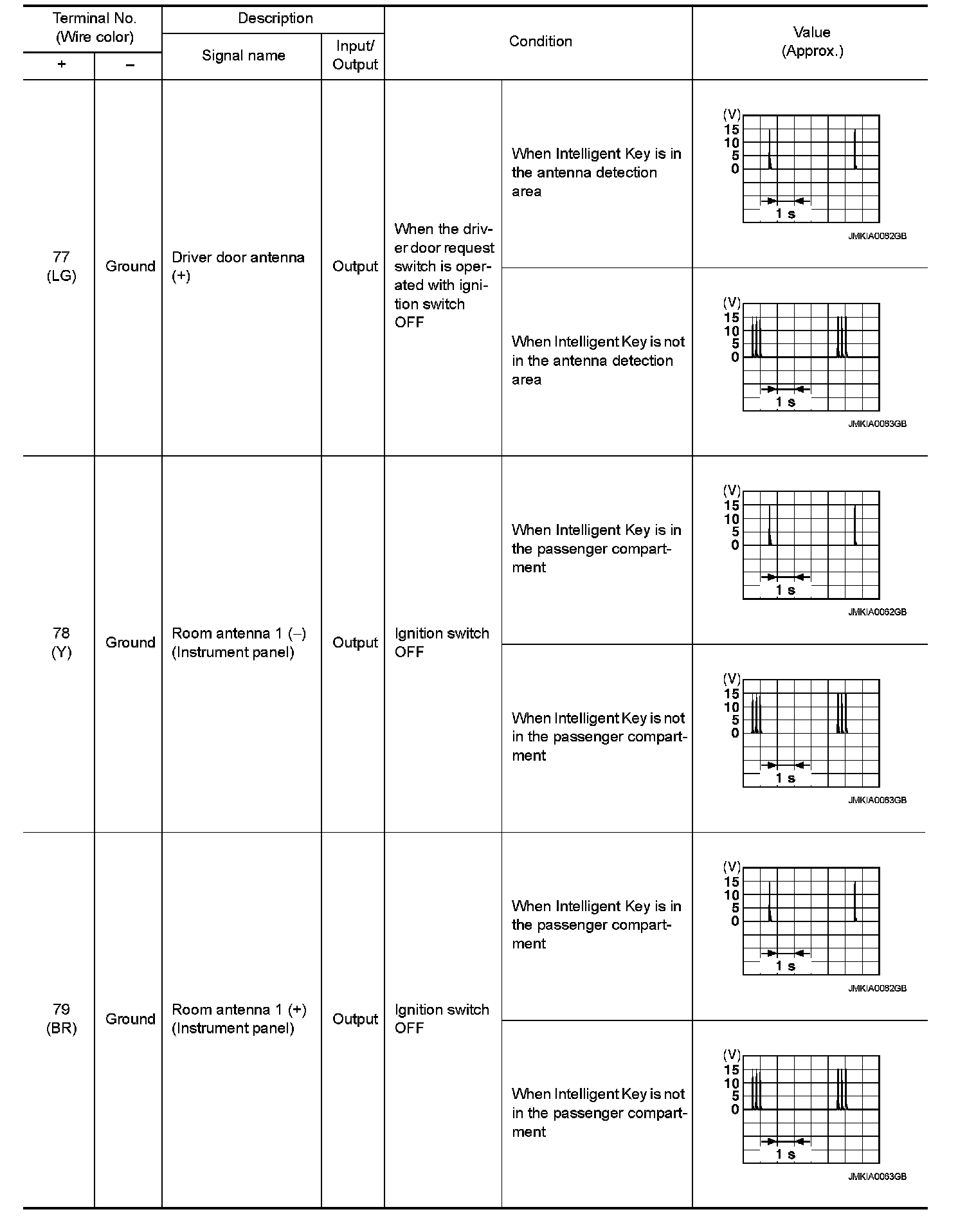

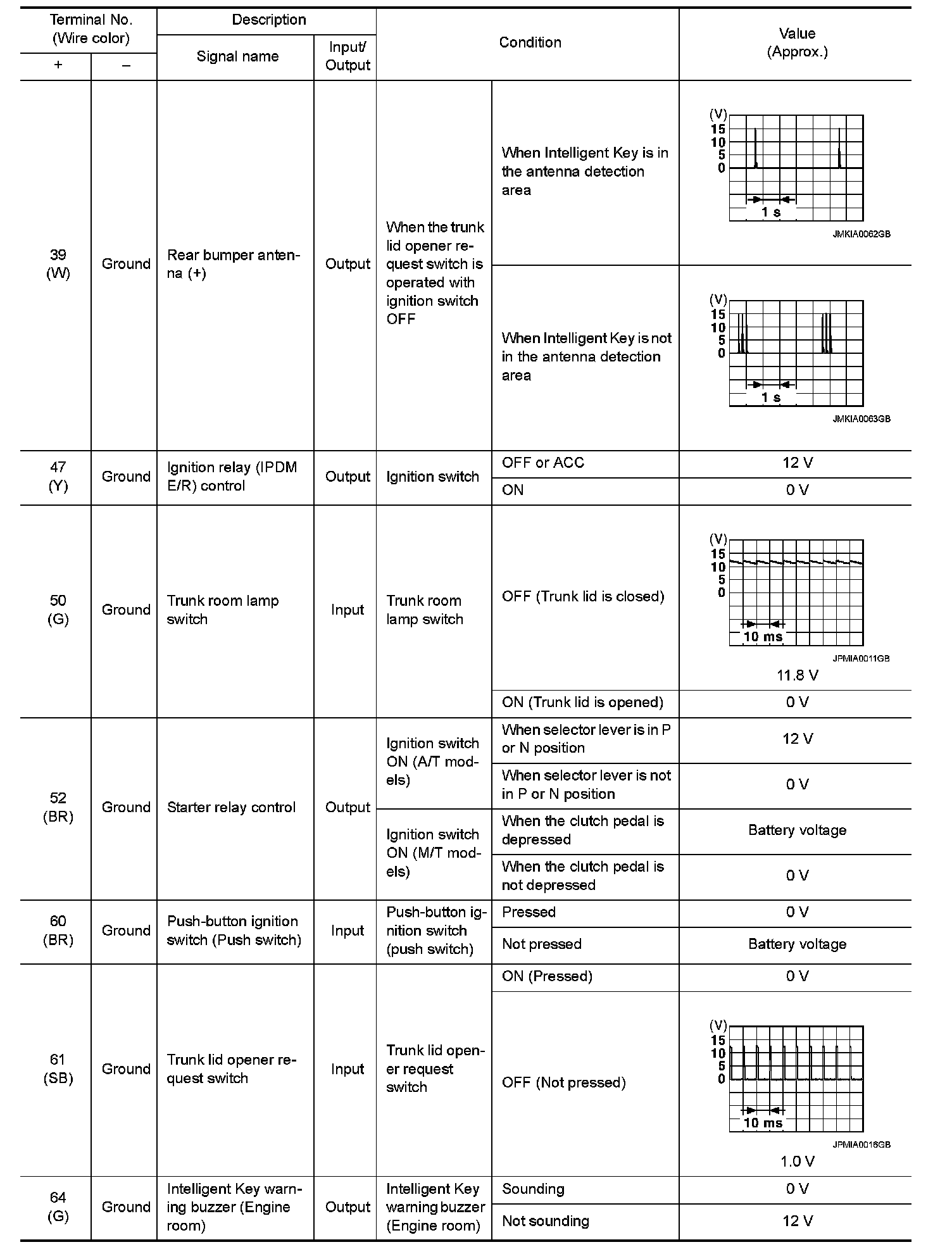

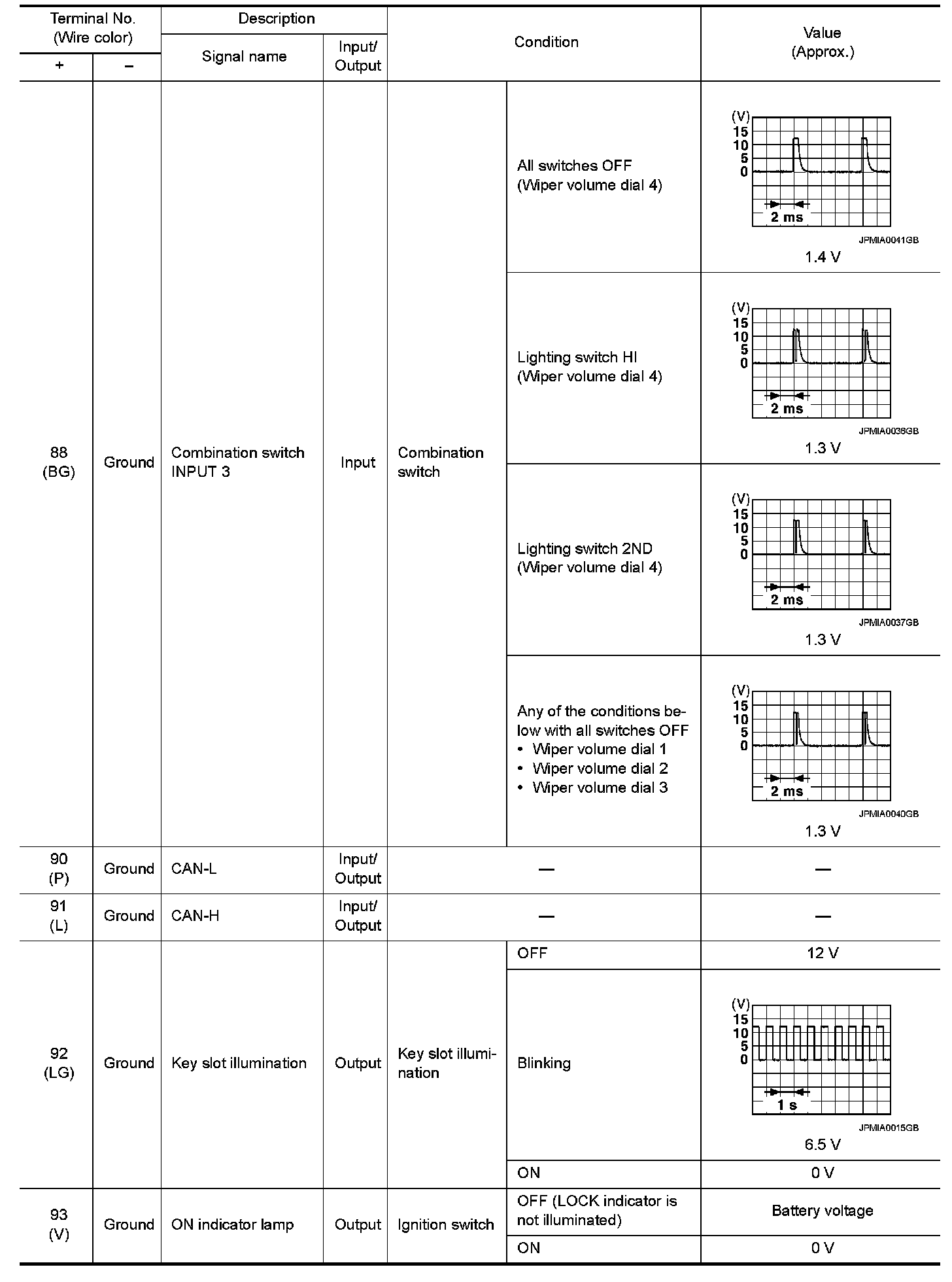

PHYSICAL VALUES
