Component Inspection

WASHER SWITCH

Component Inspection


1. CHECK WIPER SWITCH

1.Turn the ignition switch OFF.
2.Disconnect combination switch connector.

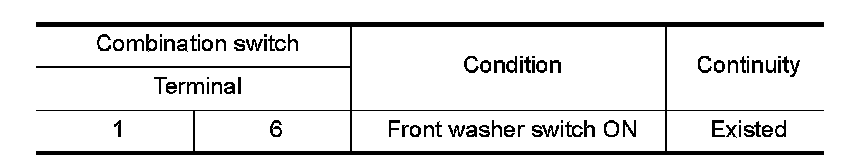

3.Check continuity between the combination switch terminals.





Does continuity exist?
YES- Wiper and washer switch is normal.
NO- Replace wiper and washer switch.
