Diagnosis Procedure

POWER WINDOW MOTOR

PASSENGER SIDE : Diagnosis Procedure


1. CHECK PASSENGER SIDE POWER WINDOW MOTOR INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect passenger side power window motor connector.
3.Turn ignition switch ON.

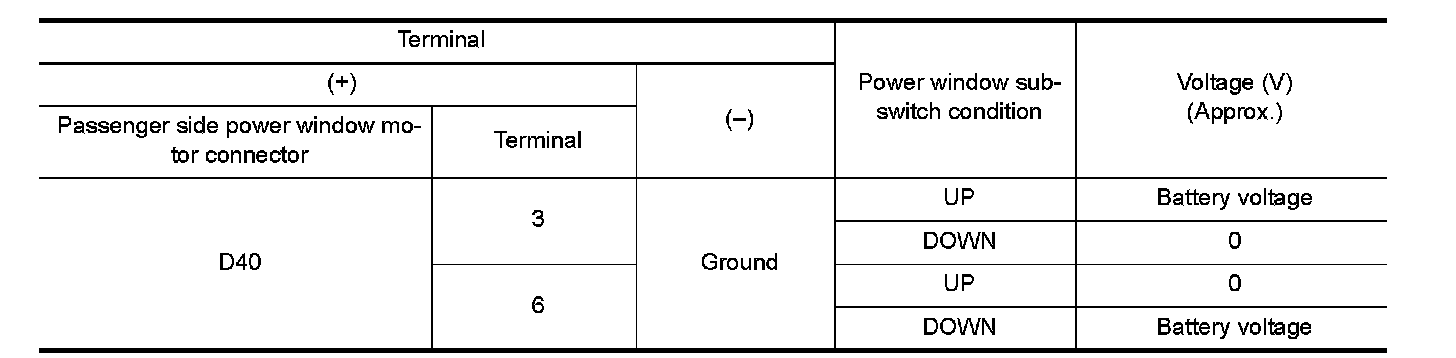

4.Check voltage between passenger side power window motor harness connector and ground.





Is the measurement value within the specification?
YES- Replace passenger side power window motor. Refer to "Removal and Installation" Removal and Installation.
NO- GO TO 2.

2. CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

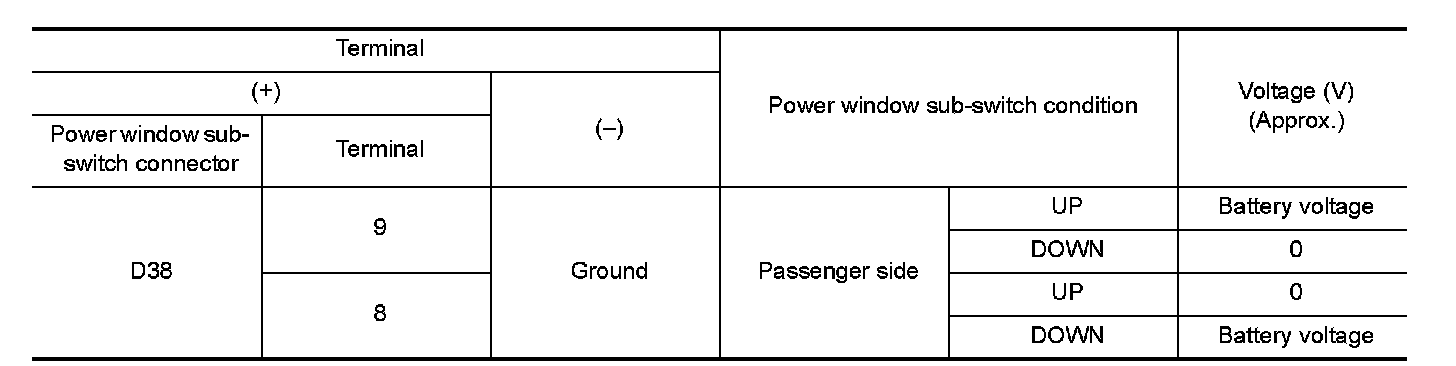

Check voltage between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Replace power window sub-switch. Refer to "Removal and Installation" Service and Repair.

3. CHECK HARNESS CONTINUITY

1.Turn ignition switch OFF.
2.Disconnect power window sub-switch connector.

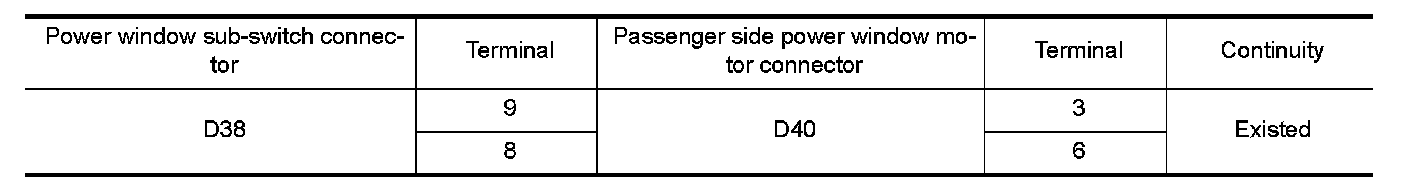

3.Check continuity between power window sub-switch harness connector and passenger side power window motor harness connector.

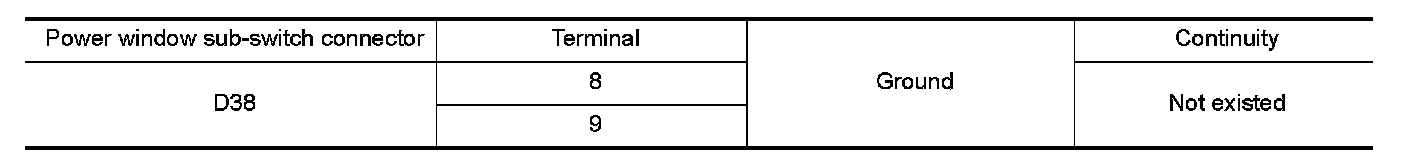

4.Check continuity between power window sub-switch connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK INTERMITTENT INCIDENT

Refer to "Intermittent Incident" Intermittent Incident.
- INSPECTION END
